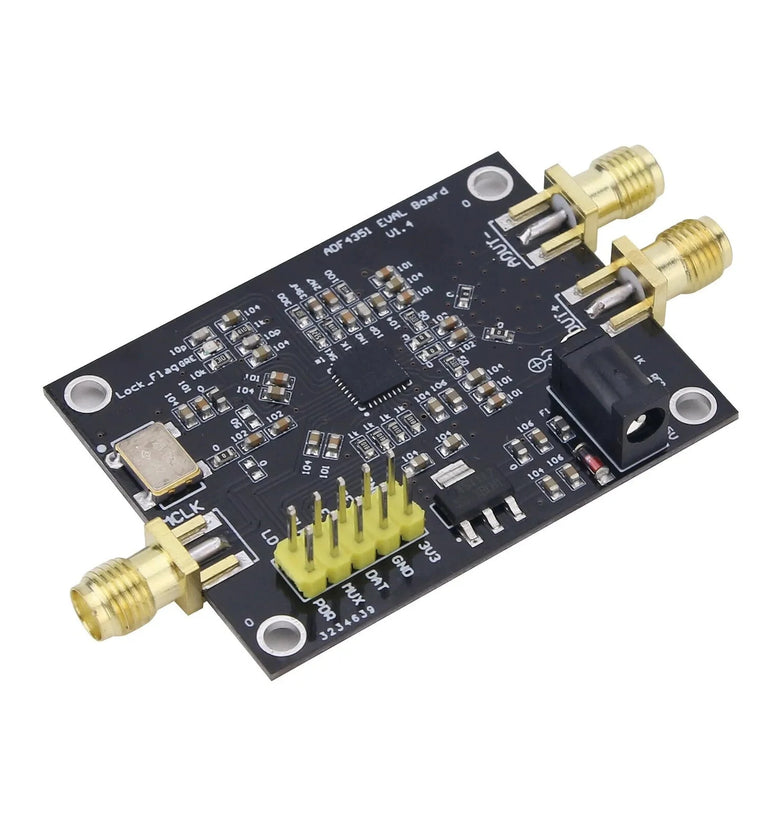

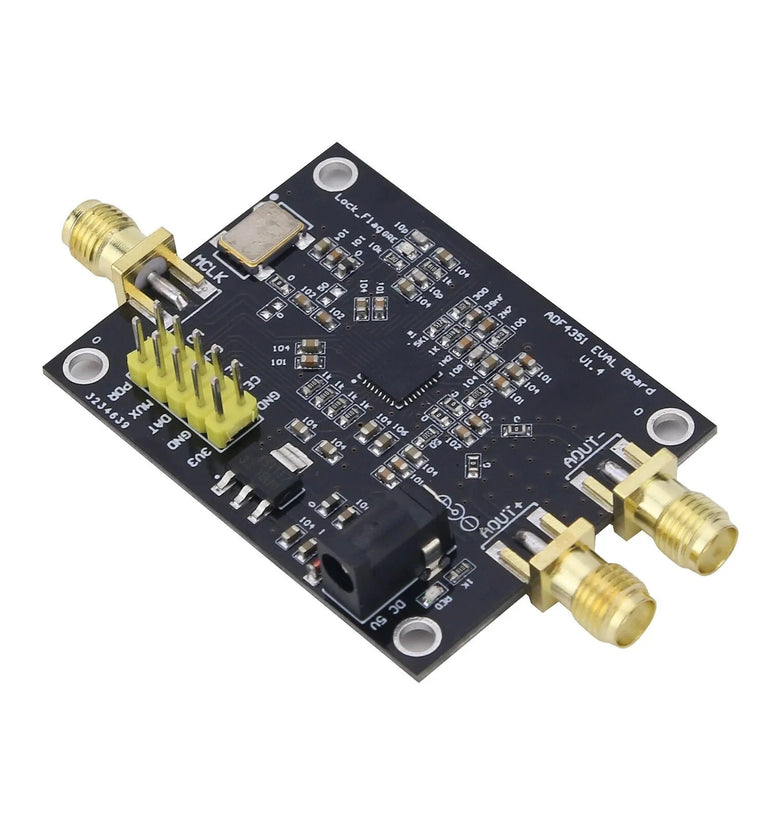

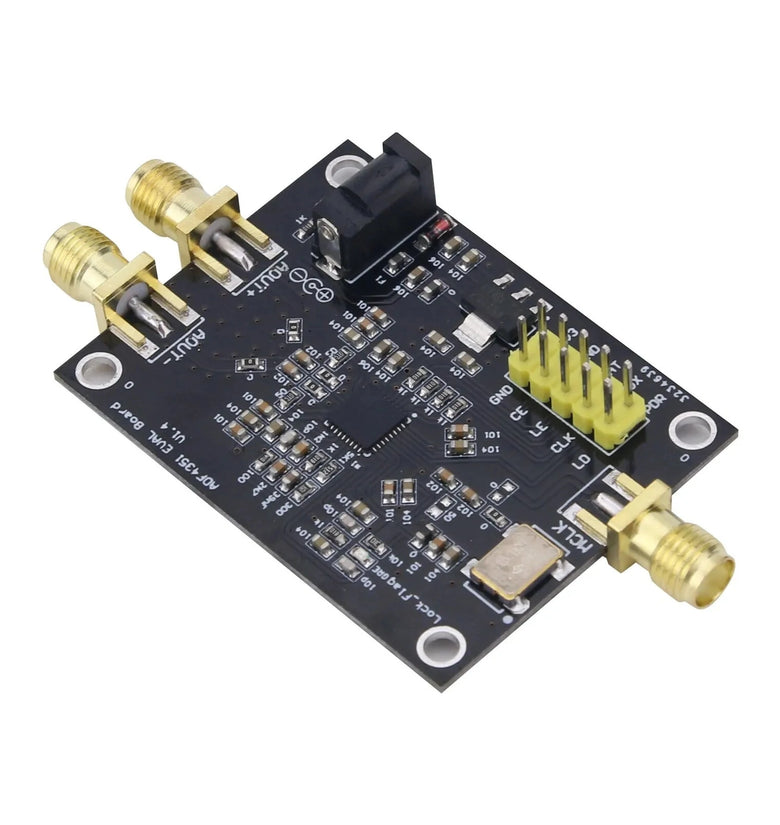

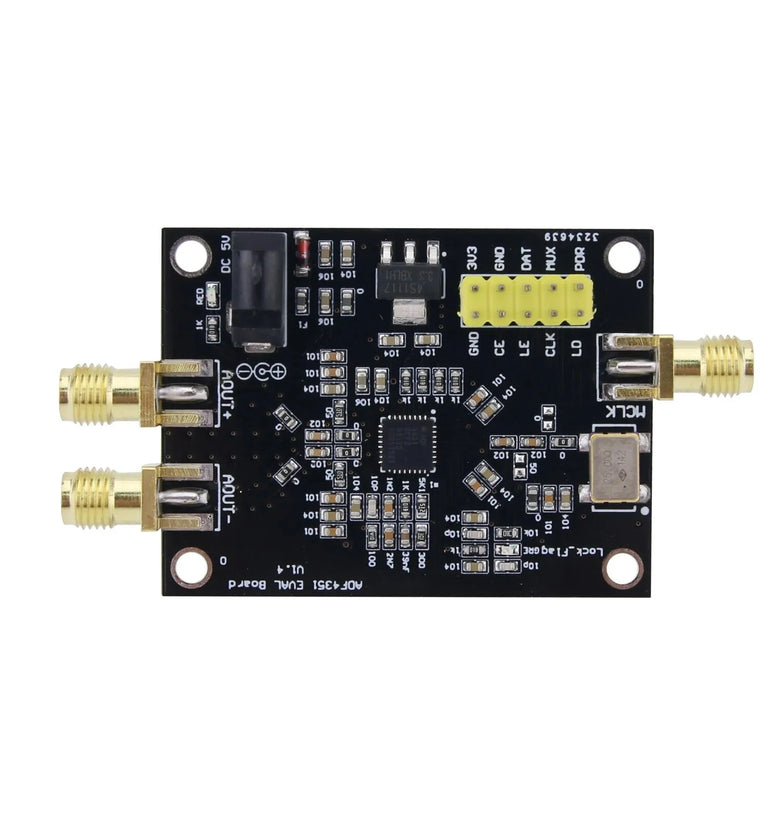

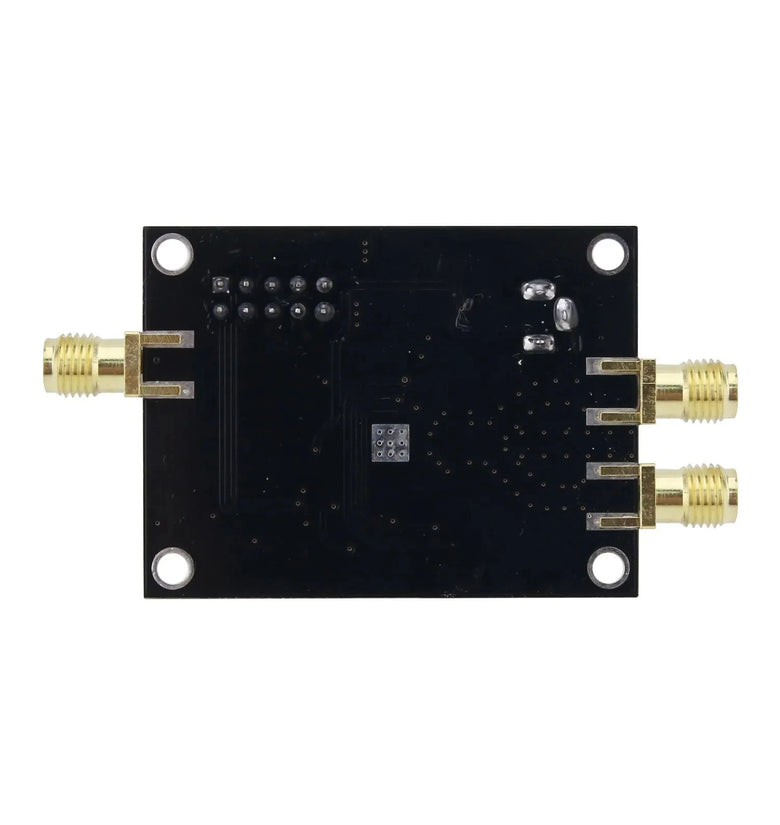

Description:The core chip uses ADF4351, which is optimized according to the official principles and has extremely high power flatness within the entire module working frequency band.Parameters:
>>>Manual: Click here to open<<<Output frequency range: ADF4351:35M-4400M(4.4G)Output signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (wave square)Output signal interface: SMA femaleDefault +-50ppm 25M imported active crystal oscillator. Provides circuit diagram and STM32 test program in PDF format.Control method: three-wire SPI. Leads out control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping. The step can be up to 1K and the low frequency step can be up to 0.1K, according to the crystal frequency. Decide. Packaging weight 30 grams, packaging size 13cm*8.5cm*2.5cmPrecautions:1. It can be powered by 3.3v pin, and the power supply can provide a current of not less than 500mA.2. The typical power supply is 5v.Package includes:1 x 35M-4400M RF signal generation module
