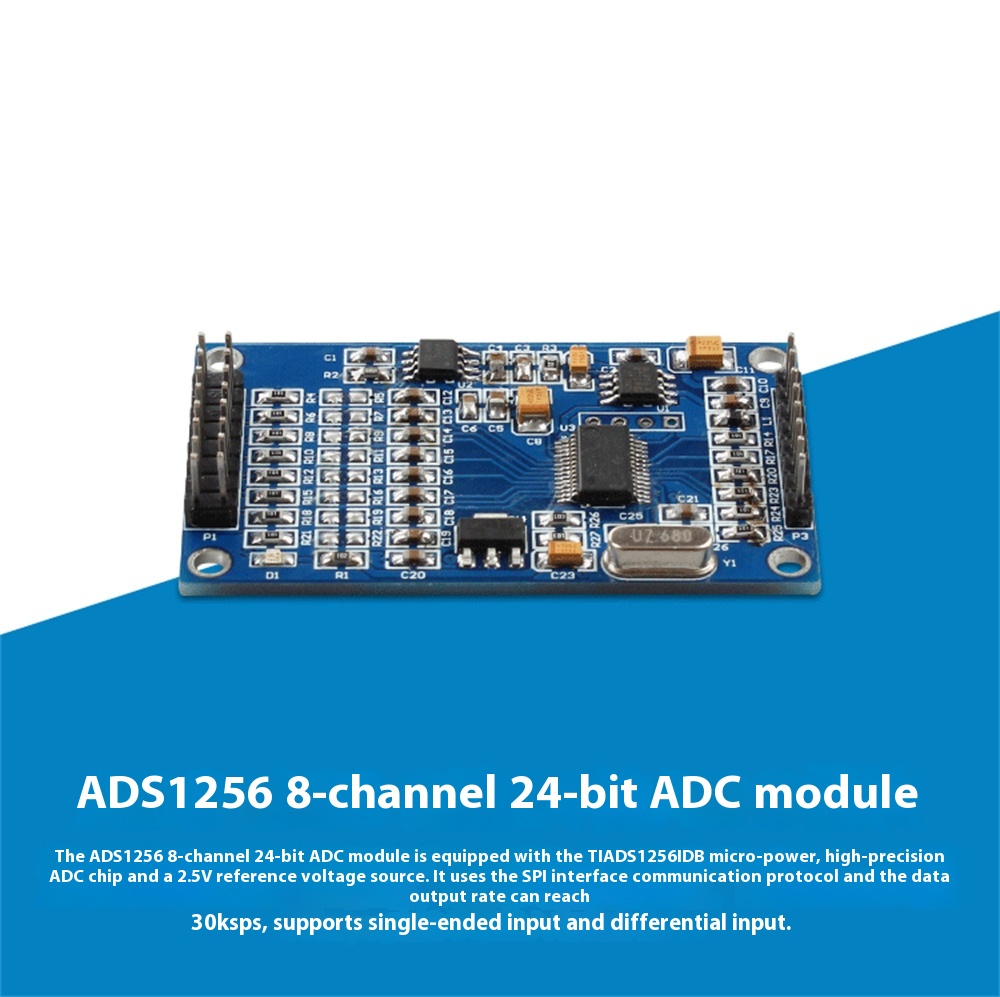

Use chip:ADS1256IDB

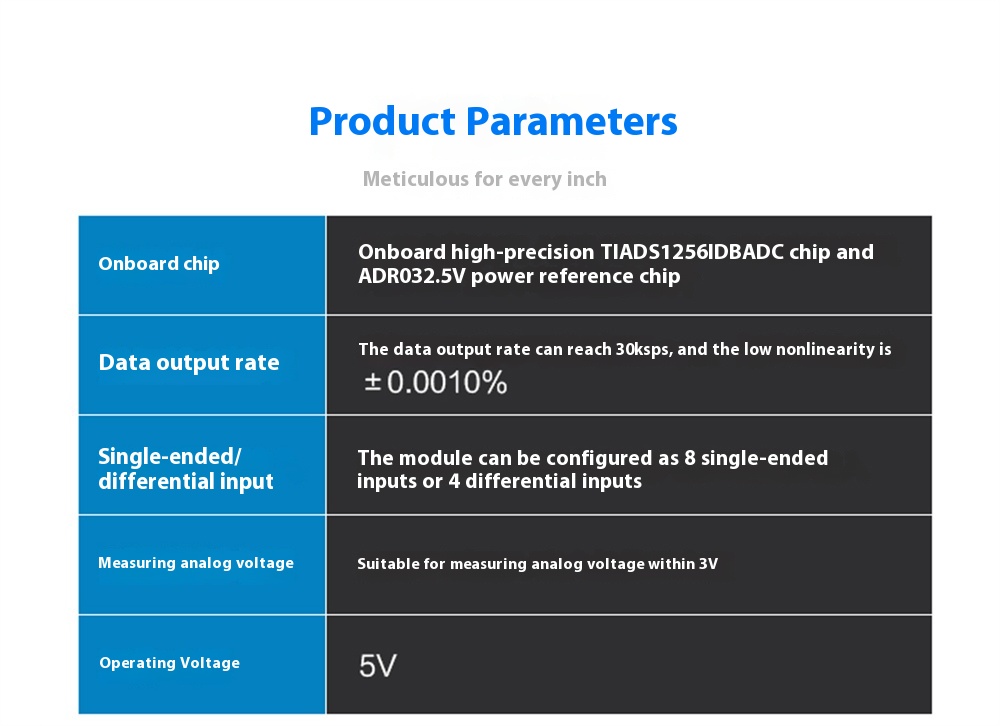

Output rate :up to 30ksps, low nonlinearity is ± 0.0010%;

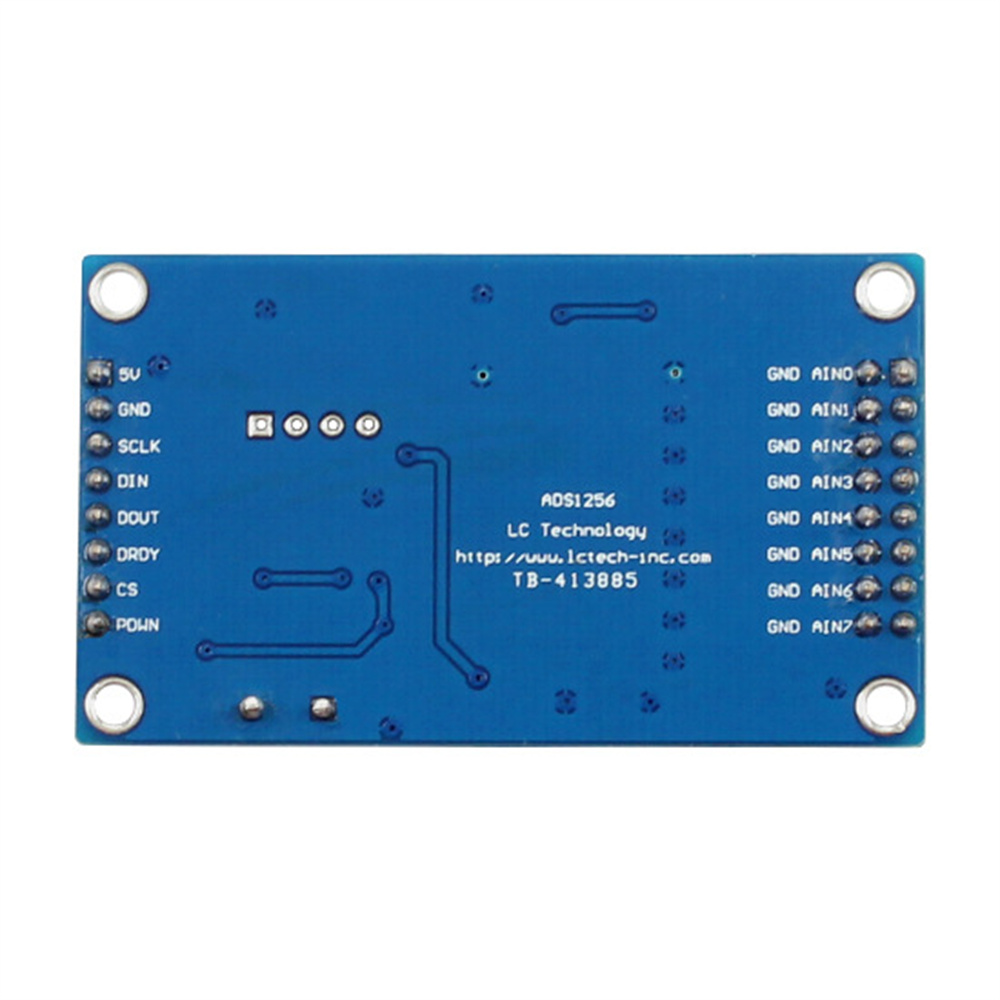

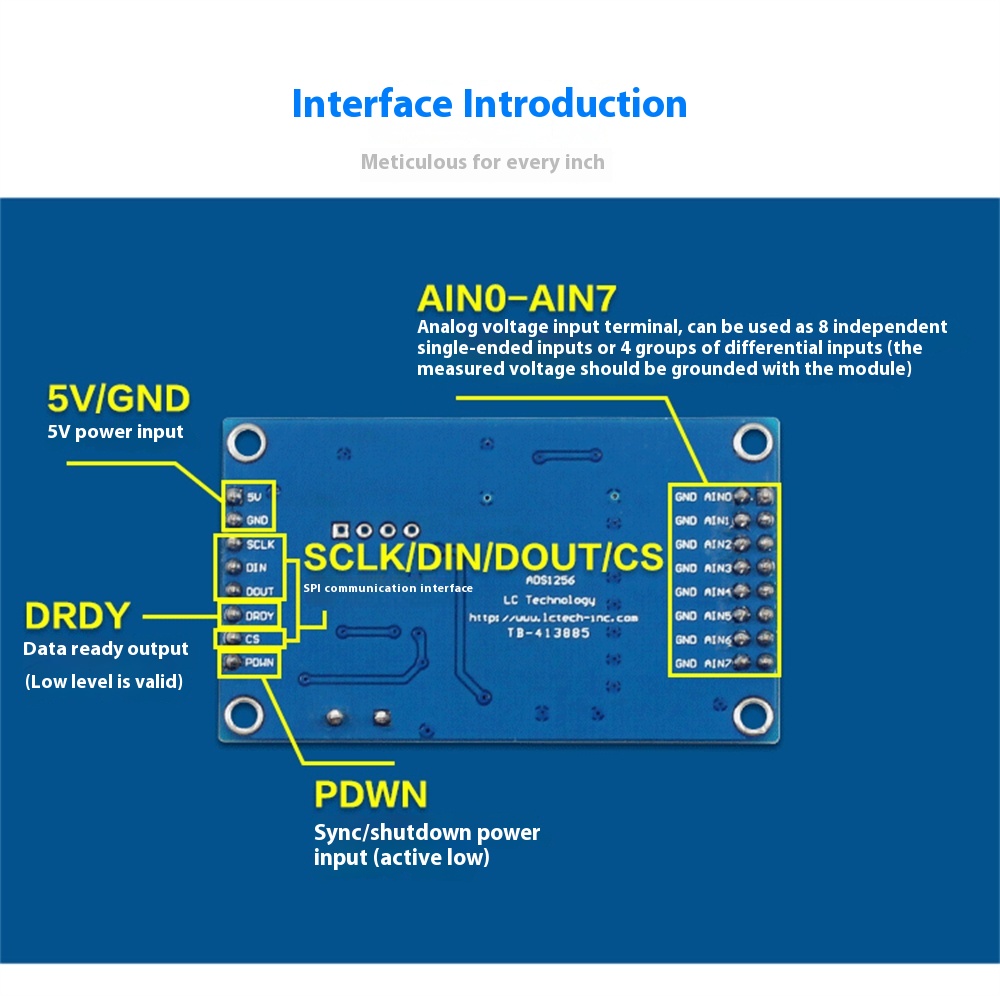

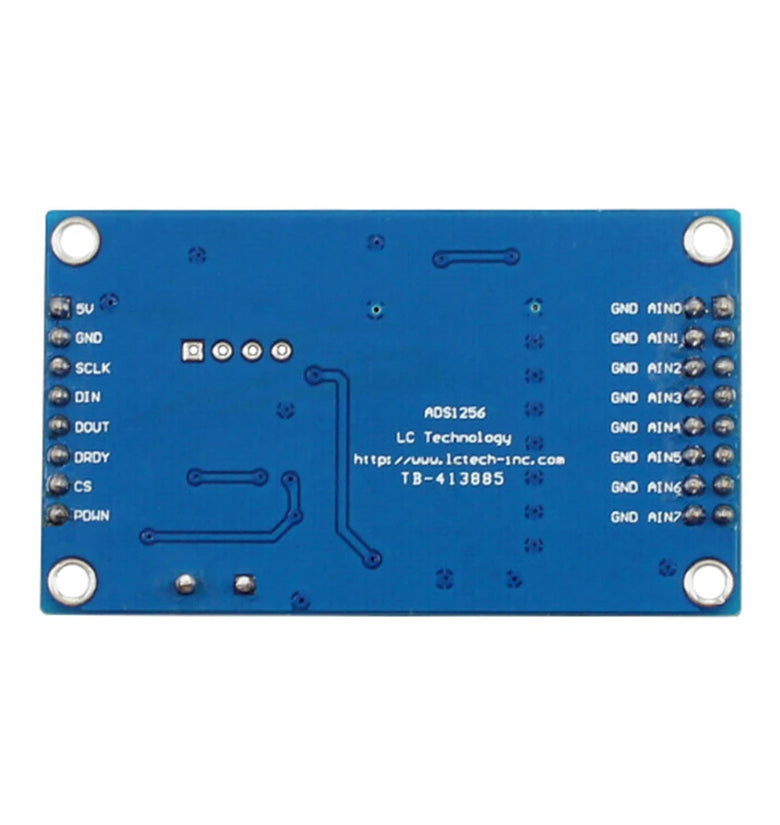

Single-ended / differential input :the module can be configured as 8 single-ended inputs or 4 differential inputs;
Working voltage :5V

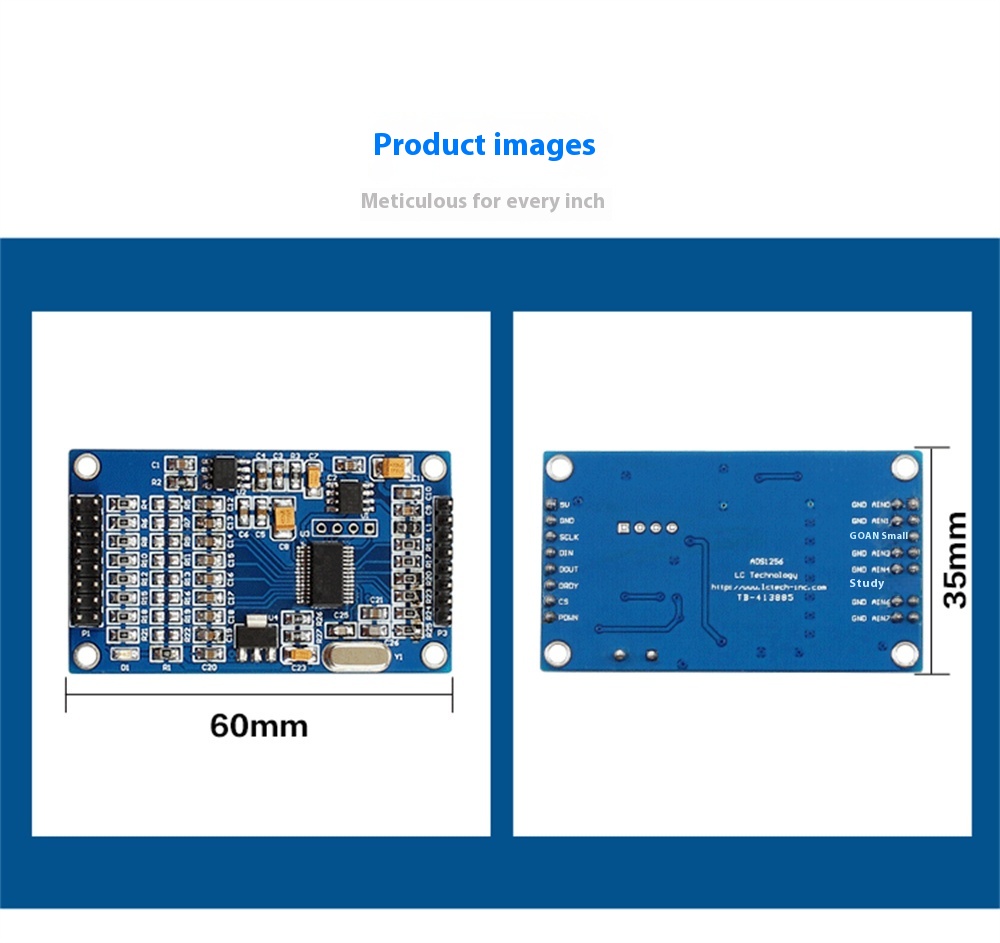

Size:60*35mm
Features:

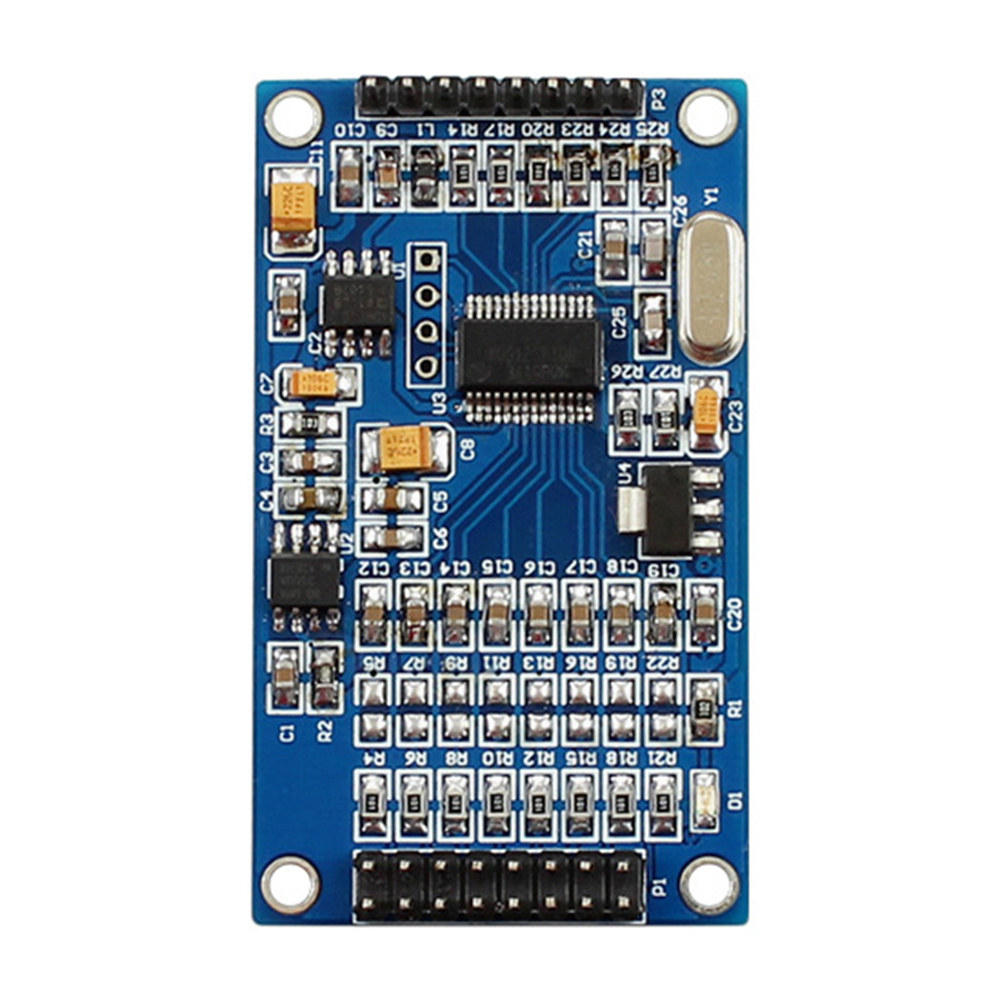

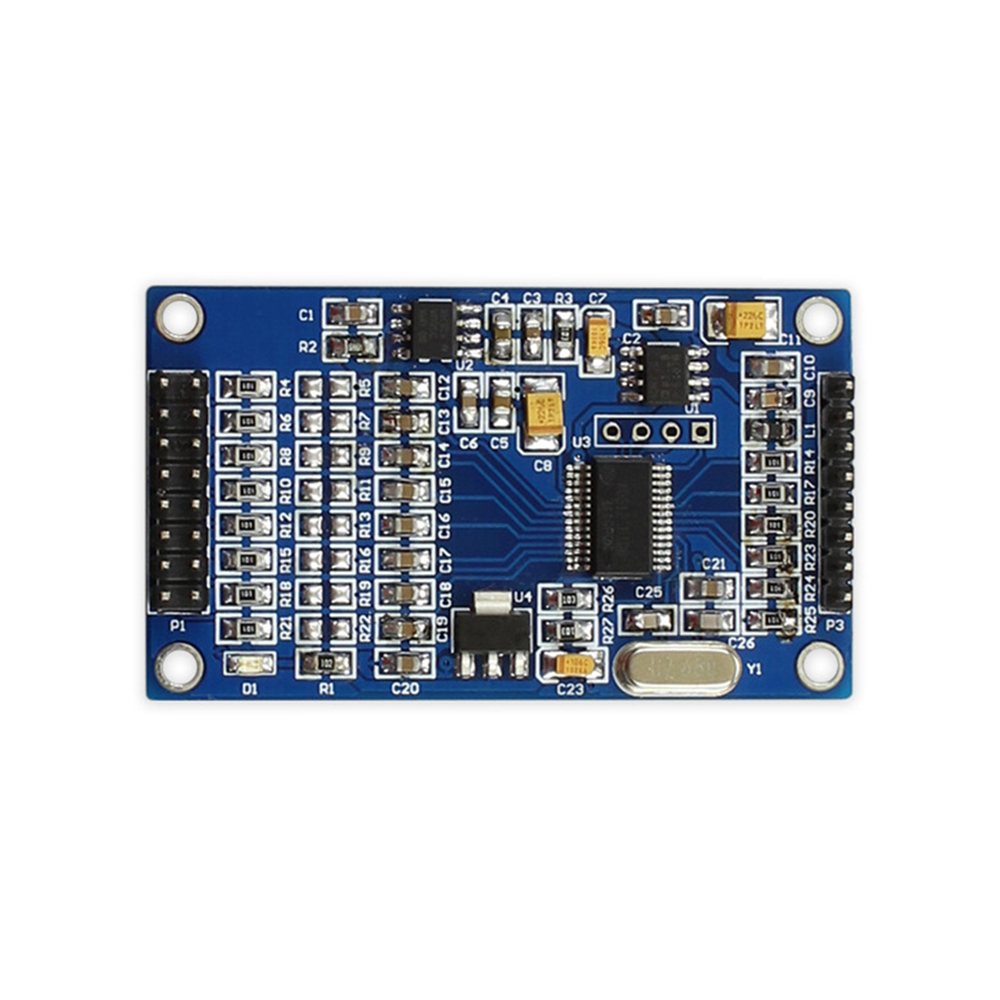

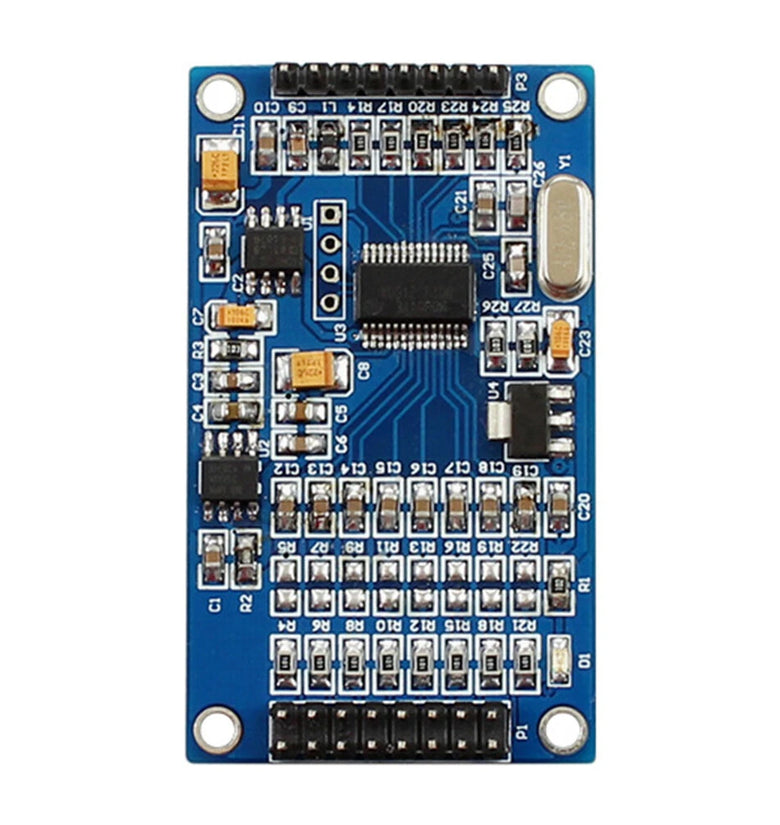

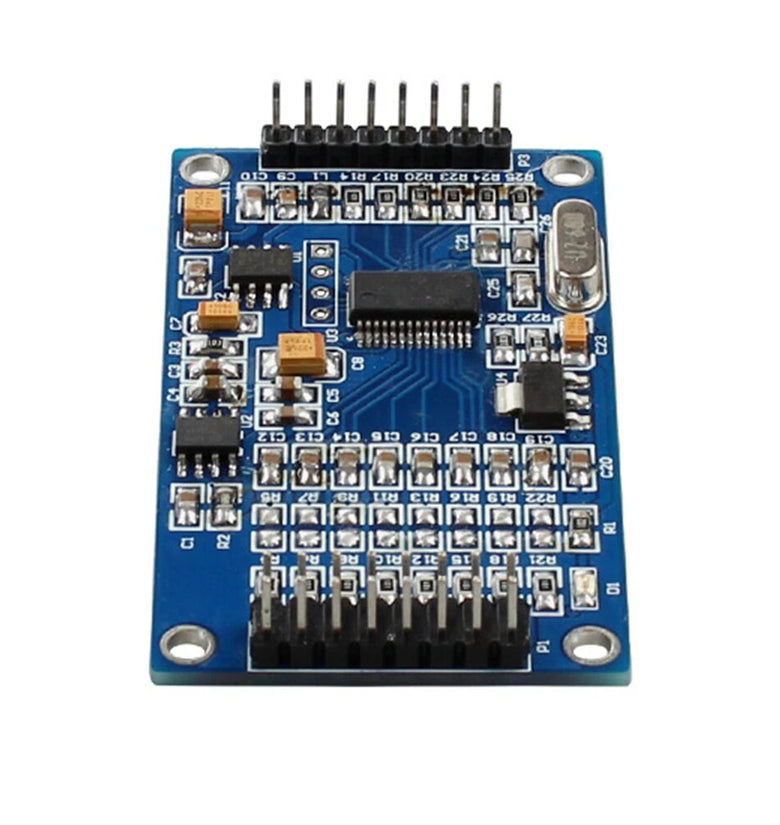

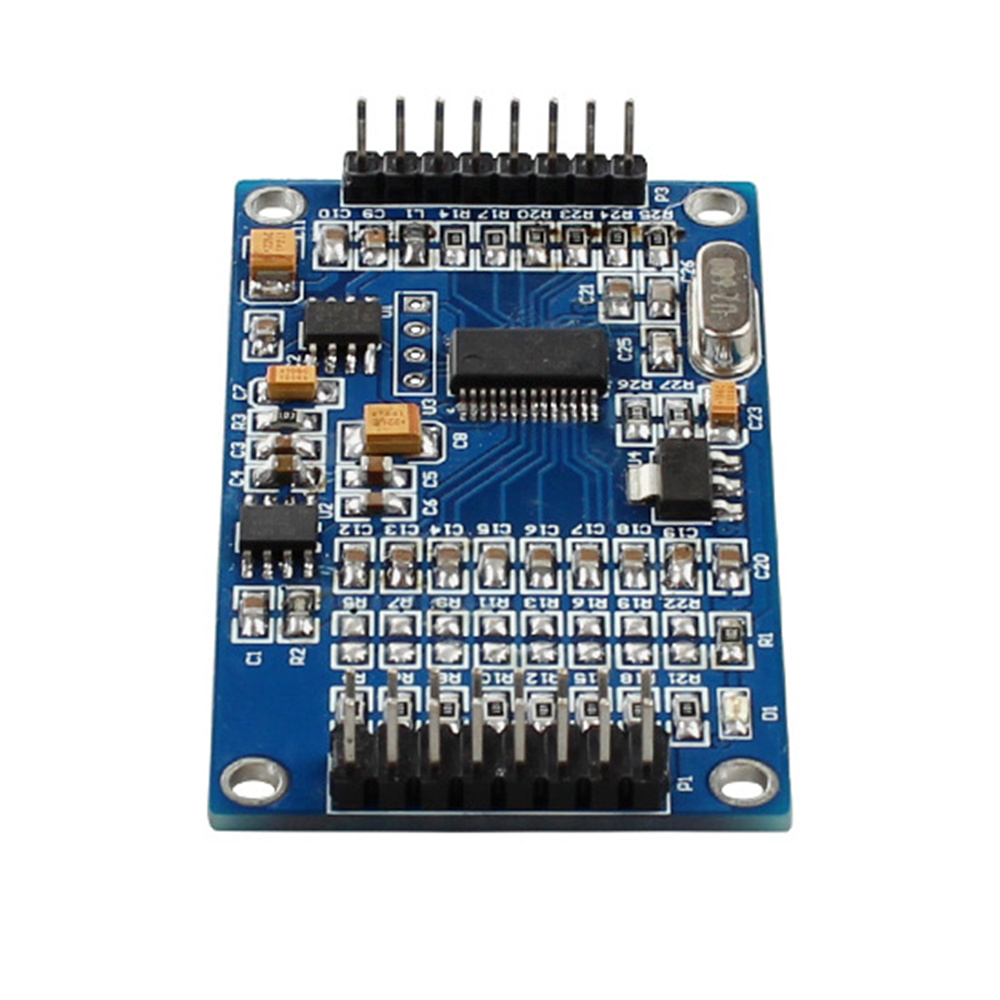

1.On-board high precision TI ADS1256IDB ADC chips
2.On-board ADR03 2.5V datum voltage source chips
3.Data output rates up to 30ksps, nonlinearity is low to ±0.0010%
4.The module can be configured as either 8 single-ended inputs or 4 differential inputs
5.ADS1256 module is suitable for measuring analog voltage within 3V
6.Module operating voltage is 5V
Package includes:
1 x Module
(The other items are not includes)
