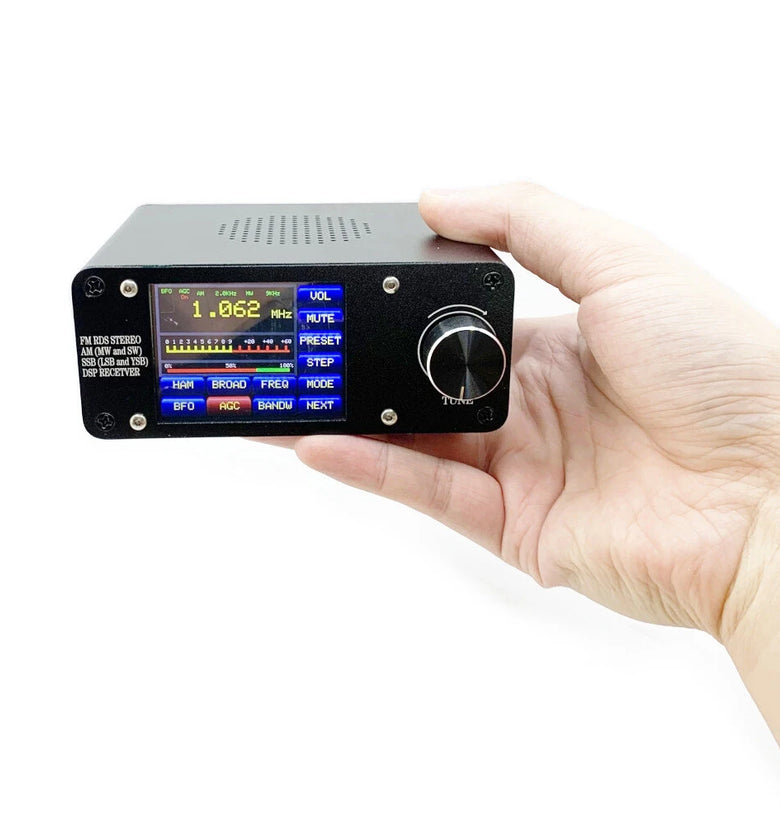

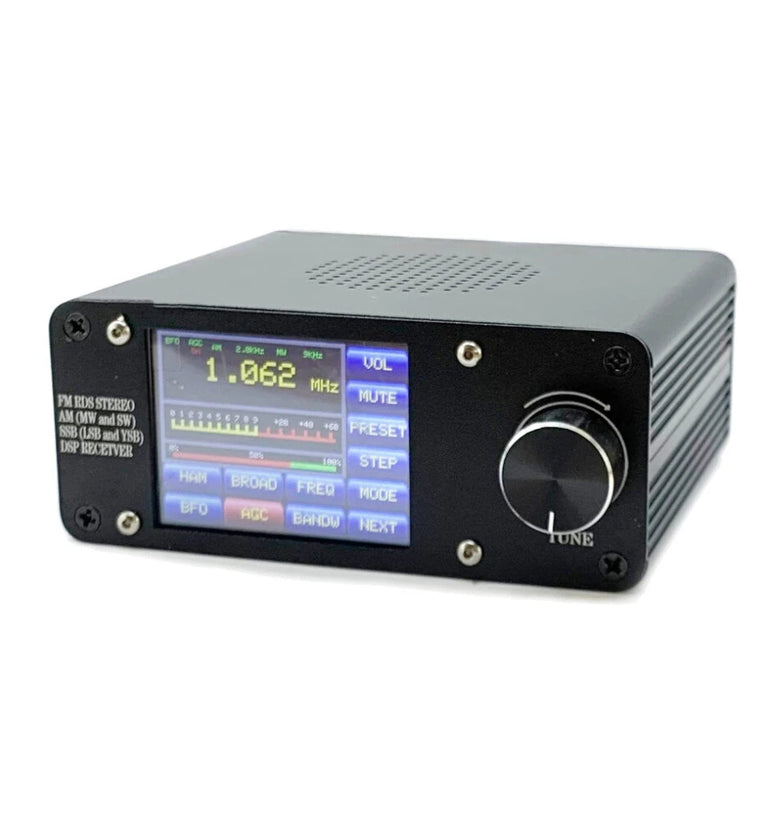

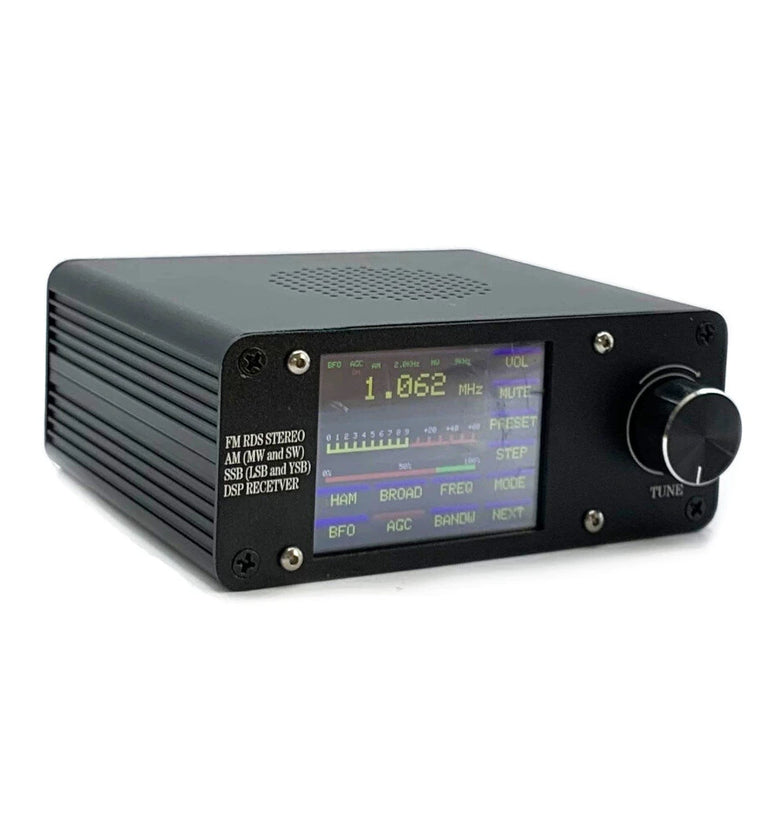

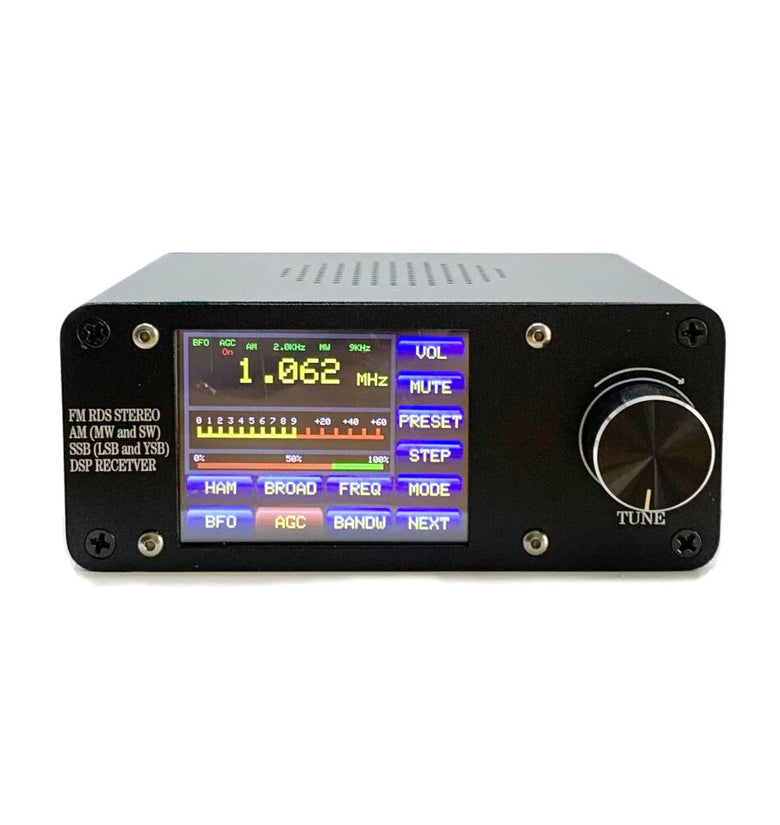

1. Full touch screen operation: 2.4-inch TFT high-definition touch screen, support encoder-assisted control, intuitive and convenient operation.
2. Multi-mode reception: support FM, AM (medium wave/short wave), SSB (LSB/USB), covering broadcast and amateur radio needs.
3. Long-lasting battery life: built-in 3.7V 1000mAh polymer lithium battery, Type-C charging interface, charging cable included.
4. Flexible audio output: support 3.5mm headphone interface and 4Ω/2W speaker, suitable for a variety of scenarios.
5. Scalable design: built-in SI4732 chip; PCB reserves Si4735 chip package, users can replace compatible chips by themselves.
6. Intelligent storage function: automatically save user settings when power is off, no need for repeated configuration.
Detailed parameters:
Display: 2.4-inch full touch TFT screen
Battery capacity: 3.7V 1000mAh polymer lithium battery
Charging interface: USB Type-C, plug and play

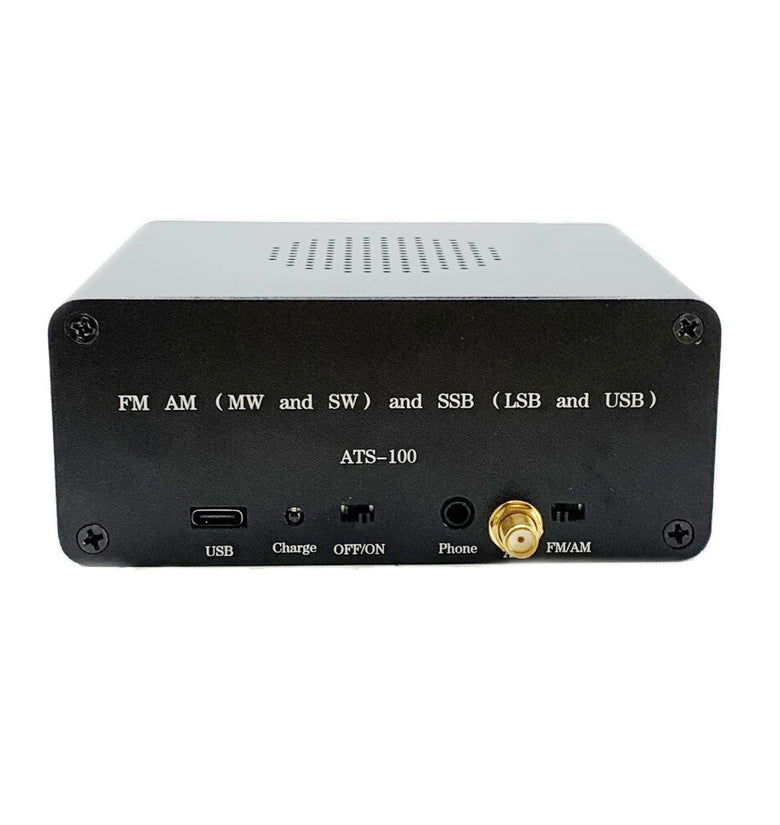

Audio interface: 3.5mm headphone interface; built-in 4Ω/2W speaker
Antenna interface: SMA standard interface, enhanced signal stability
Frequency band support:
Mode: FM (76-108MHz), AM (MW: 520-1720kHz, SW: 1.72-30MHz), SSB (LSB/USB)
Frequency step: 1kHz/5kHz/10kHz adjustable
Filter: supports 0.5kHz, 1kHz, 1.2kHz, 2.2kHz, 3kHz, 4kHz audio bandwidth adjustment
Other functions: BFO control, automatic radio station search, manual frequency input
Package includes:
1 x ATS-100+ full touch screen radio host
1 x Type-C charging cable
