Note: If the product does not work properly after you receive it, it may be due to violent logistics causing the internal parts of the product to become loose. We recommend that you disassemble it and check the internal wiring. (Just unscrew the four corner screws to open it) Thank you for your understanding and cooperation.
Features:
- Mini shortwave automatic antenna tuner, Type-C charging interface, M seat, OLED display.
- The antenna tuner is automatically tuned without any control wires, suitable for most radio stations.
- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-55MHz.
- With metal housing, stable and reliable performance.
Specifications:
Material: metal
Color: black
Power supply voltage: USB charge and discharge (built-in battery)
Battery: 1 * lithium battery, 400mAh (included)
Maximum current consumption: 400mA
Maximum working power: 100W
Maximum possible measurement power: 150W
Minimum power required to start tuning: 5W
Minimum possible measurement power: 0.1W
Measurement steps for power up to 10W: 0.1W
Measurement steps with power higher than 10W: 1W
Power measurement accuracy: 10%
Maximum installation inductance: 8.53uH
Minimum installation inductance step length: 0.05uH
Maximum installation capacitance: 1869pF
Minimum installation capacitance step length: 10pF
Display: OLED

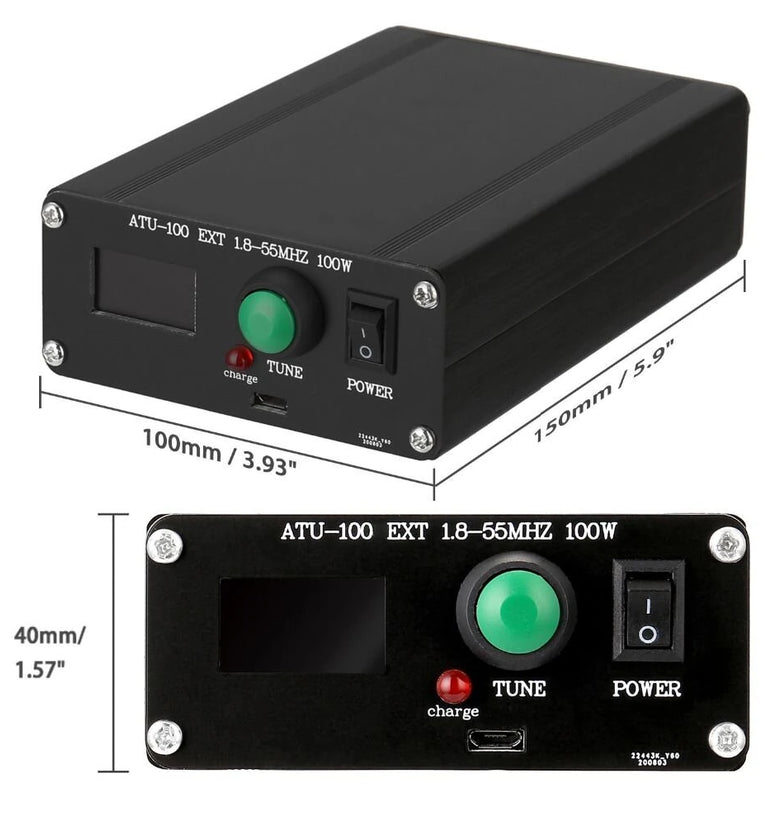

Package size: 150 * 100 * 40mm / 5.9 * 3.9 * 1.6in
Package weight: 300g / 10.6ounce
Package Included:

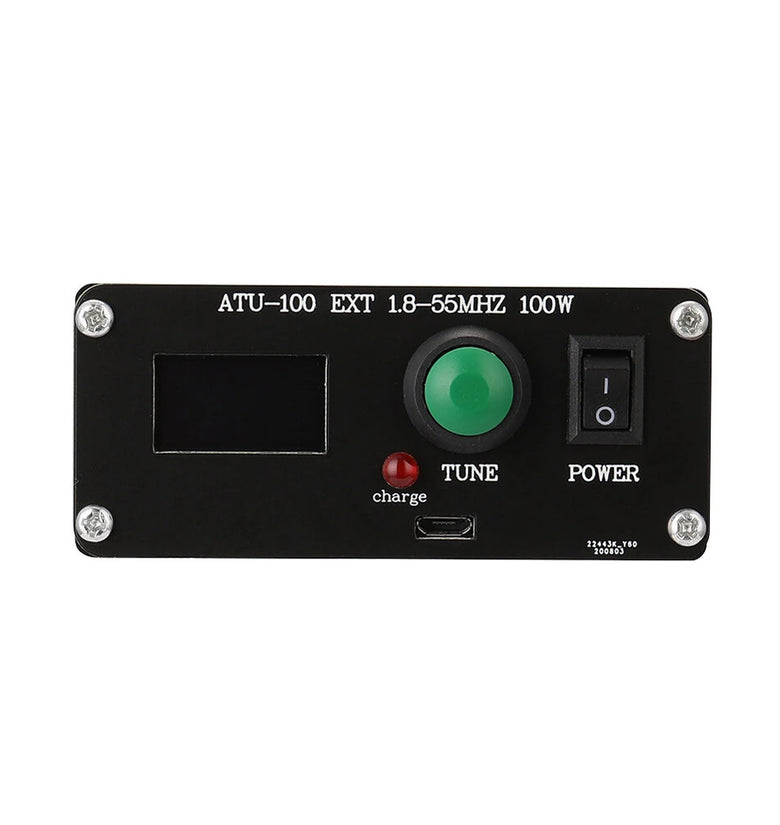

1 x ATU-100 1.8-55Mhz Mini Automatic Antenna Tuner
