Features:
1. The 0.45uH, 1uH inductors use two sets of T68-2 cores so the tolerance power is improved, and the fever is relatively small.
2. The tune impedance ran-ge is 5Ω~1.2KΩ.
3. With the manual mode and automatic mode switch function, you can press auto to into automatic mode and press once more to change it to manual mode.
4. You can choose the type of finished assembly or the type of parts needs to be assembled. You can install it by yourself, which can improve your manipulative ability, if you choose the finished assembly type, you can use it directly, you can choose by your like.
5. Small in size and easy to carry, you can take it with you and share it with your friends or family.
6. There are three options for you to choose from, and all of them can be used to burn the firmware. If you enjoy the fun of selling DIY products, you can purchase DIY kits. If you want to use them immediately, you can buy finished products.
Specfications:
Material: Printed circuit board
Type: finished assembly type, Parts type (optional)
Tune impedance ranges: 5Ω~1.2KΩ
Max. working power: SSB: 100w; CW, AM, FM: 60W
Power: Direct current 11~14V
Note:

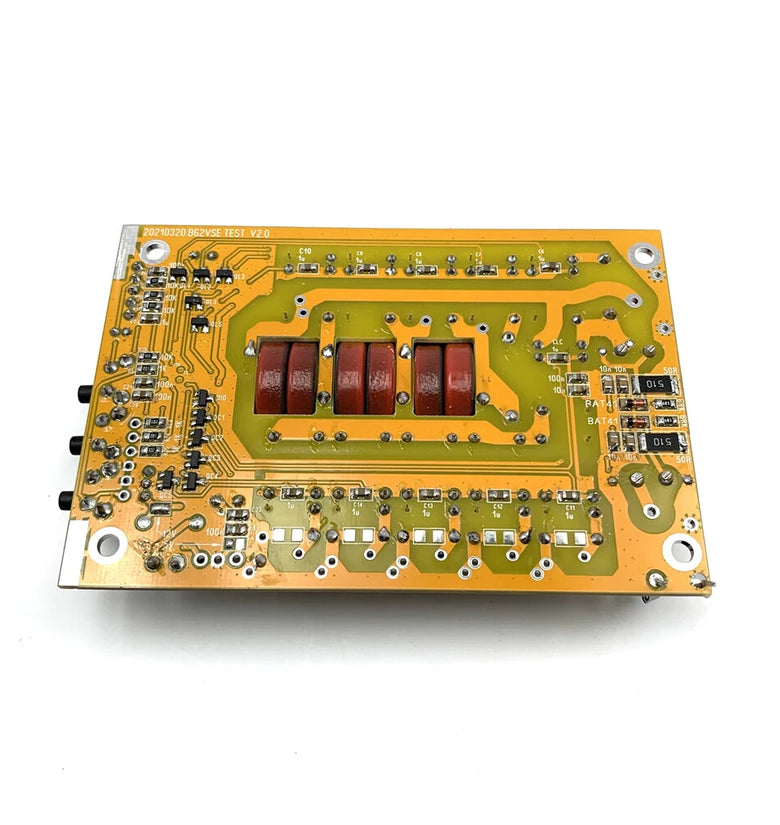

The mcu of this kit has been posted and the program has been written. When soldering components, the soldering iron need be grounded together with the circuit board to avert mcu damage. The WP solder joint on the board is a program write pro-tection solder joint. Try not to touching this point, as static electricity may easily cause the program to be lost.
Package Included:

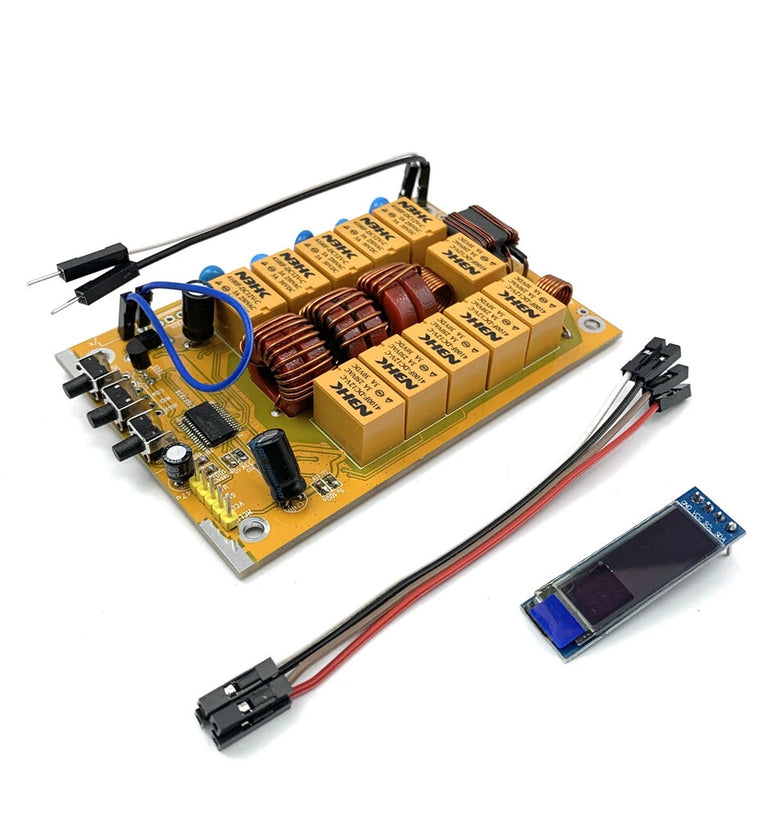

1 x ATU-60 Antenna Tuner DIY Kit (Note: This is an unassembled kit; you will need to assemble and solder it.)
