Technical Specifications:
Frequency range: 3.5-55MHzAllowed Supply Voltage Range: 10-15 V DC(There is no built-in battery. Please bring your own power source before use)Maximum Current Consumption: 500 mA*Maximum Operating Power: 150 WattsMaximum Possible Measured Power: 300+ Watts (SSB)Recommended Usage Power: Not greater than 250 Watts (SSB mode), Not greater than 150W (CW, FM, RTTY)Minimum Power Required to Start Tuning: 5W (recommended 8W~15W)Minimum Possible Measured Power: 0.1 WattMeasurement Step at Power up to 10 Watts: 0.1 WattMeasurement Step at Power greater than 10 Watts: 1 WattPower Measurement Accuracy: 10%Maximum Installed Inductance: 8.53 μHInductance Minimum Step: 0.05 μHMaximum Installed Capacitance: 1869 pFCapacitance Minimum Step: 10 pFTypical Consumption: 200-300 mADimensions: 88*38*150mm (excluding protrusions)Certain parameters may be changed if necessary.Package includes:

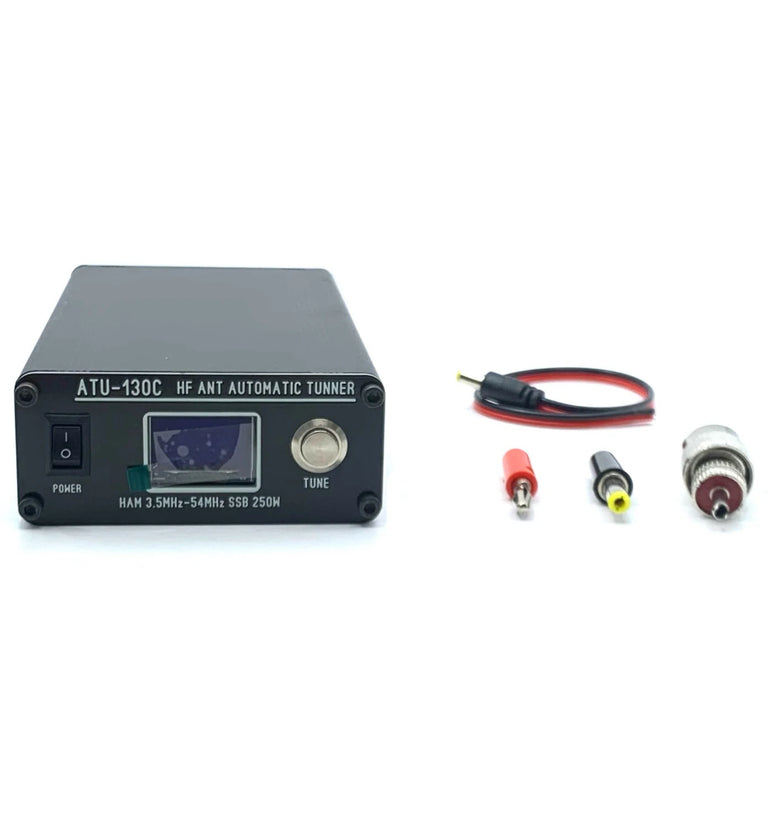

1 x ATU130C Tuner1 set of Accessories
