Specifications:
Frequency range: 70MHz ~ 6GHz
Maximum sampling rate: 61.44 MSPS
Transmit and receive support: Up to 2R2T configuration with 12-bit ADC and DAC resolution
Transmit power: 15dBm at 1GHz, 10+dBm at 2.4GHz, and approximately 2dBm at 6GHz
AI testing capabilities on N78 band with commercial UE: Downlink bandwidth at ~125MHz and uplink bandwidth at ~24MHz
Features:
1. Wide Frequency Range
Supports an extensive frequency spectrum from 70MHz to 6GHz, enabling compatibility with diverse applications across various bands.
2. High Sampling Rate
Achieves a maximum sampling rate of 61.44 MSPS, ensuring precise data acquisition and processing for high-performance requirements.
3. 2R2T Configuration with 12-bit Precision
Features dual-channel transmit and receive functionality with 12-bit ADC and DAC resolution, delivering reliable signal quality.
4. Optimized Transmit Power Across Frequency Bands
Provides up to 15dBm at 1GHz and 10+dBm at 2.4GHz for steady transmission, with smooth performance even at 6GHz-band frequencies.
5. N78 Band Testing Capability
AI testing supports commercial UE with asymmetric bandwidth configurations—125MHz in downlink and ~24MHz in uplink—for advanced communication scenarios.
Package Included:

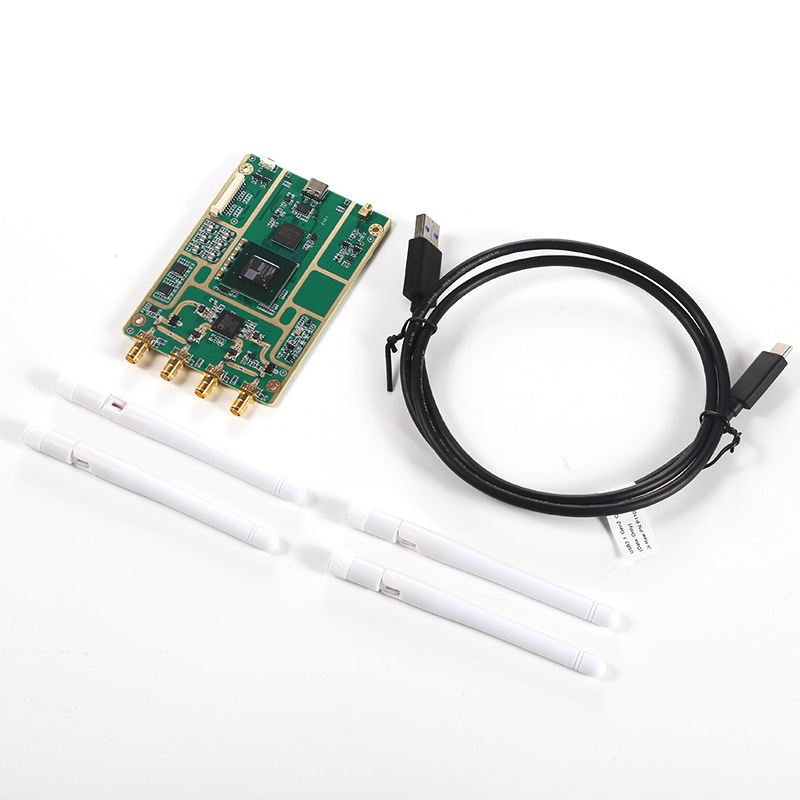

Board Only:
1 x B220mini

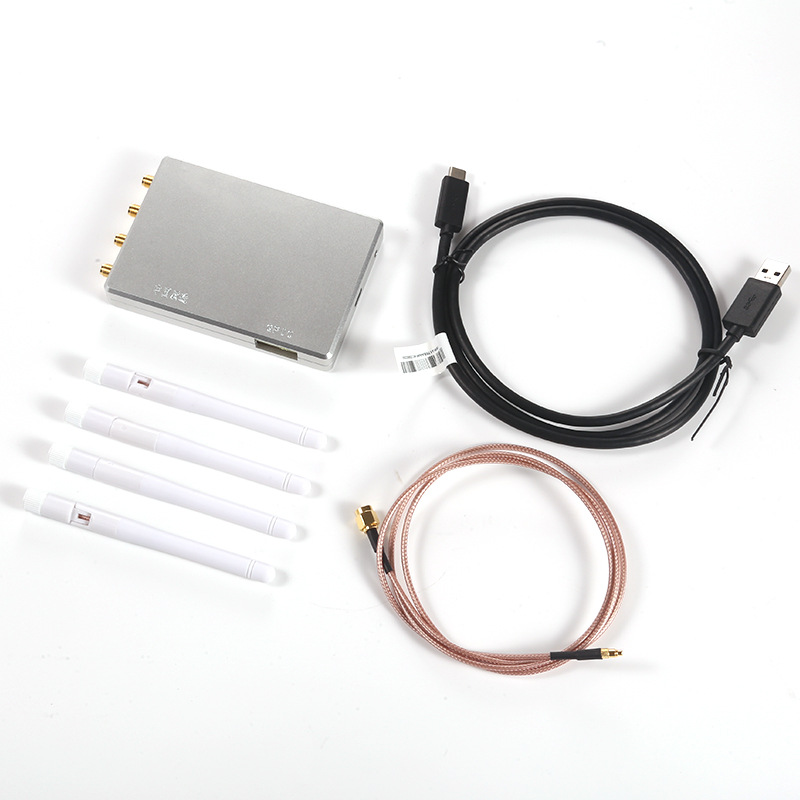

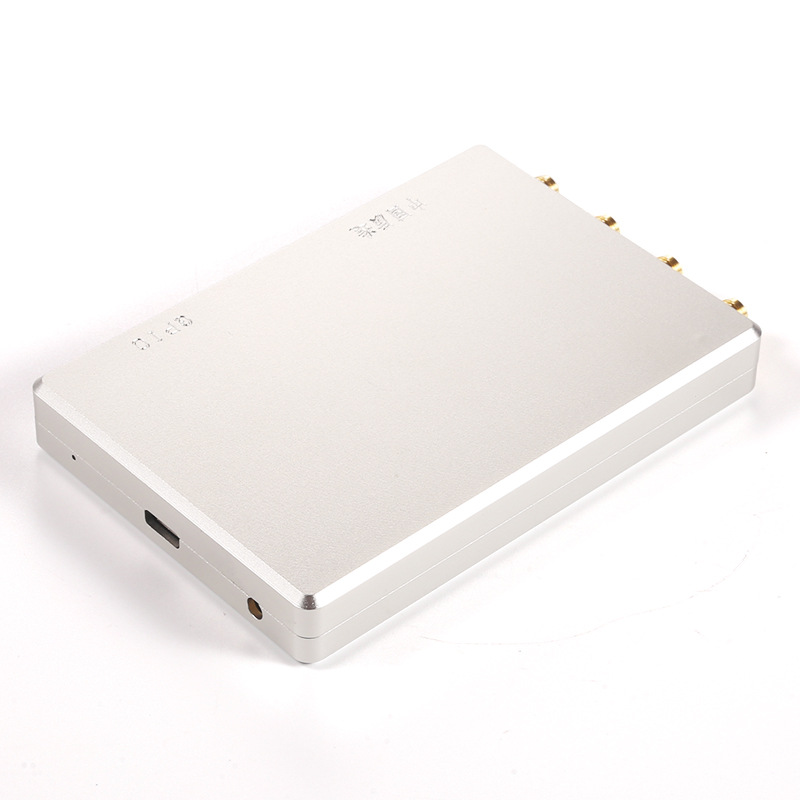

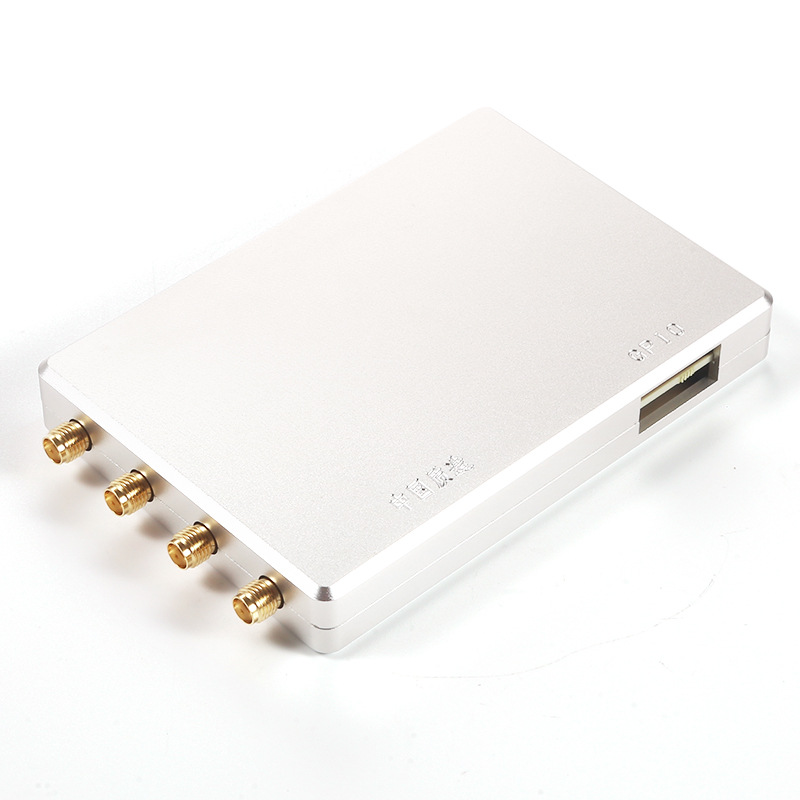

With Case Kit:
1 x B220mini DIY Kit
