Specifications:

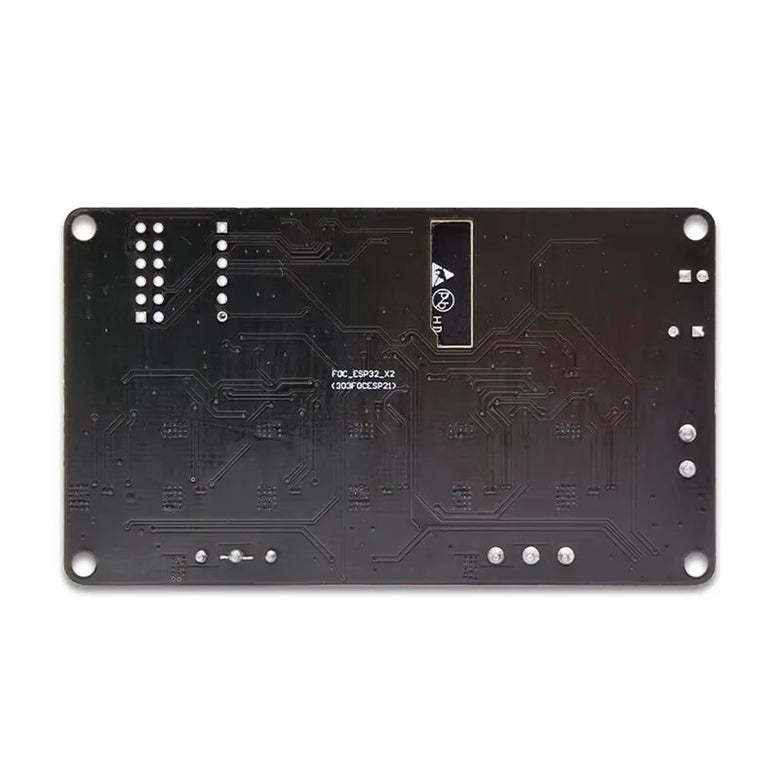

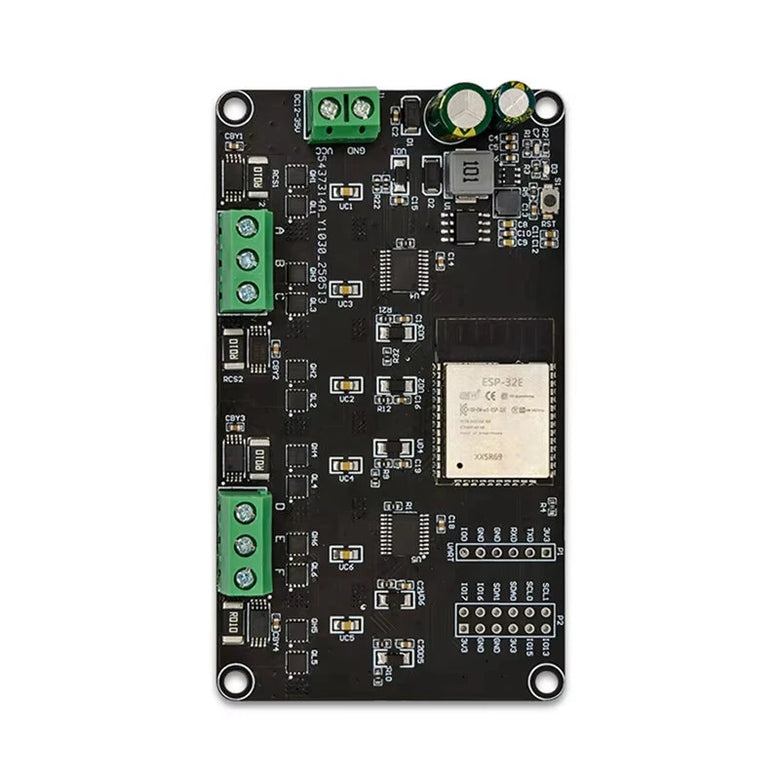

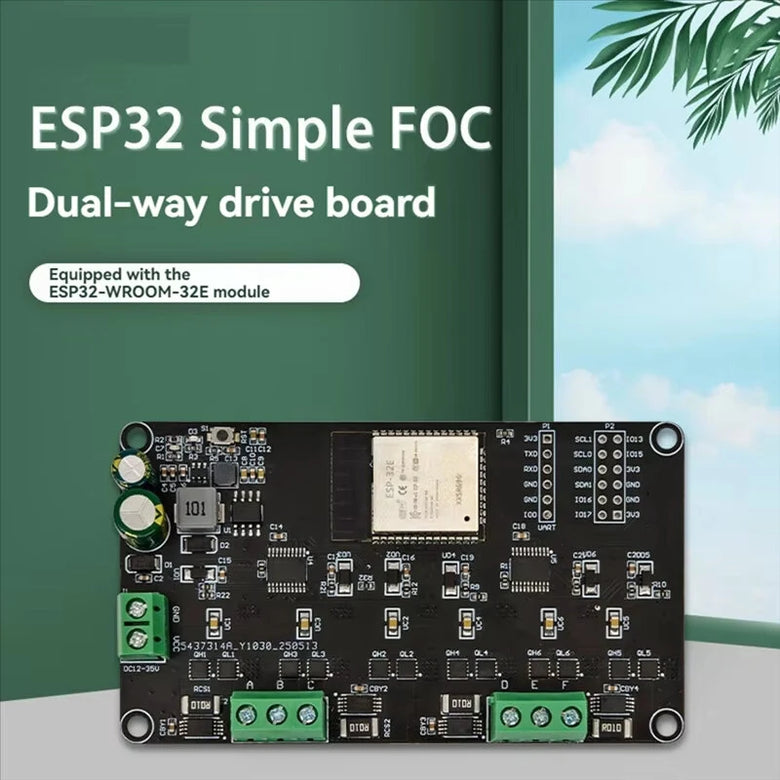

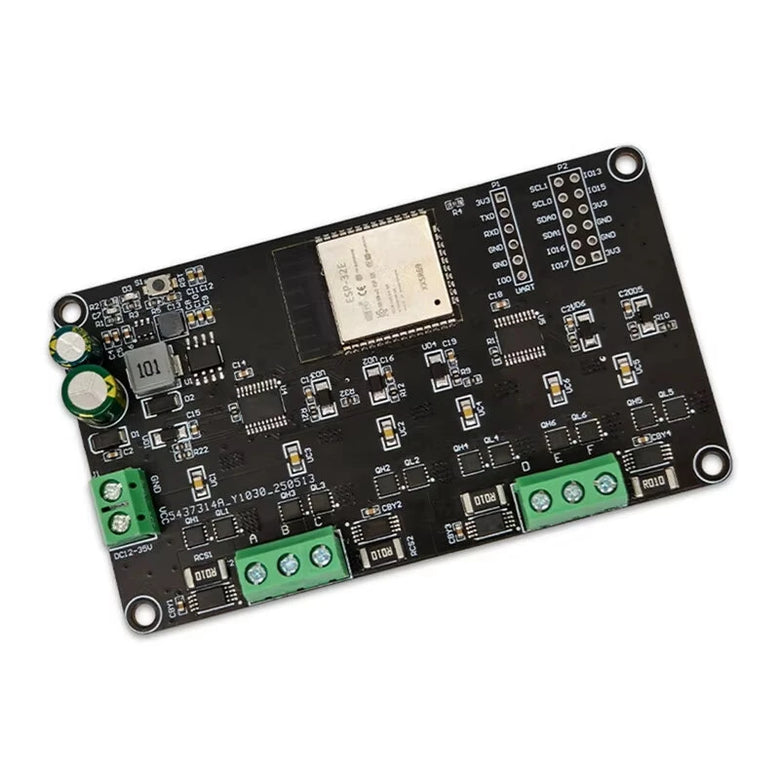

Product Name: ESP32 Simple FOC dual-channel driver board
Power supply: DC-12V
Communication method: UART
Programming interface: UART
Development environment: Compatible forArduino
Board Size: 54 x 95mm
Positioning Hole Diameter: 3mm
Weight: 31g
Color: Black
Material: PCB
Features:
1. Integrated dual-channel motor driver for advanced control applications.
2. Pre-reserved UART pins for firmware programming and debugging tasks.
3. Includes multiple I/O pins for extended control options and versatile usability.
4. Allows operation under various development environments, including ESP-IDF and ArduinoIDE.
Package Include:
1x ESP32 Brushless Motor Driver Board
1x Short Circuit Cap
1x 6P Single Row Pin
1x 6P Double Row Pin
Firmware Burning Process:
1. Tool preparation: USB to serial port module
2. Operation steps
3. Open the Flash tool tool, select the chip model ESP32
4. Check the burning option and specify the firmware path
5. Short the GND-I00 pin before powering on to enter the burning mode
6. Connect the device according to the following wiring method: RX-TX TX-RX GND-GND 3V3-3V3
7. Click START to start burning and wait for the completion prompt
Users can expand more control logicthrough the interface. It is recommended to develop complex applications under for the Arduinoframework
