Description:
* Integrated special level conversion chip, directly read and write 5v, 3.3v, 2.5v, 1.8v chips
* Integrated infrared code measurement module
* Supports programming 24, 25/26, 93, 45, 95 chips, and ours also supports ec data reading and writing of kb9010 kb9012 kb9016 kb9018 kb9022
* The software is open source, you can add the chip type yourself, or the software source code, so you won't be stuck by others
* TTL can support up to 1.8v level, suitable for special occasions
* Read and write status light, TTL status light
* Support TTL self-check
* Support to open ASUS cap files directly
* In the locking seat part, 24xx add a strong pull-down resistor, 25xx add a pull-up resistor

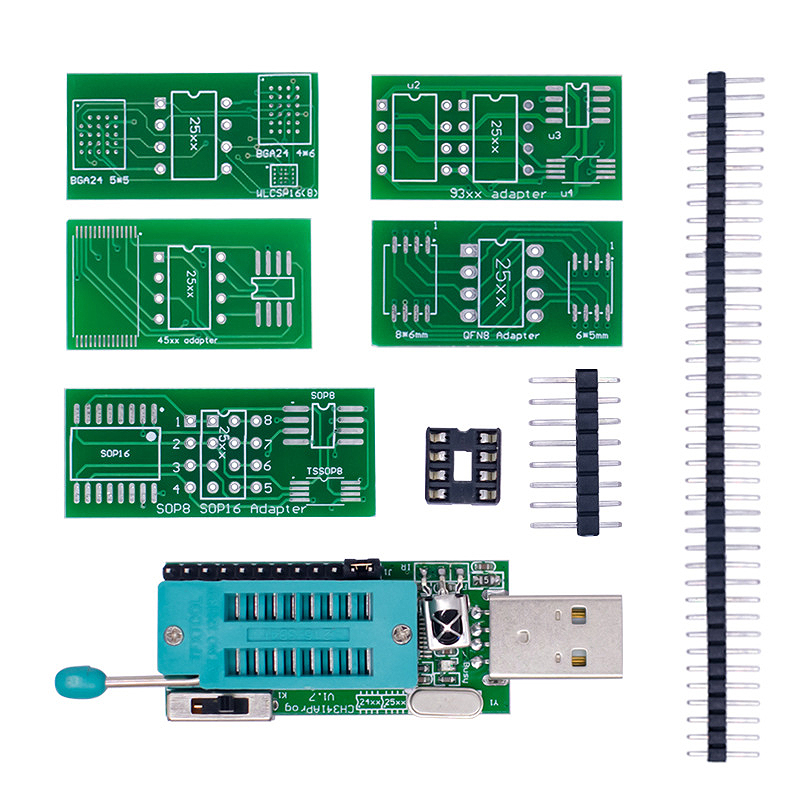

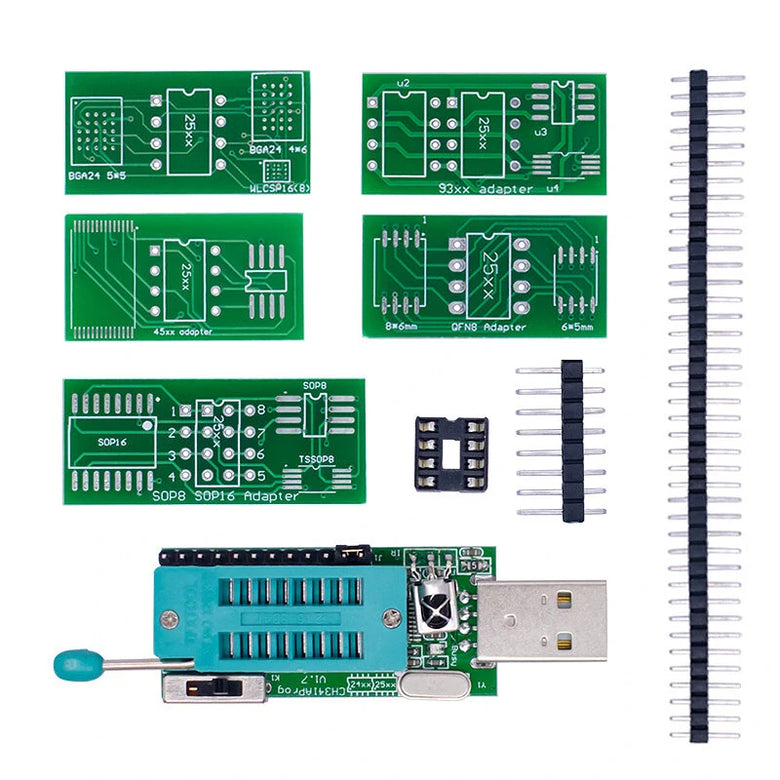

Package Include:

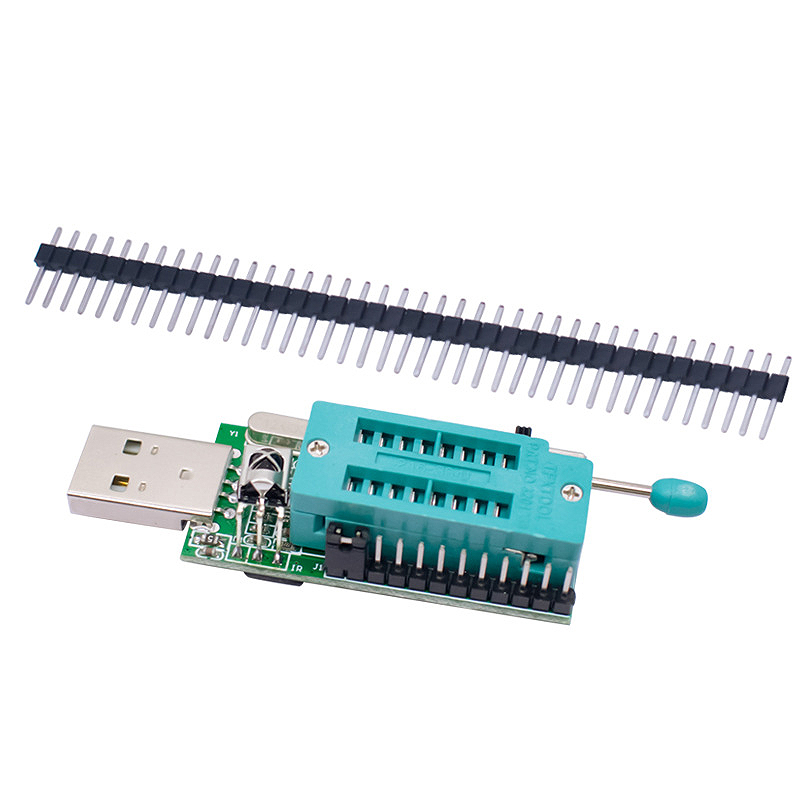

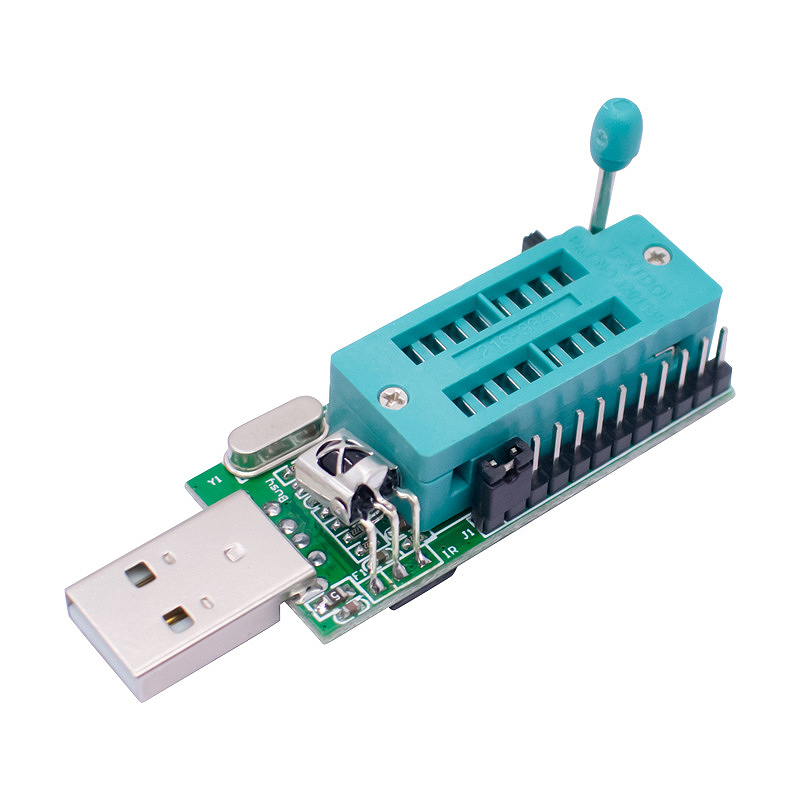

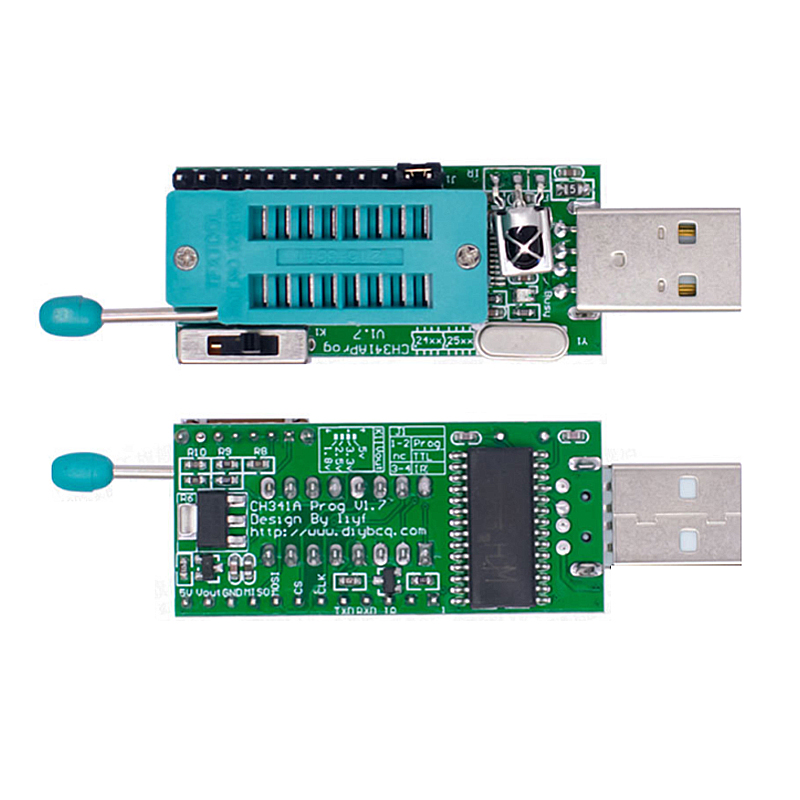

1x CH341A Programmer

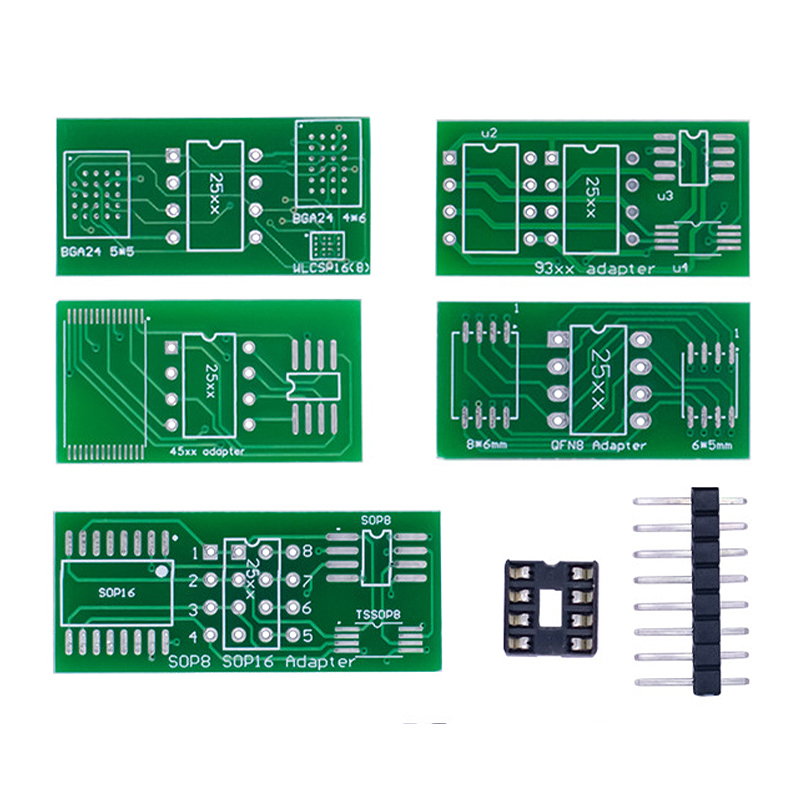

1x 24 25 Universal Adapter Plate Kit
1x 93 Adapter Board Kit
1x 45 Adapter Board Kit
1x QFN8 Adapter Board Kit
1x BGA24 Adapter Board Kit
2x Pin Headers
