Specifications:
Kit name: HU-058 Colorful RGB clock
Power supply: USB 5V power supply
Kit weight: 112g
PCB size: 146* 45mm.
Shell size: 165*50*21m
Optional shell colors: purple, blue, white
Optional display color types: 255 theoretical values and 27 actual values
NOTE: This is a DIY kit, you need to solder.
>>>Manual: Click here to open<<<
Features:
1. The product is made of high quality ABS shell + PCB material, the design of the shell greatly increases the life of the product, quality is guaranteed
2. This is a multi-functional dazzle clock DIY kit, perfect for DIY enthusiasts, suitable for welding practice, welding practical training, ornaments, decorative gifts, a wide range of uses

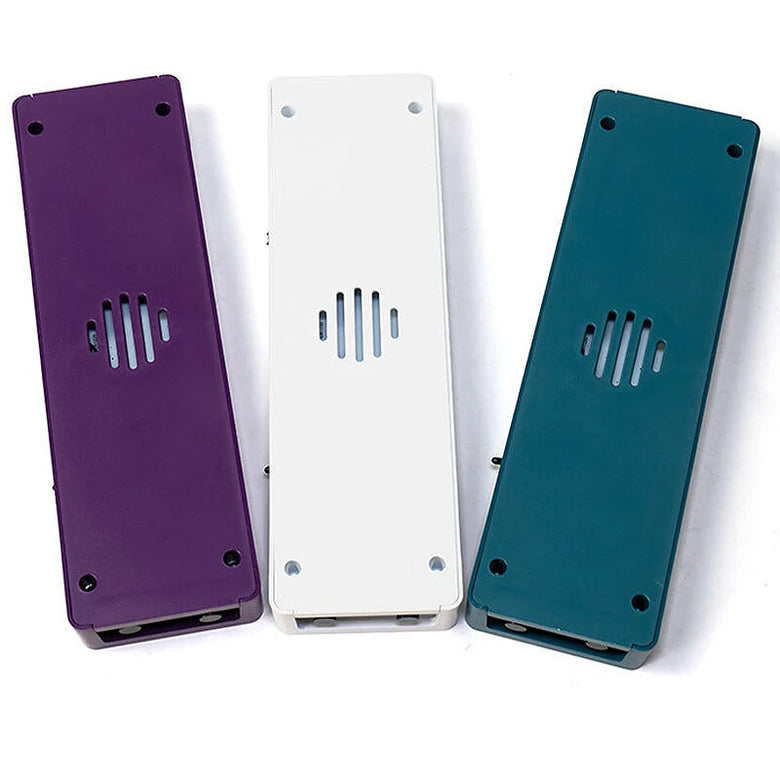

3. The product is shipped in bulk, customers need to assemble their own, with Micro USB power cord, three shell colors can be selected: blue, purple, white
4. Four digital tube display design, four brightness modes adjustable, light control brightness mode / low brightness mode / medium brightness mode / high brightness mode
5. With three sets of alarm clock mode settings (ringing every day, ringing Monday to Friday, ringing Monday to Saturday), can be used as your snooze alarm clock, comes with four alarm ringtones

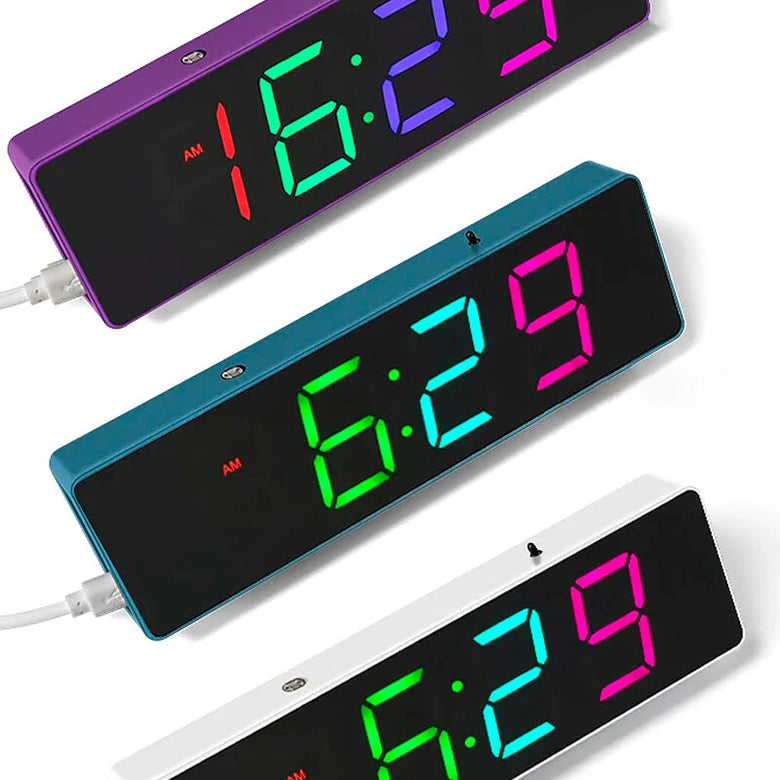

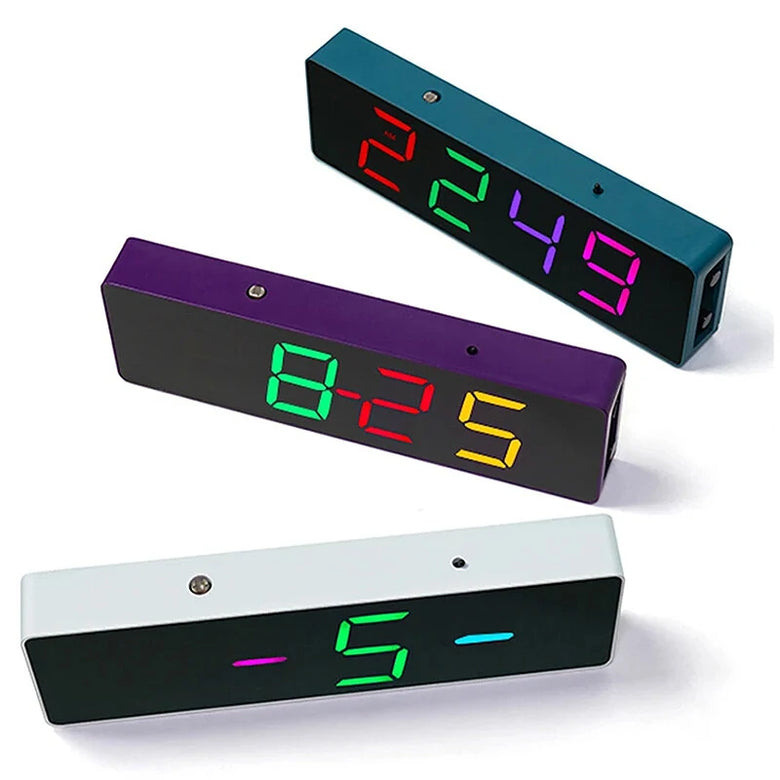

6. Multiple display modes, you can set the main interface to display the time, temperature, date, day of the week, the color settings can be randomly displayed, you can also specify the color display, real-time display, at a glance

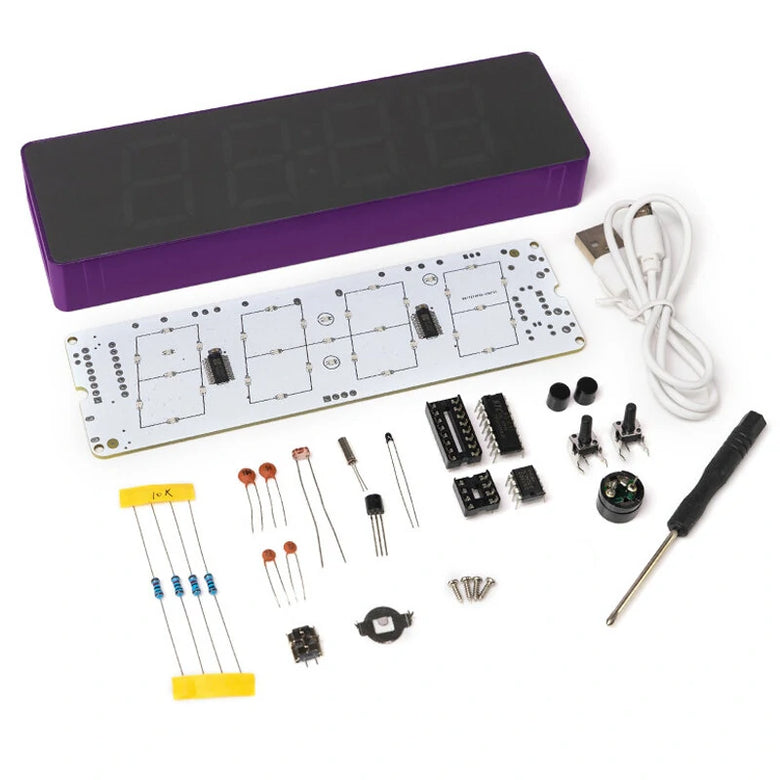

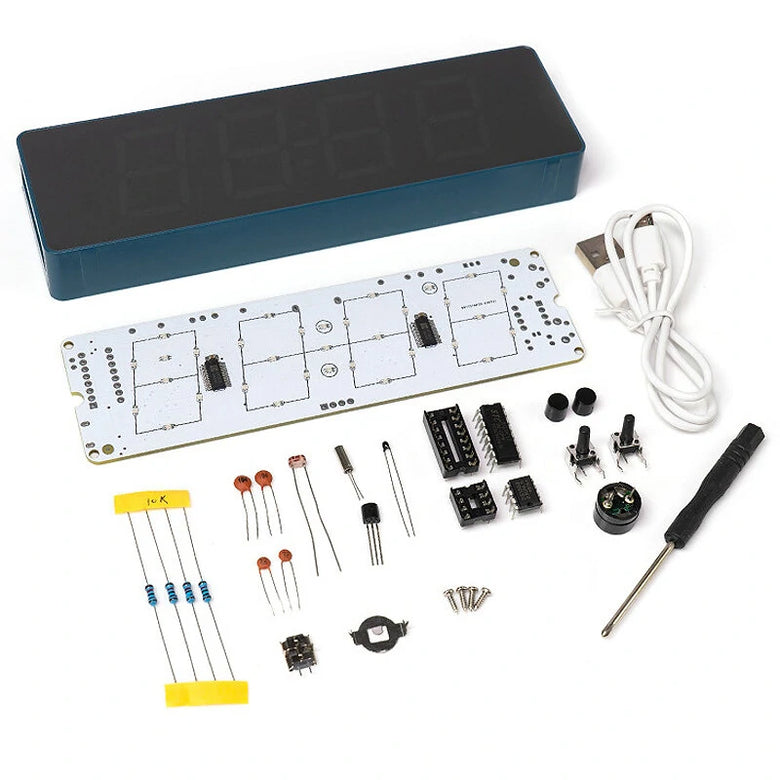

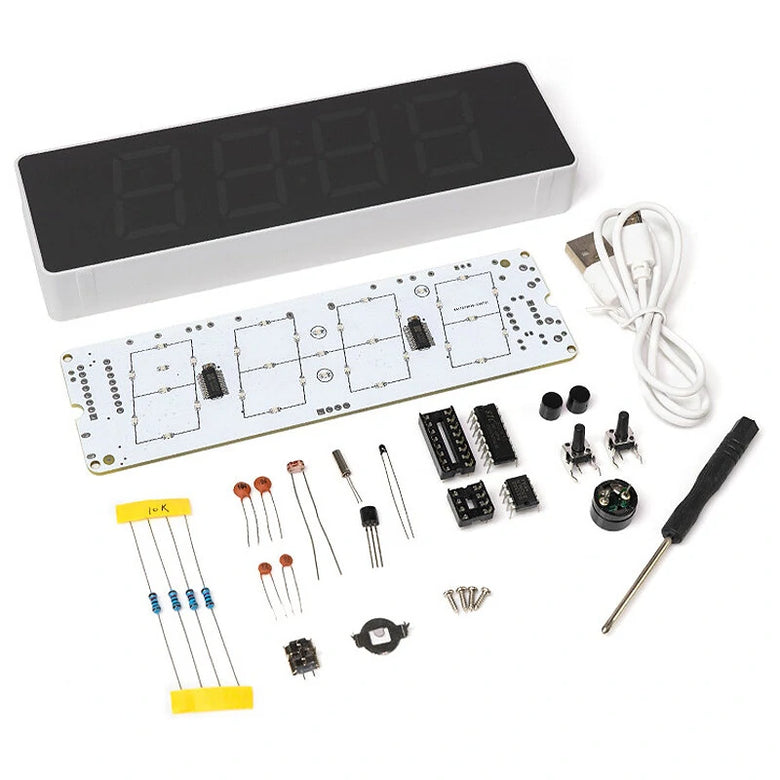

Package Includes:
| Component name | Component Installation Location | Quantity |
| Button Cell Holder | BT1 | 1 |
| 0805 Chip Capacitor 105(1 UF) | C1, C2 | 2 |
| Porcelain Chip Capacitor 0UF/104 | C3, C4 | 2 |
| Porcelain Chip Capacitor 22PF | C5, C6 | 2 |
| LED RBG0603 Common Positive | LED1-LED37 | 33 |
| Beeper | LS1 | 1 |
| S8550 Inline Triode | Q1 | 1 |
| Inline Resistor 10K | R1, R2, R5 | 3 |
| Photoresistor | R3 | 1 |
| Thermistor | R4 | 1 |
| Side position flick switch | SW1, SW2 | 2 |
| AiP33628 | U1, U2 | 2 |
| DS 1302 Clock Circuit | U3 | 1 |
| IC Holder Inline 8P | 1 | |
| U4 Chip-DP16 | U4 | 1 |
| IC socket direct 16P | 1 | |
| MICRO USB 2P Female | USB1 | 1 |
| 32.768K Crystal | Y1 | 1 |
| RBG Clock Housing | 1 | |
| HU058 Circuit Board | 1 | |
| CR 1220 3V Coin Cell Battery | Not includes | 1 |
| M1.7x6mm Round Head Self-Tapping Screws | 4 | |
| Micro USB power cable | 1 |
