Specification:
Style: Double Spray
Material: 1.2mm FR-4
Power Input: DC 5V via Type-C connector
Power Consumption: 1.5-2W
Atomization Frequency: 108kHz ± 5kHz

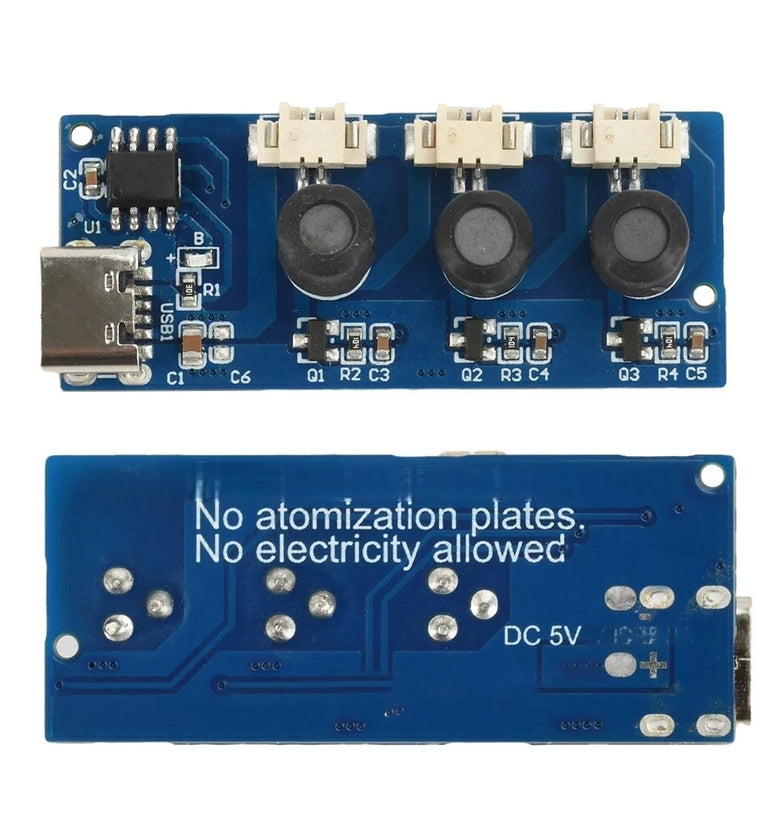

Size: Double-spray board: 35.5x19.5mm
Features:
1. Efficient Spray Design: Dual spray modes available for flexibility in needs.
2. Low Power Consumption: Operates within a low range of 1.5-2W for optimal energy efficiency.
3. Plug-and-Play: No switch required; starts atomizing as soon as water is detected.
4. Compact Size: Easy integration into various humidifiers and devices.
5. User-friendly Connection: Type-C power interface and PH1.25 terminal ports for quick setup.

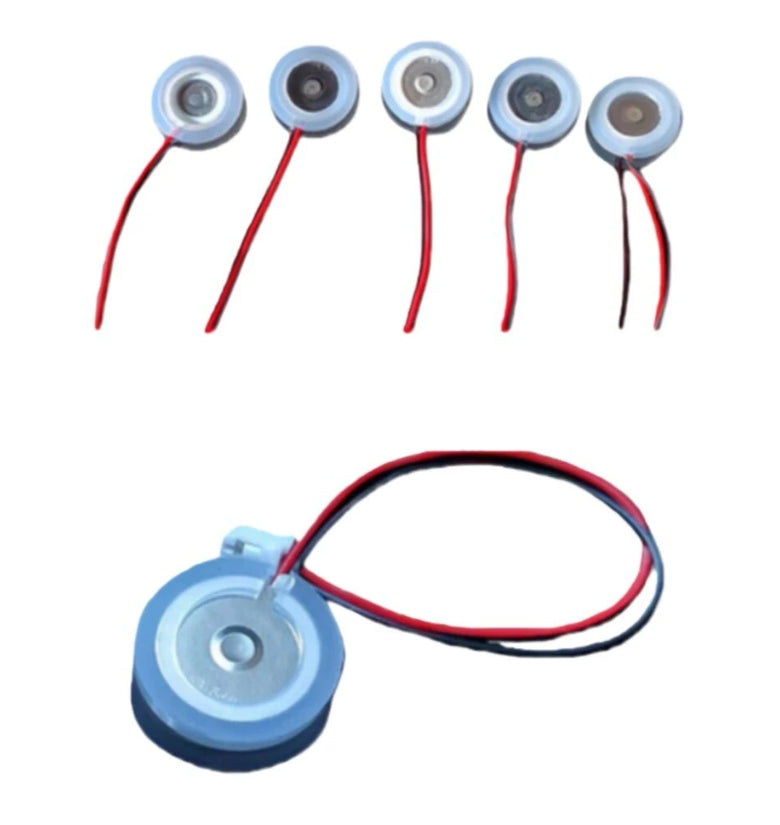

6. High Atomization Performance: Fine, uniform mist generated by microporous atomization plates.

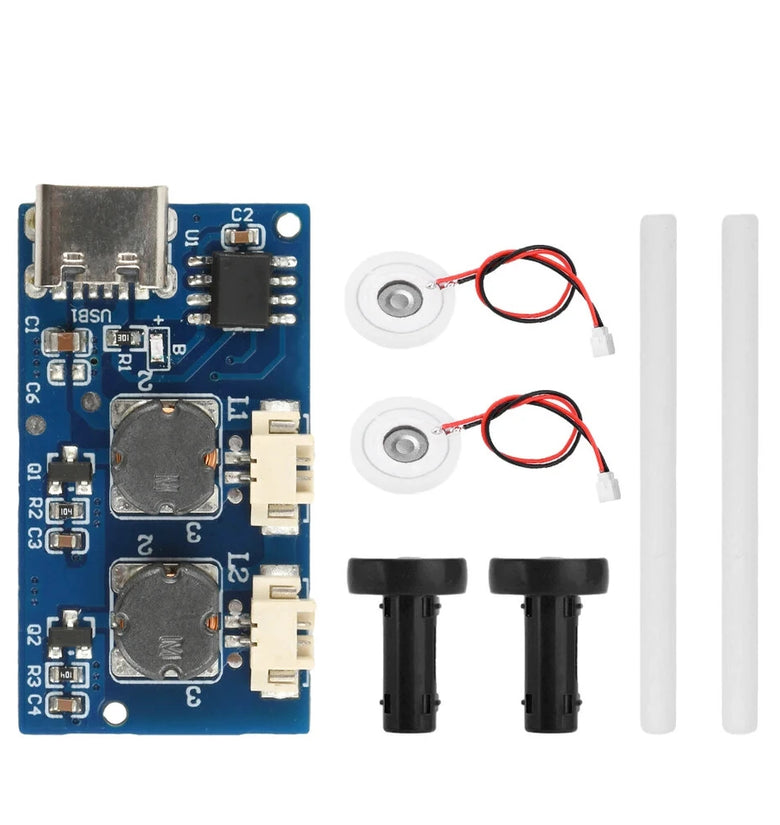

Instructions:1. First, install the atomizing plate, bracket, and cotton swab.2. Connect the atomizing plate to the module's atomizing plate port.3. Then connect the power supply to the module's power port.4. After connecting the module to the power supply, it will spray directly.5. The atomizing plate will spray upon contact with water.Precations:1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled2. It is strictly prohibited to power on without connecting the atomizing plate3. It is strictly prohibited to use fast chargers4. It is strictly prohibited to modify modules5. The module must not touch water6. Full steel sheet (raised surface) in downward contact cotton swab absorbs water7. Rated power input
Package Includes:
1 x DIY Electronics Kit
