Module parameters:

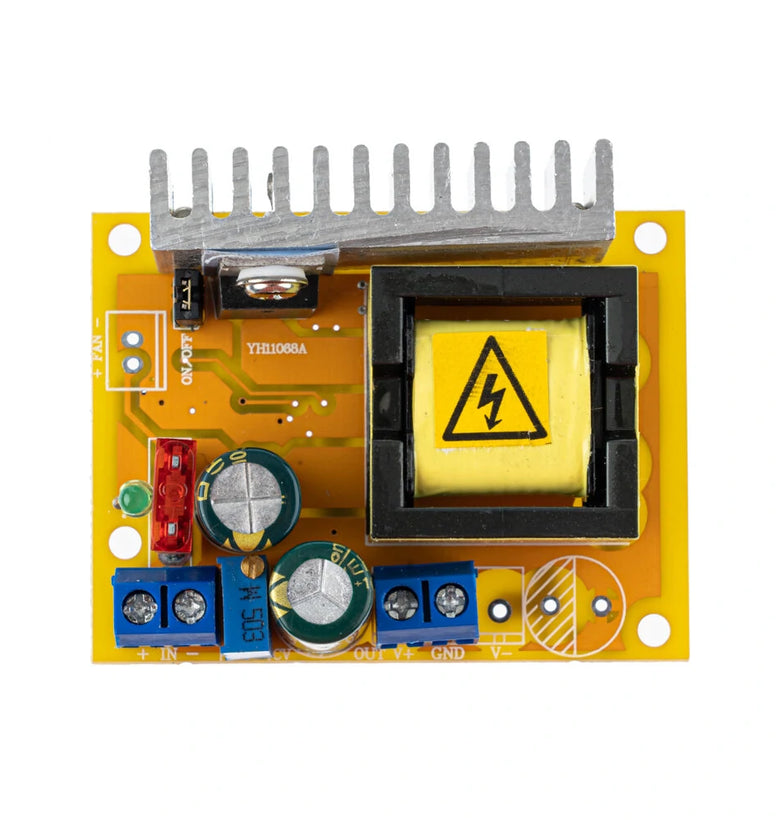

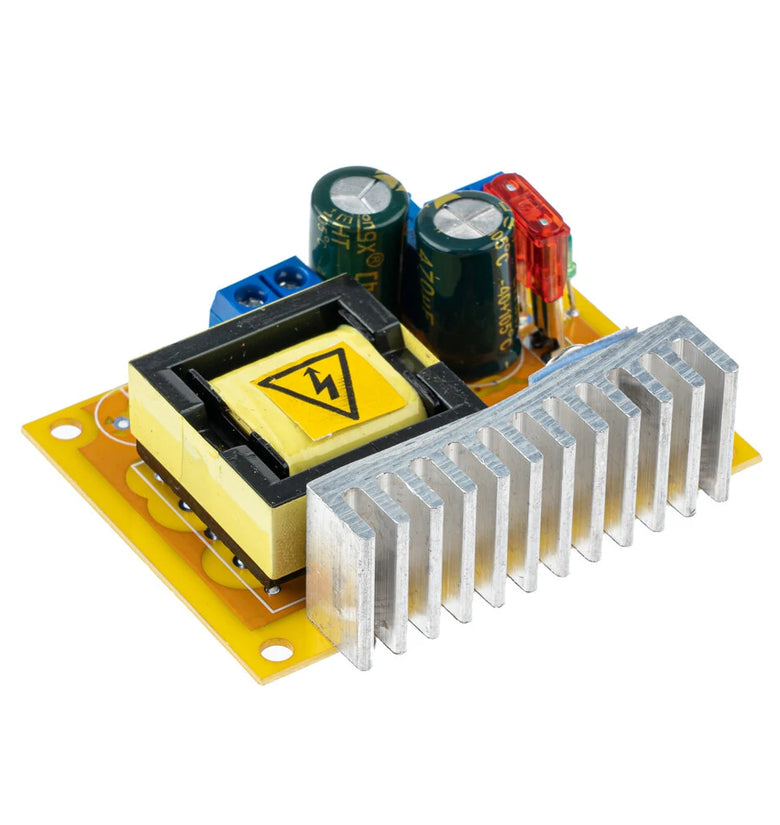

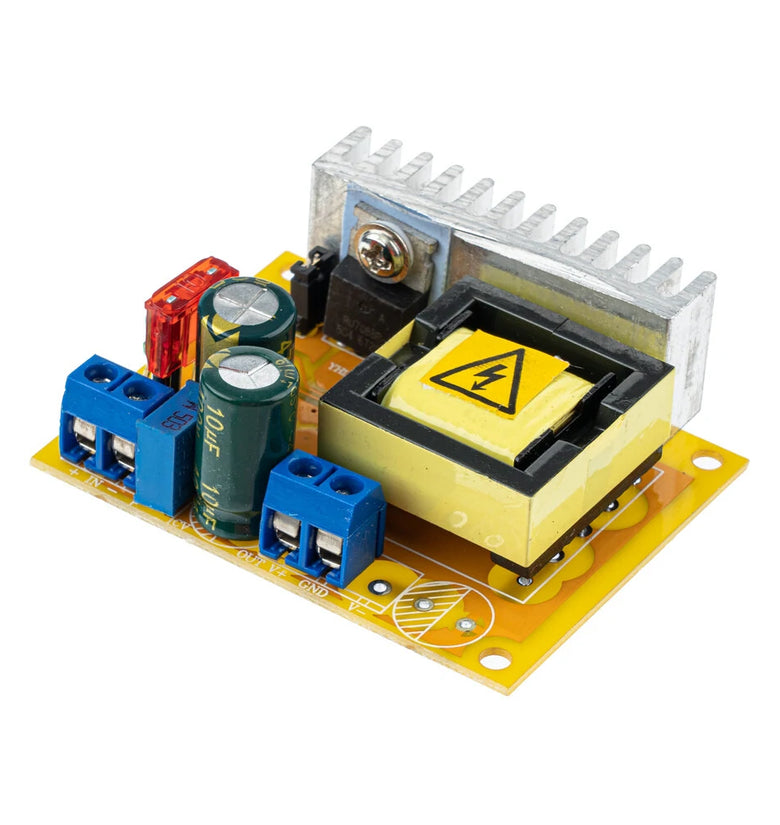

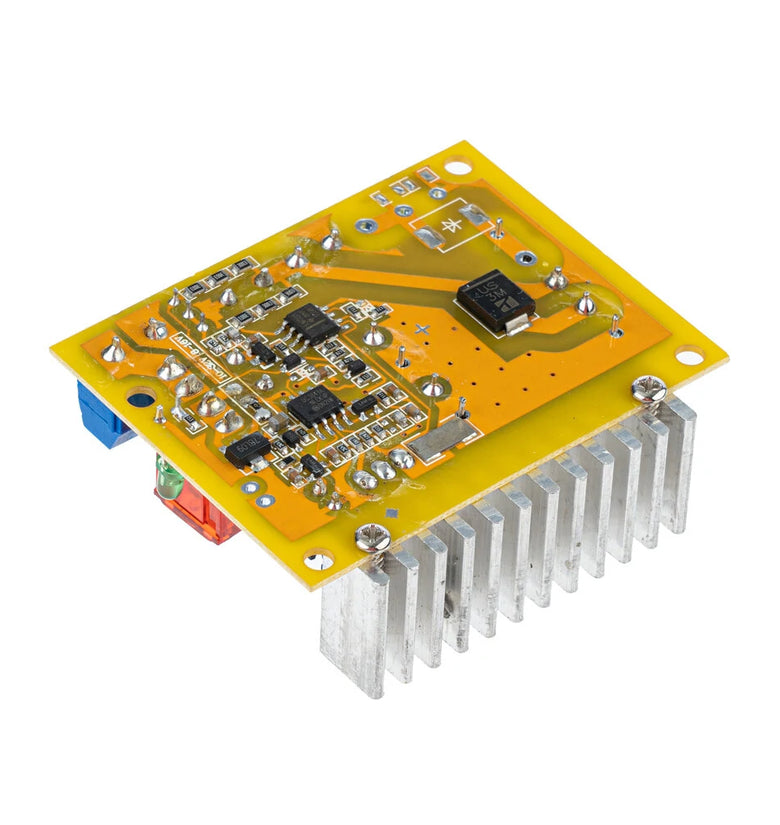

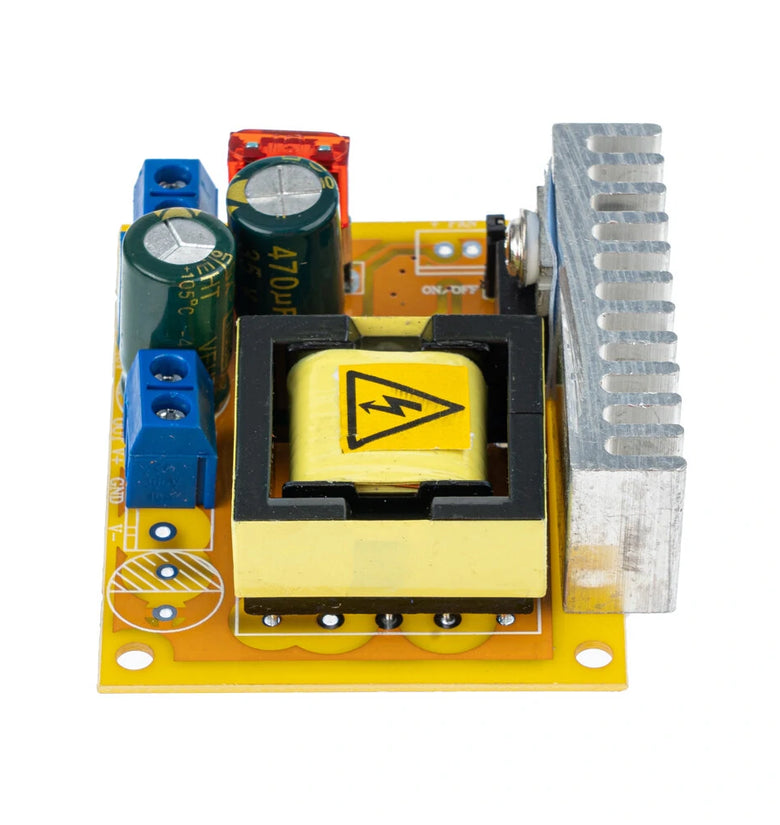

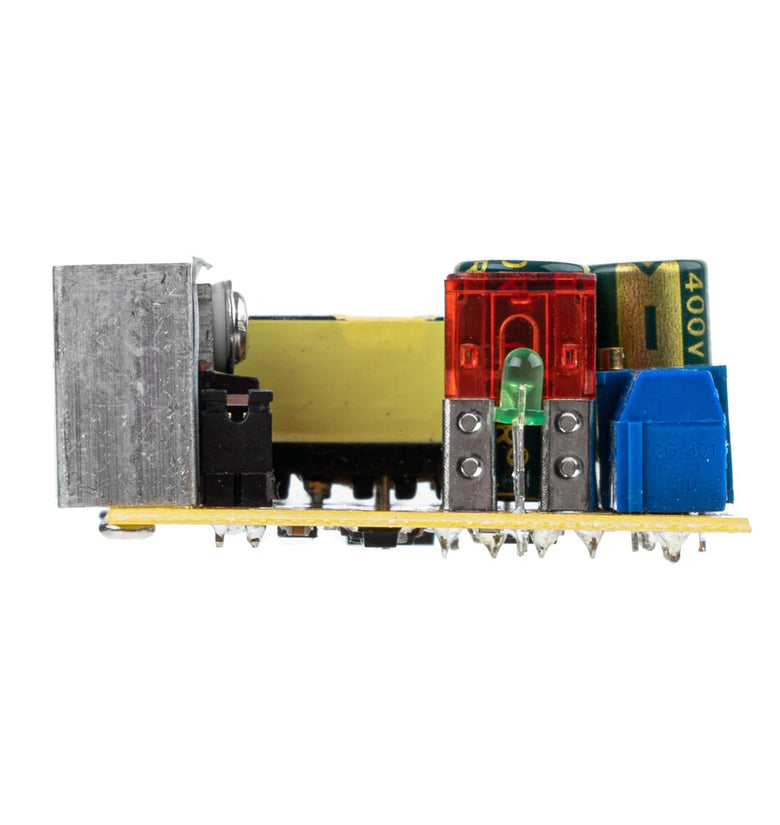

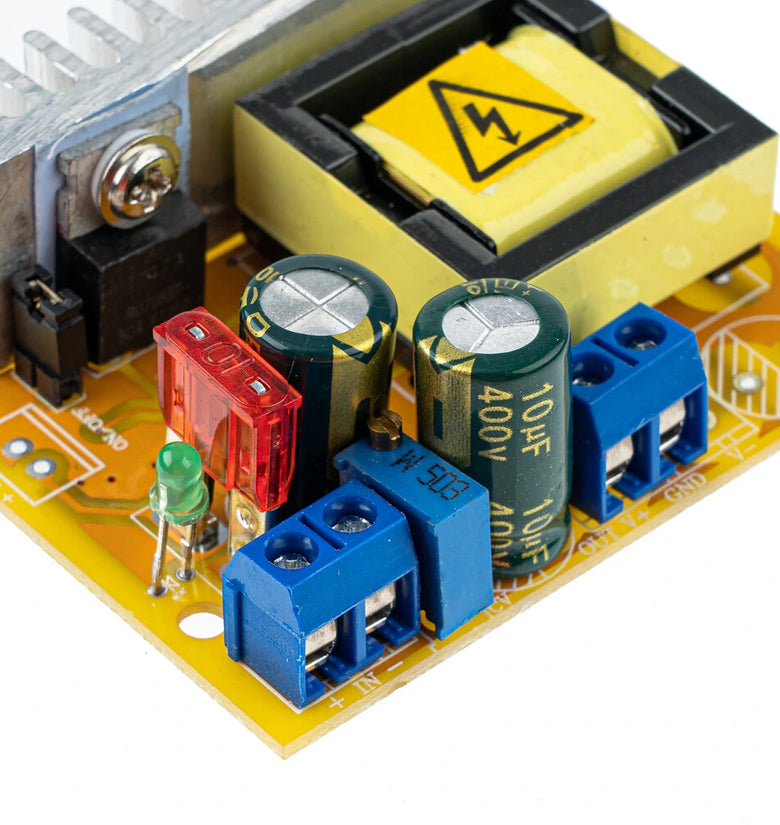

Module Name: High Voltage boost module
Module Properties: non-isolated step-up module
Input voltage: 8-32V input, the default is 10-32V input.
Input Current: 5A (MAX)
Quiescent current: 15mA (12V-liter 50V, the output voltage, the higher the current will increase too quiet)
Output voltage: +45~390V continuously adjustable (default output + 50V)
Output Current: 0.2A MAX (with input, output pressure related, the higher the output voltage, output current is smaller)
Output Power: 40W (peak 70W)
Working temperature: -40℃ ~ + 85℃ (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes.
Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Overvoltage protection: There. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: four 3mm screws
Wiring: free welding output terminals
Applications:
1. Capacitor charging, electromagnetic guns power supply.
2. The power supply for your electronic device, according to your system can set the output voltage value.
3. Pressure test power.
4. Hunting, eradication of mice.
Package included:
1 x High Voltage boost module
