Specification:
Motor Type: DC Motor.
Model Number: DC Motor Speed Controller.
Input Voltage: DC10-55V.
Output Voltage: Linear under load.
Output Current: 0-100A.
Continuous Current: 60A.
Speed Regulation Type: Flow regulation via potentiometer (linear).
Speed Range: 0-100%.
Control Frequency: 15KHZ.
Knob Specification: 100KΩ (with switch).
Dimensions: About 128mm x 98mm x 40mm (5.04” x 3.85” x 1.57”).
Weight: 216g.
Potentiometer Installation Depth: 7MM.
Features:
1. Supports input voltage applications between DC10-55V, making it versatile for various setups (12V, 24V, 36V, and 48V).
2. Precise control over motor speed through linear potentiometer, offering 0-100% range adjustment.
3. High current handling with up to 100A output and 60A continuous operation.
4. Built-in digital display that shows motor speed percentage for convenient monitoring.
5. Compact design compatible with multiple motor applications and easy installation setup.
6. High insulation performance using organic resin, promoting circuit safety and minimizing interference.
Package Includes:

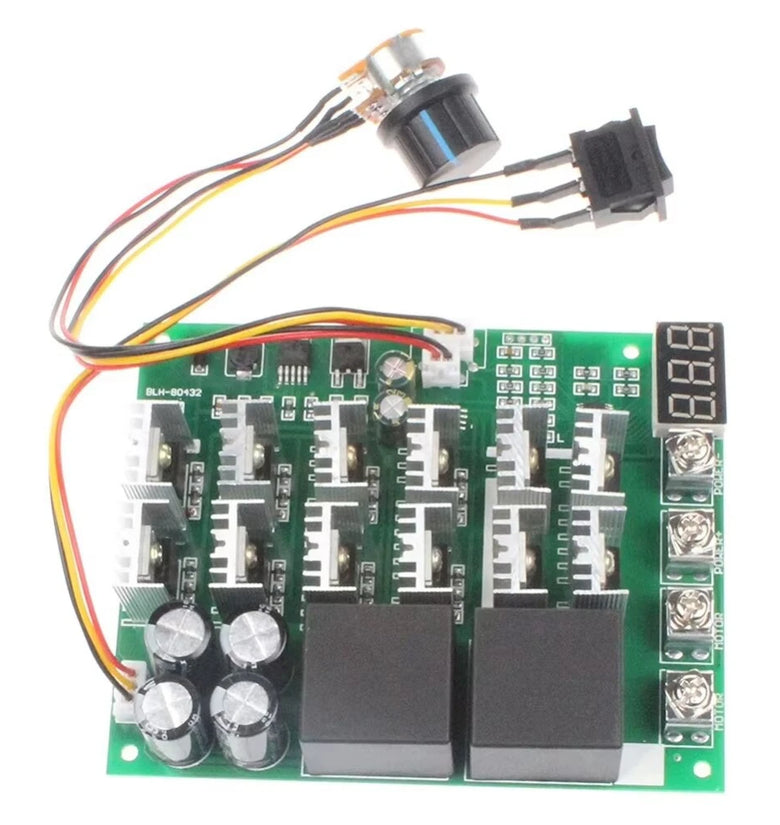

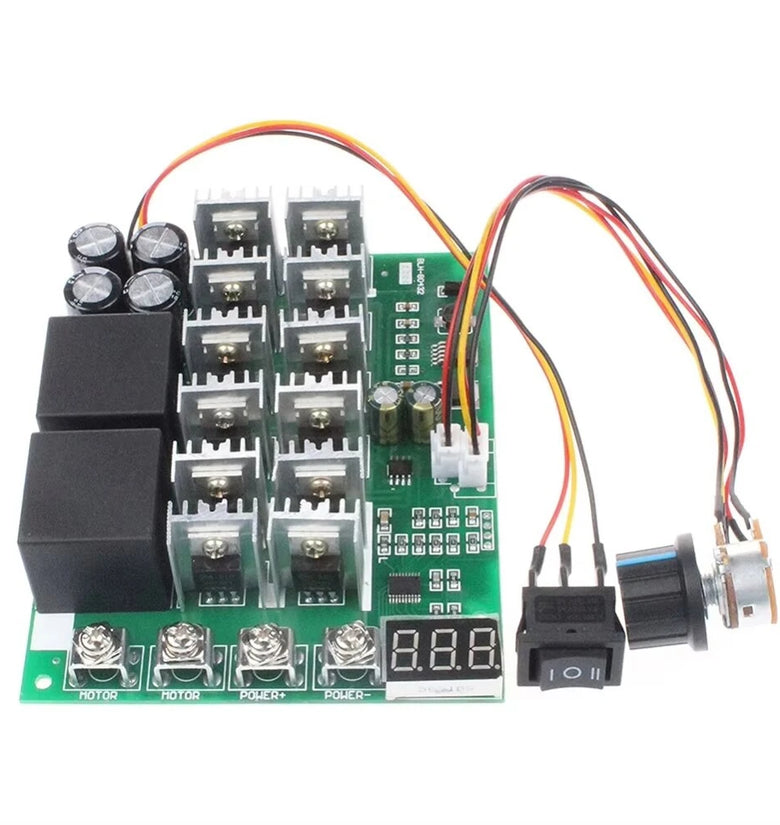

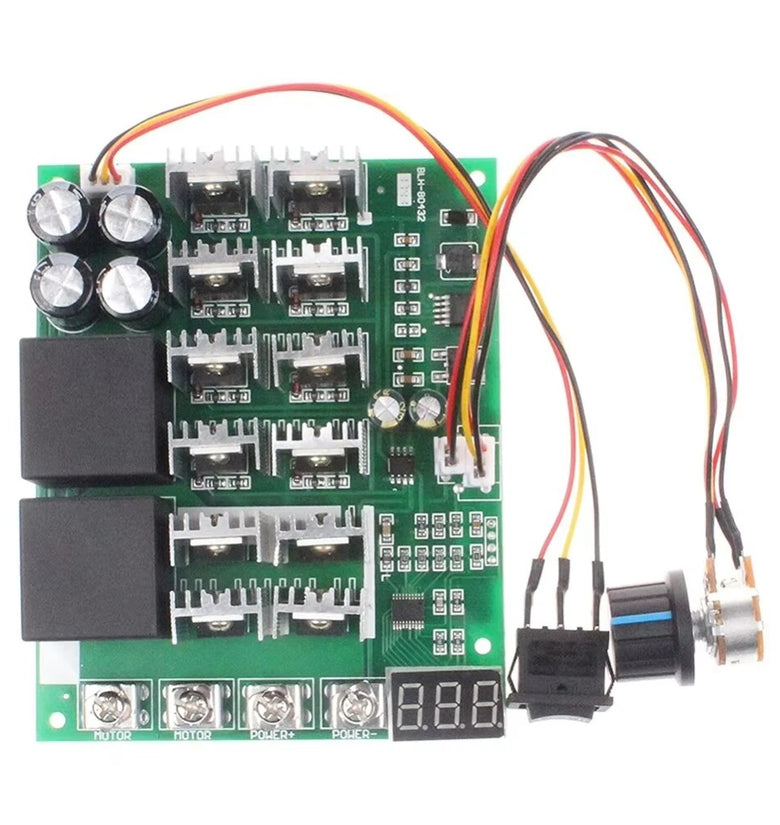

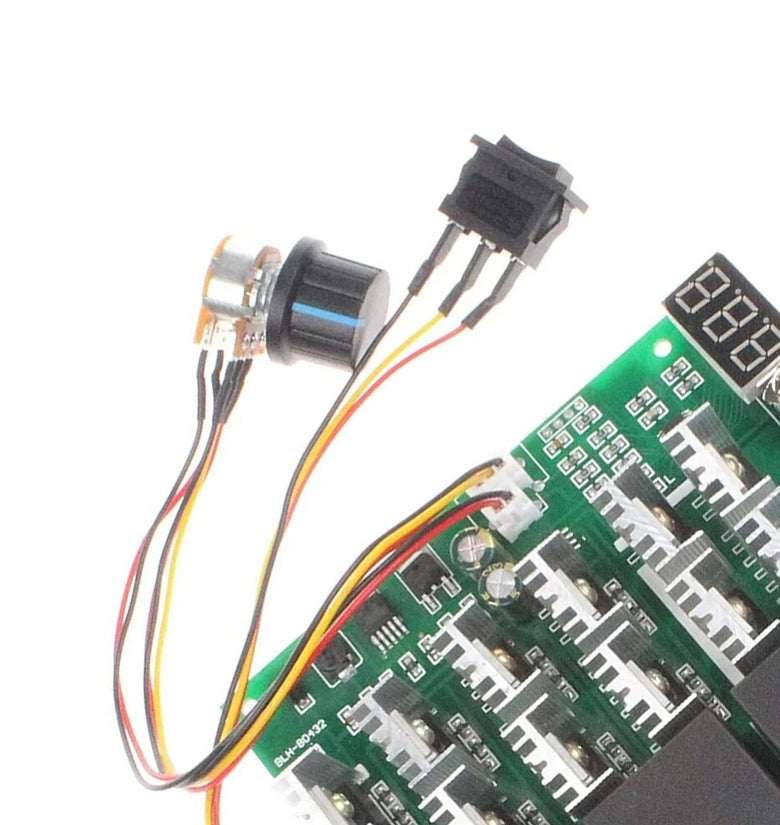

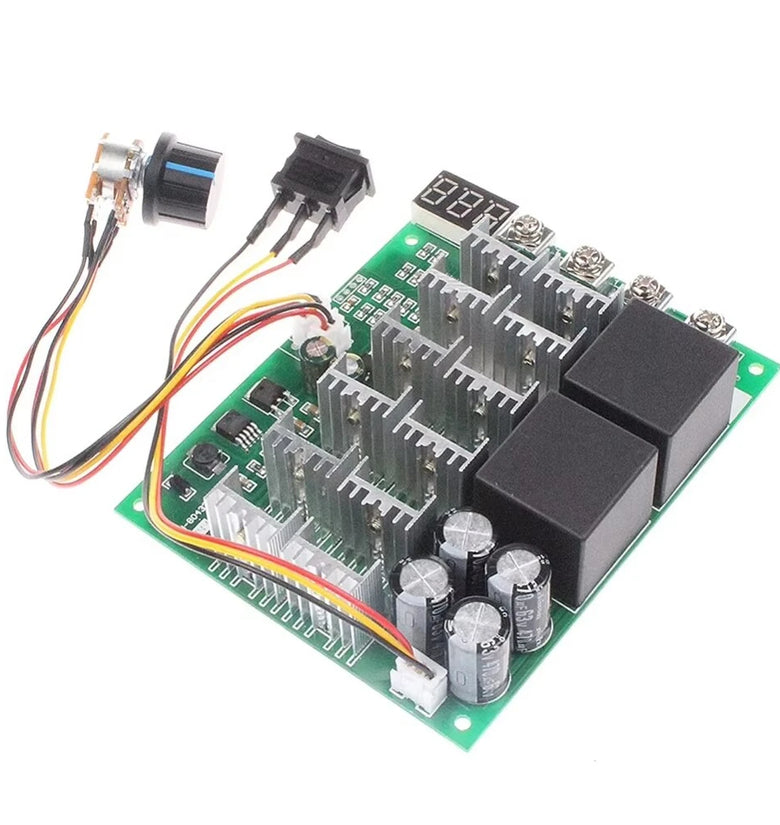

1 x DC Motor Speed Controller
