Specifications:
Timing range: 0-999s 0-999m 0-999h

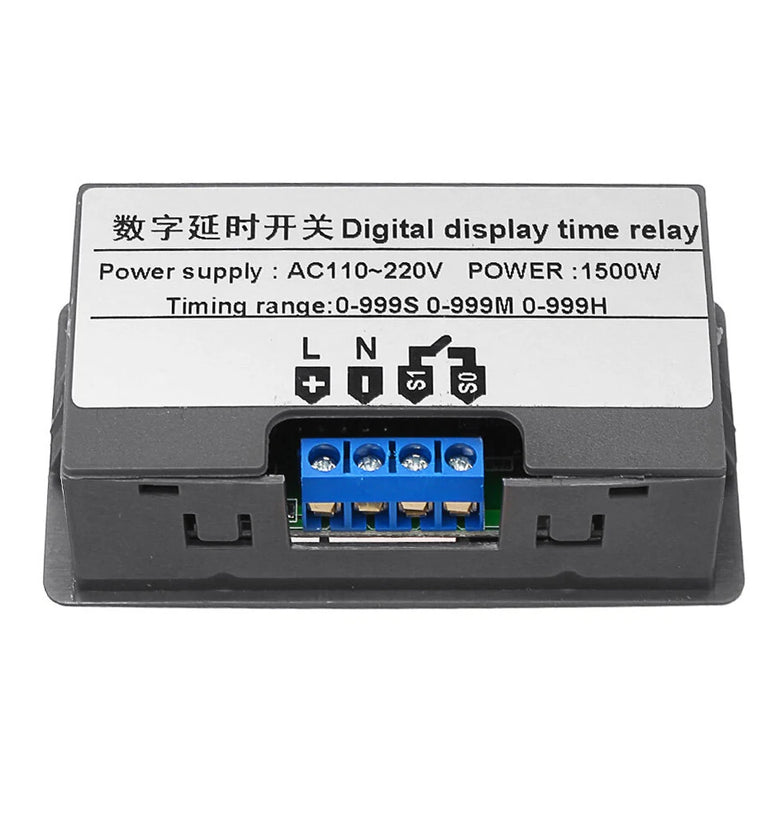

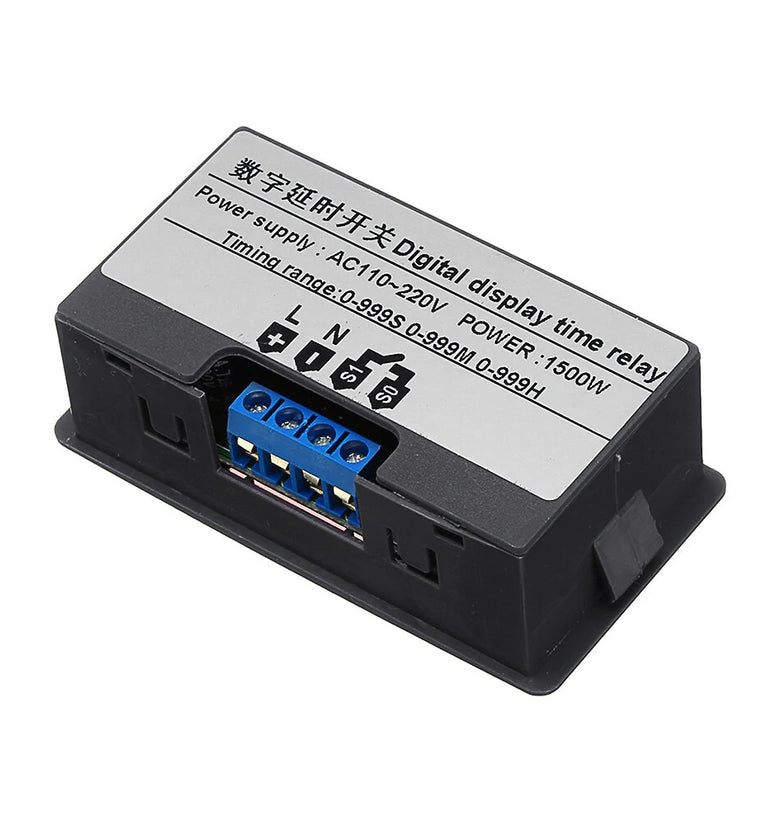

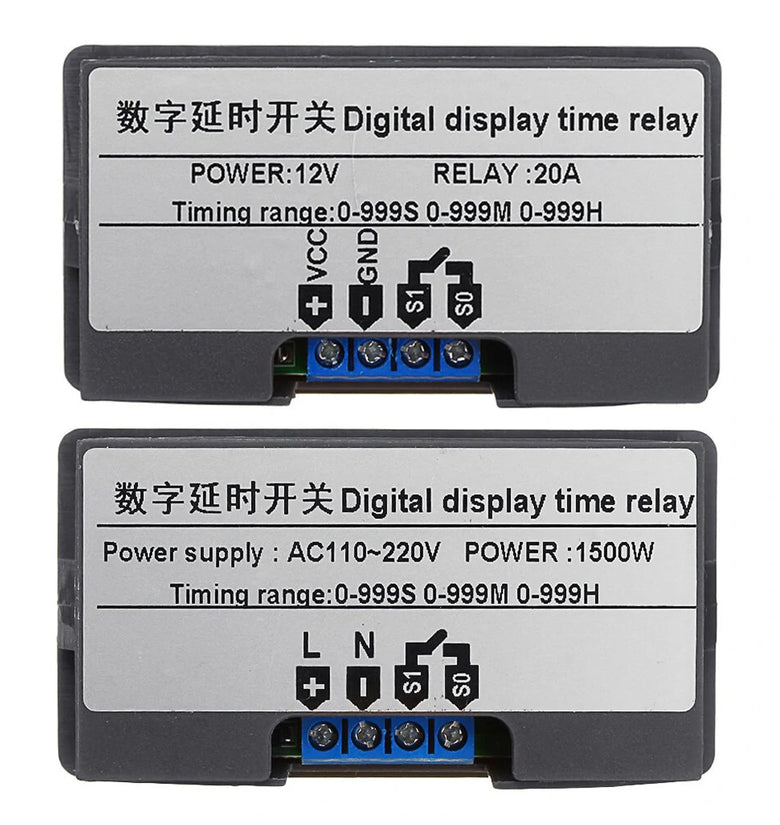

Supply voltage: DC12V /AC110V-220V
Relay: 20A
Working current: 10A(max)
Power: 500W(max)
Size: 79*26*43mm
Hole size: 72*40mm
Instructions:
Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.

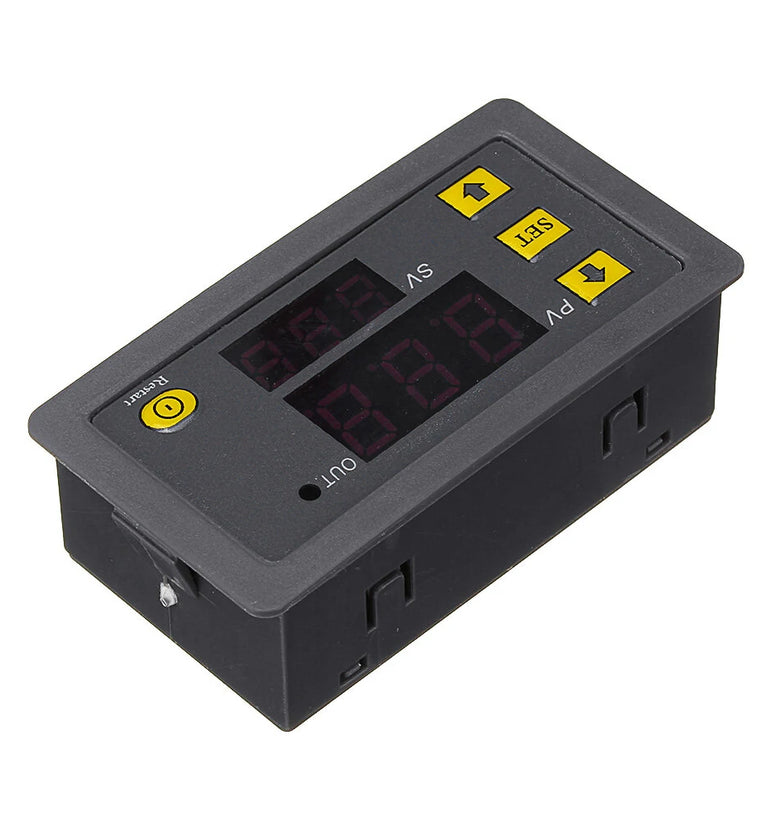

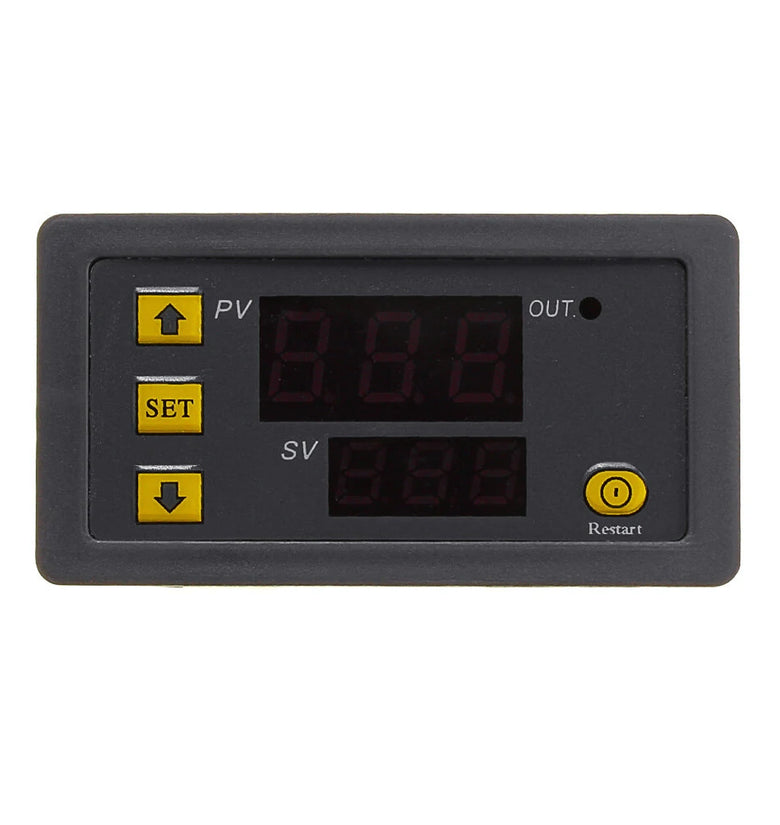

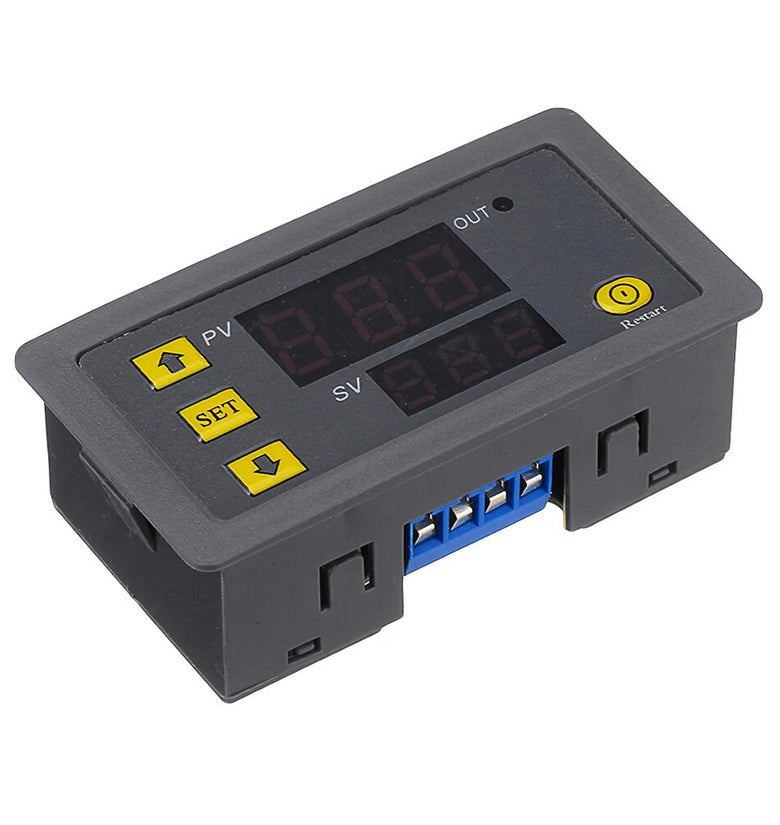

Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s .
Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.
P0--0: Timing time mode : 0---999s.
P0--1: Timing time mode : 0---999min.
P0--2: Timing time mode : 0---999h.
P1--0: The relay will connect after you delay the T1 time .
P1--1: The relay will disconnect after you delay the T1 time.
P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish.
P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish.
P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic.
P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic.
Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows:
T1 set time 10, T2 set time 20
P0--0 (T1 time range is seconds)
P1--5 (timer work mode)
Package Included:
1 x Digital Display Time Relay
