Parameter:

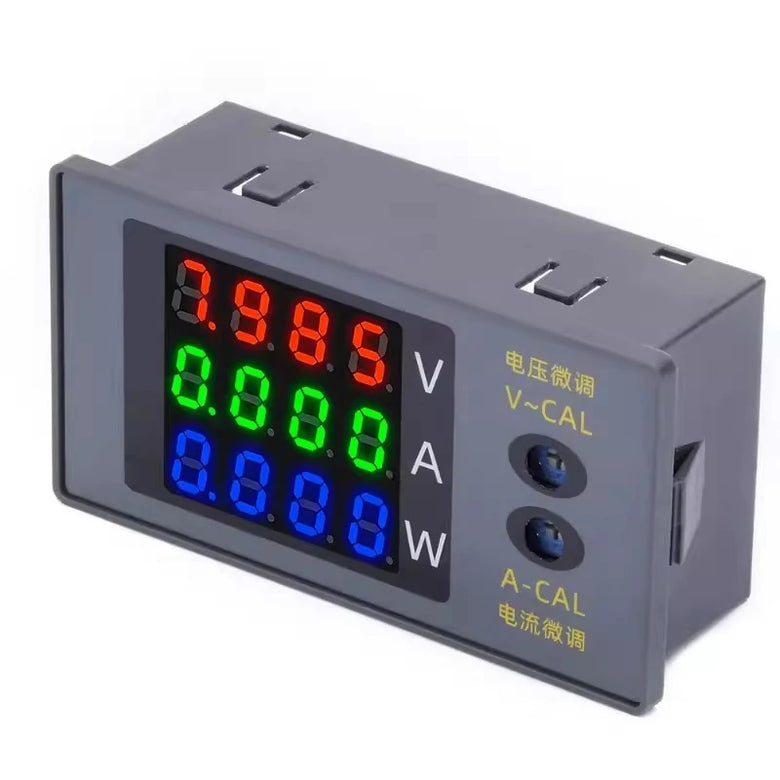

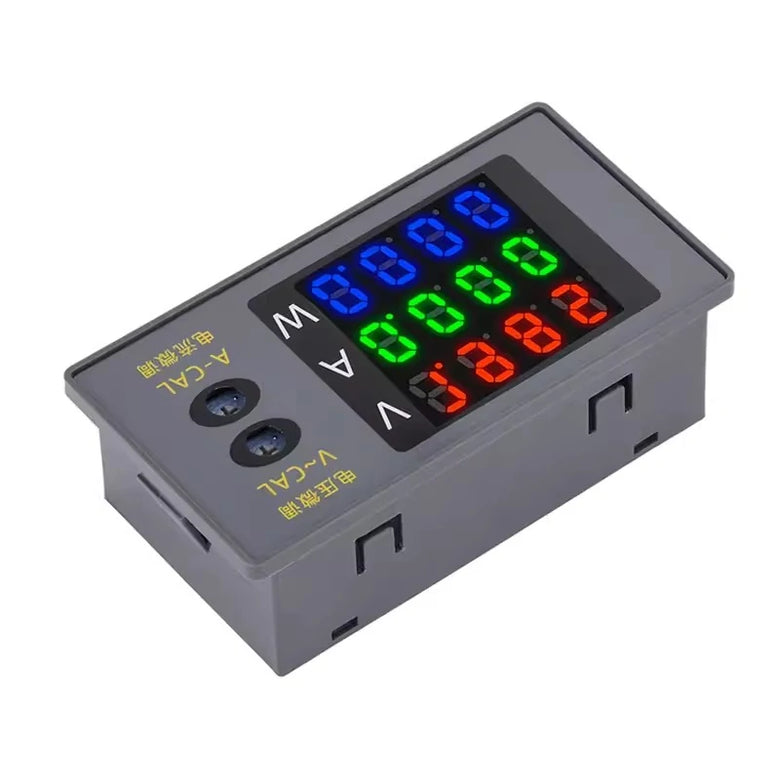

Model: DC730
Working voltage: XH-3P red and black wire DC7~30V (Do not over-voltage power supply)
Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V jumping
Current Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumping
Power measurement range: 0.000~1000W
Working energy consumption: 20mA (DC12V measured)
Voltage display fine-tuning: support, adjustable resistance fine-tuning
Current display fine-tuning: support, adjustable resistance fine-tuning
Product size: 79.3×42.1×26.2mm
Installation opening: 71.7×39.1mm

Features:
1.Adopting high quality ASB material, LED digital tube high precision display, stable performance and high efficiency.
2. Voltage measurement range: DC0.000~100.0V Error ±1.00V 0.1V jump.
3. Current measurement range: 0.000A~10.00A Error ±0.1A 0.03A start.
4. Power measurement range: 0.000~1000W.

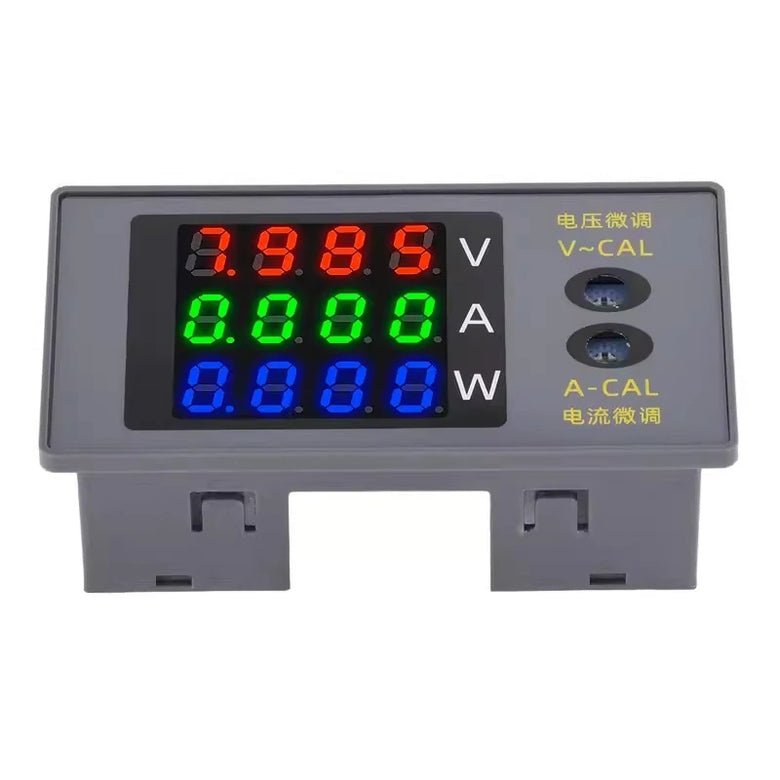

5. DC voltage, current, power real-time testing, the same screen display, clearly recognizable.
6. Support voltage display fine-tuning, support current display fine-tuning.

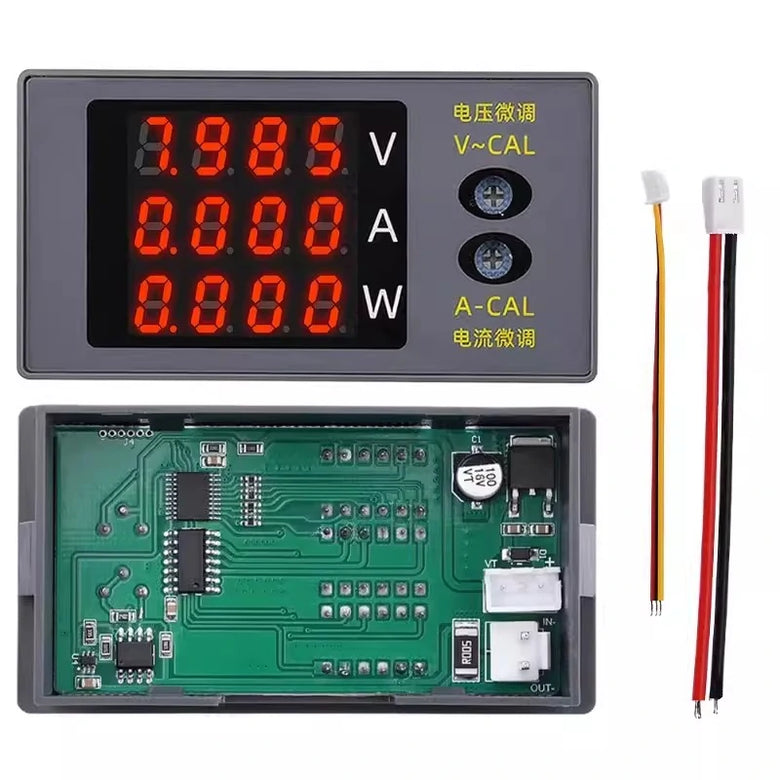

Package include:
1x Power Meter
1x XH-2.54-3P Red, Black and Yellow Wire
1x VH-3.96-2P Coarse Red and Black Wire

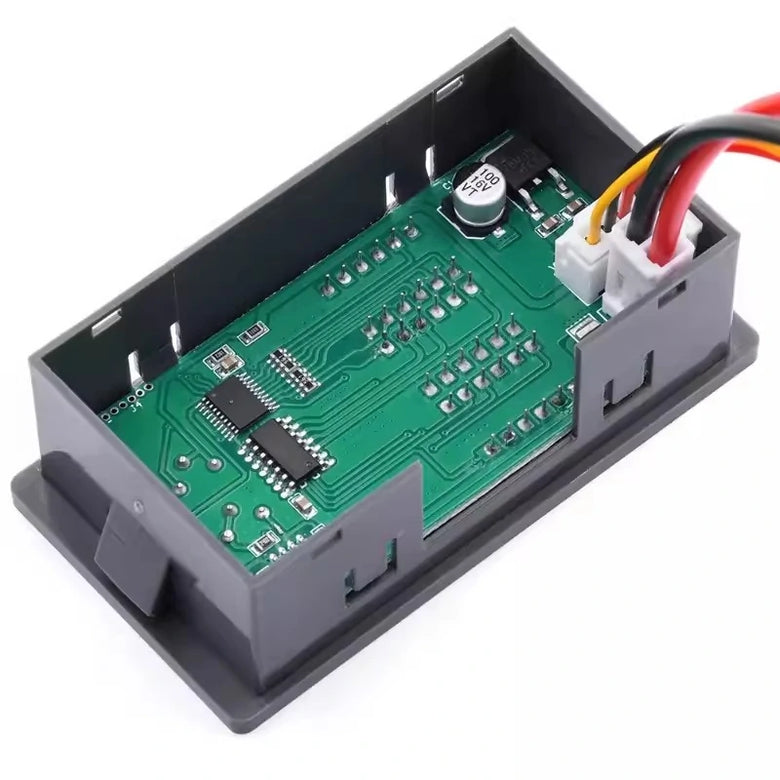

Wire Definition Introduction:
XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of the working power supply, and thick black wire site, do not need to be connected when sharing power supply.
Thin yellow line: voltage test line, connected to the positive pole of the test circuit power supply.
VH-3.96-2P Coarse red and black wires (thick wire total length: 165mm) current test line
Thick wire parallel shunt resistance, can not be directly connected to the power supply poles, will be short-circuited!
Thick red wire: current test positive pole, string in the negative end of the load, connect the broken line after the first break!
Thick black wire: current test negative, connected to the negative terminal of the power supply, connected to the broken line first after the break!
Connect the shunt: on-board low temperature drift alloy resistor shunt, according to the wiring diagram, direct wiring can be used!
