Description:

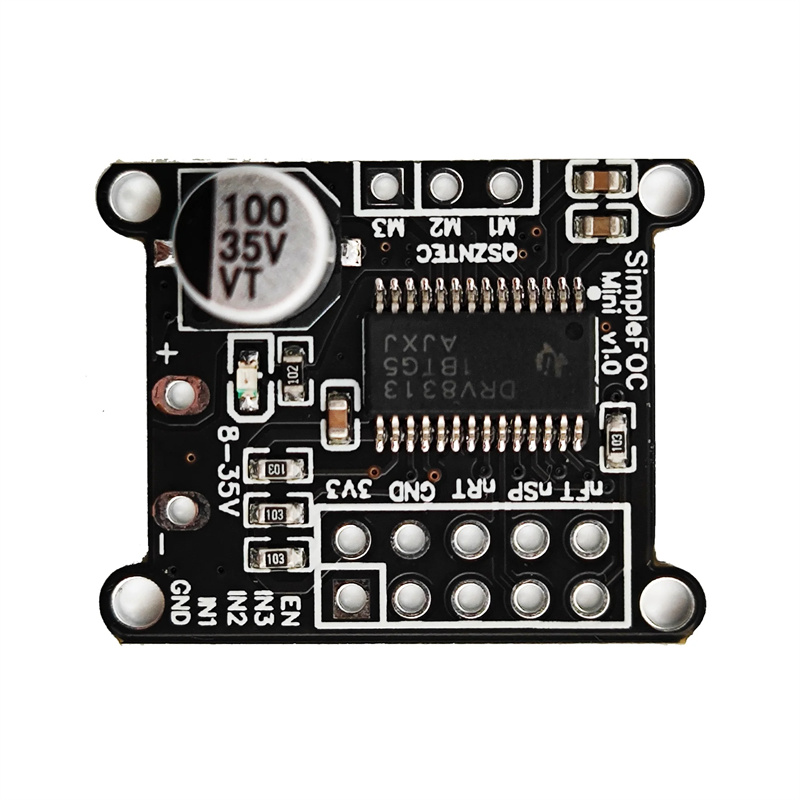

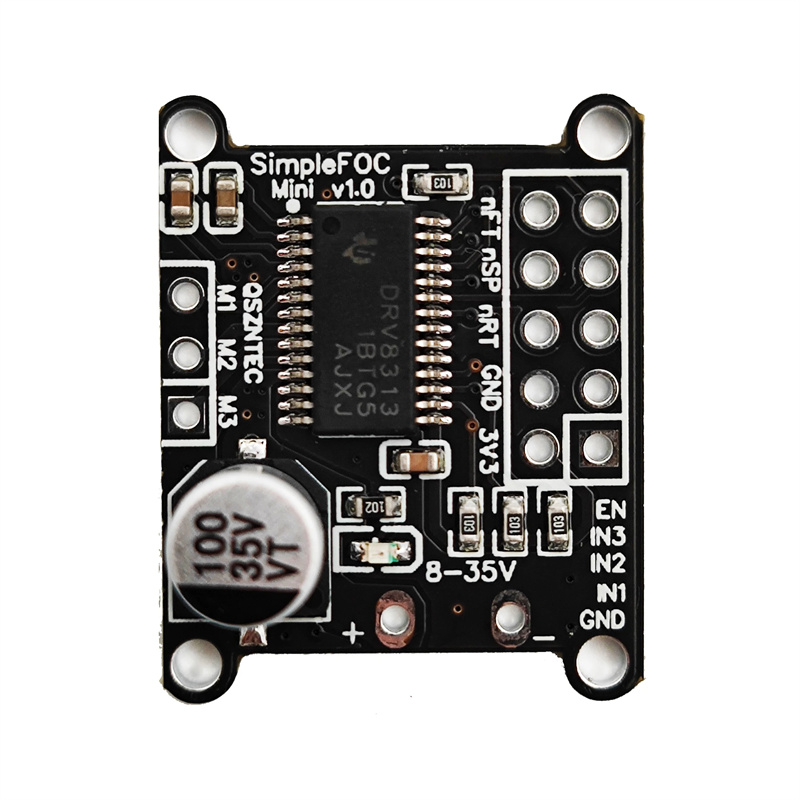

SimpleFOCMini DC brushless motor drive board adopts DRV8313 chips. DRV8313 provides three independently controllable semi H-bridge drivers, mainly used for Drive DC brushless motor. Just connect the control signal and motor UVW three-phase line to control The brake motor rotates. Support SPWM and SPVMW control algorithm, not traditional 6-step commutation control Algorithm. It can be quickly used through SimpleFOC.
Specification:
1. Input power voltage: 8~30V
2. The maximum output current of each circuit is 3A
3. On board 3.3V LDO output, maximum current 10mA
4. The input control signal is compatible with 3.3V and 5V.
5. Support SPWM and SPVMW control algorithms
6. Powerful open source library, quick start.

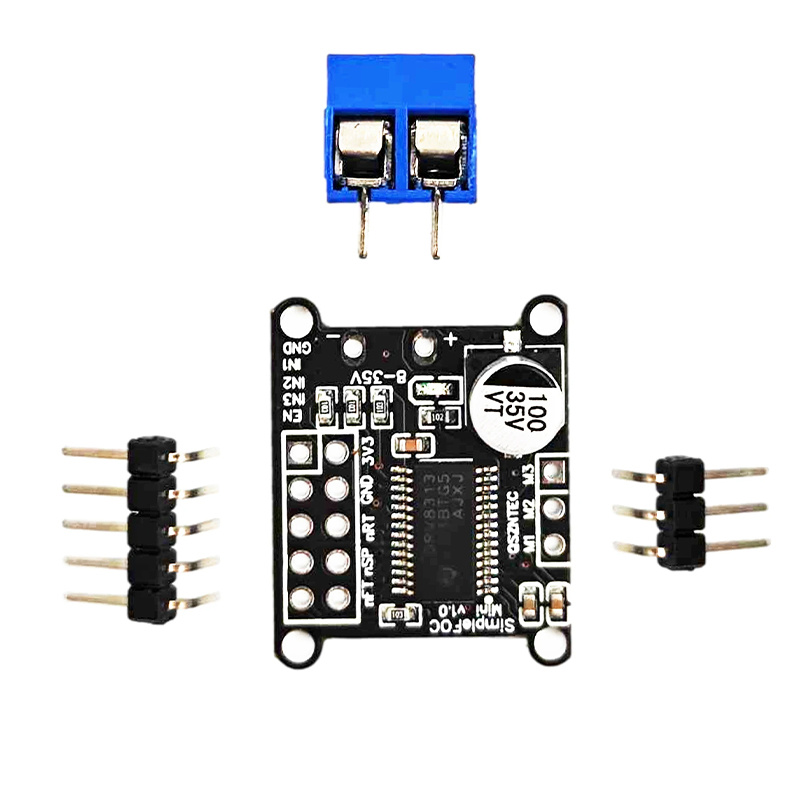

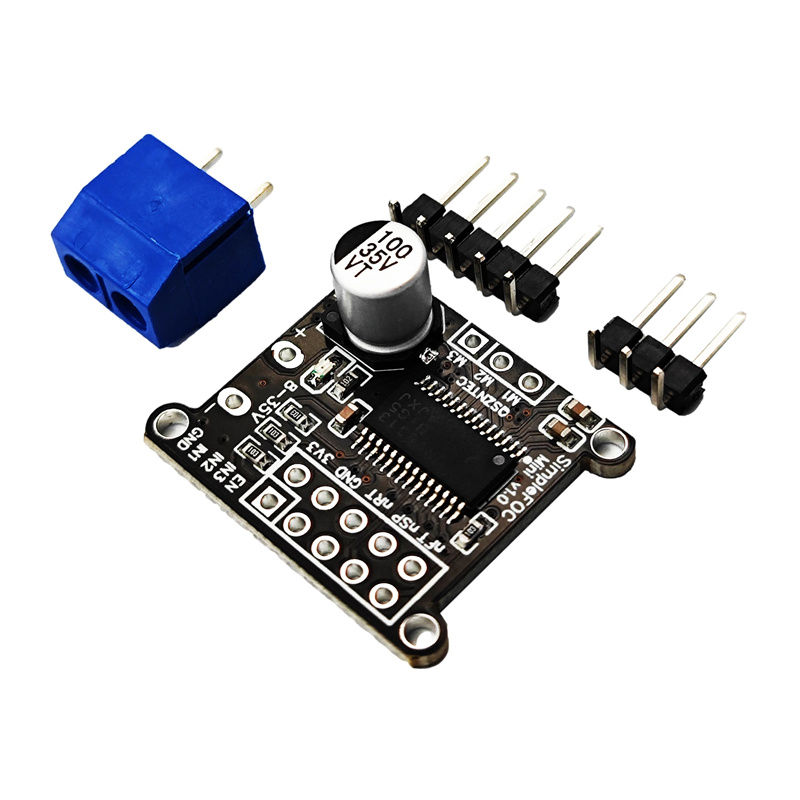

Package Include:
1x SimpleFOCMini Borad
