Feature:

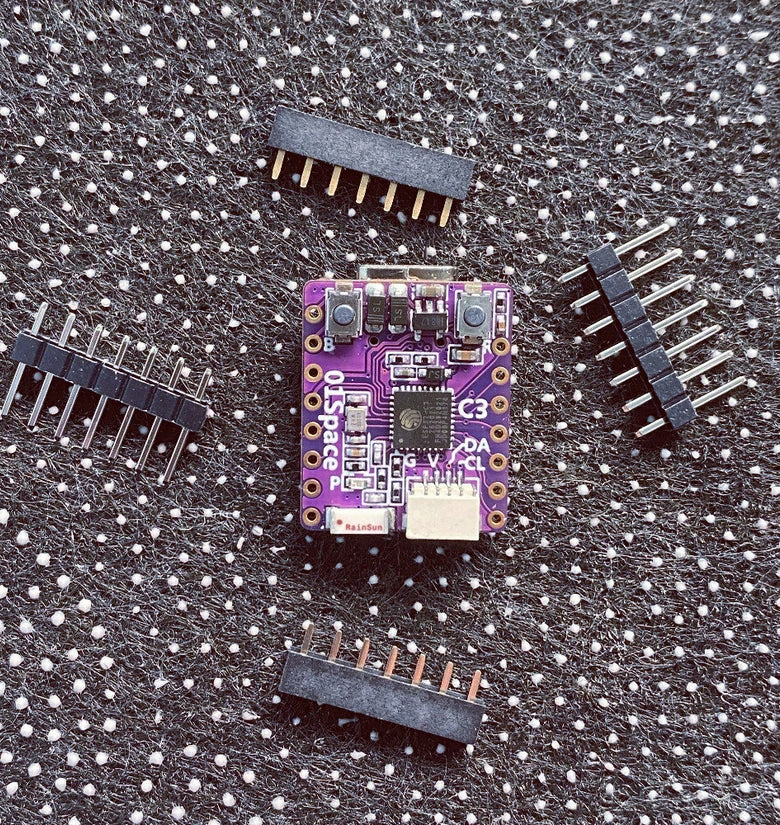

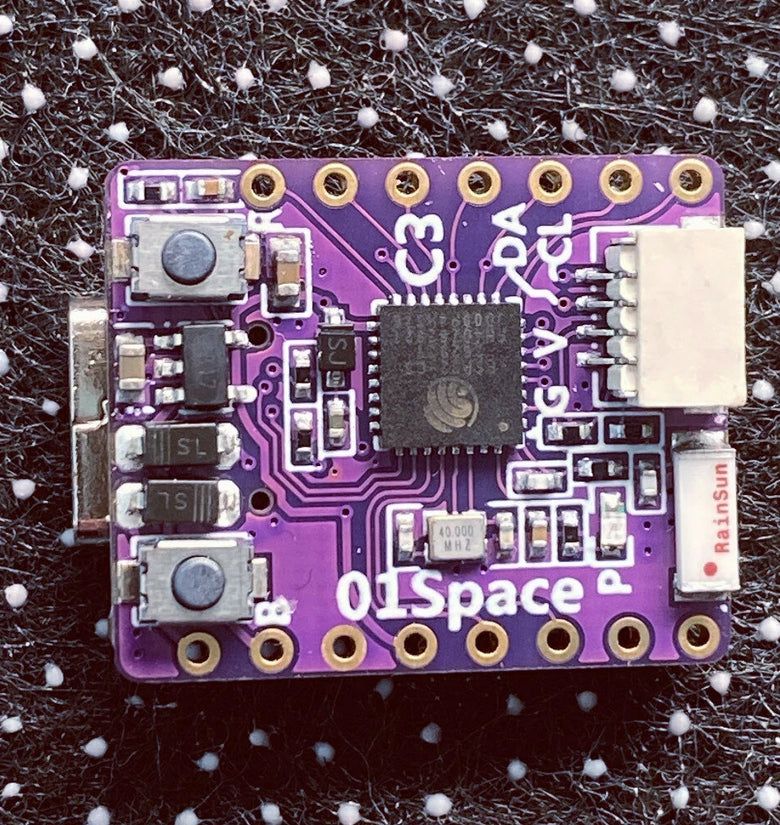

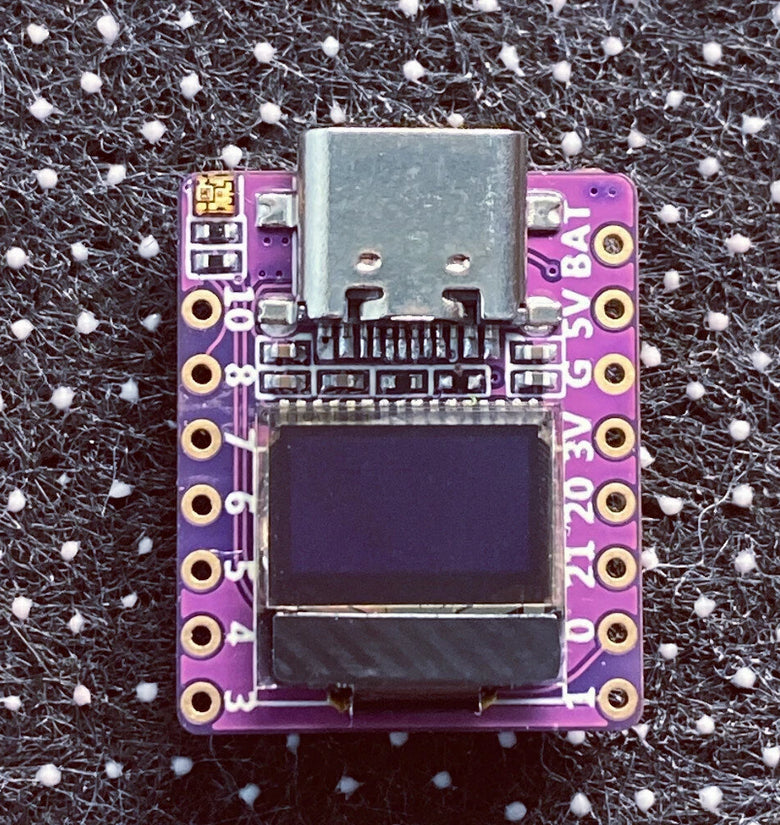

ESP32-C3 is a low-cost microcontroller from Espressif that supports 2.4 GHz Wi-Fi and Bluetooth® Low Energy ( Bluetooth 5 (LE)).Use RISC V as the core.There's a minimum number of pins on this chip, it's specifically designed to be low cost and for simpler projects than ESP32-Sx or ESP32 classics with their large number of GPIO. Think of it more as an intended replacement to the ESP8266 than to the ESP32! It has built-inUSB-to-Serial, but not native USB - it cannot act as a keyboard or disk drive. The chip used here has 4MB of Flash memory, 400 KB of SRAM.
The ESP32-C3 integrates a rich set of peripherals, ranging from UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI controller, USB Serial/JTAG controller, temperature sensor, and ADC. It also includes SPI, Dual SPI, and Quad SPI interfaces. There is no DAC or native capacitive touch.
With its state-of-the-art power and RF performance, this SoC is an ideal choice for a wide variety of application scenarios relating to the Internet of Things (IoT), wearable electronics, and smart homes.
Features:

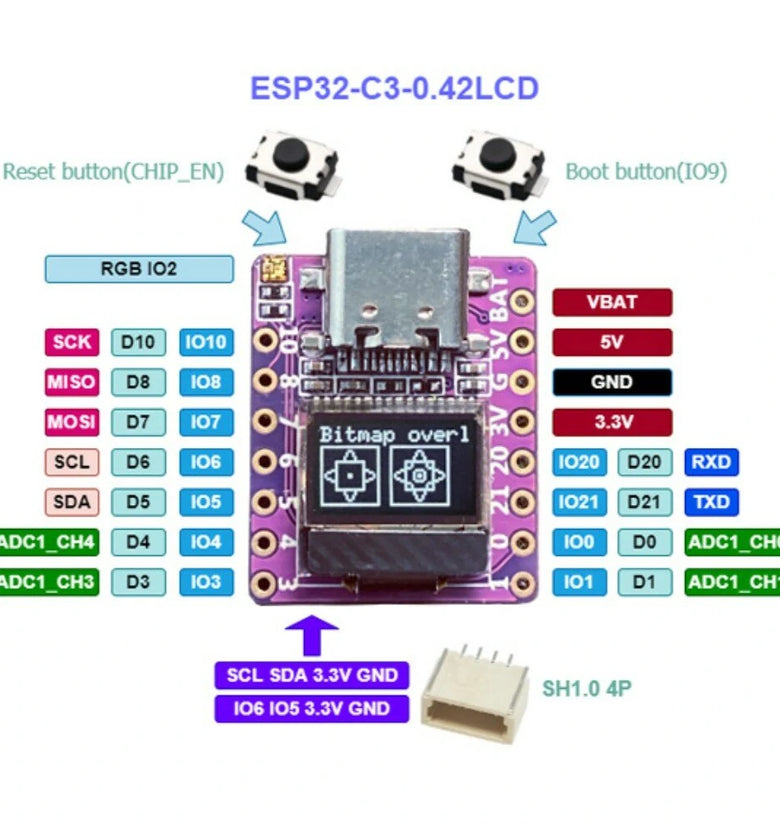

based ESP32-C3FH4 WIFI & Bluetooth LE RISC-V Single-Core CPU
Type-C USB
4MB Flash
11x IO
1x1.0-4P connector(GND,3V3,SDA(GPIO5),SCL(GPIO6))
1x RGB(GPIO2)
1x LED(3.3V Power Supply)
1x Reset button(CHIP_EN,great for restarting your program or entering the ROM bootloader)
1x Boot button(GPIO9,entering the ROM bootloader or for user input)
Compatible with MicroPython, Arduinoand ESP-IDF
3.3V Regulator with 500mA peak output
Ceramic Antenna
Size & Weight:
Size: 23.5 x 18 mm
Weight: 2.6g
DOCUMENTS: https://github.com/01Space/ESP32-C3-0.42LCD
Package includes:
1 x Display
