What is C3FH4 RGB?
C3FH4 RGB features an ultra-compact design with one risc-v 32-bit single core processor at 160MHz on a PCB, built-in 400 KB SRAM and 4 MB Flash , integrated with 2.4 GHz Wi Fi and supporting long-distance Bluetooth 5 (LE), with industry-leading RF performance and low power consumption.By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, offers a more secure way to answer the Bluetooth security concerns.
With low power consumption: It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.and fully compatible with Arduin, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.
HIGH INTEGRATION: C3FH4 RGB Including 2 channels of 5V - > 3.3V DC / DC, GPIOx11, programmable RGB light x25, button x2, finely tuned RF circuit, providing stable and reliable wireless communication.
Features:
ESP32-C3FH4 (2.4GHz Wi-Fi and supporting long-distance Bluetooth 5 (LE))
built-in 400 KB SRAM and 4 MB Flash
USB Type-C(USB OnThe-Go (OTG))
Including 2 channels of 5V - > 3.3V DC / DC

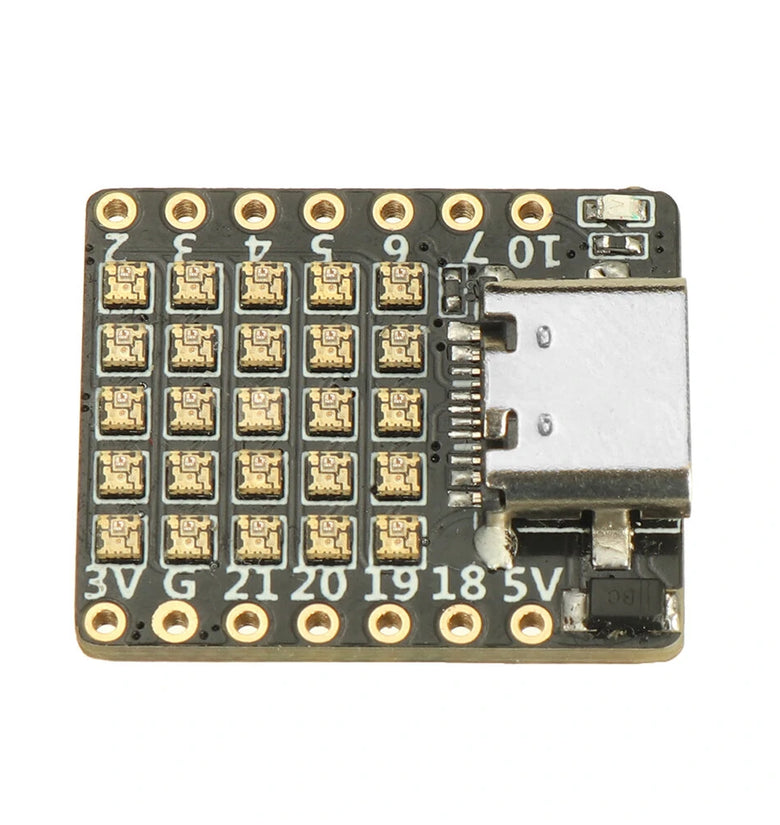

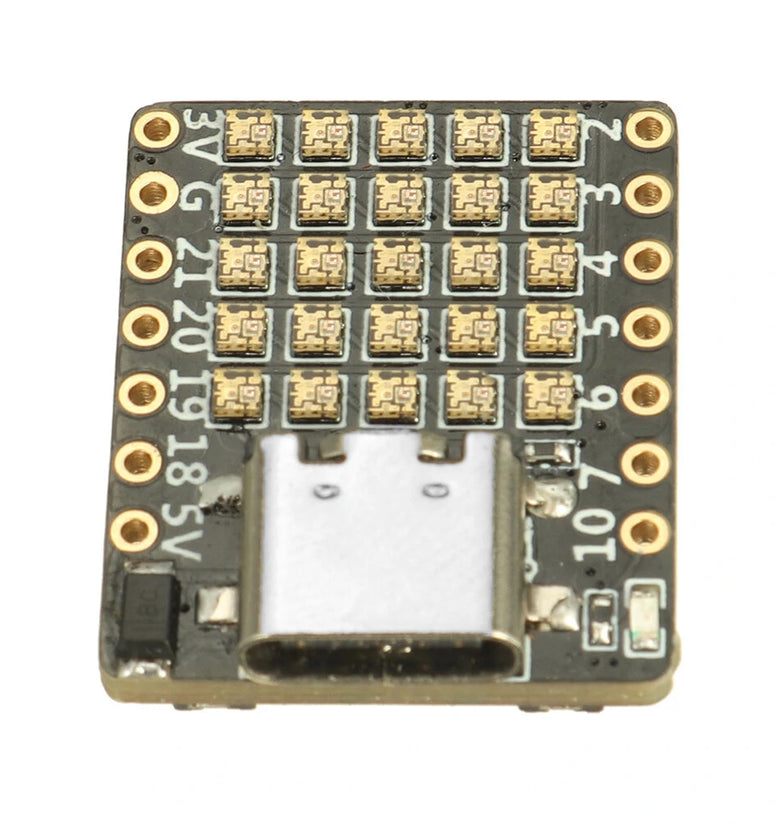

Integrated 5X5 ws2812b-1515(GPIO8) and 2 buttons(GPIO9 and CHIP_EN)
3V power LED and status LED(GPIO10)
Ceramic Antenna
Size & Weight:
Size: 21 x 18 mm
Weight: 2.3g
DOCUMENTS:
Package includes:

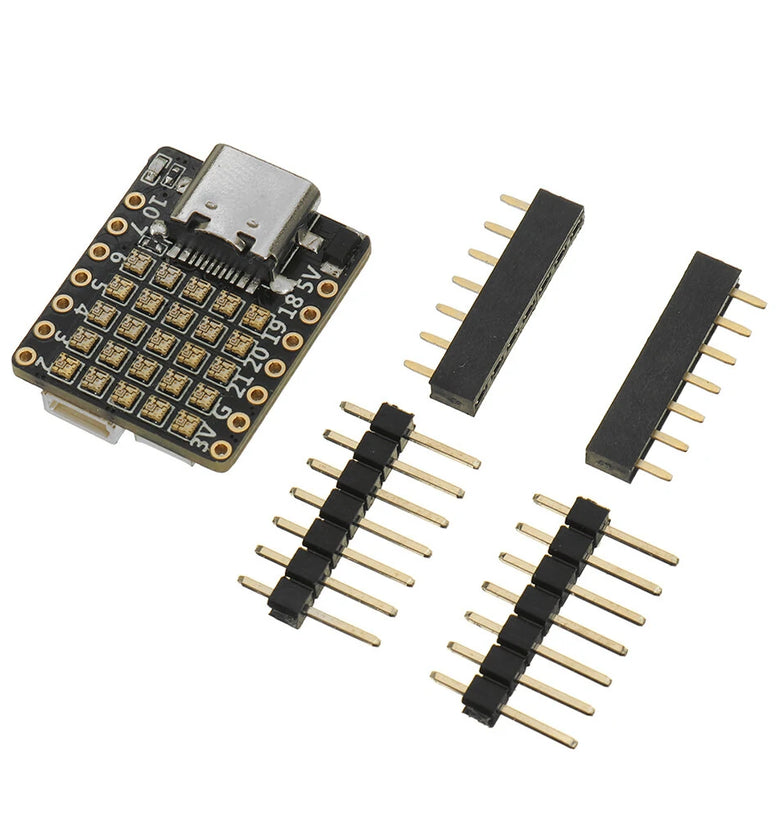

1 x LED board
(Note: The coin is not included)
