Decriptions:

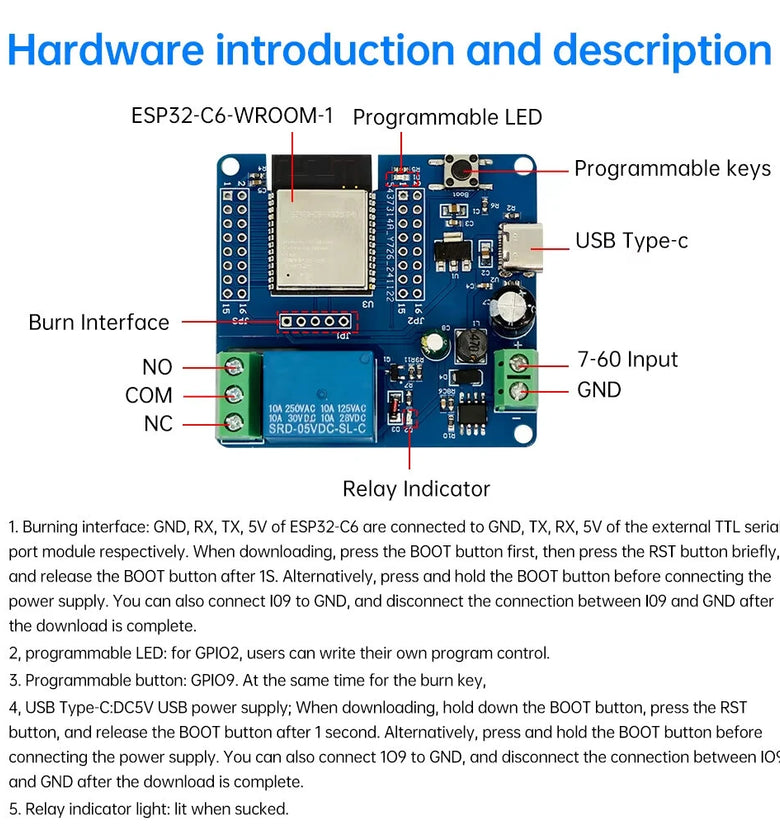

1. The ESP32-C6Relay_X1 single relay development board is a development board based on the ESP32-C6 module. All V/0 ports are fully connected and support DC5-60V power supply mode. It is equipped with programmable buttons, LEDs, and relays on board, making it convenient for developers to quickly verify and develop prototypes, and bringing more possibilities to IoT control scenarios.
2. ESP32-C6 is the first SoC to support Wi Fi 6, integrating 2.4GHz Wi Fi 6, BT 5 (LE), and 802.15.4 protocols, providing industry-leading RF performance, comprehensive security mechanisms, and abundant memory resources for IoT products. Built in two 32-bit RISC-V processors, one is a high-performance (HP) processor with a clock speed of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a clock speed of up to 20MHz The chip is also equipped with 512KB SRAM, 320KB ROM, and 4MB Flash, providing more space for programming and bringing more possibilities for IoT control scenarios.
3. ESP32-C6 has 30 (QFN40) programmable GPIO pins, supporting SPI UART, I2C, I2S, RMT, TWAI, PWM, Motor control PWM and SDIO. It also integrates a 12 bit ADC and a temperature sensor.
4. ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless protocol stack supports 2.4GHz WiFi 6, BT@5.3 The Zigbe，and Thread（802.15.4)。 As the first Thread compatible device, it is highly suitable for building projects that comply with Matter standards, enabling interoperability between smart home devices.

Specifications:
Power supply mode: Supports DC7-60V or TYPE-C 5V (choose one)
Module model: ESP32-C6
Control working voltage: Onboard 1 5V relay, output switch signal, suitable for controlling loads with working voltage below AC250V/DC30V
Processor: Integrated with two 32-bit RISC-V processors, the high-performance processor has a clock speed of up to 160MHz, and the low-power processor has a clock speed of up to 20MHz

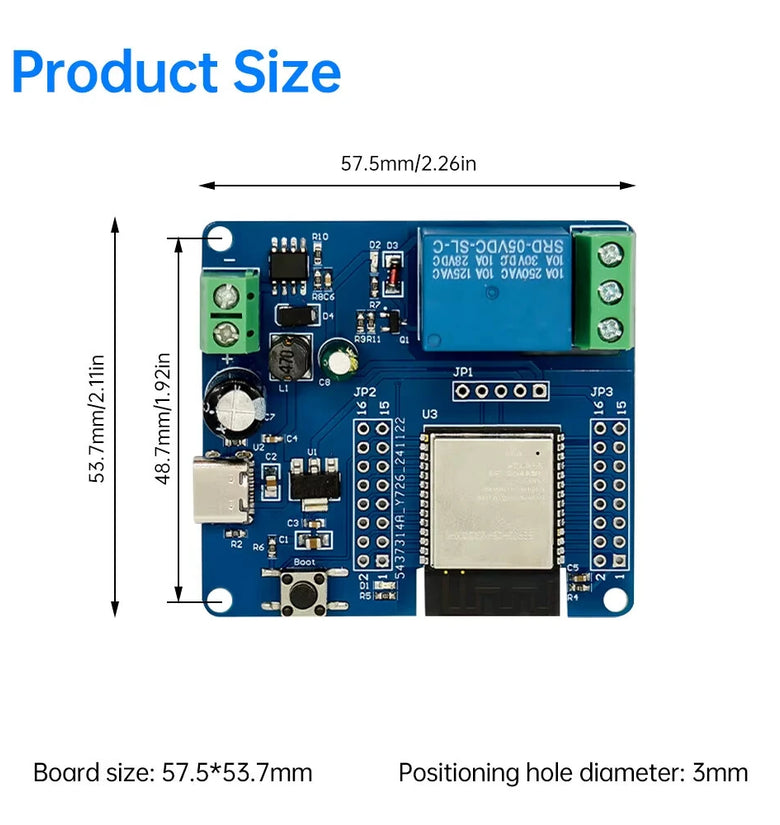

Size: 57.5mm X 53.7mm
Weight: 27g
Positioning hole diameter: 3MM
