Specifications:
Board Dimensions: 55mm x 57.5mm x 3mm
Weight: 24 grams
Microcontroller: ESP32-32E with WiFi & BLE Module
Flash Memory: 4MB
Input Voltage Range: DC 5V-60V
Output Voltage: 5V (recommended power input DC 12V)
Interface: I/O ports, UART pin reserved for development
Compatibility: Supports ESP-IDF & Arduinos IDE
MOSFET: N-channel MOSFETs with a drain-to-source voltage of 60V
Features:
1. Stable Performance with ESP32-32E Module
Integrated with a highly reliable ESP32-32E module, ensuring consistent performance and advanced connectivity options such as WiFi and BLE.
2. Wide Input Voltage Range for Compatibility
Accepts DC inputs ranging from 5V to 60V, making it suitable for diverse applications. Designed for powerful and efficient energy conversion.
3. User-Friendly Programming Options
Supports ESP-IDF and Arduinos IDE for ultimate flexibility in development, ensuring compatibility with popular programming environments.
4. High Voltage MOSFET Design
Equipped with robust N-channel MOSFETs capable of enduring up to 60V, making this module reliable for advanced electrical projects.
5. Compact and Lightweight Design
With dimensions of 55mm x 57.5mm and a weight of only 24g, the module fits seamlessly into projects requiring efficient use of space.
Package Included:

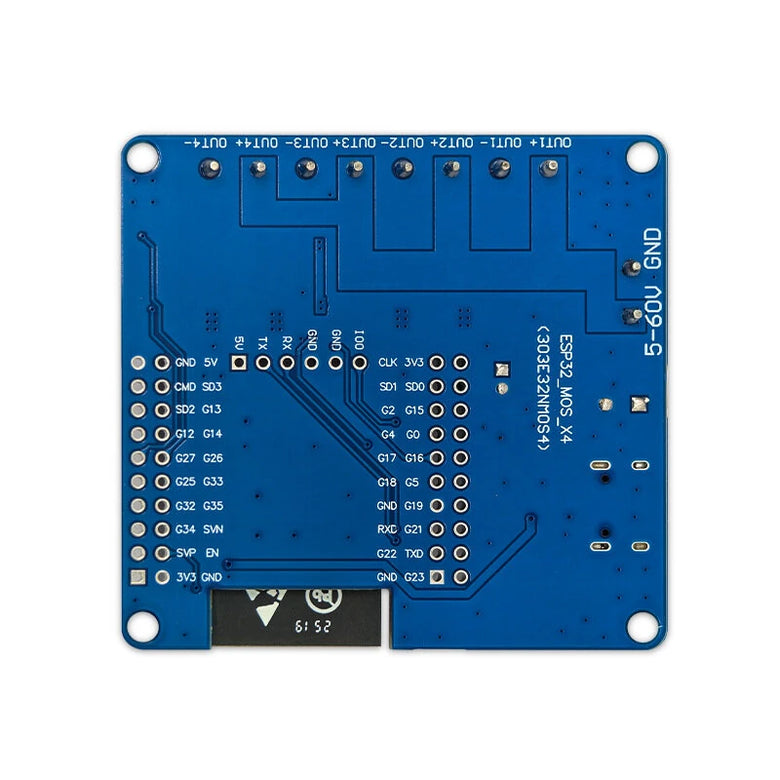

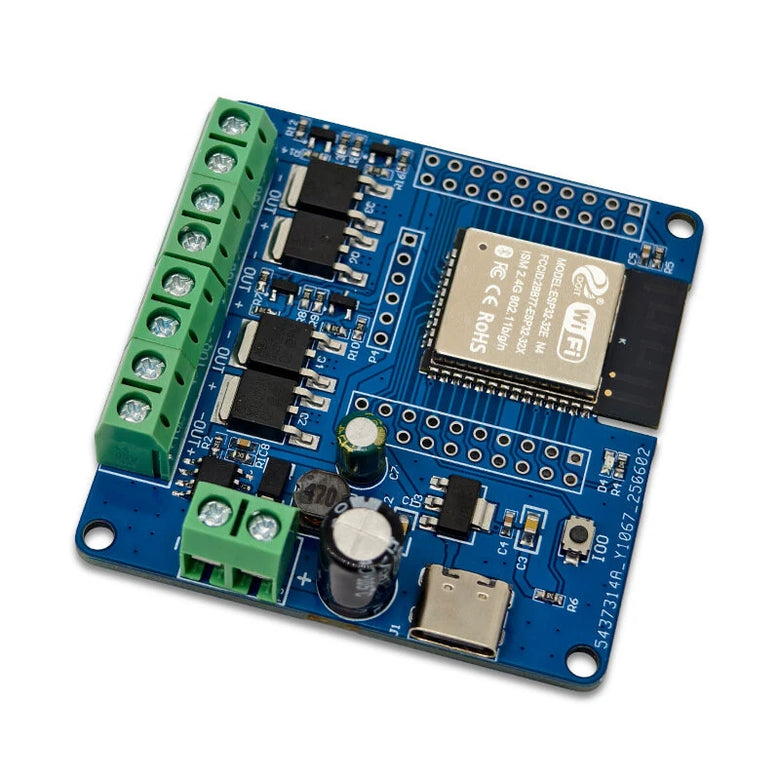

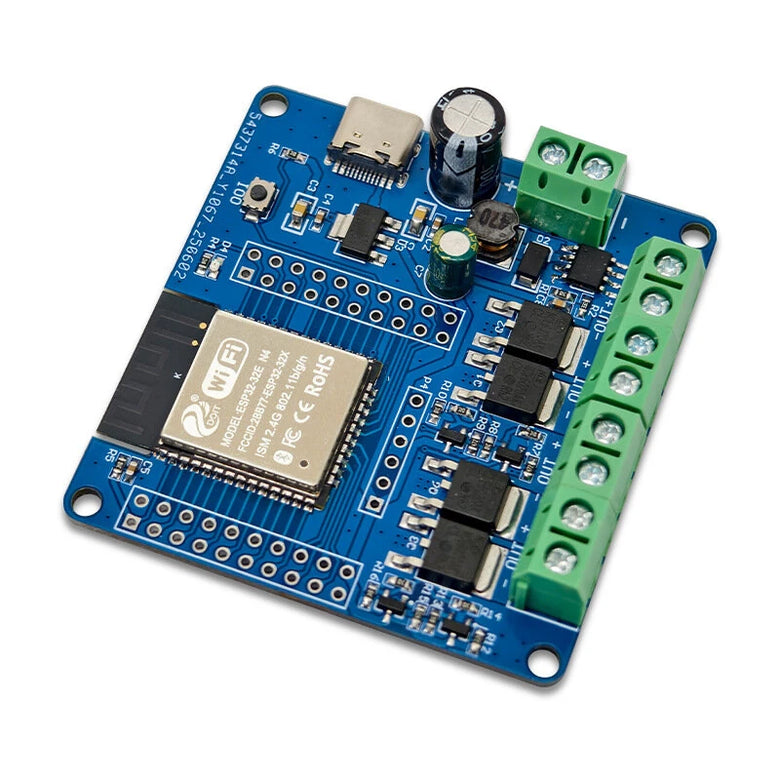

1//2/3/5/10 (optional) x DC ESP32 Four-Channel MOS Switch Module
