Features:
>>>User Manual: Click here to open<<<

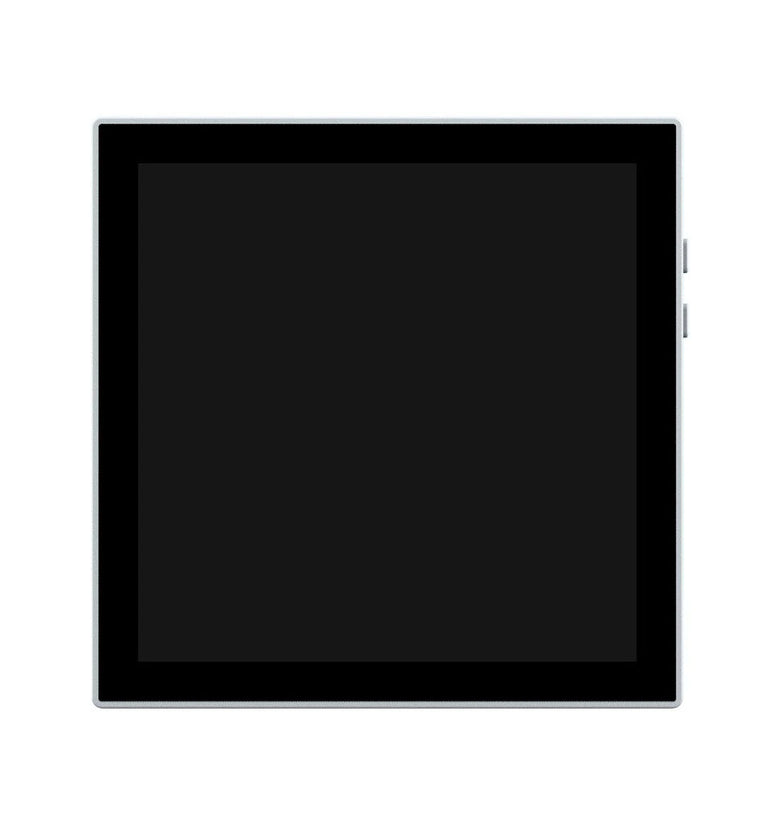

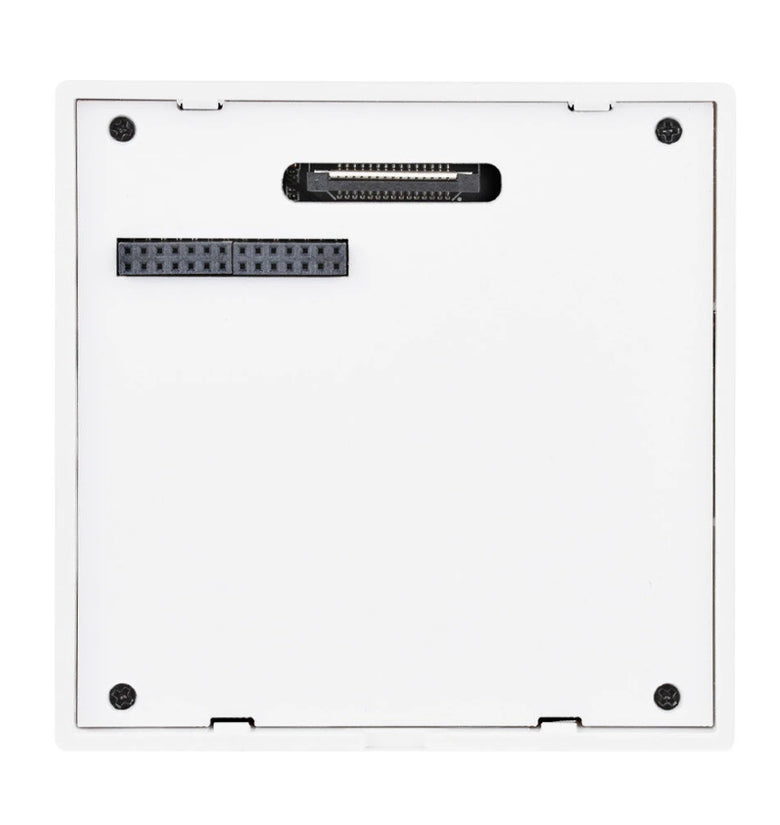

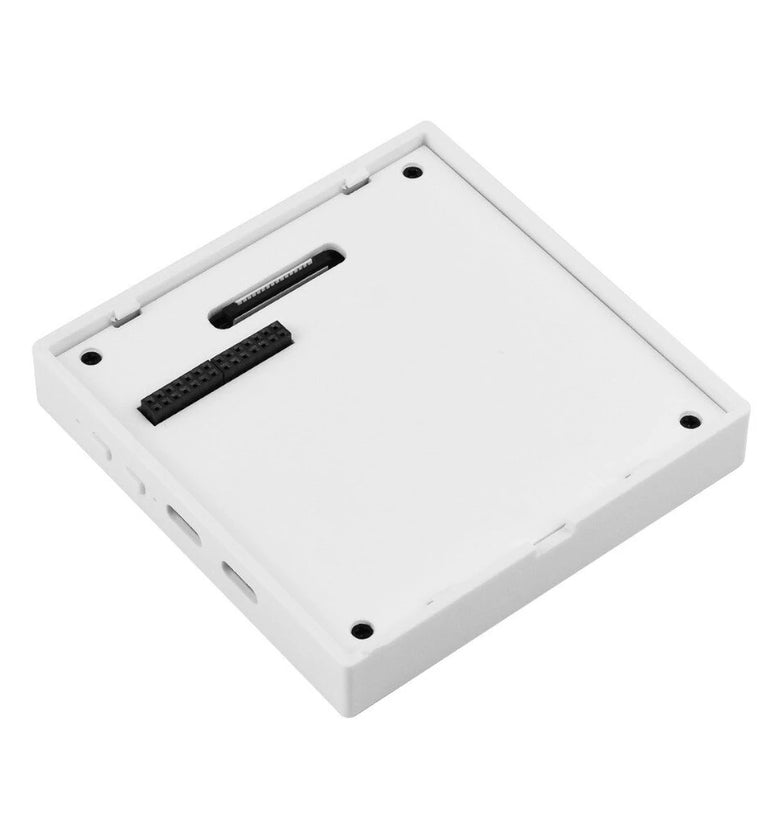

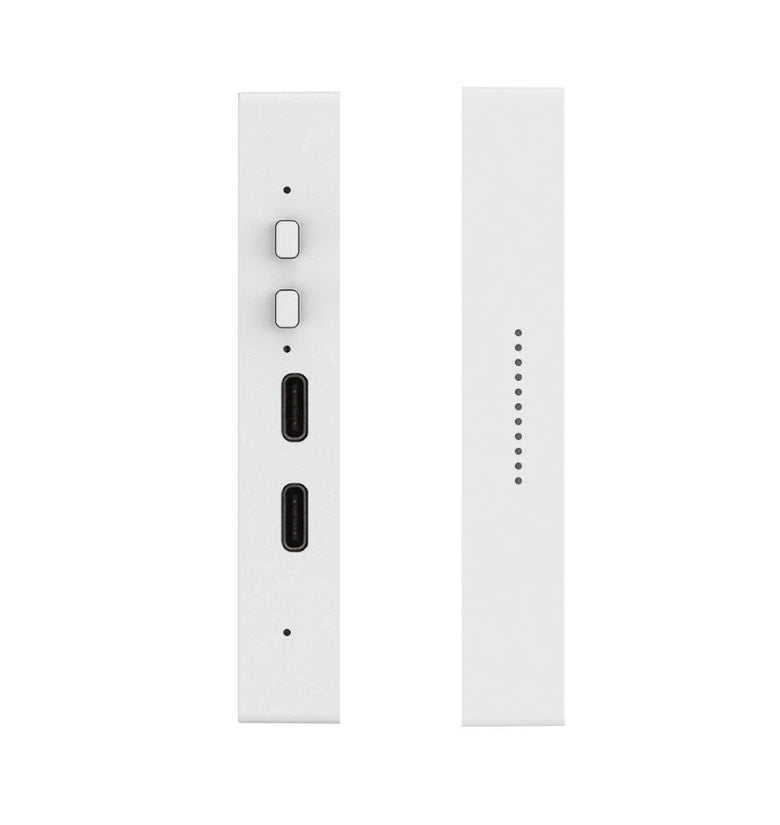

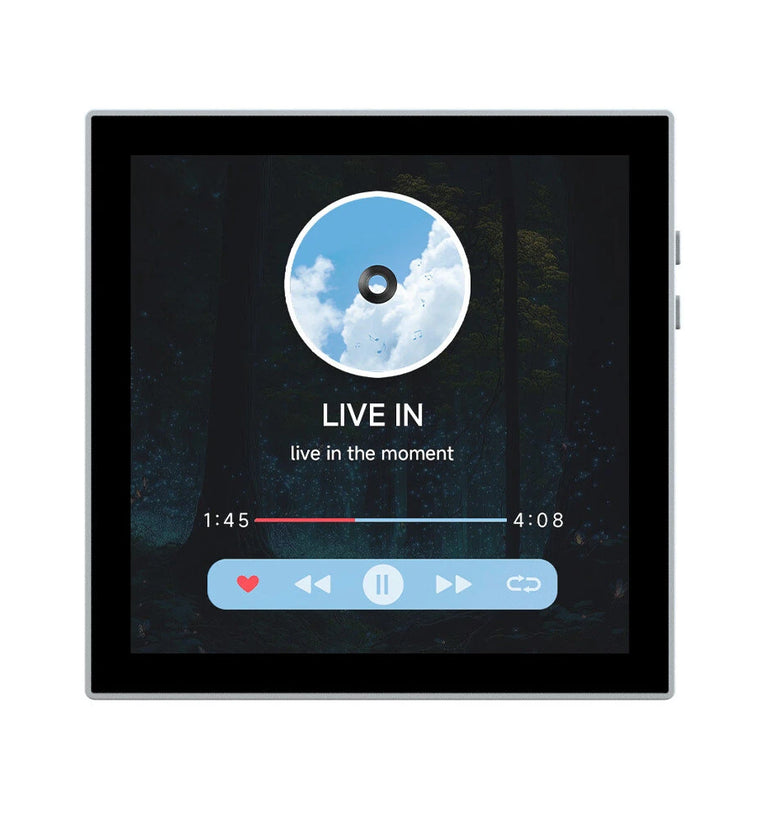

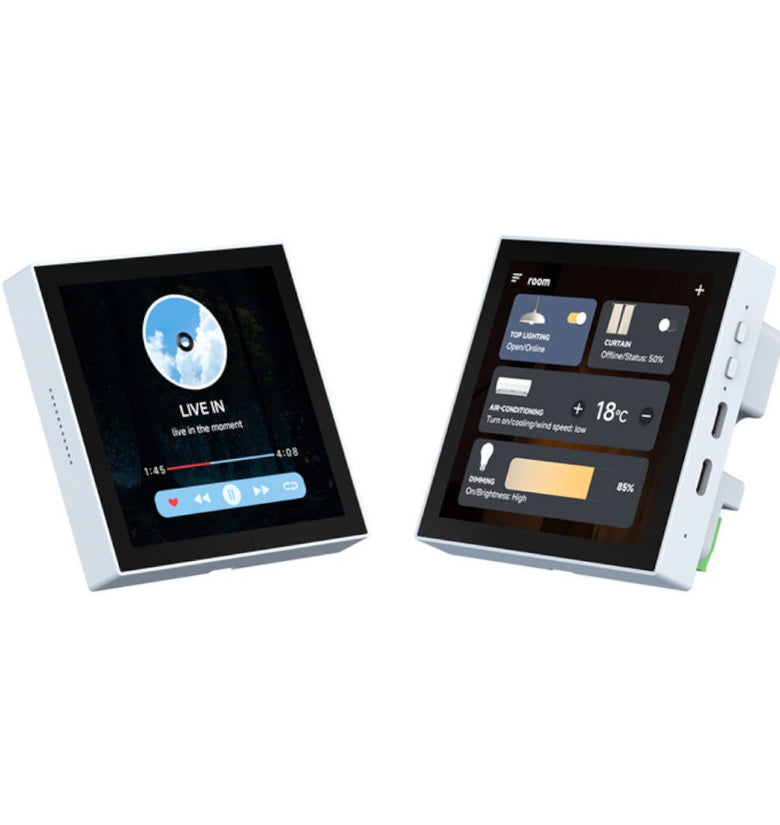

1. This product series is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors, onboard 4inch 720 × 720 resolution IPS touch display. It features rich Human-Machine interfaces including MIPI-CSI (with integrated Image Signal Processor), and supports USB OTG 2.0 HS for high-speed communication.2. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.3. High-performance MCU with RISC-V 32-bit dual-core and single-core processors 4. 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM5. Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder6. 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash7. Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet port, SDIO 3.0 TF card slot, dual microphones (support echo cancellation), speaker header and RTC battery header, etc. (available interfaces vary by model, please refer to the onboard resources for more details)8. Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Display Specifications:
| Model | 4inch IPS touch screen |
| Resolution | 720 × 720 |
| Comm Interface | supports RGB565, RGB666, RGB888 |
| Display Panel | IPS |
| Touch Type | Capacitive |
| Touch Chip | GT911 |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200:01:00 |
| Viewing Angle | 170° |
| Outline Dimension (H×V) | 86.5 × 86.5 (mm) |
| Display Area (H×V) | 71.93 × 71.93 (mm) |
| Pixel Pitch (H×V) | 0.0999 × 0.0999 (mm) |
| Color | 16.7M |
Package includes:
1 x Onboard camera interface
or

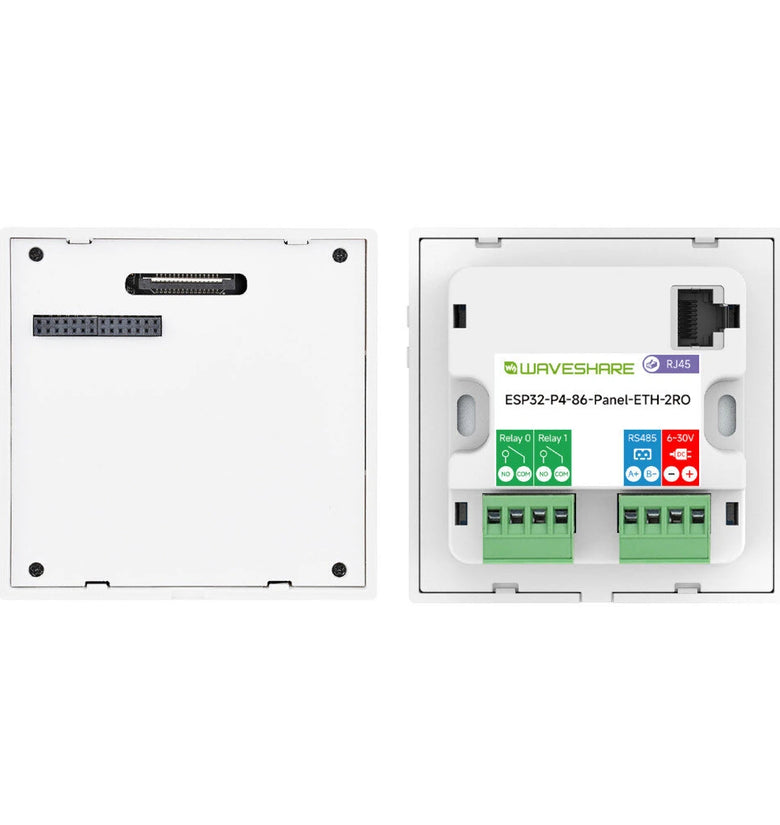

1 x Onboard Ethernet port + RS485 + 2-ch relay
