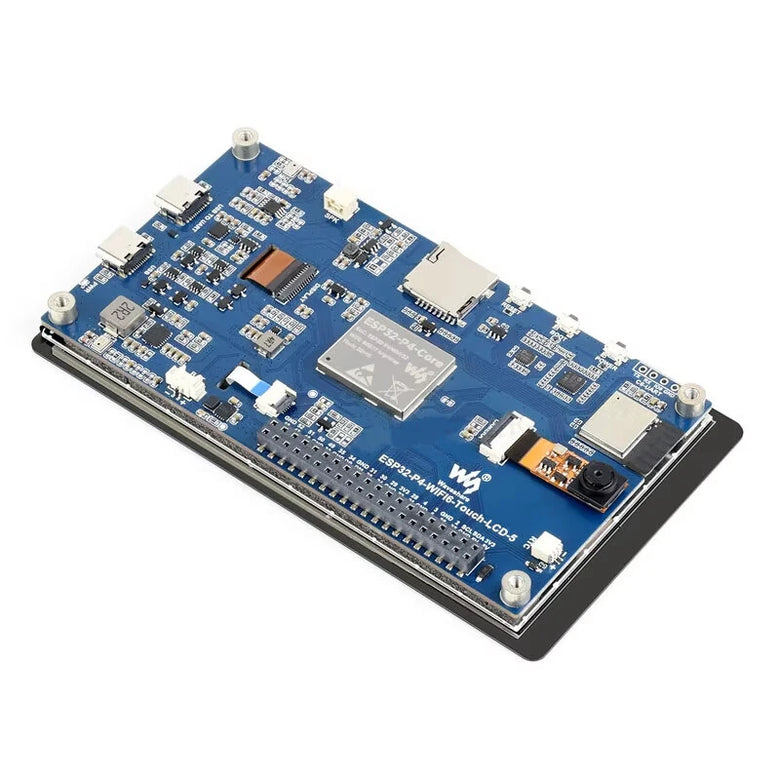

Specifications:
Core MCU: ESP32‑P4, RISC‑V 32‑bit dual high‑performance cores + low‑power core
Wireless Co‑processor: ESP32‑C6‑MINI for Wi‑Fi 6 (802.11ax) and Bluetooth LE 5
On‑chip Memory: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
External Memory: 32 MB PSRAM (in‑package), 32 MB NOR Flash (onboard)
Hardware Accelerators: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 encoder
Security: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, Digital Signature peripheral, Key Management Unit, hardware access protection, access permission management, privilege separation
USB: USB 2.0 High‑Speed OTG via Type‑C
Expansion: 40‑pin GPIO header, compatible with many Raspberry Pi HATs
Interfaces: I2C, UART, USB, multiple GPIOs
Storage Expansion: TF/microSD card slot
Power: USB Type‑C input; 3.7 V MX1.25 Li‑ion battery charge/discharge header

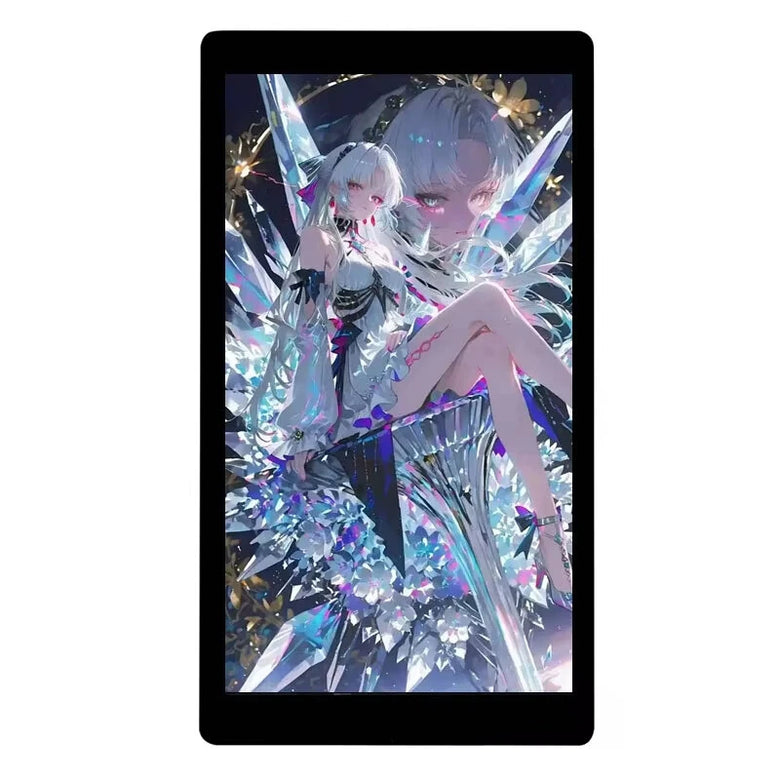

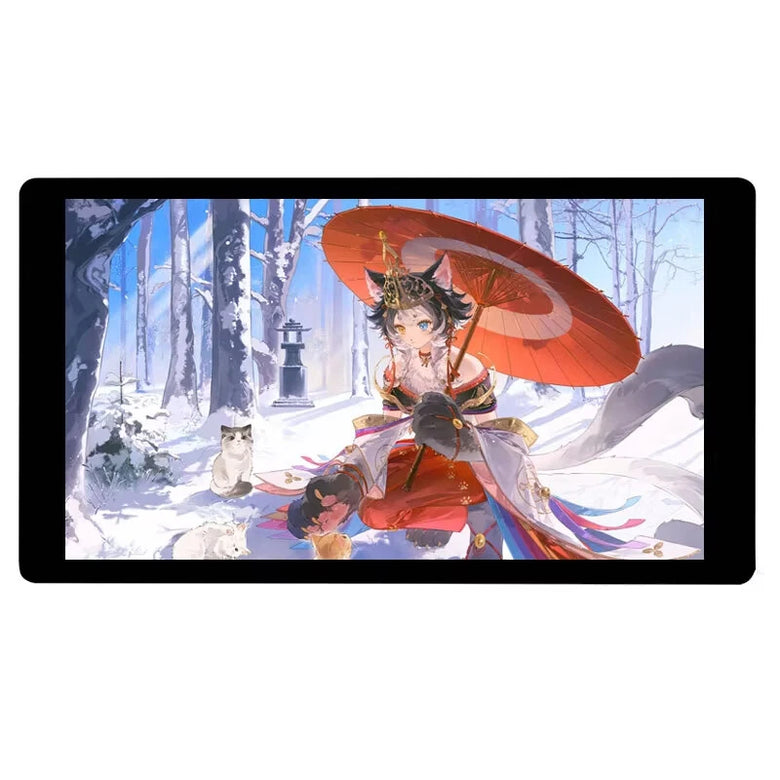

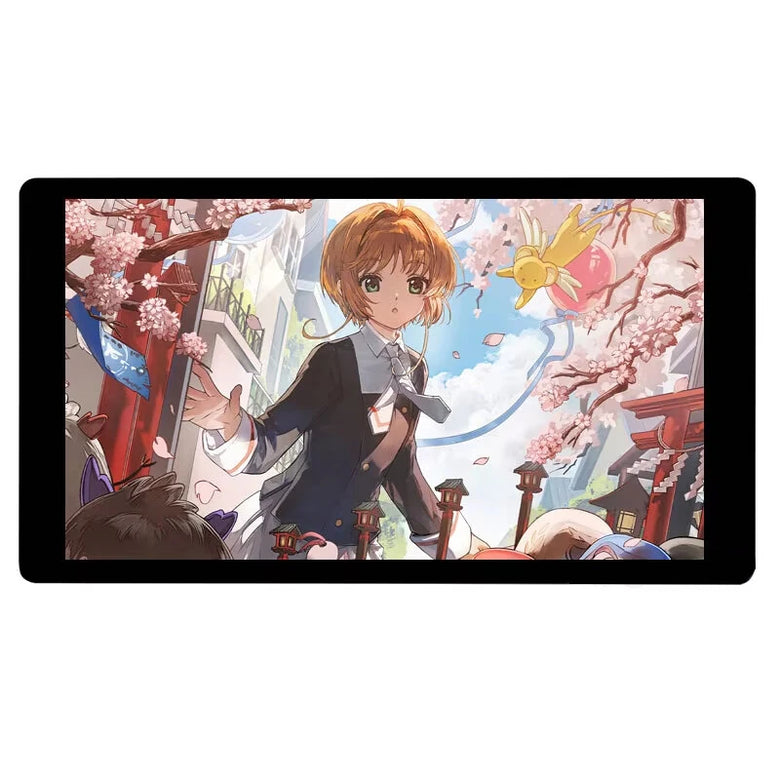

Display (integrated):
Size/Panel: 5 inch IPS capacitive touch
Resolution: 720 x 1280
Viewing Angle: 178°
Brightness: 280 cd/m²
Contrast: 900:1
Interface: MIPI‑DSI 2‑lane
Display Driver: HX8394
Touch IC: GT911
Camera (via MIPI‑CSI, supports OV5647 and others):
Sensor: OV5647, 1/4 inch CMOS, 5 MP, F2.4
Focal Length: 3.07 mm; FOV: 72.9°
Distortion: < 1.5%; DOF: 20 cm ~ ∞
Still Image: 2592 x 1944
Video: 1920 x 1080 @30 fps; 1280 x 720 @60 fps; 640 x 480 @60/90 fps
Features:
1) High‑performance RISC‑V platform with JPEG, H.264, ISP, and PPA accelerators -- built for fast graphics, vision, and edge AI workloads.
2) Wi‑Fi 6 and BLE 5 via onboard ESP32‑C6‑MINI, plus USB 2.0 High‑Speed OTG over Type‑C for rapid data and peripherals.
3) 5' 720x1280 IPS capacitive touchscreen, 178° wide view, 280 cd/m², 900:1 contrast; MIPI‑DSI with HX8394 and GT911 for fluid UI.
4) Maker‑ready expansion: 40‑pin header (many Raspberry Pi HATs compatible), I2C/UART/GPIO, TF slot, and MIPI‑CSI for OV5647 camera.
5) Enterprise‑grade security: Secure Boot, Flash Encryption, TRNG, crypto engines, Digital Signature and Key Management, plus hardware access control. Battery‑ready.
Package Included:
