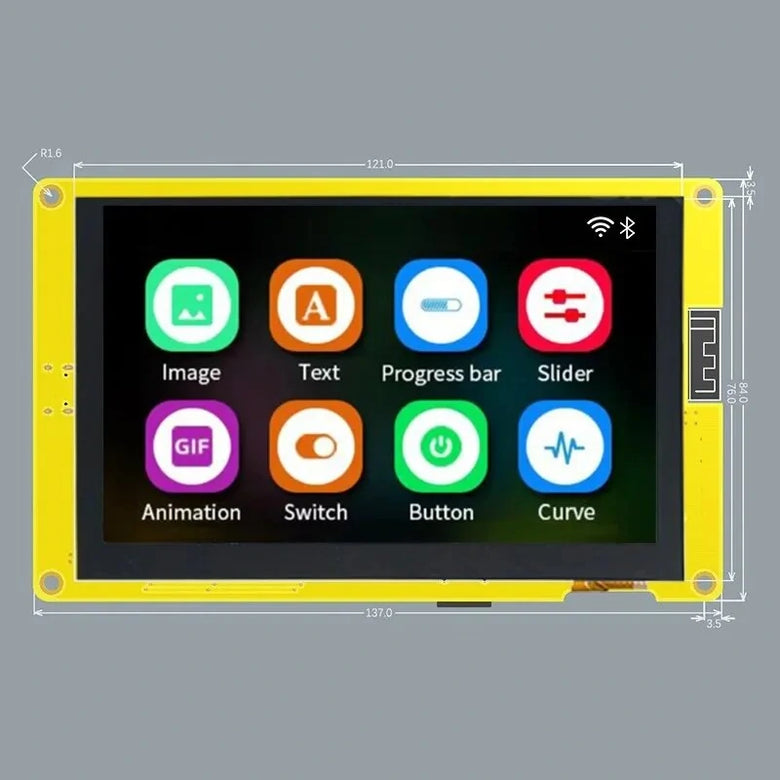

Description:ESP32 development board-8M PSRAM 16M Flash, standard 5.0-inch IPS TFT screen and Without shell or No shell, support one-key automatic download, provide LVGL demo and for arduino examplesESP32-8048S050 download link

Parameter:Use low-power dual-core 32-bit CPU, which can be used as an application processor.The main frequency is up to 240MHz, and the computing power is up to 600 DMIPSBuilt-in 520 KB SRAMSupport UART/SPI/I2C/PWM/ADC/DAC and other interfacesSupport OV2640 and OV7670 cameras, built-in flashSupport picture WiFI uploadSupport TF cardSupport multiple sleep modes.Embedded Lwip and FreeRTOSSupport STA/AP/STA+AP working modeSupport Smart Config/AirKiss one-click network configurationSupport secondary development

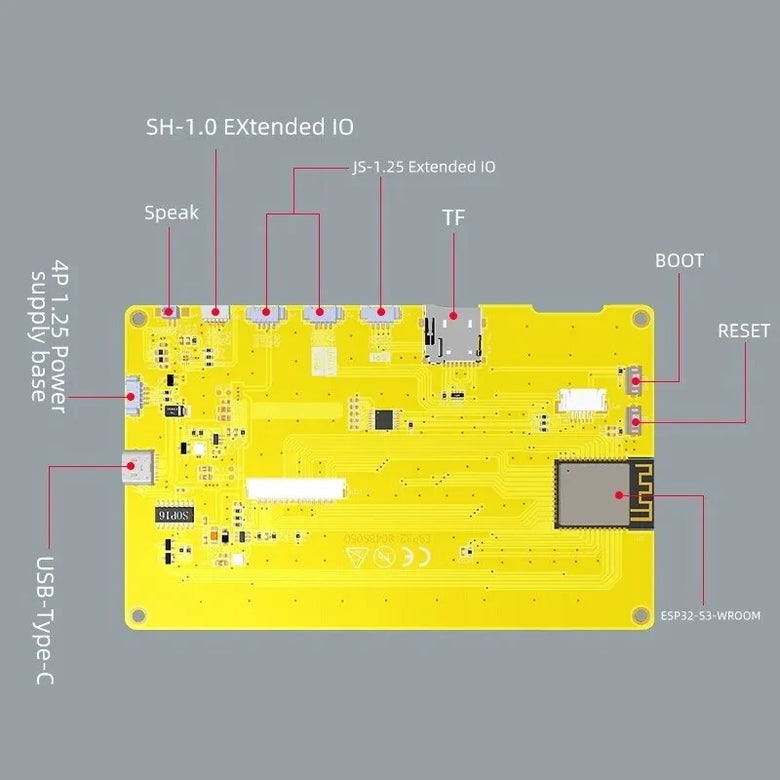

Support TF card, maximum support 4GIO port 9Specifications:Working voltage: 4.75-5.25VSPIFlash default: 32MbitRAM internal: 520KBWi-Fi: 802.11b/g/n/e/iBluetooth: Bluetooth 4.2BR/EDR and BLE standard

Serial port rate default 115200bpsSpectrum range 2400 ~2483.5MHzAntenna form Onboard PCB antenna, gain 2dBiImage output format: JPEG (only OV2640 support), BMP, GRAYSCALEPackaging method: DIP-16Transmit power 802.11b: 17±2dBm (@11Mbps)802.11g: 14±2dBm (@54Mbps)802.11n: 13±2dBm (@MCS7)Receiving sensitivity CCK, 1Mbps: -90dBmCCK, 11Mbps: -85dBm6Mbps(1/2BPSK): -88dBm54Mbps (3/464-QAM): -70dBmMCS7 (65Mbps, 72.2Mbps): -67dBmPower consumption Turn off the flash: 180mA@5VTurn on the flash and adjust the brightness to the maximum: 310mA@5VDeep-sleep: The lowest power consumption can reach 6mA@5VModerm-sleep: the lowest can reach 20mA@5VLight-sleep: the lowest can reach 6.7mA@5VSecurity: WPA/WPA2/WPA2-Enterprise/WPSWorking temperature: -20 ℃~ 70 ℃Storage environment: -40 ℃~ 125 ℃, <90%RHApplication:Home smart device image transmissionWireless monitoringSmart agricultureQR wireless recognitionWireless positioning system signalAnd other IoT applications

Package includes:

(optional)

#Screen only

1 x Display

#Screen + Shell

1 x Display

1 x Shell
