Specifications:

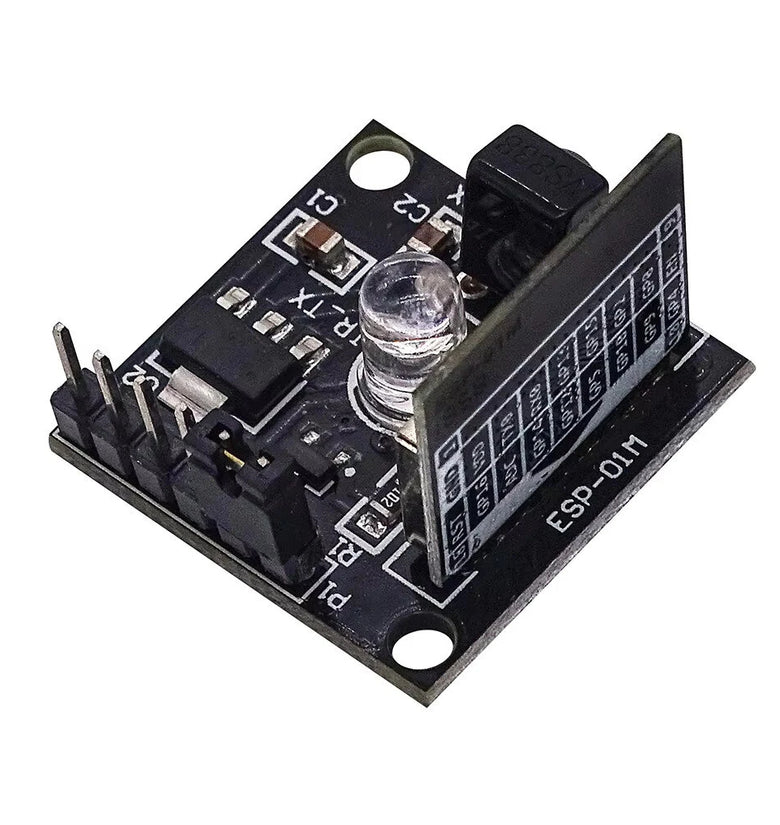

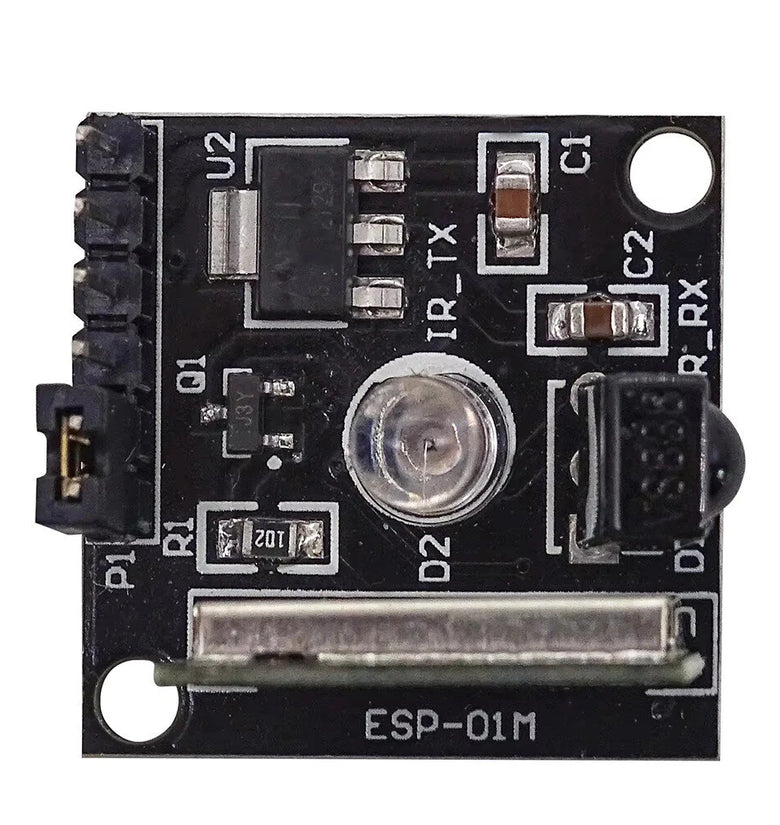

Module Type: ESP8285 IR Transceiver Remote Module
Chipset: ESP-01M Compact Module
Power Supply Voltage: DC 5V

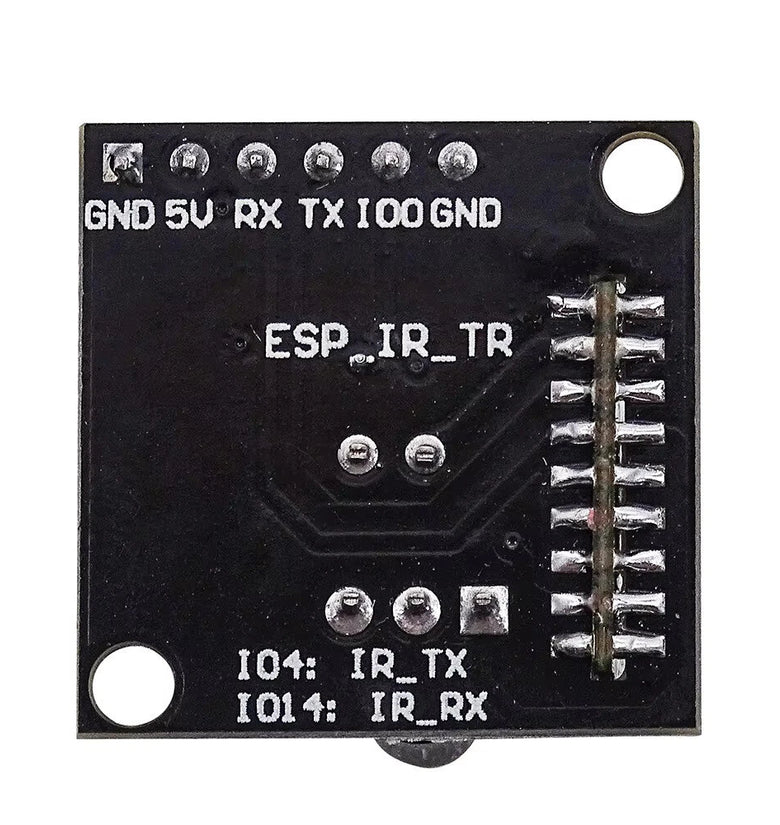

Interface Type: TTL standard interface (GND, RX, TX)
Infrared Emitter Tube: High precision infrared transmission
Infrared Receiver Tube: High sensitivity infrared reception
PCB Dimensions: 23.4mm x 23.4mm
Features:
1. Compact Size for Easy Integration
With a PCB dimension of only 23.4mm x 23.4mm, this module is compact and effortless to embed into IoT systems and other electronic projects, saving precious0 space.
2. Wireless Connectivity using ESP-01M Chipset
The module features the robust ESP-01M WiFi chipset, enabling seamless wireless communication, perfect for IoT applications in smart devices and remote control systems.
3. Precise Infrared Transmission and Reception
Equipped with a high-performing infrared emitter and receiver tube, the module ensures reliable signal transmission and reception, making it ideal for infrared-based remote control functionalities.
4. TTL-Compatible Interface for Versatile Connections
Designed with a standard TTL interface, connection to microcontroller boards such as Arduinos for uploading and programming is quick and efficient.
5. Simplified Flash Programming Support
The module allows straightforward firmware updates and programming via a TTL downloader, with clear instructions for pin connections to facilitate user setup.
Package Included:
1 x ESP8285 Infrared Transceiver Remote Module
