Description:

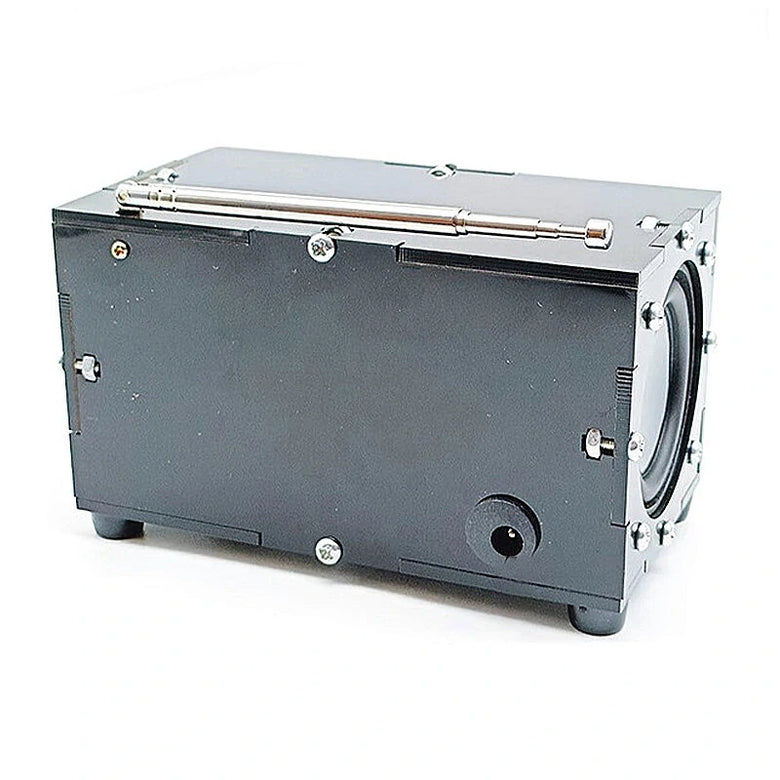

A radio made of ready-made FM radio module can be made by welding the circuits of power amplifier and level indicator.
The power amplifier circuit is composed of imported device PAM8406, and the maximum output power is 3W. Two-channel level indication is composed of KA2284.
Specifications:
>>>Manual: Click here to open<<<
Power supply voltage: 5.0V-5.5V, current 500MA-2A.
Power amplifier+level indicator PCB board size: 9.5CM*2.9CM
Shell size: 11.9CM*6.6CM*6.6CM * 6.6cm.
Horn: 4Ω 5w
MAX power of power amplifier: 3W
Sound channel: two channels
FM receiving frequency adjustment range: 87.0MHz-108.0MHz
Weight of complete DIY parts: 280g
Precautions:
Do not touch the back components of the module when working, so as not to affect the normal work of the module or cause short circuit to burn the module. This module is a radio sensitive device, and the interference from the power supply or nearby may affect the normal work of the module.

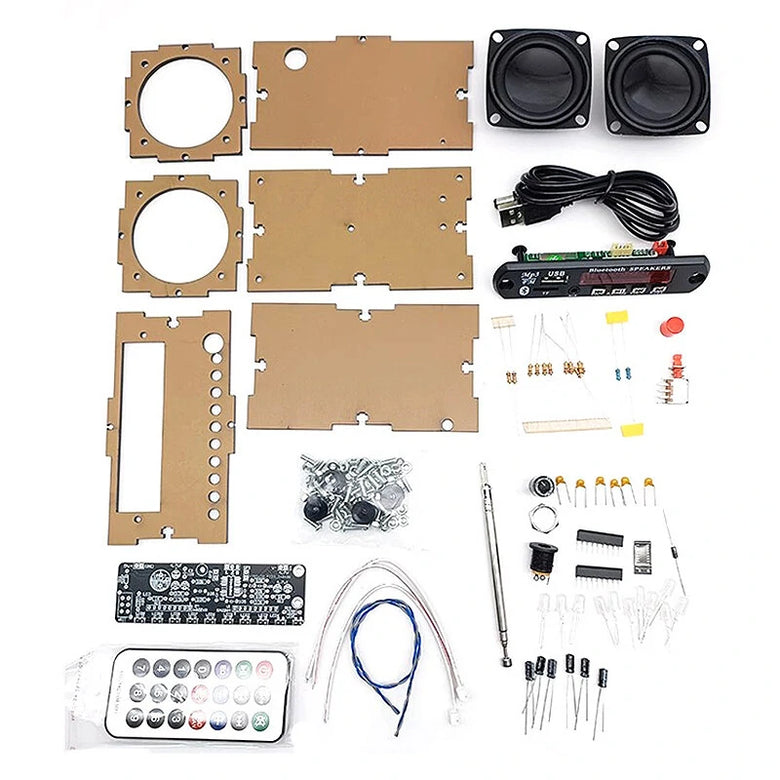

Package Include:
1 x PCB board
1 x PAM8406
1 x 1N4007
1 x A03 self-locking switch
1 x A03 hat
11 x 5MM colorful LED
2 x KA2284
1 x 1000UF 25V Capacitor
6 x 4.7UF electrolytic capacitor
6 x 105 monolithic capacitor
2 x 100 ohm resistor
2 x 1K resistor
9 x 10K resistor
1 x Radio module
2 x Horn
1 x DC022 building
1 x 25CM twisted pair
1 x Antenna
1 x M2*16 Screw
1 x M2 nut
1 x Acrylic kit
4 x Foot pad
28 x M3*8 Screw
4 x M3*10 Screw
35 x M3 nut
1 x USB to DC005 line
