Specifications:
Product Name: FM Radio DIY Assembly Kit
PCB Board Size: 5.6cm x 5.1cm
Shell Size: 12.025cm x 6.803cm x 3.84cm
Supported Speakers: 8 Ohms / 4 ohms up to 5W, 4 Ohms 5W speaker included in the kit
Output Power: 5W
Frequency Response Range: 50Hz-18KHz
Channels: Mono for speakers, Stereo for headphones
Adjustable Reception Frequency: Without campuss radio 87.0MHz-108.0MHz, with campuss radio 76.0MHz-108.0MHz
Equivalent Noise: ≥30dB
Power Supply: 4.0V-5.5V, Current 500MA-2A
Weight: 60 grams, Speaker: 120 grams
Note: Unsoldered product, you need to assemble it yourself
>>>Manual: Click here to open<<<
Features:
1. The use of advanced digital audio signal processing technology (DSP) and FM phase-locked loop modulation technology (PLL) makes the sound quality more realistic, the performance more stable, the working frequency has no deviation for a long time, and the received signal is good.2.LCD display is more intuitive and accurate, with extremely low power consumption and minimal noise interference.3. It has the function of automatically searching for radio stations and storing radio stations, and is easy to operate.4. Built-in 30-level digital volume adjustment, which can be easily completed by pressing buttons.5. Automatically remember the data before the power outage.6. Using quartz crystal to stabilize the frequency, the emission frequency will no longer drift when the temperature changes.7. Full frequency band (76-108MHZ) automatically searches for signal frequency bands and stores memory.8. Built-in rechargeable lithium battery and charging circuit, you can charge it with a mobile phone charger, the red light will turn on when charging, and the green light will turn on when full;
Package Include:

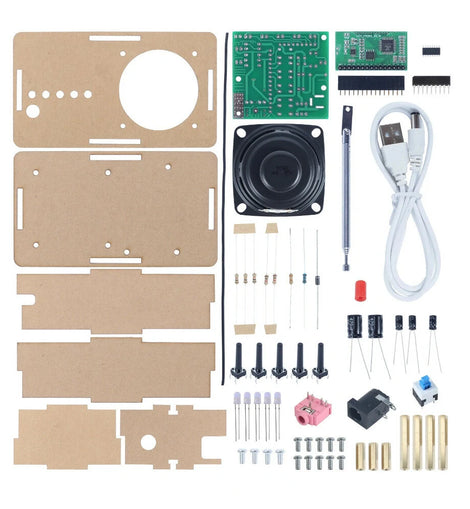

| Component Listing | ||||
| No. | Component Name | PCB Marker | Parameter | Quantity |
| 1 | LM4863 Power Amplifier | U1 | SOP-16 | 1 |
| 2 | Metal Film Resistor | R2,R3,R4 | 10Kohm | 3 |
| 3 | Metal Film Resistor | R1 | 39Kohm | 1 |
| 4 | Metal Film Resistor | R6,R7 | 1 Kohm | 2 |
| 5 | Metal Film Resistor | R5 | 100ohm | 1 |
| 6 | 3.5mm AUX Audio Socket | J5 | 5Pin | 1 |
| 7 | KA2284 LED Driver | U2 | ZIP-9 | 1 |
| 8 | 1N4007 Diode | D1 | D0-41 | 1 |
| 9 | Monolithic Capacitor | C3,C4 | 0.1uF 104 | 2 |
| 10 | RGB LED | D2,D3,D4,D5,D6 | 5mm | 5 |
| 11 | DuPont Female Socket | FM | 16Pin | 1 |
| 12 | Electrolytic Capacitor | C2,C7 | 4.7uF | 2 |
| 13 | Electrolytic Capacitor | C1 | 1uF | 1 |
| 14 | Electrolytic Capacitor | C5,C6 | 470uF | 2 |
| 15 | Self-locking Button | S6 | 8*8mm | 1 |
| 16 | Self-locking Button Cap | S6 | Red | 1 |
| 17 | DC-005 Power Socket | J1 | 5.5*2.5mm | 1 |
| 18 | Black Button | S1-S5 or SP+/SP-/P+/P-/AUTO | 6*6*20mm | 5 |
| 19 | FM Receiver Module | FM | 16Pin | 1 |
| 20 | 75ohm FM Antenna | ANT | 1 | |
| 21 | Black Wire | SP | 20cm | 1 |
| 22 | 4ohm 5W Speaker | SP | 1 | |
| 23 | USB-DC005 Power Wire | 100cm | 1 | |
| 24 | Acrylic Board | 6 | ||
| 25 | M3*30mm Copper Pillar | 4 | ||
| 26 | M3*15mm Copper Pillar | 3 | ||
| 27 | M3*8mm Screw | 4 | ||
| 28 | M3*6mm Screw | 10 | ||
| 29 | PCB | 56*51*1.6mm | 1 | |
| NOTE: Users can complete the installation according to the PCB silk screen and component list. | ||||
