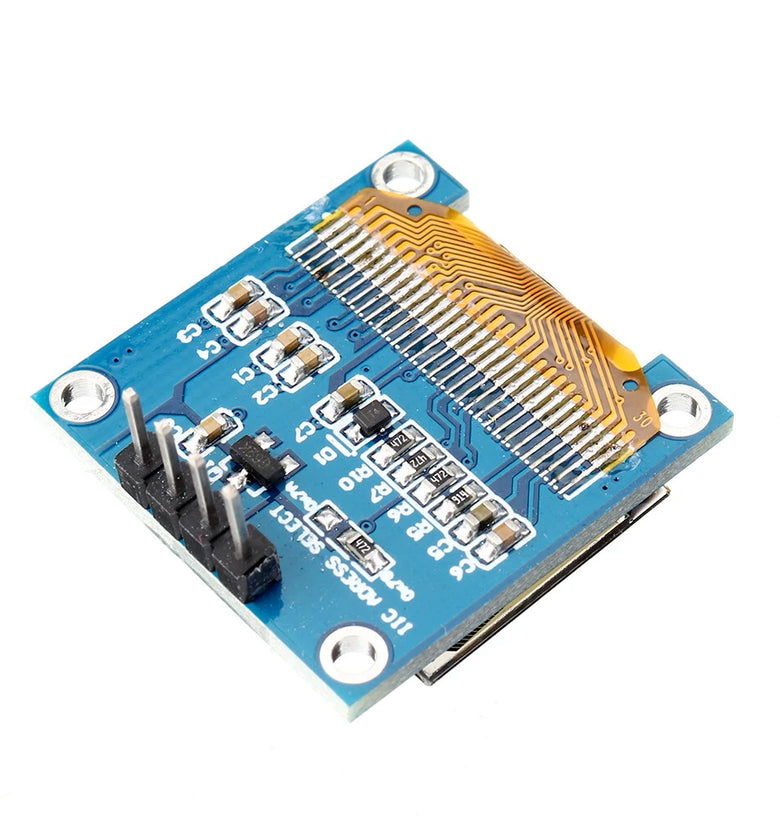

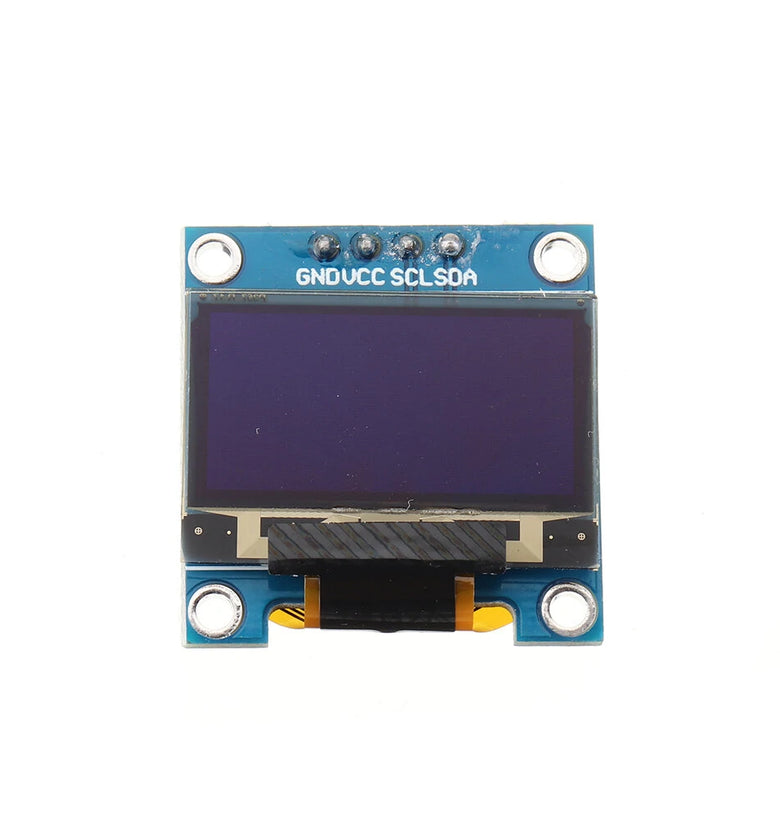

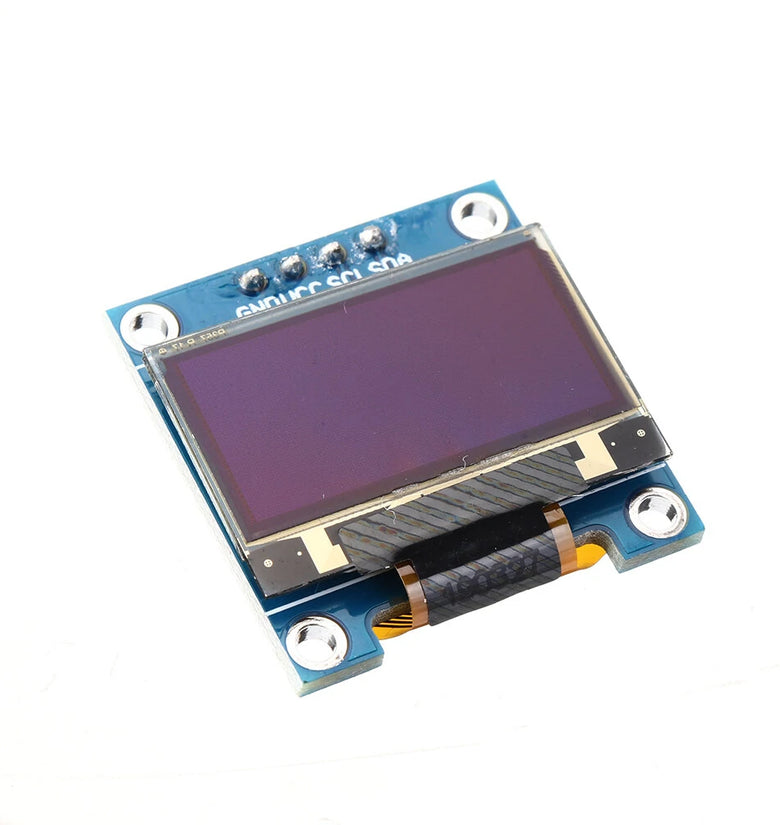

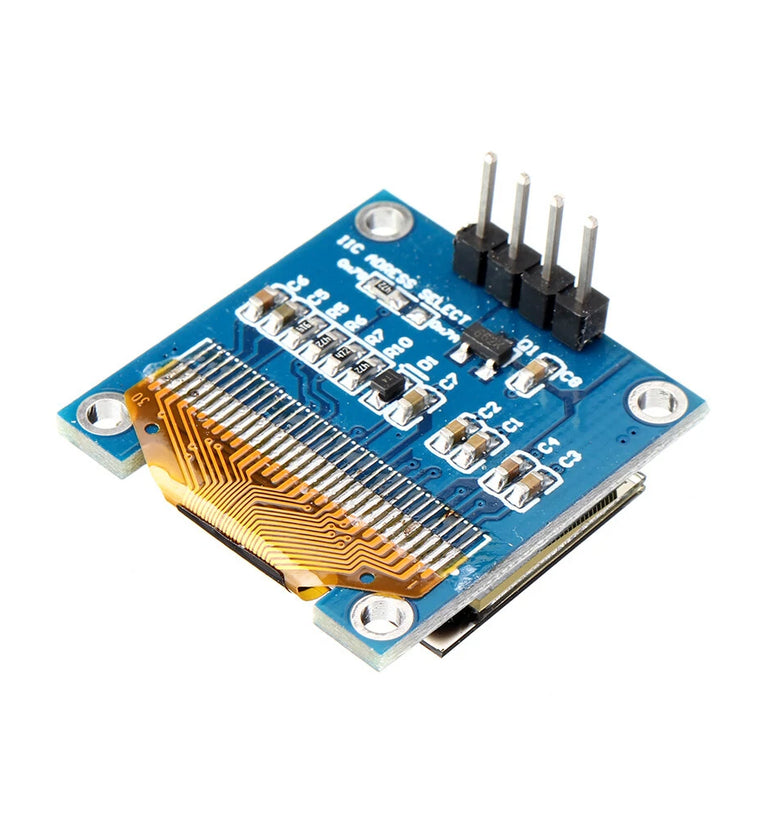

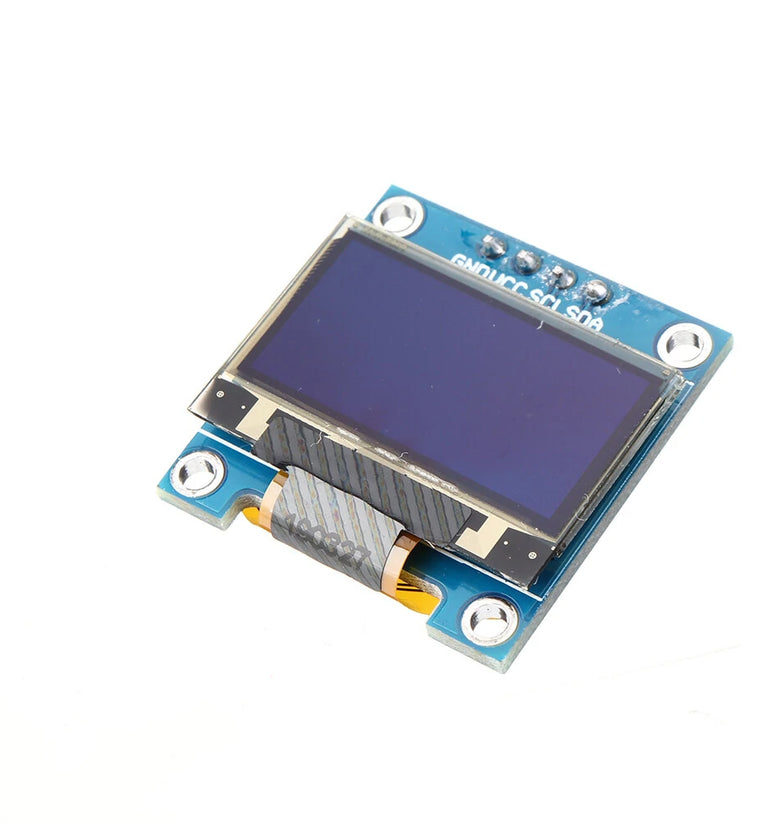

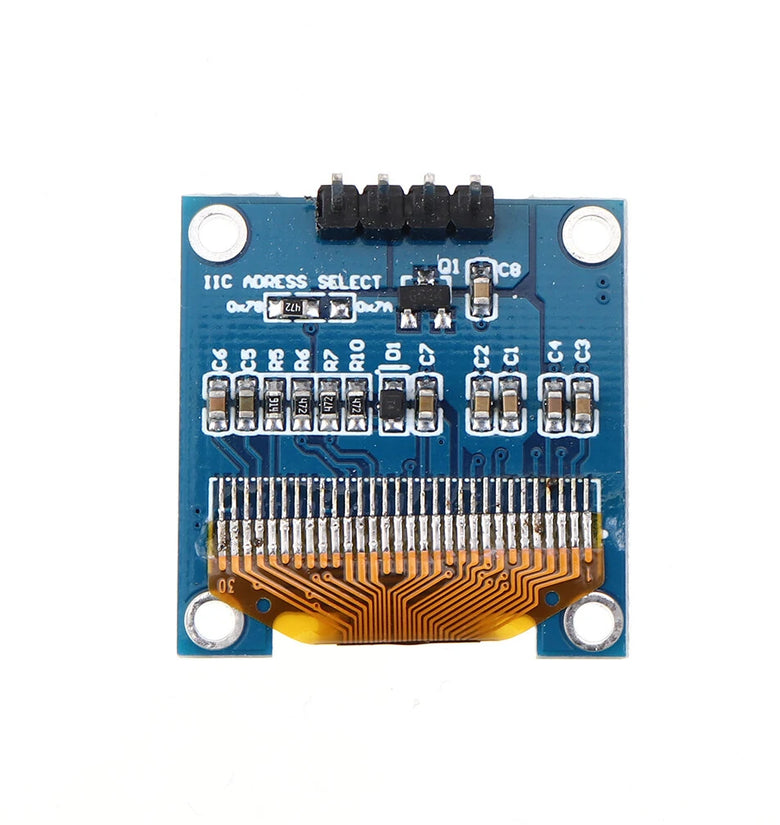

Pin definition:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Feature:
Size: 0.96 inch
Resolution: 128*64
Color: white, blue (optional)
Viewing angle: >160°
Support platform: 51 series, MSP430 series, STM32/2, etc.
Ultra low power consumption: 0.04W during normal operation
Wide voltage support: DC 3.3V-5V
Working temperature: -30 ° C ~ 80 ° C
Driver chip: SSD1306
Communication method: IIC, only 2 I/O ports
Backlight: OLED self-illumination, no backlight required

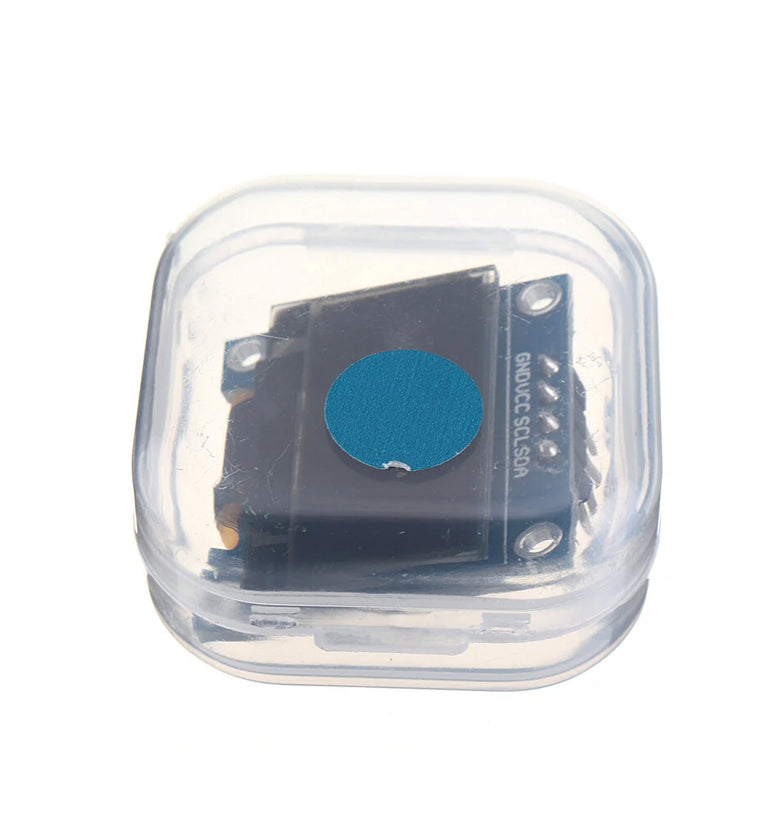

Package includes:1/3/5/10/15/20 (optional) x OLED module
Package includes:1/3/5/10/15/20 (optional) x OLED module
