Specifications:
Resistor: 0.1ω-50MωCapacitor: 25pF-100000uFInductance: 0.01mH - 20HWorking power: DC-9VStandby current: 0.02uAOperating current: 25mAMaterial: Metal+PlasticSize: about 11.1cm/4.37'x2.6cm / 1.02'x8.5cm/3.34'[Conversion: 1cm=0.3937 inch, 1inch=2.54 cm]
Description:
1. Add boot voltage detection function2. Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components3. Automatic test out the pin element and displayed on the LCD4. Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base5. Measure the gate threshold voltage and gate capacitance of the MOSFET6. 1602 lcd display uses LCD (12864 LCD with backlight)7. High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)8. One button operation, power-on test, get a key9. Power consumption off mode: less than 20 nA of10. Auto power off function to avoid unnecessary waste, saving battery power, improved battery life
Note:
Battery is not included.
Package included:

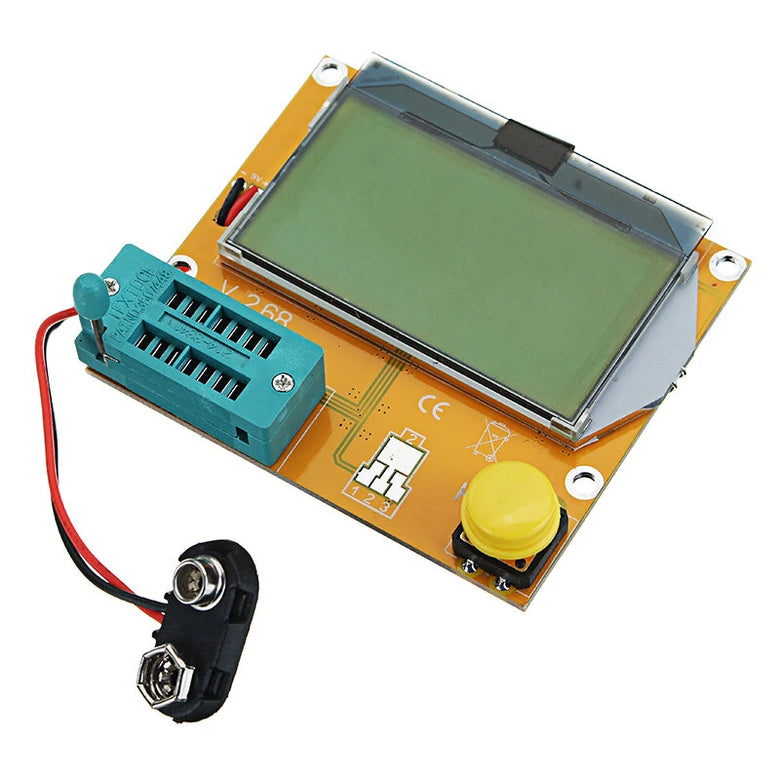

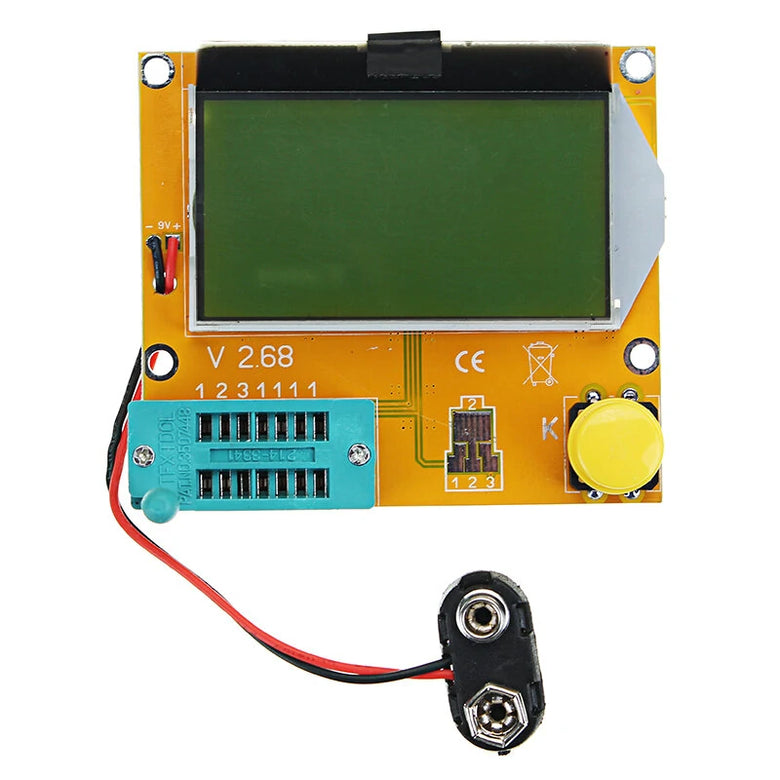

1 x LCR-T4 Transistor Tester
Description:
1. Add boot voltage detection function2. Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components3. Automatic test out the pin element and displayed on the LCD4. Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base5. Measure the gate threshold voltage and gate capacitance of the MOSFET6. 1602 lcd display uses LCD (12864 LCD with backlight)7. High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)8. One button operation, power-on test, get a key9. Power consumption off mode: less than 20 nA of10. Auto power off function to avoid unnecessary waste, saving battery power, improved battery life
Note:
Battery is not included.
Package included:
1 x LCR-T4 Transistor Tester
