Application Environment:
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

[Transmitter]
Note:
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don't offer retail package, but we will pack it well before shipped out.


Product Description:

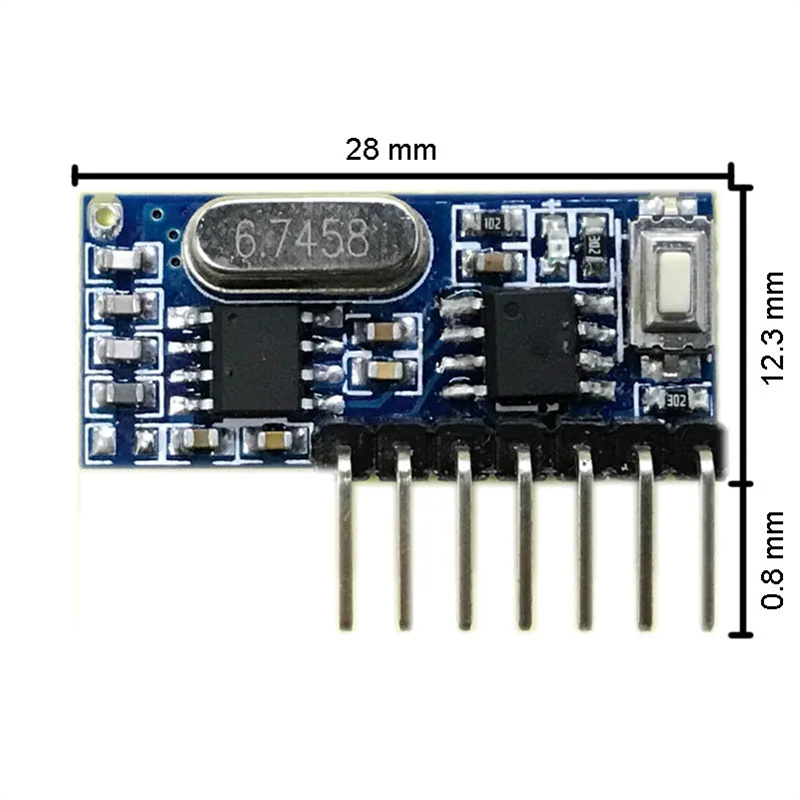

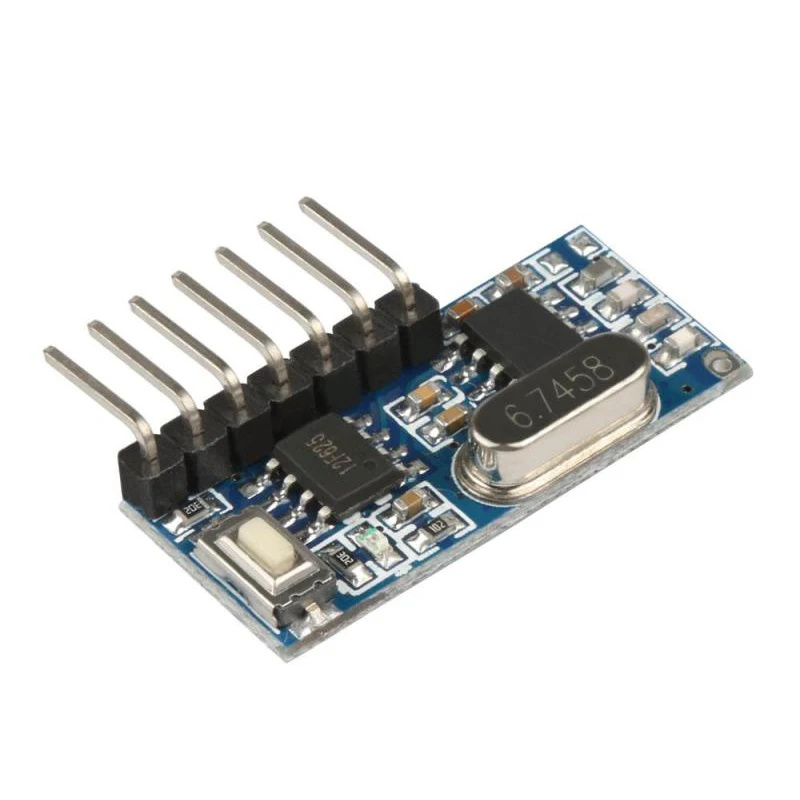

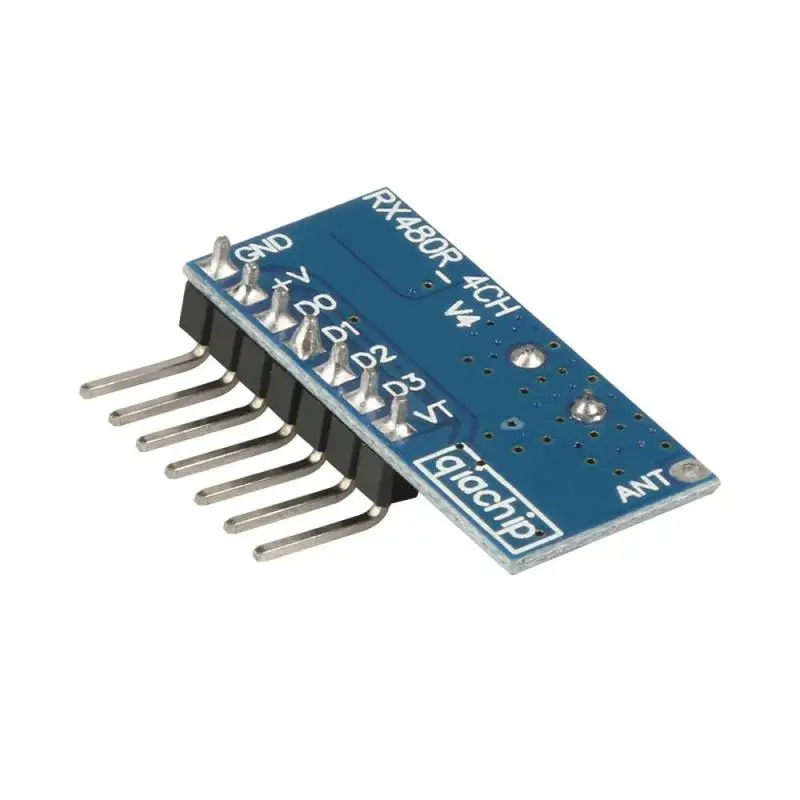

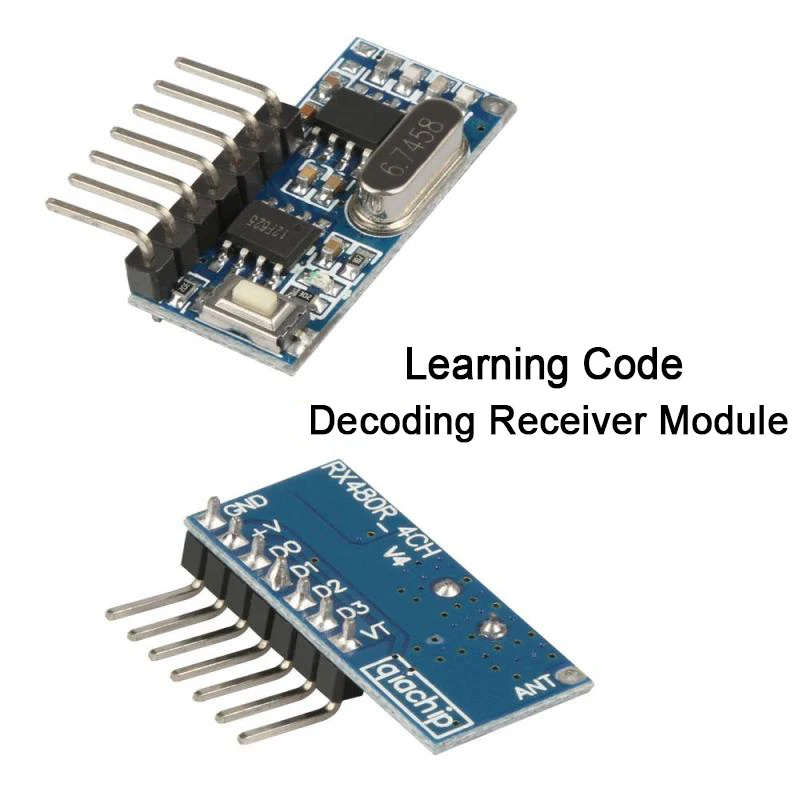

[Receiver module] Product Model: RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : Less than 5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode: inching, self-locking, interlockking

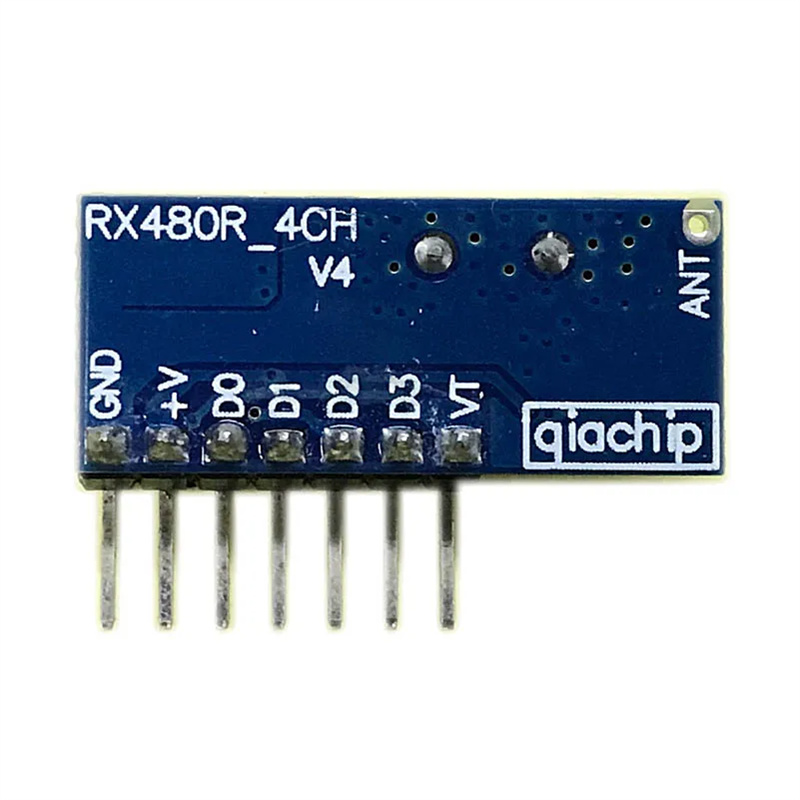

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.


How To Programming:

1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .

More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

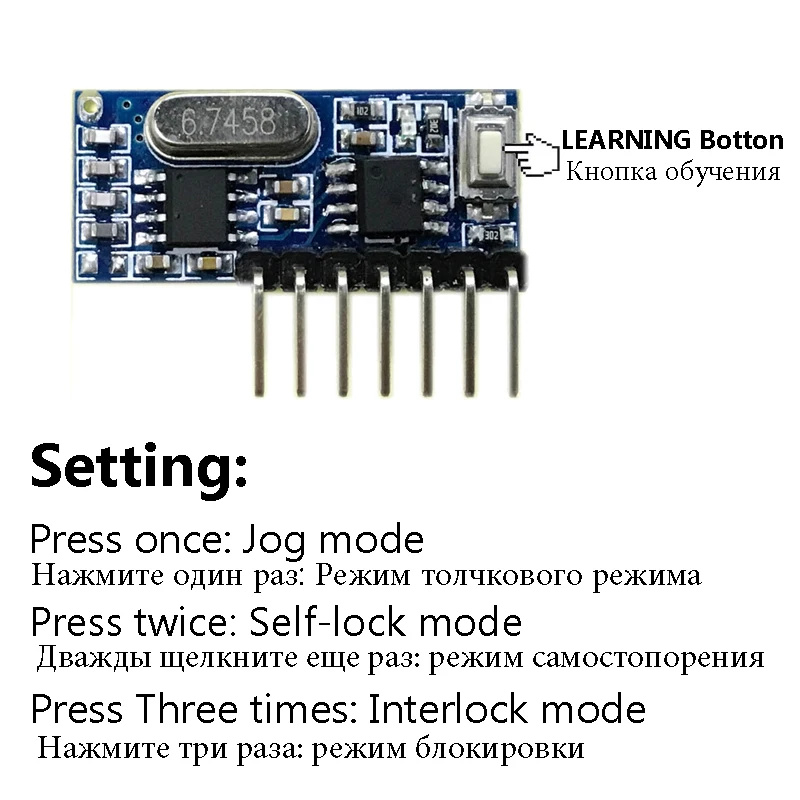

Button usage (sets mode and starts pairing process):
Press once ( the button on the receiver ): Inching mode (Momentary Mode)
Press twice ( the button on the receiver ): Self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times ( the button on the receiver ): Interlocked mode (selected channel active and be cleared, if another channel becomes active)


Package Include (quantity optional):

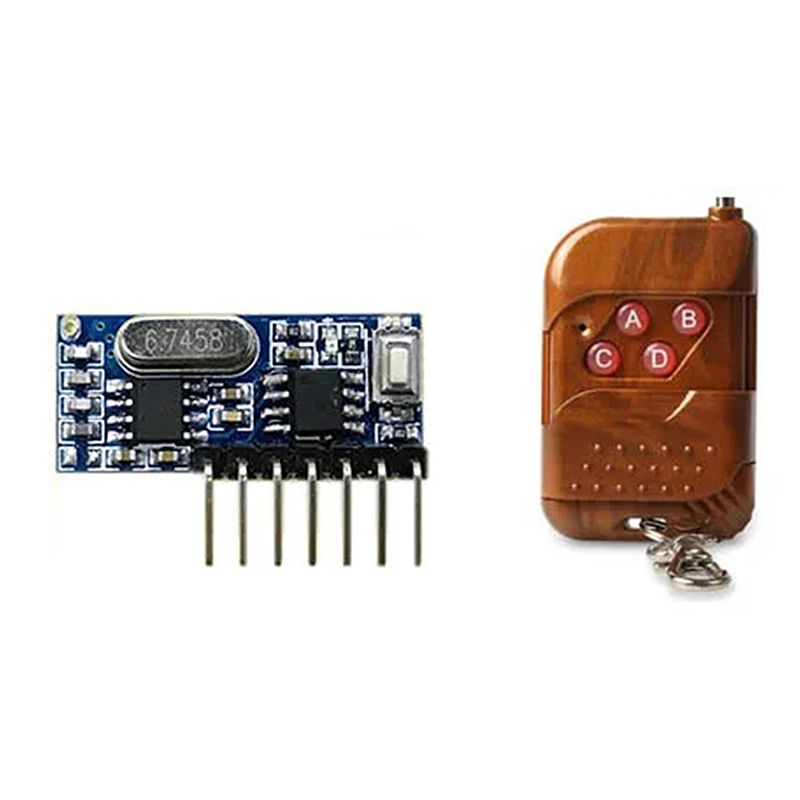

【Set 1】:

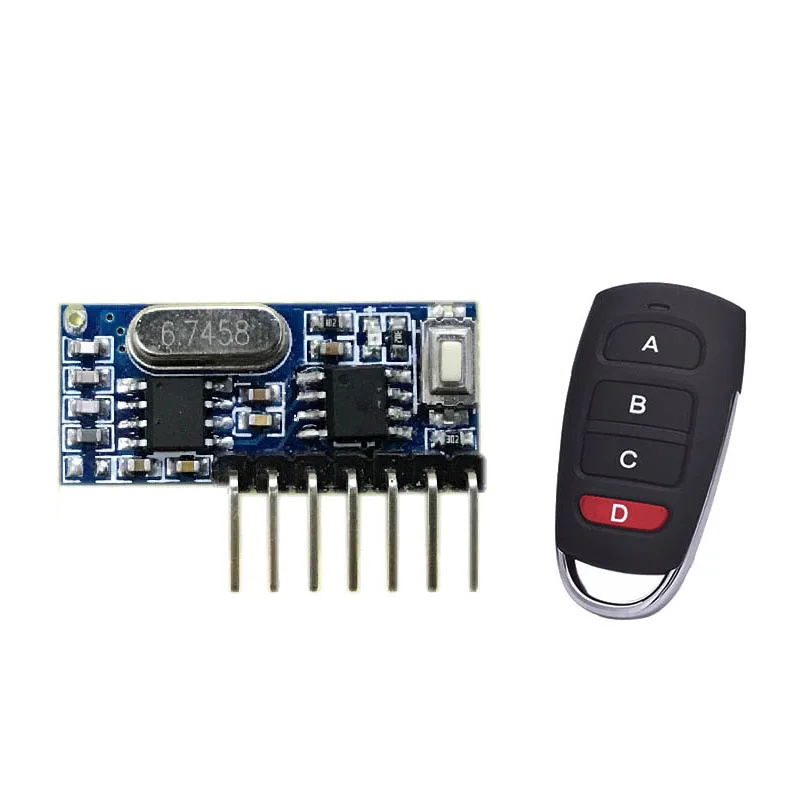

1x RX480E-4 Receiver Module

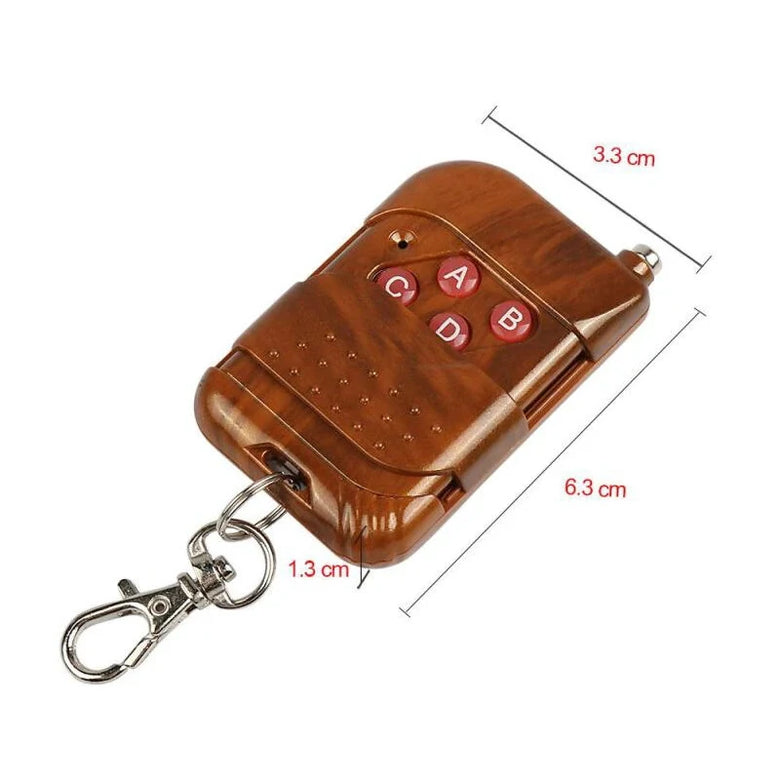

1x KT1527-4 Remote Control

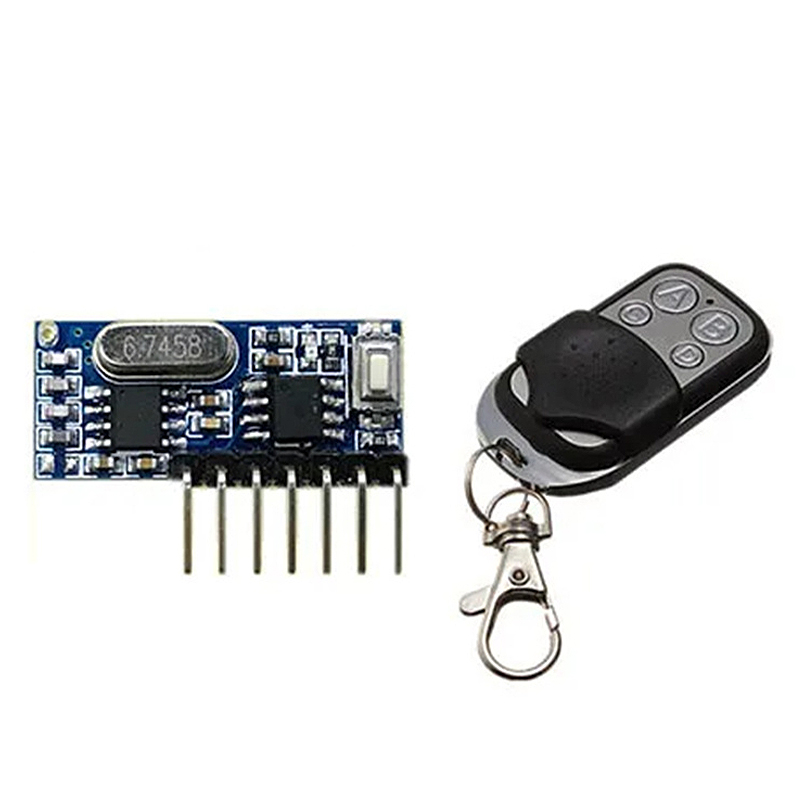

【Set 2】:
1x RX480E-4 Receiver Module
1x KT02-117S-4 Remote Control

【Set 3】:
1x RX480E-4 Receiver Module

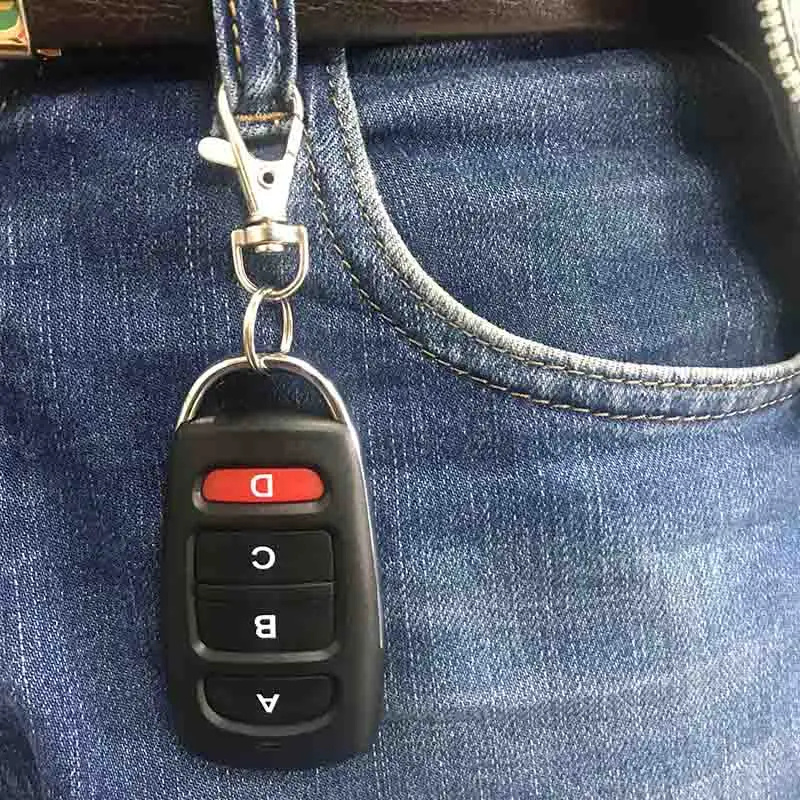

1x KT16-4 Remote Control
