Specifications:
Frequency Range: 1.4 – 1.6 GHz
Insertion Loss: ≤6.6 dB
Return Loss: ≤-25 dB
Output Channel Isolation: ≥30 dB
RF Impedance: 50 Ω
Gain: -6.6 dB
Power Supply: Supports online power supply
Connector Type: SMA Female

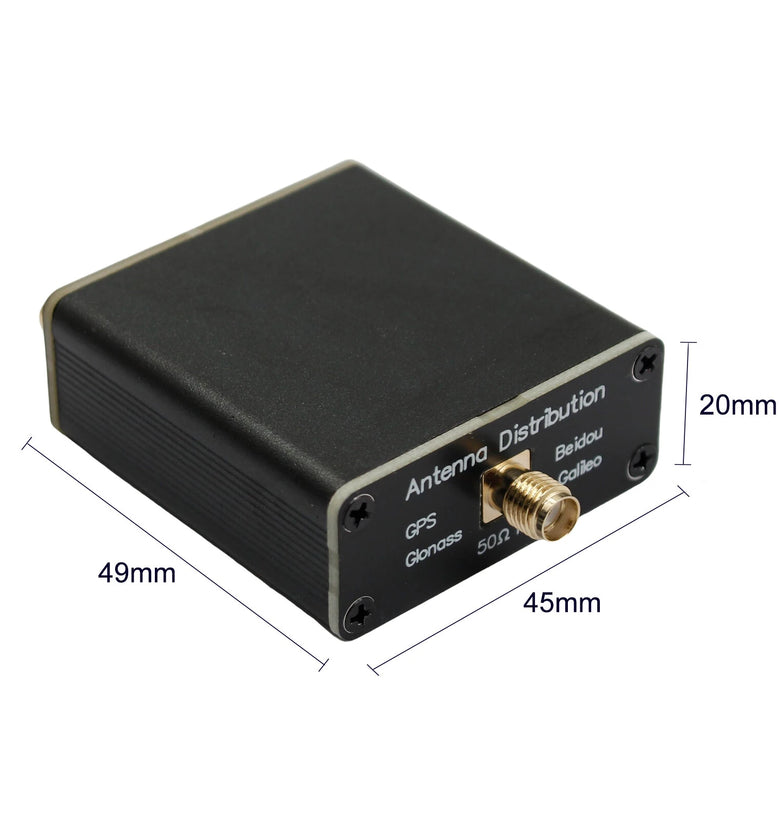

Dimensions: 45 x 45 x 18.5 mm
Features:
1. Wide Compatibility: Ideal for GPS, BeiDou, GLONASS, Galileo, and L-band applications ranging from 1.0-2.0 GHz. Perfect for versatile navigation systems requiring reliable signal distribution.
2. High Signal Isolation: Designed with an output channel isolation of ≥30 dB, it ensures minimal interference between individual channels and enables stable signal transmission.
3. Low Signal Loss: Featuring an insertion loss of ≤6.6 dB, this splitter minimizes signal degradation, providing consistent and high-quality transmission.
4. Compact Design: Measuring just 45 x 45 x 18.5 mm, the lightweight and space-efficient form ensures easy integration into various setups without requiring significant space.
5. Robust SMA Connectors: Equipped with SMA female connectors, this power splitter ensures secure and seamless connectivity for reliable performance in complex RF systems.
Package Included:
1 x Signal Splitter
