Specifications:
>>>Manual: Click here to open<<<

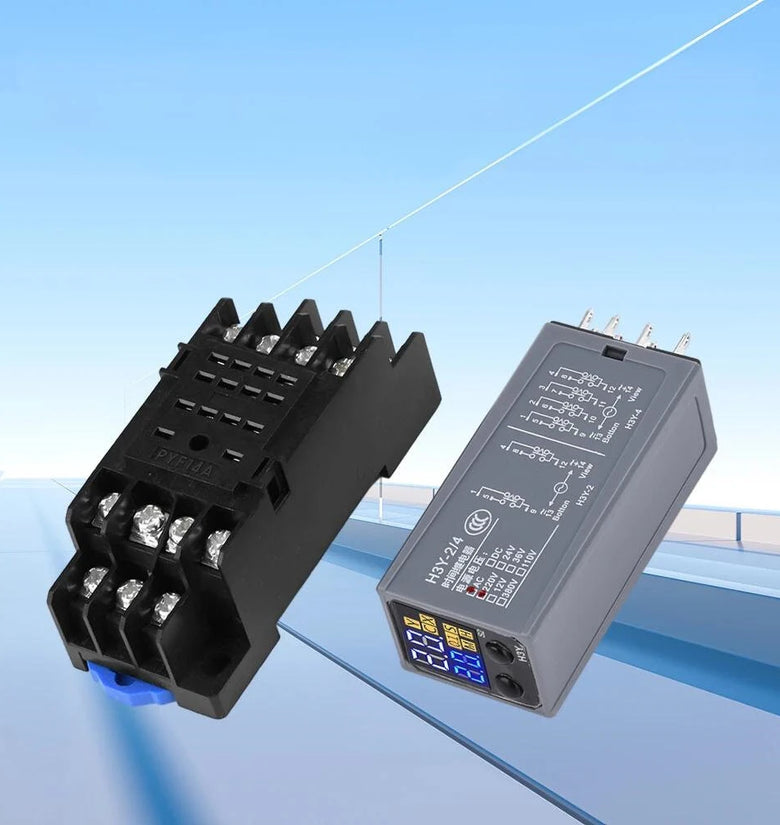

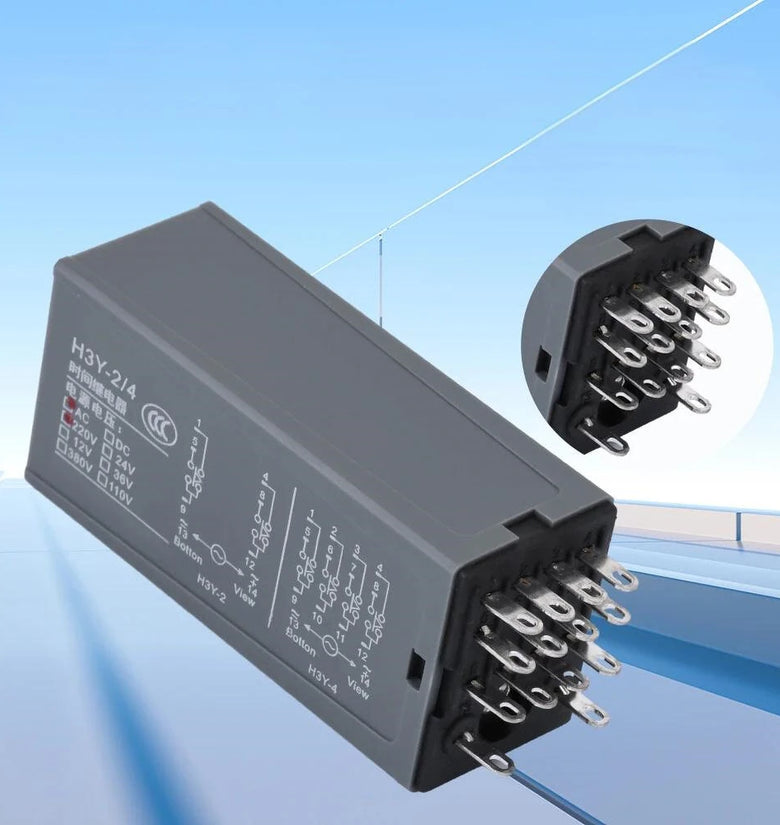

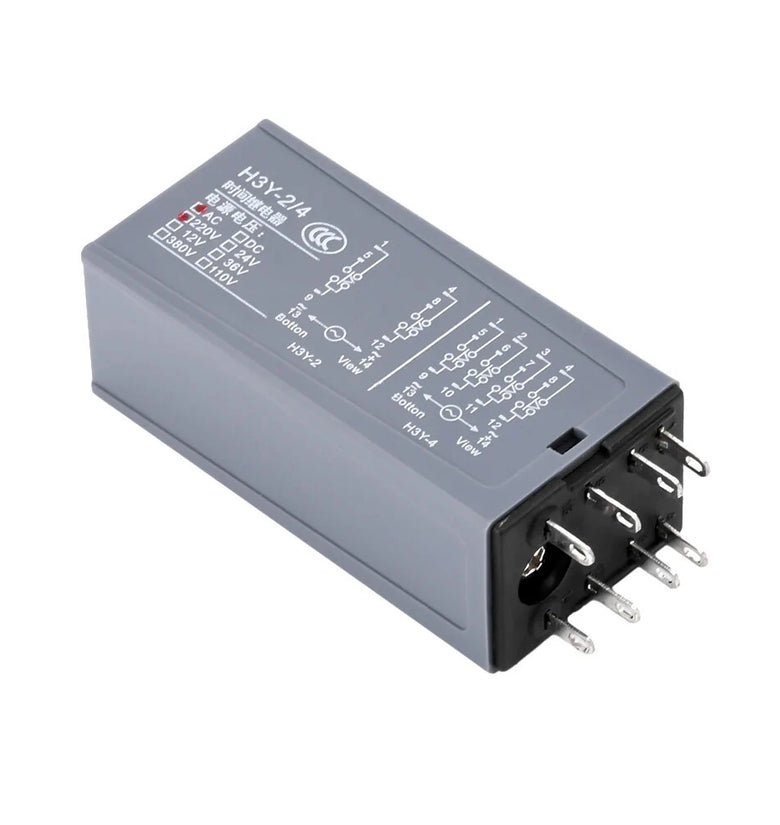

Product Name: Time Relay (14 Pin/4 Open/4 Close)
Model: H3Y-4
Voltage: DC 12V, 24V, 220V (optional)
Time Range: 0.1s-99h
Time Error: 1%
Power Consumption: Max. 1.5VA
Environmental Temperature: -25~75℃
Allowable Voltage Range: 90-110% of rated voltage
Working Modes:
Y: Power On Delay
C: Delayed Release
X: Loop Delay
Lc: Number of Cyclic Delays

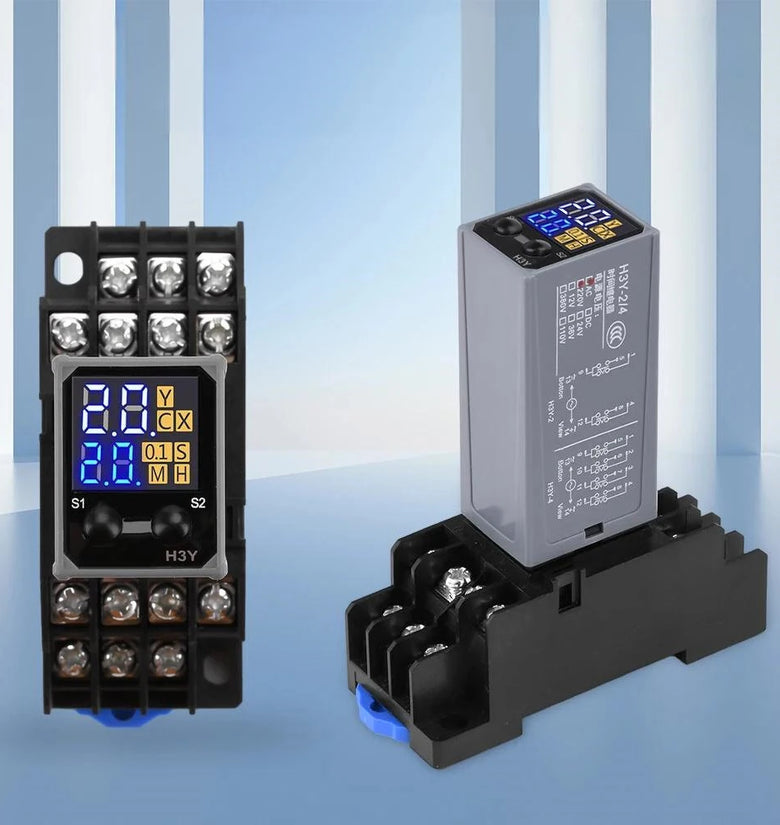

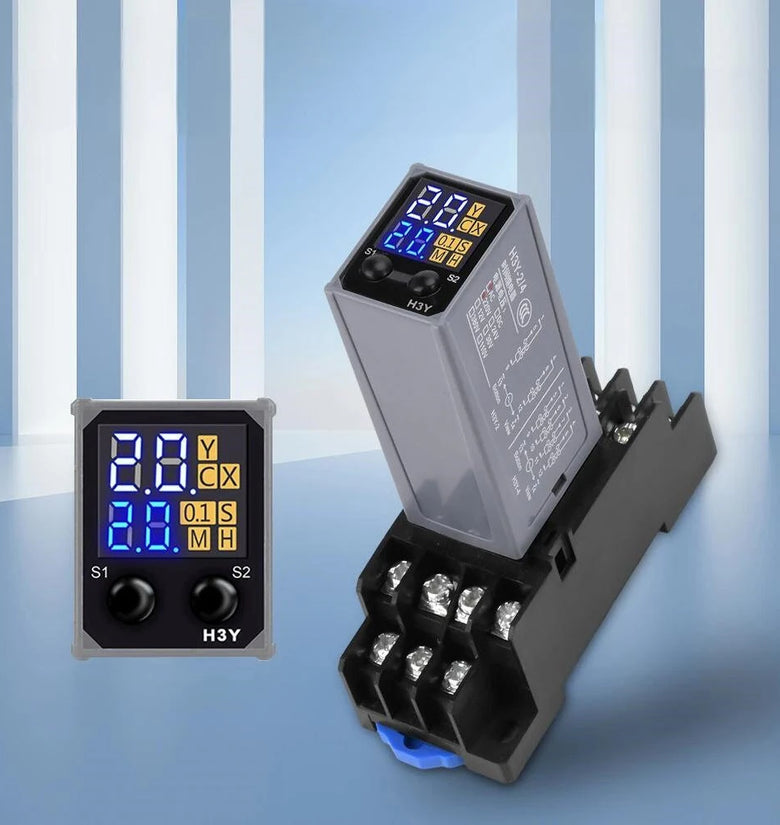

Mode Setting:
Long press the S1 button on the left for 3 seconds, and the mode will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.
Time Base Setting:
Long press the S2 button on the right for 3 seconds, and the time base will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.
Number Setting:
Left click to switch modes.
