About Hackrf One:
1. Upgrades of HackRF One R9:
MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply. With a transparent and drop-resistant shell, the SDR radio is strong enough to resist pressure.
2. Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
3. Hackrf One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

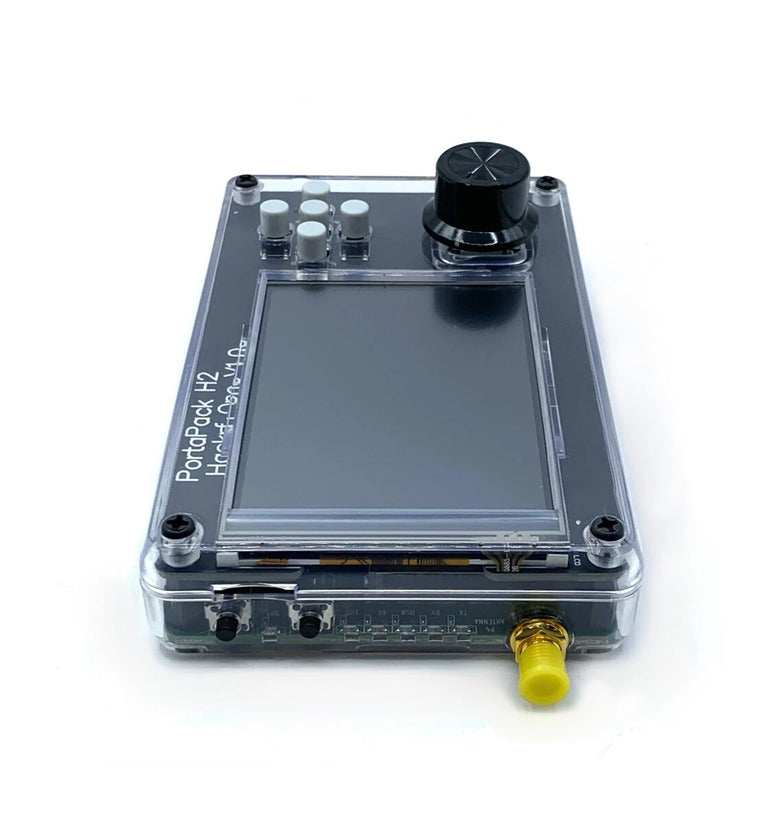

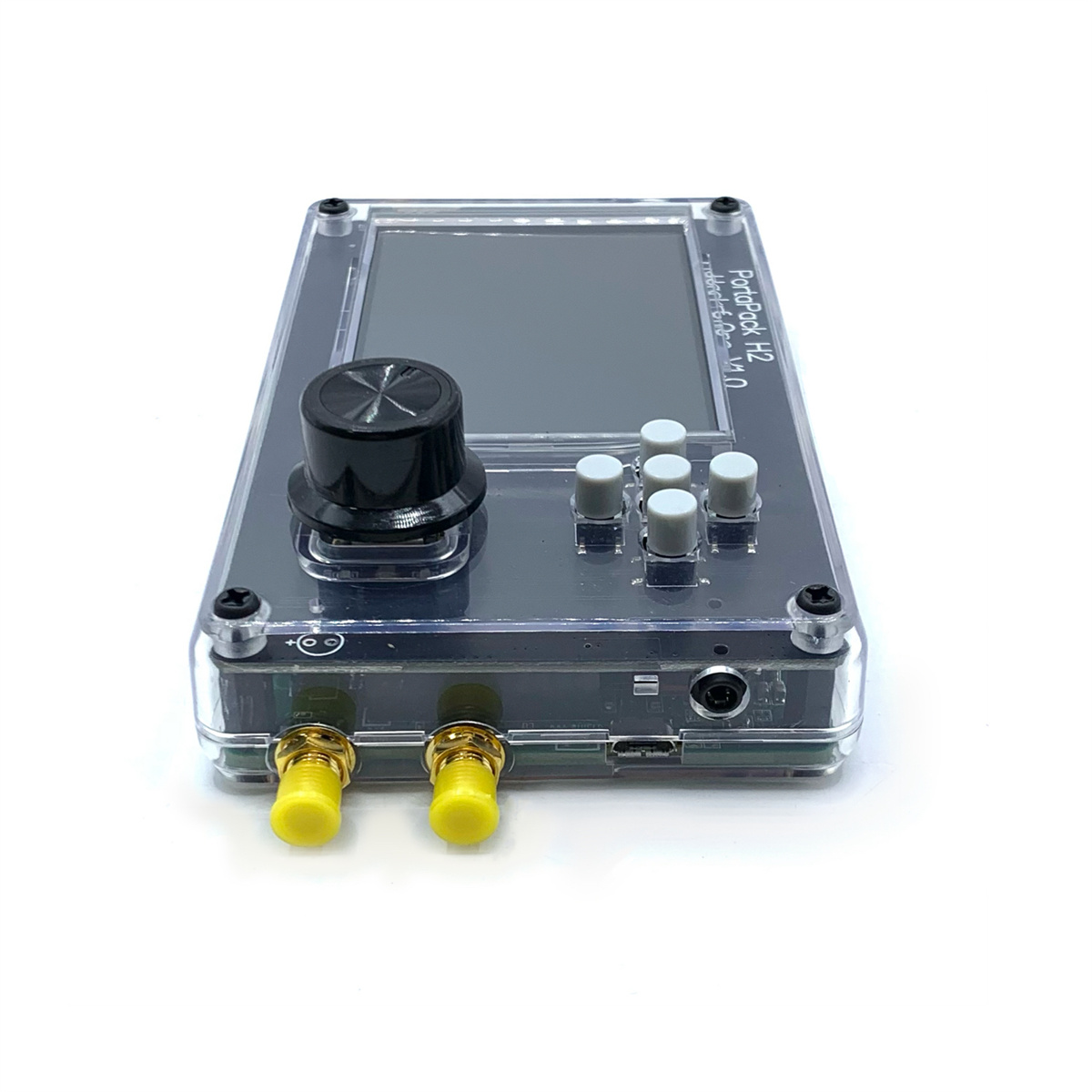

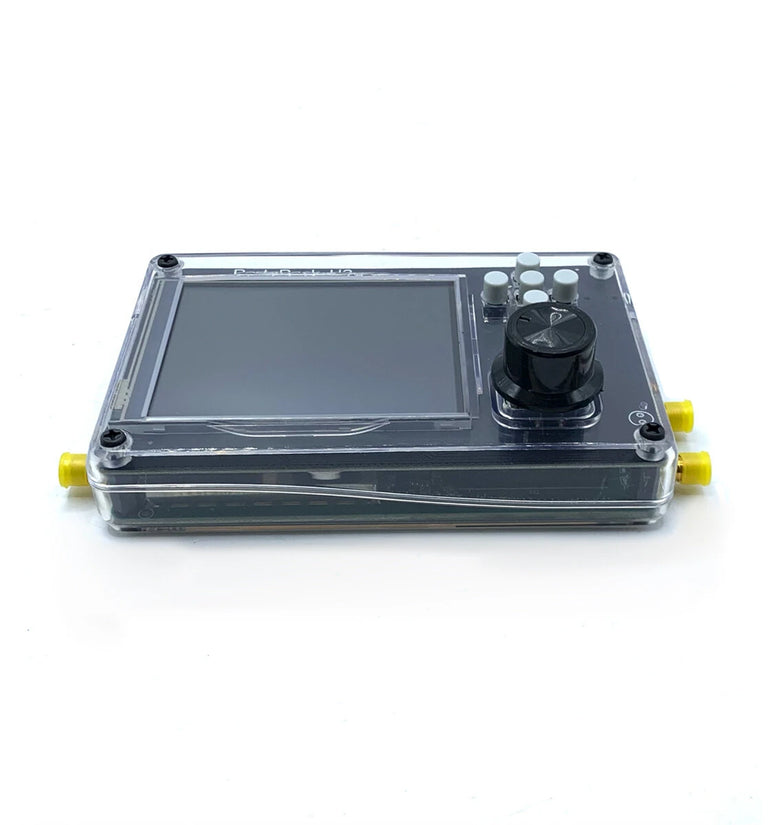

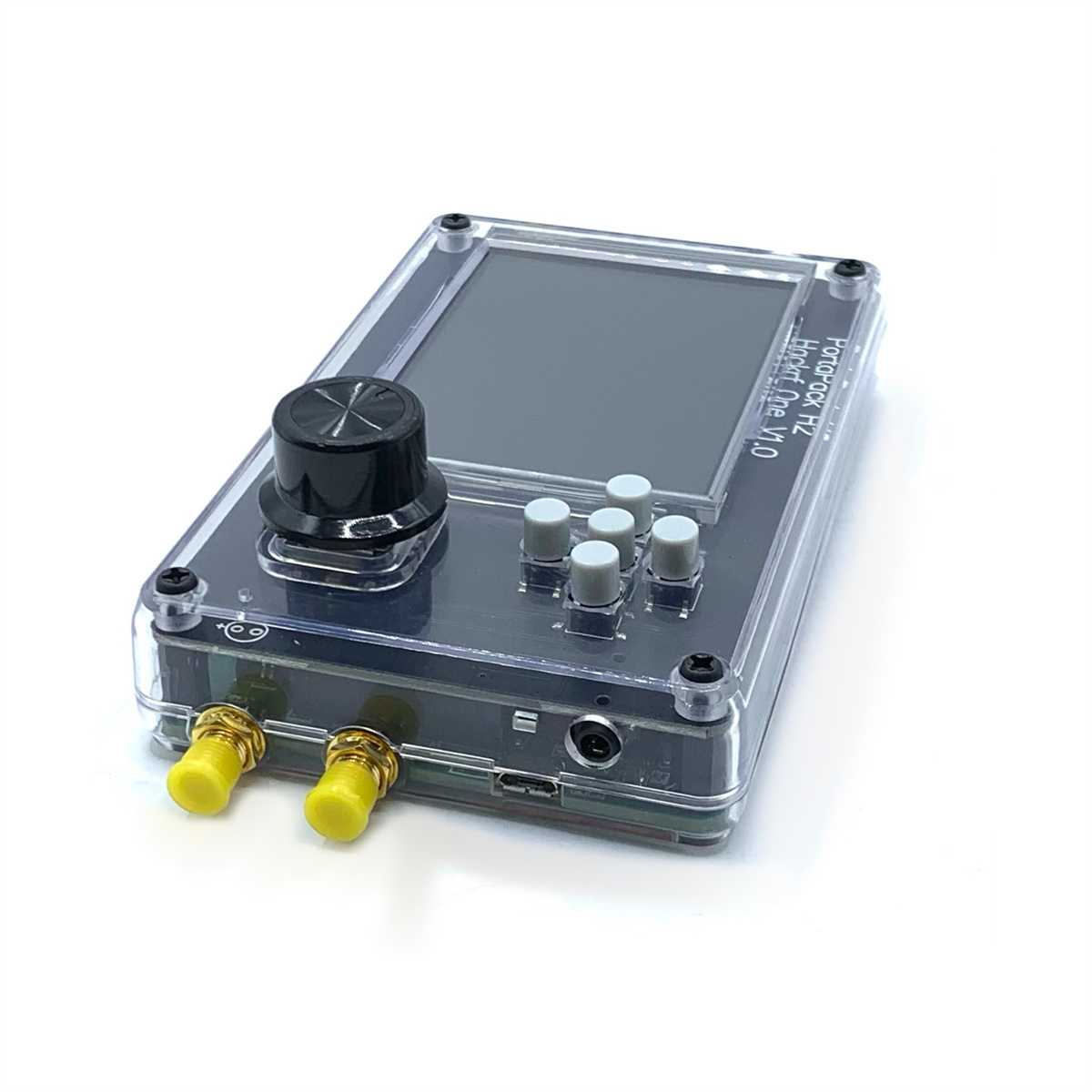

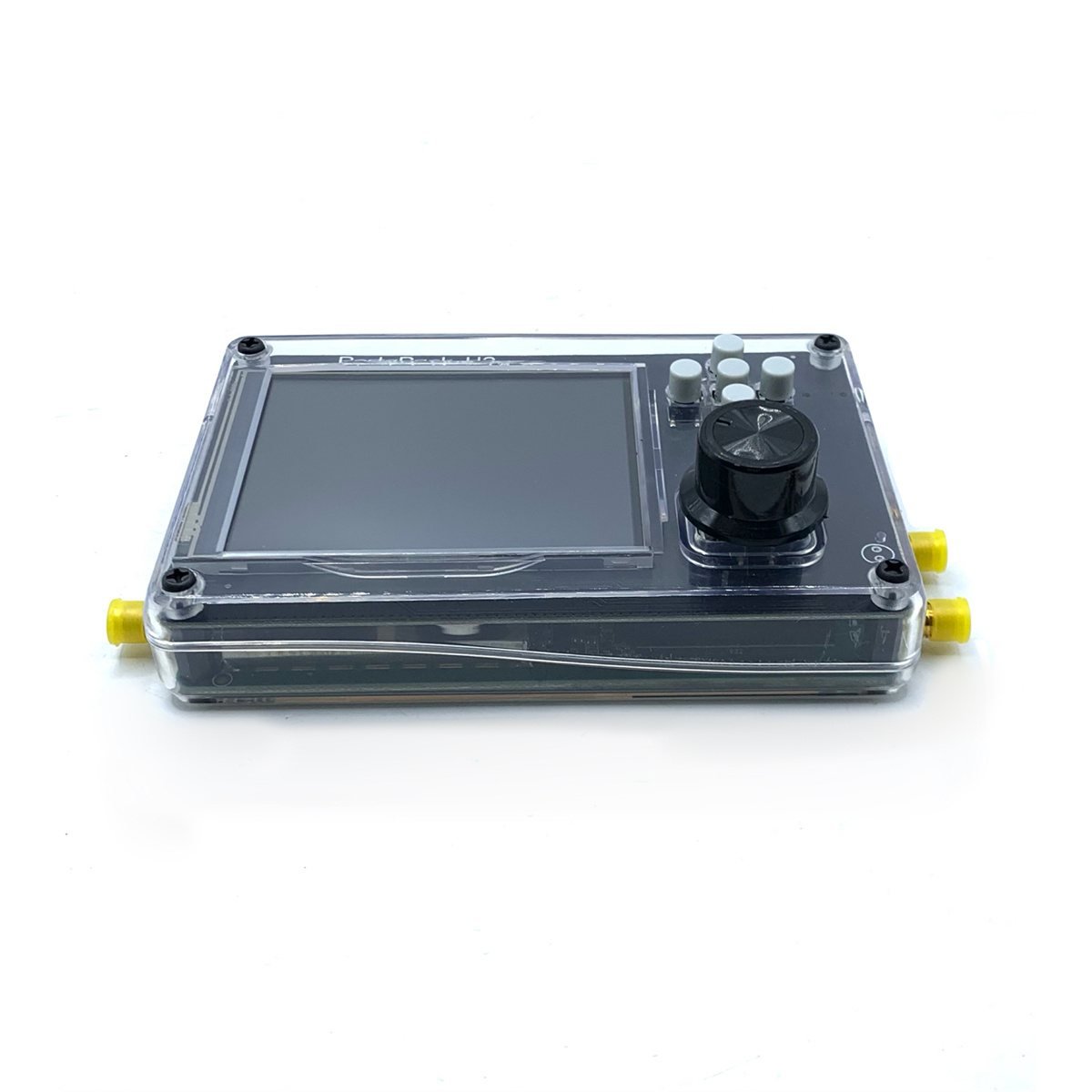

About PortaPack H2:
1. Description:
- This Version of PortaPack H2 is an official co-branded licensed version.
- Custom PCB built specifically for Mayhem with all the top contributors names silkscreened on the back of it and the Mayhem logo on the front.

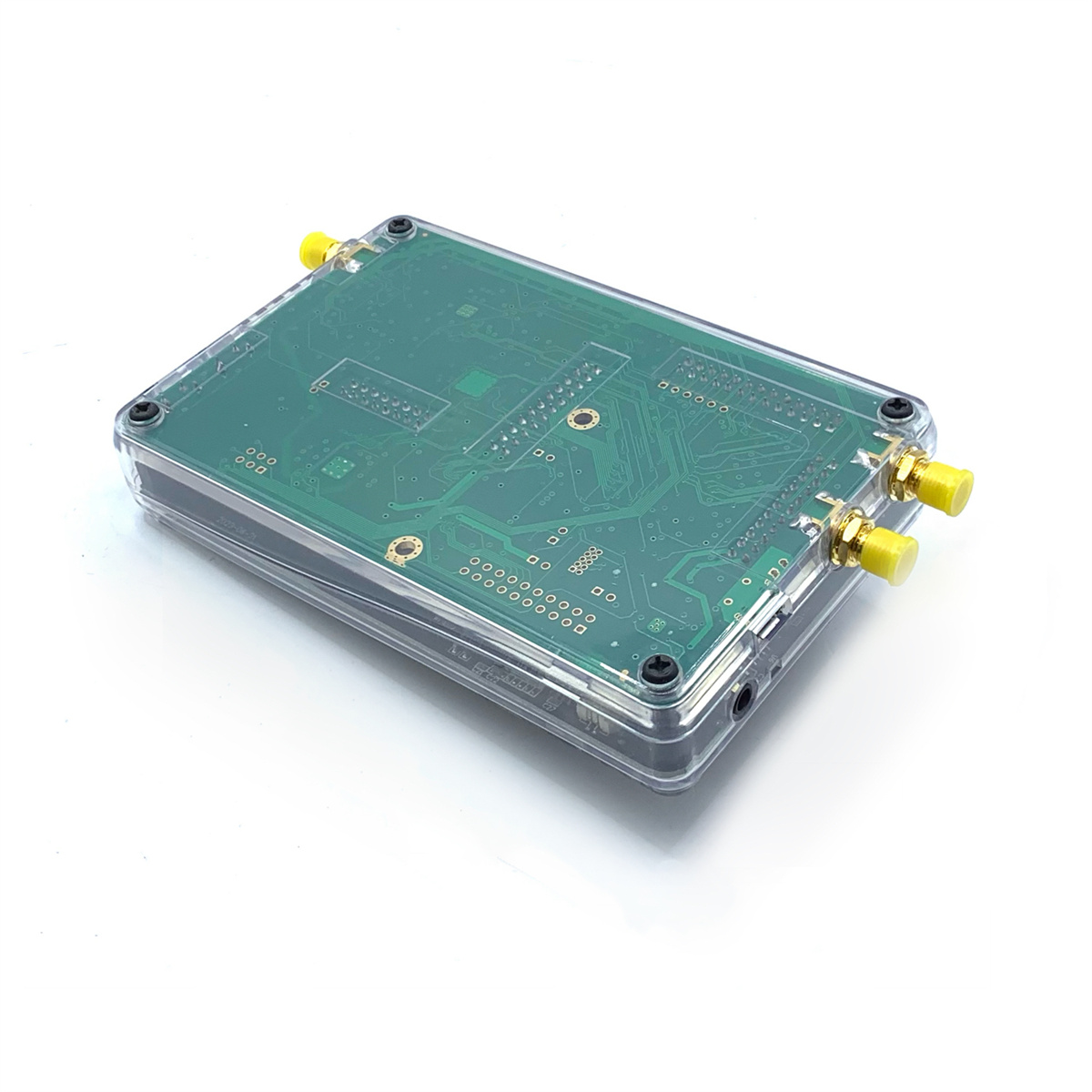

- This usually comes with a new crystal clear case so you can see all the beautiful silkscreen art.
- Comes with a built in microphone.
- Has new CPLD code so the reboot button doesn't freeze the device unlike some of the other H2's on the market.
- This Version of PortaPack H2 adds a 10.00MHZ TCXO FOX 5070 crystal oscillator to the original 2nd generation H2
- Support the latest official firmware upgrade
2. Specification:
- 3.2-inch TFT240*320 screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4-layer gold plate
- Newest Fireware

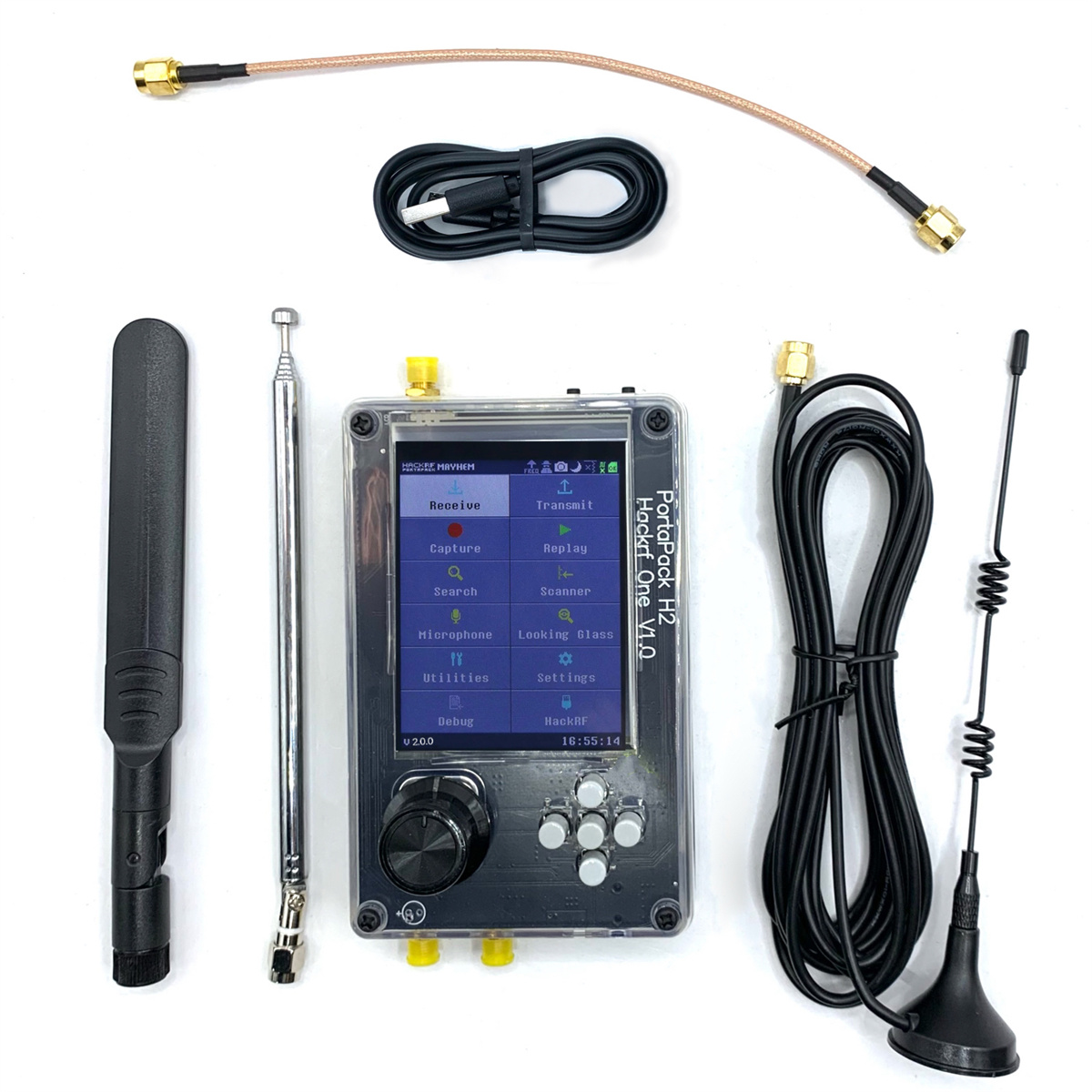

Package Includes:
1 x Assembled HackRF Portapack H2 + HackRF One 1MHz to 6GHz SDR
1 x 433mhz Antenna
1 x 2.4g-5.8g Wireless Internet Antenna
1 x 40mhz-6ghz Telescopic Antenna
1 x Sma Male To Male Cable
1 x Micro Usb Charging Cable
