Specifications:
Model: HackRF One R10
Frequency Range: 1 MHz to 6 GHz
Frequency Width: 20 MHz
Sampling Rate: 2 Msps to 20 Msps
RF Transceiver IC: MAX2837 (2.3–2.7GHz)
Mixer: RFFC5072 (30 MHz–6 GHz)
Processor: LPC43xx ARM Cortex-M4
Logics Device: CPLD CoolRunner-II
Working Mode: Half-duplex transmit and receive
Clock Precision: 0.1 – 0.5 ppm
Transmit Frequency: 5~15dBm(10MHz~2150MHz)
13~15dBm(2150~2750MHz)
0~5dBm(2750~4000MHz)
-10~0dBm(4000~6000MHz)
Receiver Frequency: -5dBm
Features:
1. Wide frequency range allowing signal generation and reception between 1 MHz and 6 GHz.
2. Fully open-source design for software-defined radio applications in wireless communication system research, including Zigbe, WiFi, LTE, ADS-B, DVB.
3. Advanced chipset integration with MAX2837 transceiver and high-performance ARM Cortex-M4 processor.
4. Supports signal decoding, modulation/demodulation, filtering, synchronization and multi-channel merging.
5. Ideal for security research, including wireless sniffing, signal replay, jamming, and wireless security testing.

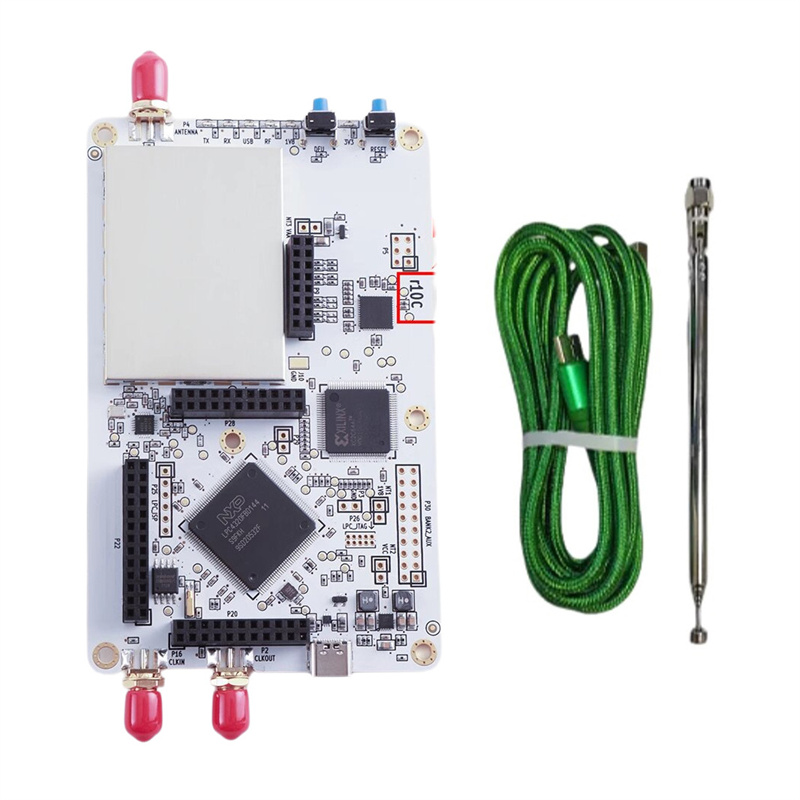

Package Includes:

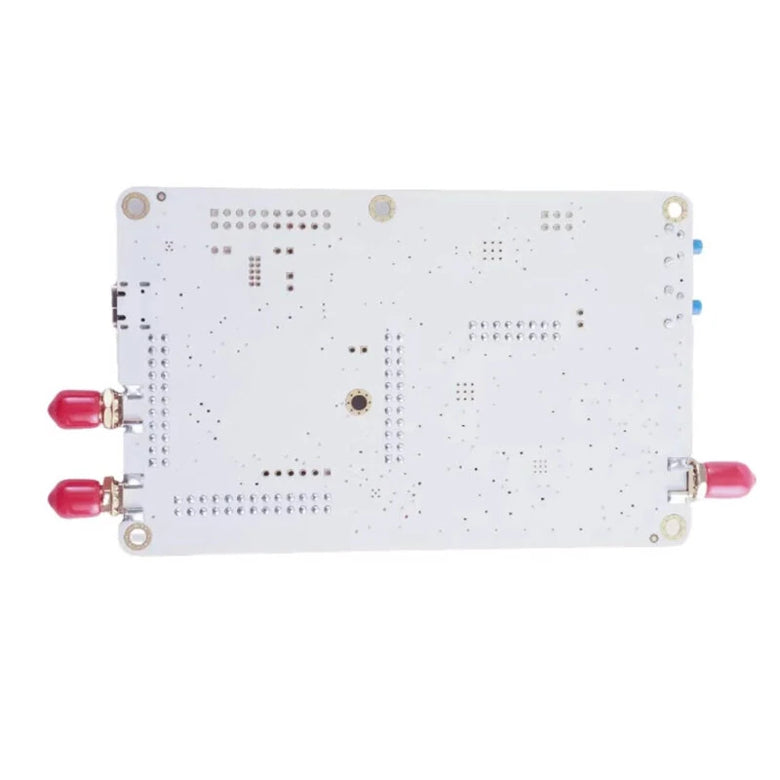

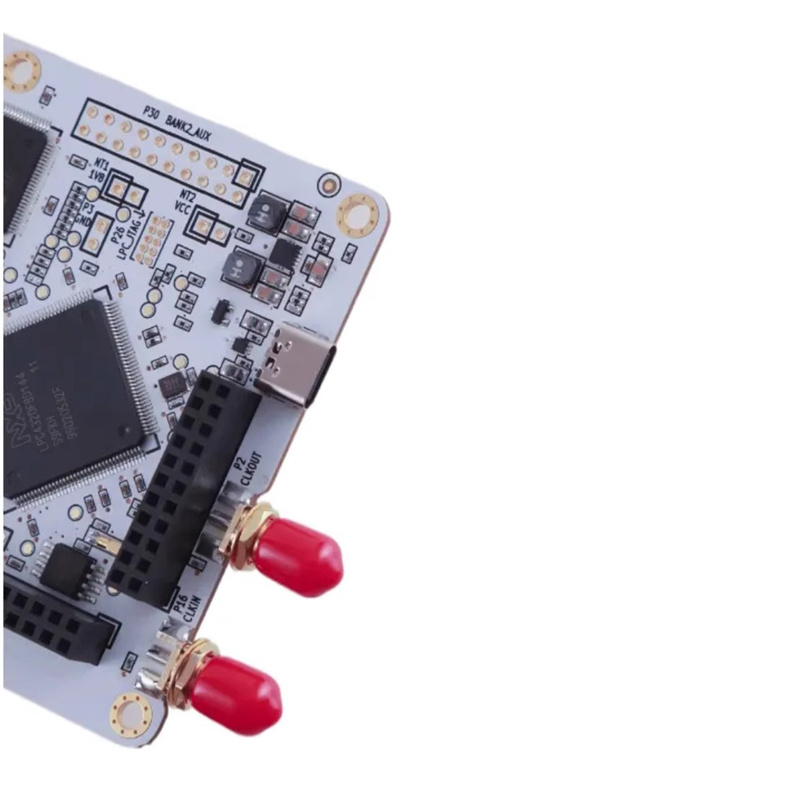

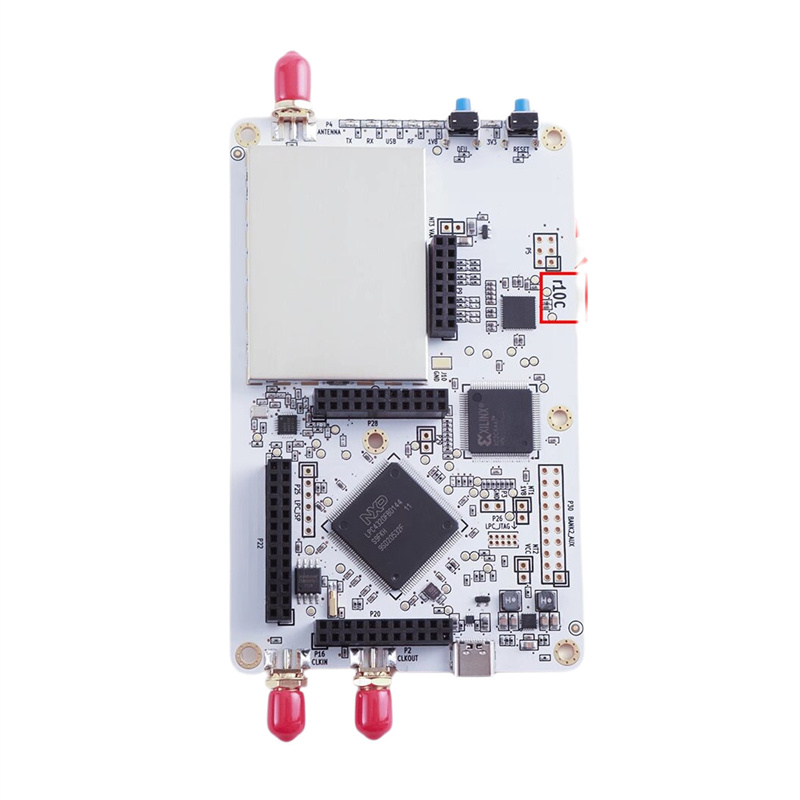

1 x HackRF One Development Board
1 x 40Mhz-60Ghz Antenna
1x LG Micro USB Data Cable
