Specifications:

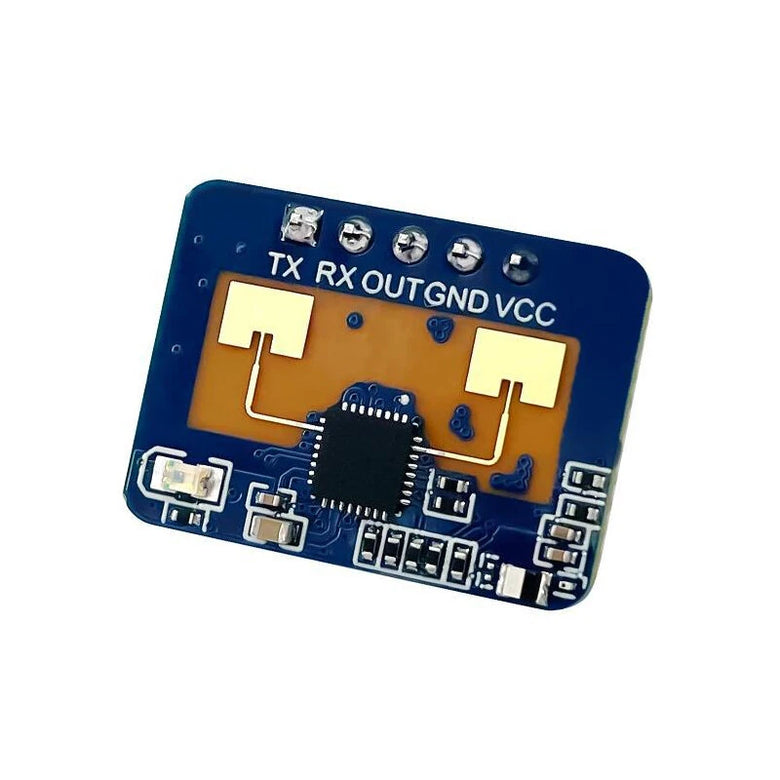

Model: LD2410C
Radar band: 24.00–24.25 GHz
Modulation: FMCW
Range: 0.75–6 m, configurable
Field of view: ±60°
Supply voltage: 5 V
Typical current: ~79 mA
UART level: 3.3 V TTL
GPIO OUT levels: 3.3 V / 0 V
Sweep bandwidth: 250 MHz (CE/FCC compliant)
Operating temperature: -40°C to +85°C
Features:
1) Recognizes moving or stationary people and outputs distance information in real time.
2) Plug‑and‑play with CH340 USB adapter; easy integration to PC, ESP32, Arduinos.
3) Configurable 0.75–6 m range; tune response per room and application.
4) ±60° field of view; works from −40°C to +85°C indoors.
5) 5V supply, ~79 mA typical; ideal for always‑on smart automation.
Package Included:
Board Only:
1 x LD2410C 24GHz mmWave Radar Module
or
LD2410C-P Kit:
1 x LD2410C 24GHz mmWave Radar Module
1 x CH340 USB to UART Adapter Board
1 x 5‑Pin Dupont Cable
