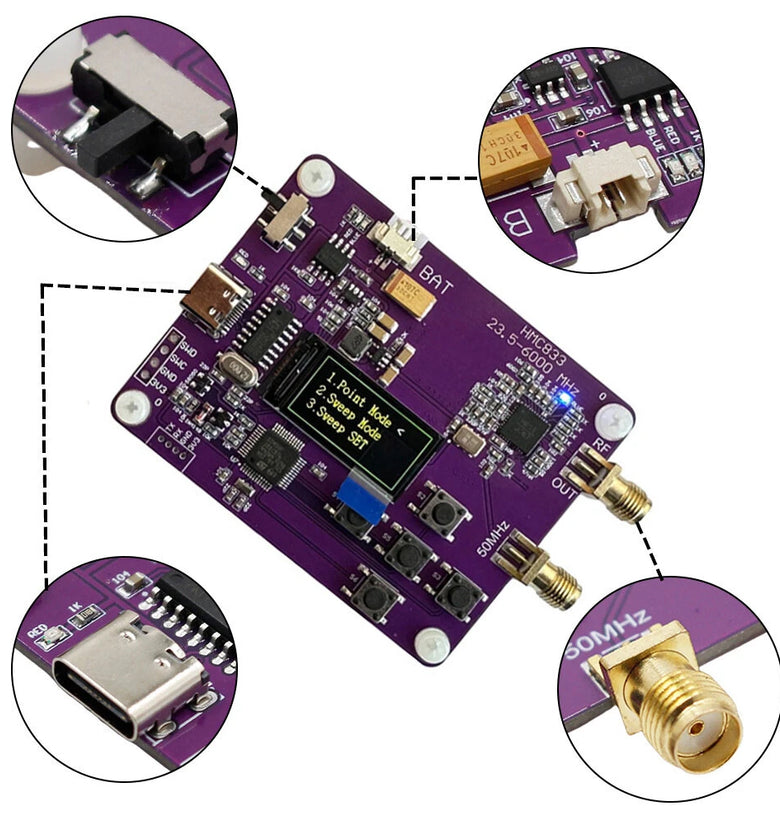

Specifications:
- Product Dimensions: 80mm x 55mm x 10mm
- Weight: 40g
- Power Source: TYPE_C interface power supply & 3.7v lithium battery
- Frequency Range: 23.5MHz-6000MHz
- Maximum Output Power: +5dBm, adjustable in three levels
- Control Methods: Button control, Serial command control
- Display: 0.96-inch OLED screen
- Integrated Lithium Battery Charging Circuit
- Supports 3.7v Lithium Battery
Instructions for use:
1. Plug in the TYPE_C power cord or lithium battery and turn on the power switch.
2. There will be a two-second wait on the power-on interface, and you can press any key to enter the setting interface.
3. There are three functions in total
Point Mode: Fixed frequency output, change the frequency and output power by pressing the button.
Sweep Mode: Sweep output, you can set the start frequency, stop frequency, single sweep and cyclic sweep
Sweep Set: Sweep step frequency setting and adjacent frequency point interval time setting
4. This product has a power-off automatic save function. After powering on again, it will automatically execute the work content before power failure without repeated settings.
