Specification:
Material: Metal
Built-in TQP3M9037-LNA
Frequency range: 0.1MHz-6GHz 0.1MHz-6GHz

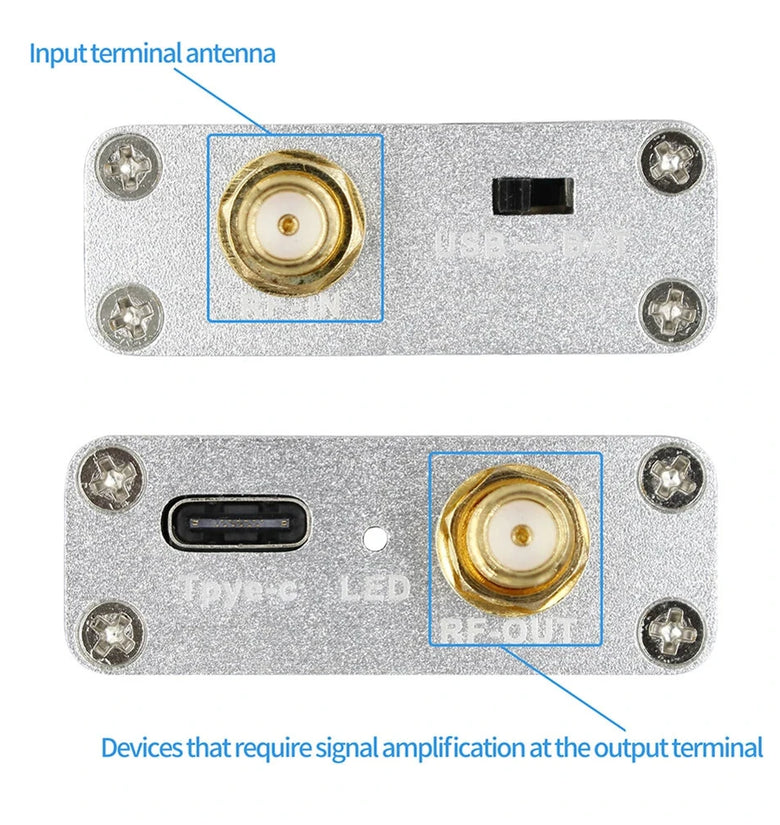

Connector: SMA female SMA female
Gain: 20 dB
Input, output impedance: 50Ω 50Ω
Input voltage: 5V 70mA
Battery type: No battery

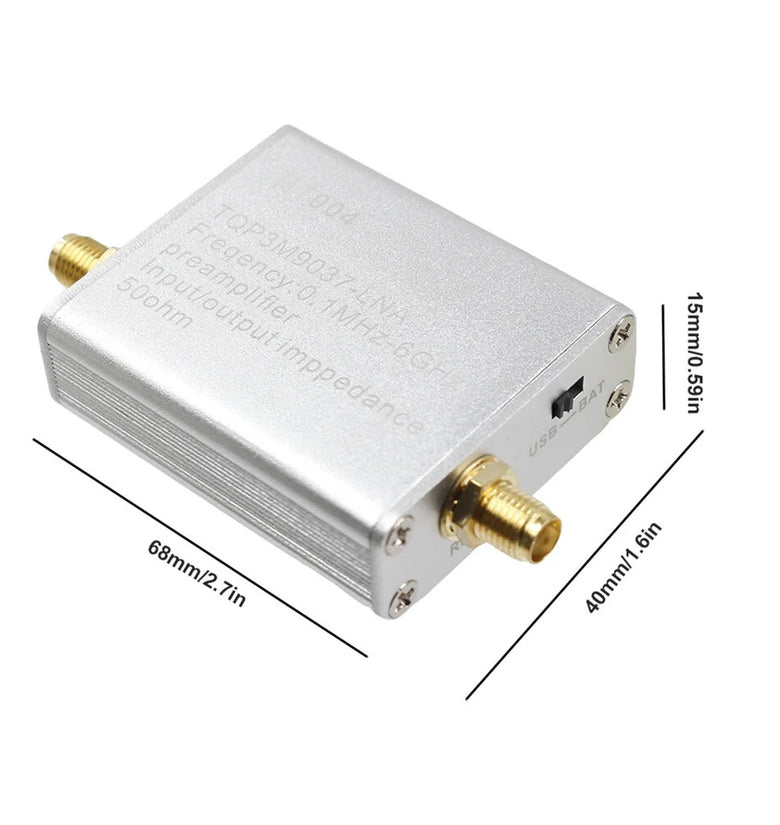

Product size: Approx. 68.00x40.00x15.00mm
Product size: 2.68x1.57x0.59inch
Feature:
1. Professional Quality: The low noise amplifier boasts high linearity and ultra-low noise gain block amplification. With a high linearity of +35dBm output IP3 and robust high input power handling of +22dBm continuous wave, this amplifier ensures top-notch performance for your applications.
2. Stable Performance: The power preamplifier features ultra-wide RF amplifier bandwidth and high reliability, resistant to corrosion and detachment. Its wide frequency range, high gain, low noise figure, and adjective stability make it a dependable choice for your RF amplification needs.
3. Impressive Specifications: The lna module offers a 1.95GHz low noise amplifier with 20dB high gain, input and output impedance of 50Ω, and a bandwidth ranging from 0.1MHz to 6GHz. This module is designed to deliver exceptional performance across a broad frequency spectrum.

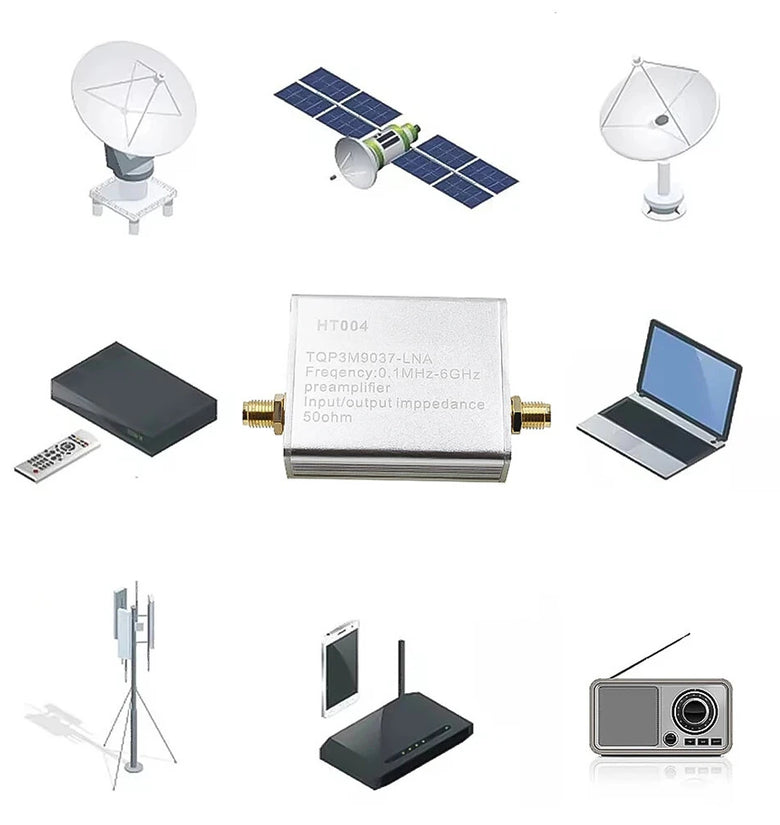

4. Versatile Application: The full band low noise amplifier excels in performance, uniformity, and reliability. It is ideal for use in shortwave, FM radio, remote control receivers, cabl
