Specification:

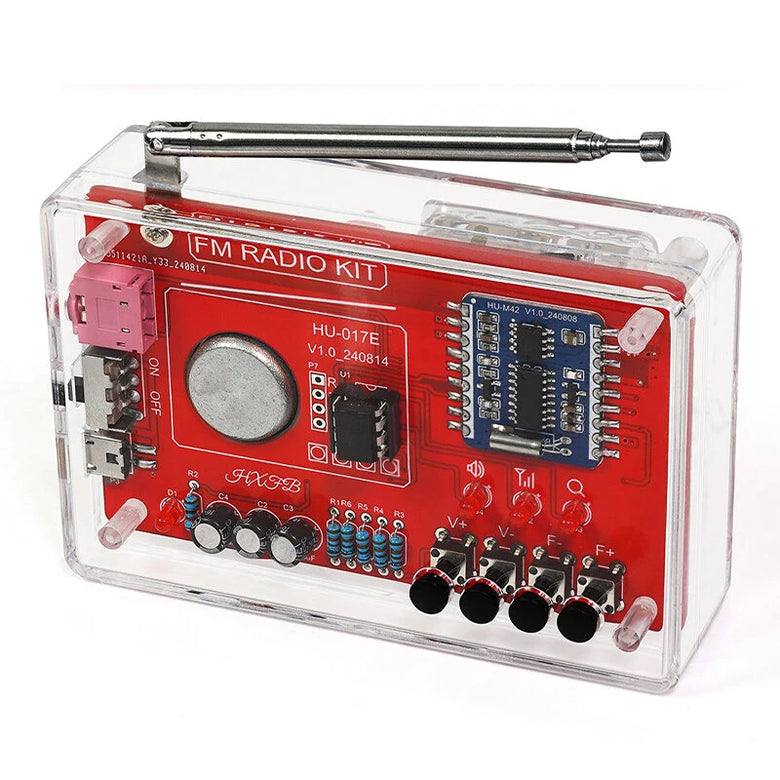

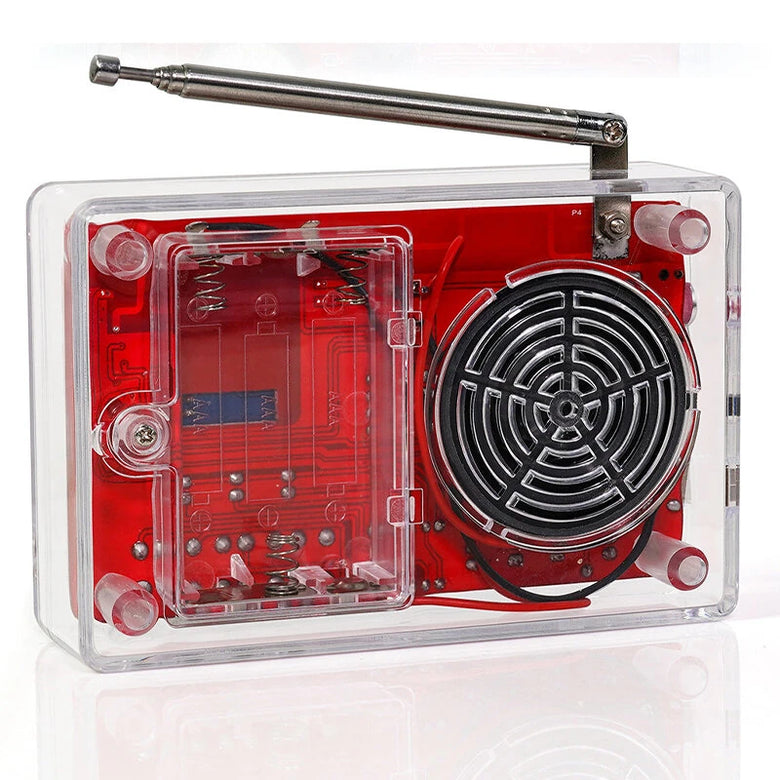

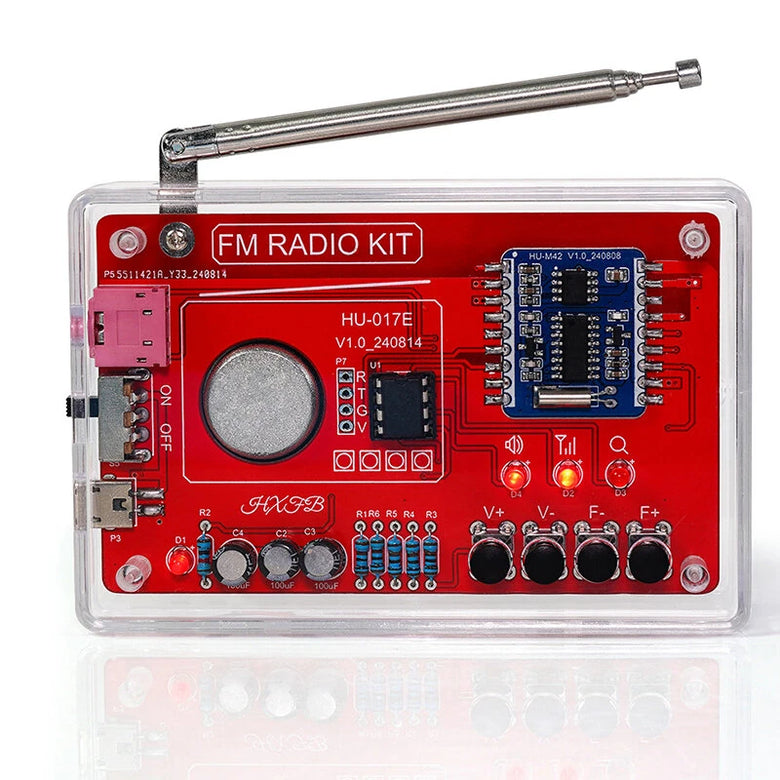

Model: HU-017E
Power Supply: 3 x AAA Batteries or 5V USB Power (Choose one)
Frequency Range: 87-108 MHz FM
Maximum Operating Current: Approximately 400mA (at maximum volume)
PCB dimensions: 95.5 x 59 mm
Weight: 65g (components only), 128g (components + case)
Features:
1. Easy Assembly: Simple to operate and solder, with enhanced sound quality when paired with a 4Ω 3W speaker.
2. Advanced RDA5807 Module: Features noise cancellation, bass enhancement, high sensitivity, low noise, and strong anti-interference capabilities.
3. User-Friendly Controls: Button control for channel switching, volume adjustment, clearing channels, and re-scanning and storing channels.
4. Sound Customization: Equipped with 15 levels of sound adjustment to fine-tune audio to your preference.
5. LED Status Indicator: LED lights display the operational state of the radio.
6. With power-off memory, automatic channel searching and channel saving functions.

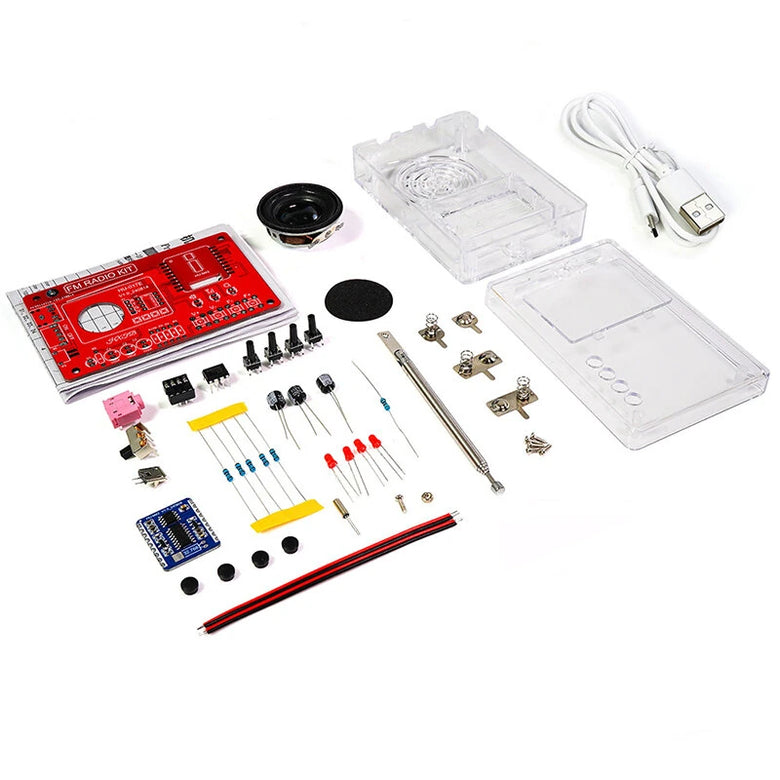

Package Includes:
5x In-line resistance 1K
4x Key cap
3x Electrolytic capacitor 100uF
1x 8P IC block
1x STC8G1K17
1x HU-M42 module
1x Radio antenna
1x Sponge ring
1x 4P red and black connecting line
1x Power cord
1x PCB
1x Instructions
4x Red light emitting diode
4x 6*6*12.5 key
1x Audio socket
1x Toggle switch
1x Usb socket
1x In-line resistance 10K
1xTtrumpet
1x M2 screw
1x M2 nut
1x Shell
