Features:

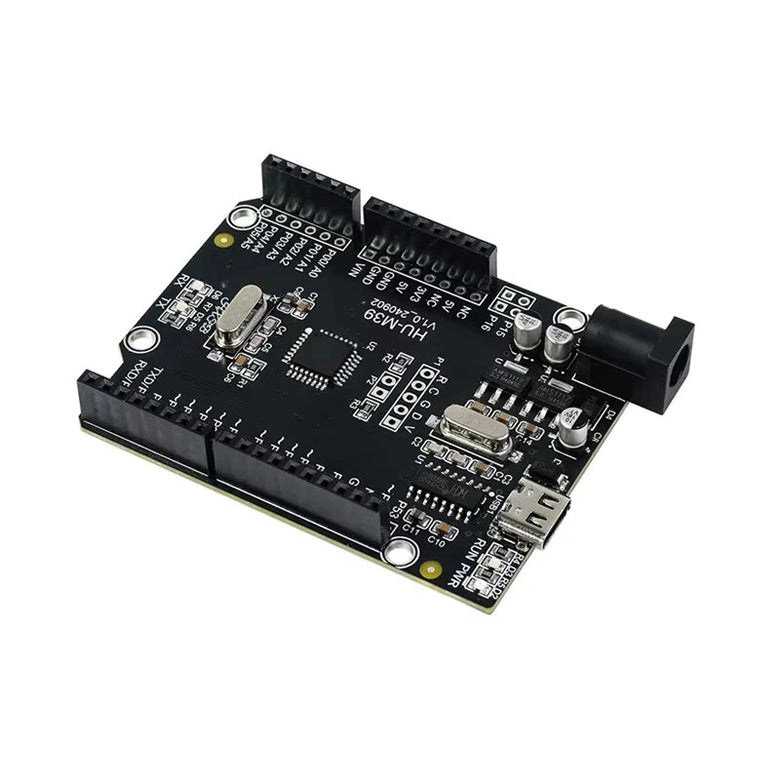

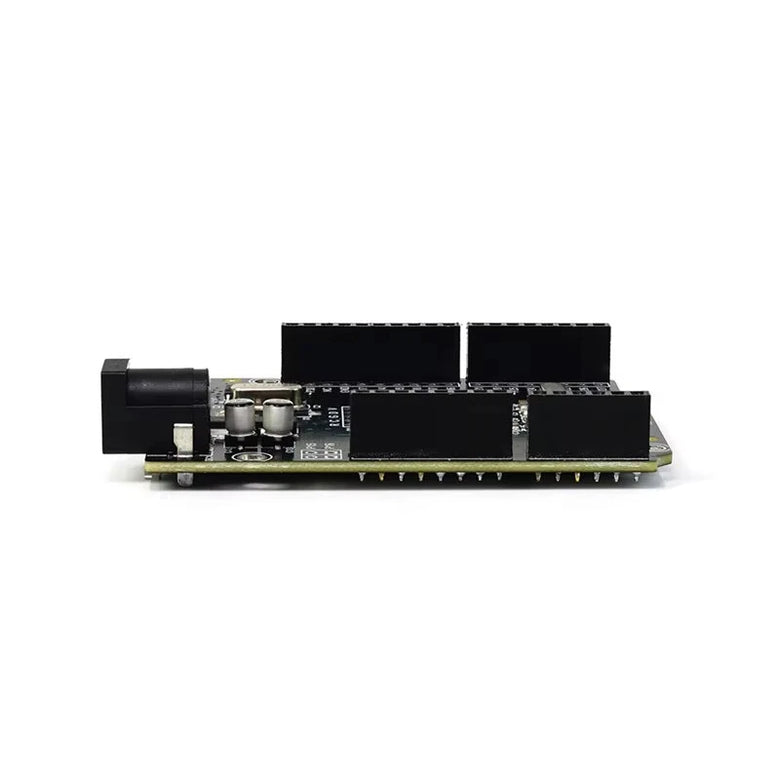

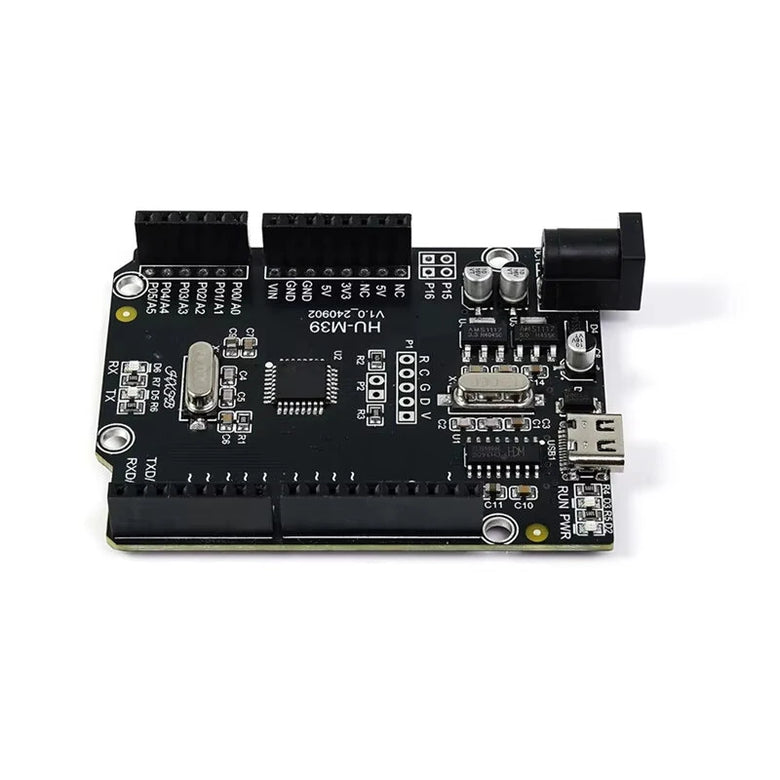

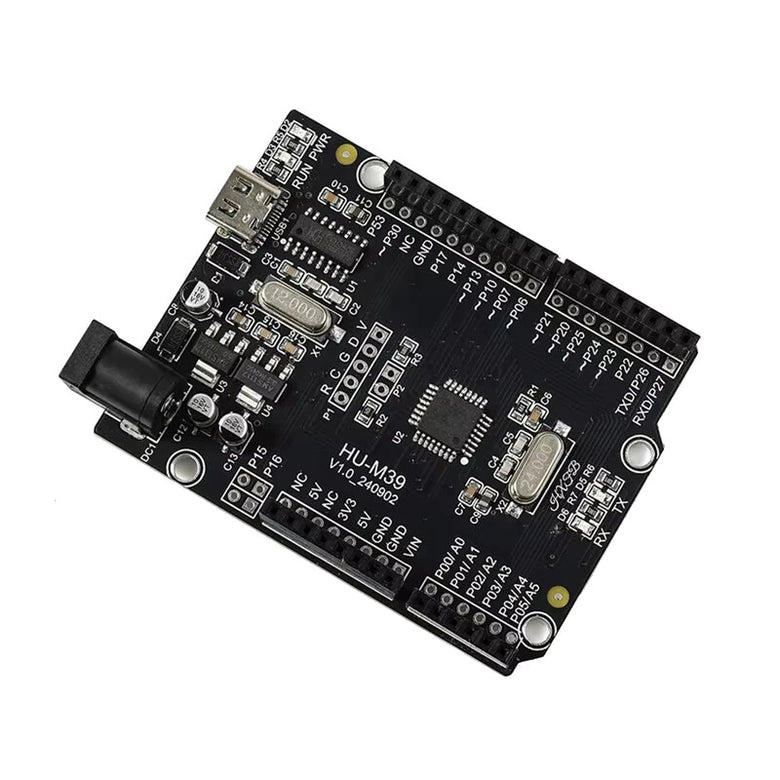

1) The graphical programming core board is specially designed for smart cars, robotic arms, robot competitions and maker developers. Adapt to HXFB graphical programming software, with an intuitive and convenient graphical operation interface, greatly reducing the programming threshold.
2) 24 pins that can be flexibly configured as input/output mode (P00-P07, P10, P13-P17, P20-P27, P30, P53).
3) Onboard 2 programmable LEDs, support infrared remote control, support NRF24L01 wireless remote control, all pins support PWM control, and the duty cycle is adjustable.
Specification:
1. A total of 24 pins: P00-P07, P10, P13-P17, P20-P27, P30, P53
2. Pins can be configured in input/output mode
3. Support 4WD car control (need to be used with motor driver board, not included)
4. Support 2-way infrared obstacle avoidance module, support 2-way infrared tracking module
5. Support 1-way ultrasonic module to achieve obstacle avoidance function
6. Support Bluetooth module, baud rate 9600bps
7. All pins support LED control, brightness is adjustable
8. Support PS2 handle remote control
9. All pins support PWM control, duty cycle is adjustable
10. On board 2 LEDs , support user programming
11. Support infrared remote control
12. Support NRF24L01 wireless remote control
13. Up to 9 servos can be controlled
14. Support eight-degree-of-freedom quadruped robot dog
15. Power supply: DC7-12V
16. Programming software: HXFB graphical programming software
17. Different batches may result in variations in printing and silk-screen printing, but this does not affect usage
18. Color: Black
19. Material: PCB
Package Included:
1 x Graphical programming core board
1 x data cable
1 x pin
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
