Specification:

Power Supply Voltage: Dual DC power supply of 58-70V.
Rated Output Power: 500W (at 65V supply with 4-ohm load, distortion <10%).
Efficiency: >= 90%.
Signal-to-Noise Ratio: 90dB.
Total Harmonic Distortion:
380W (with +65V supply and 4-ohm speaker, distortion <0.1%).
280W (with +65V supply and 8-ohm speaker, distortion <0.1%).
Frequency Response Range: 20Hz - 20KHz.
Speaker Compatibility: Suitable for 4-ohm to 8-ohm speakers.
Voltage Amplification Factor: 36 times.
Input Sensitivity: 1.5V (RMS).
Output Short Circuit Protection: Available.
Output DC Offsett Protection (Speaker Protection): Available.
Overtemperature Protection: If the heat sink FET temperature exceeds 100°C, the output will be automatically shut down.
Size:98mm*43mm*30mm

Features:

1. High Power Output: The amplifier offers a potent 500W output, providing robust audio performance for a variety of applications.
2. High Efficiency: With an efficiency rating of >= 90%, the amplifier optimizes power consumption, reducing energy wastage.
3. Low Distortion: The total harmonic distortion is kept below 0.1% even at high power levels, ensuring clear and distortion-free sound reproduction.
4. Comprehensive Protection: The amplifier is equipped with multiple protection mechanisms, including short circuit protection, output DC offsett protection, and overtemperature protection, safeguarding both the amplifier and connected speakers.
5. Wide Frequency Response: With a frequency response range spanning from 20Hz to 20KHz, the amplifier can faithfully reproduce audio across the audible spectrum.

Package Include:

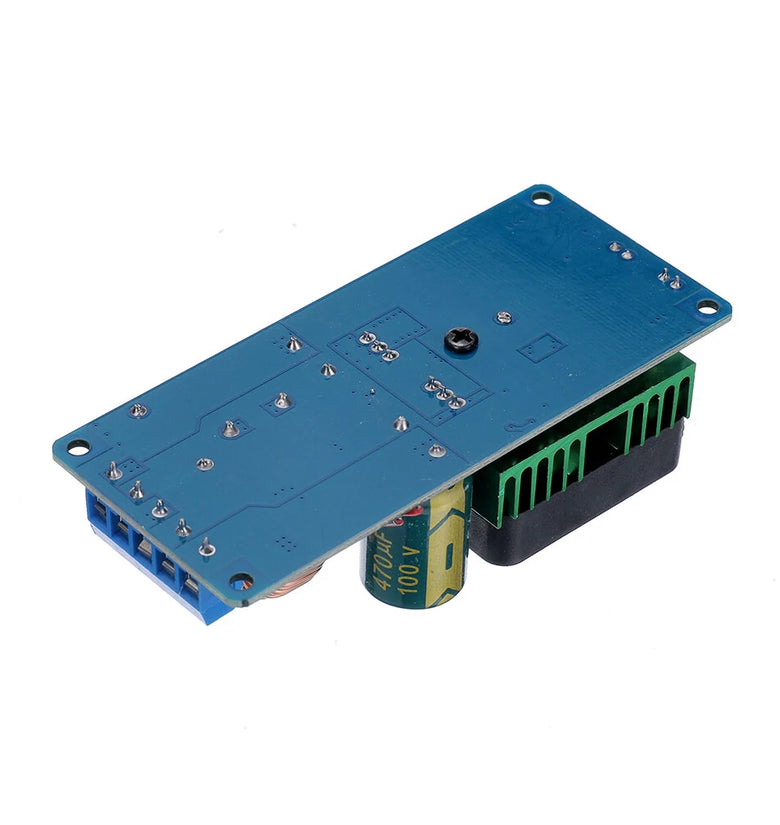

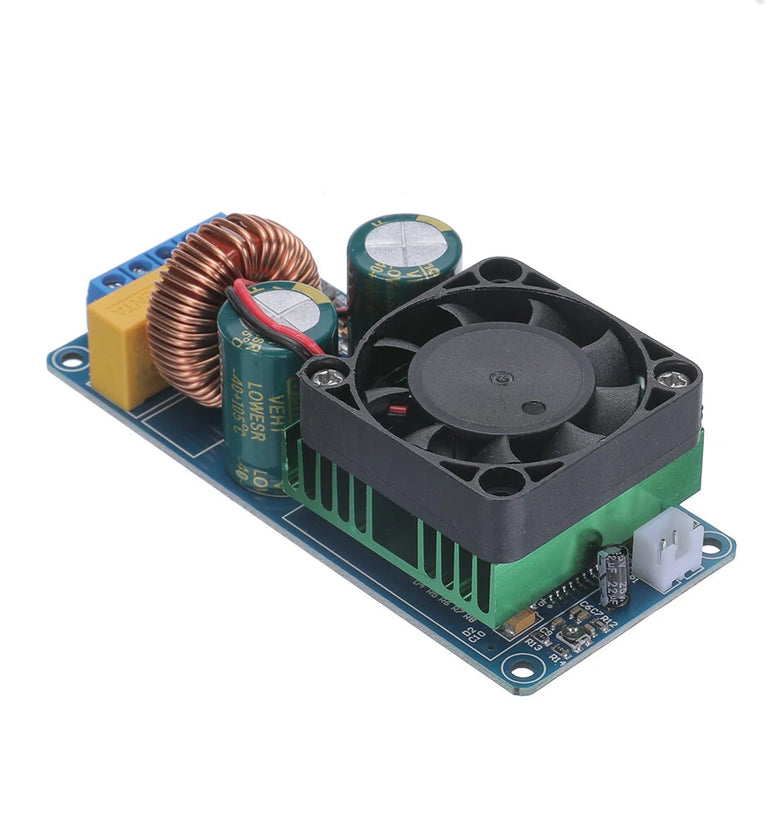

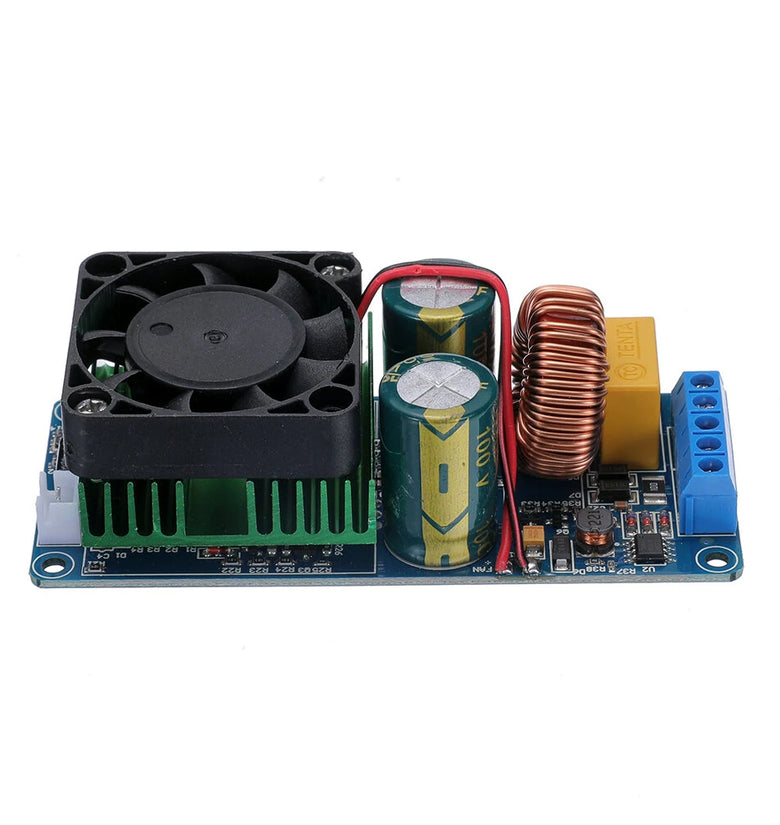

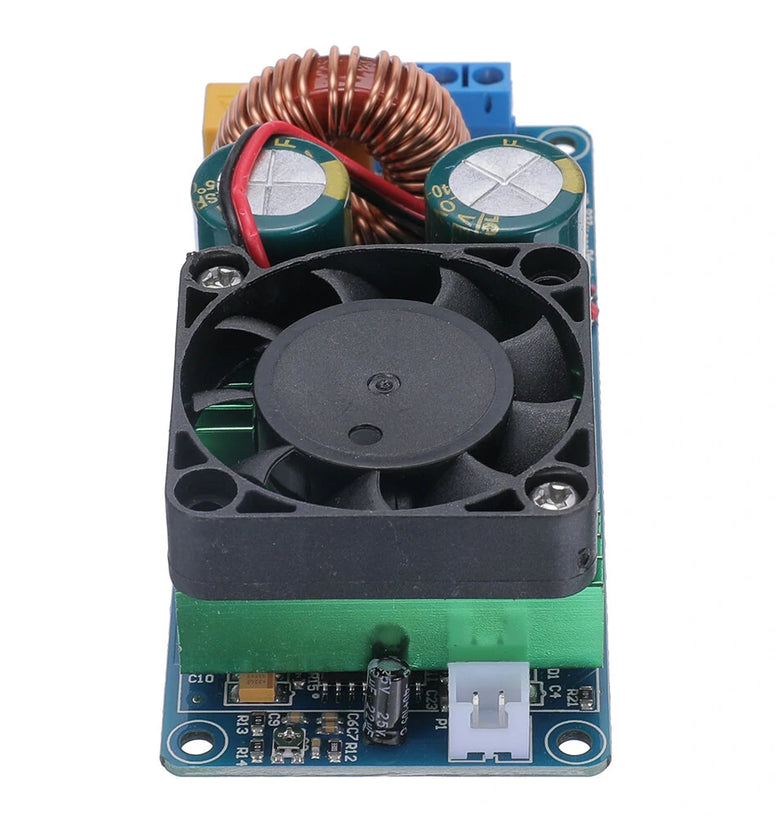

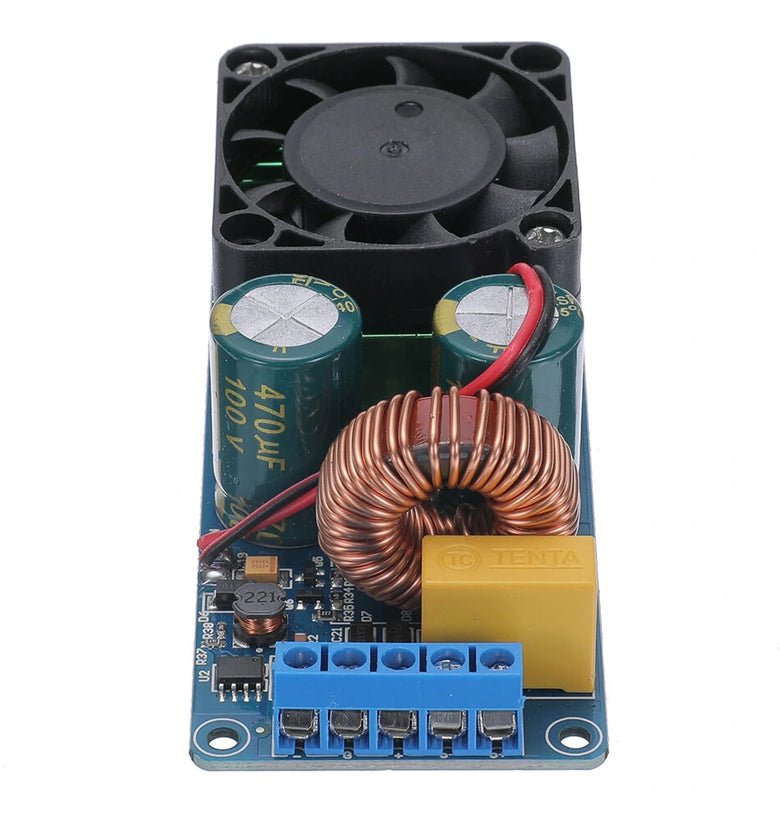

1x IRS2092S Digital Power Amplifier Board

Note:

1. The rated power supply voltage is dual power supply ±65V, and the voltage can work normally at ±58~±70V (it will burn if it exceeds 70V!). If it is a ring bull, it does not have a voltage stabilizing function, and the voltage will fluctuate with the power grid. Please use Leave a margin: Do not connect the positive and negative poles of the power supply incorrectly to avoid burning the board.2. The power supply is recommended to be a DC dual power supply ±65V with good filtering.3. Speakers are recommended to use 10-18 inch 4 ohm to 8 ohm speakers.4. Although the audio output has short-circuit protection, try not to short-circuit it.5. Please check carefully before powering on to ensure that the wiring is correct before powering on.7. The voltage amplification factor of this board is fixed at 40 times. If the output power is not enough, you can add pre-amplification according to the specific situation.

The wiring diagram is as follows:
