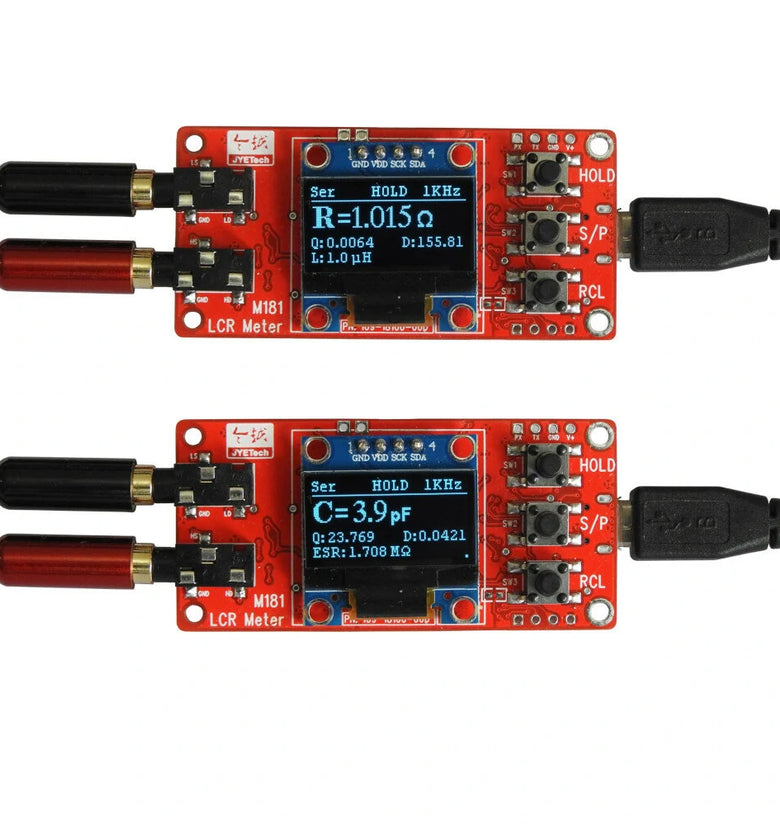

M181 LCR meter is a practical kit for measuring the R, C, or L of either through-hole or surface-mount components. It features about 1% accuracy, which is adequate in most engineering scenarios. Not only being very easy to build, it also includes a Self Test mode that helps users to verify the correctness of assembly. Compact in size and the capability of serial output make the meter a great choice for many embedded applications.
Highlights of M181 LCR Meter:
Resistance range: 0.1ohm — 10M ohm
Capacitance range: 1pF — 10000uF
Inductance range: 1uH — 20H
Fully automatic ranging
Accuracy: about 1%
Measurement frequency: 1KHz/100Hz selectable
Measurement voltage: 0.6Vpp
Built-in virtual USB comport for data output and firmware upgrade
Serial data output via USB comport or direct LVTTL
Display HOLD function
USB (5V) powered
Easy to build, easy to use
Self test mode for verifying the correctnes of assembly

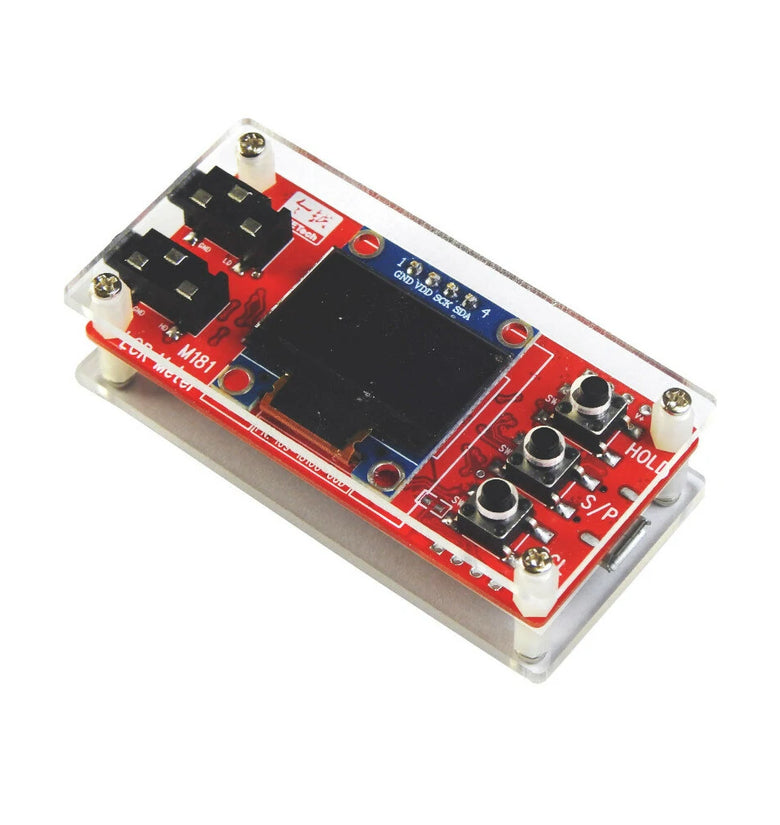

Acrylic panels included
Specifications:
Display:
Primary: R, C, L
Secondary: Q, D, ESR
Equivalent Circuit Mode: Parallel or Serial
Measurement Range and Accuracy:
R, |Z|: 0.1Ω - 10MΩ
C: 1pF - 10000μF
L: 1μH - 20H
Q, D: 0 - 10000
Accuracy: About 1%
Measurement Conditions:
Test Frequency: 100Hz, 1KHz
Open Voltage: 0.6Vpp
Miscellaneous:

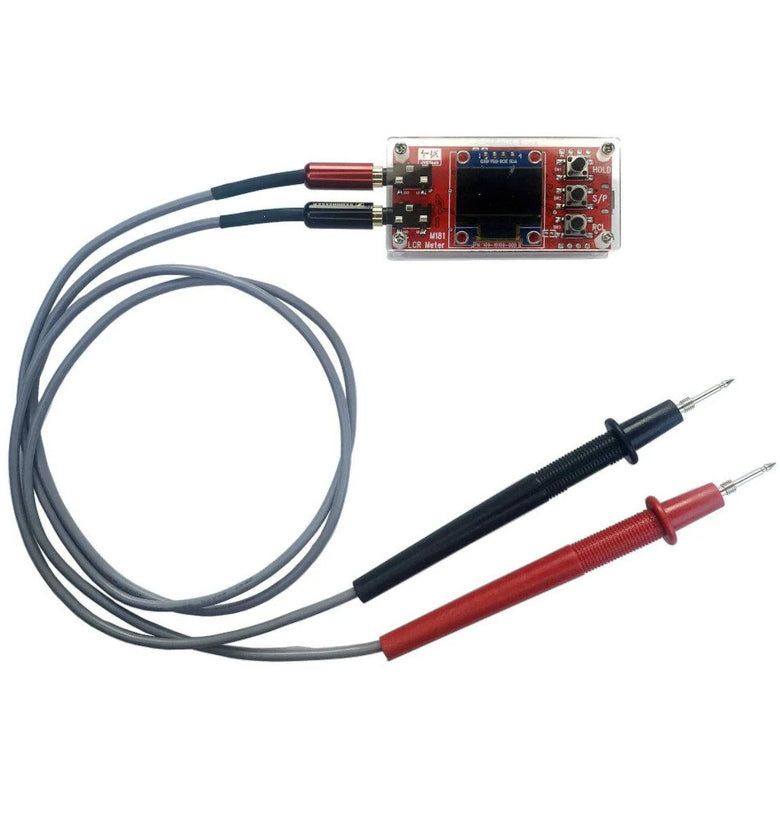

Measurement Connections: 4 Kelvin wires on the test terminals
Ranging: Fully automatic
Compensations: Open, Short
Serial Data Output: Yes
Power Supply: USB
Power Consumption: < 100mA @ 5V
Dimensions: 66 x 32x 19mm (2.60' x 1.26' x 0.75')
Weight: 23g (76g with probes)
Documents:
M181 User Manual

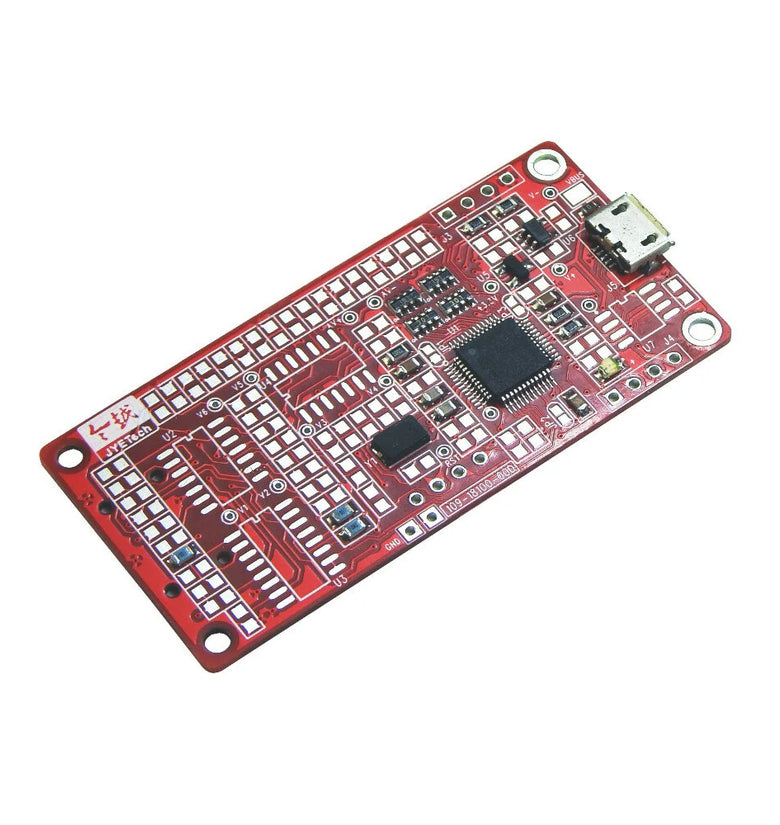

M181 Assembly Guide
Schematic
Component Locations
Package includes:

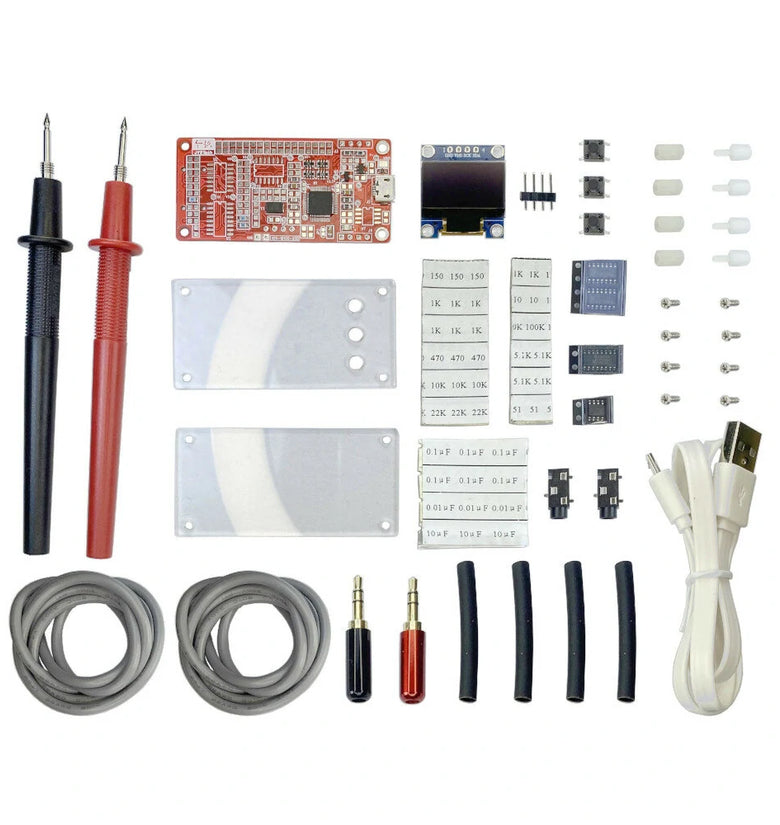

1x M181 LCR Meter DIY kit
