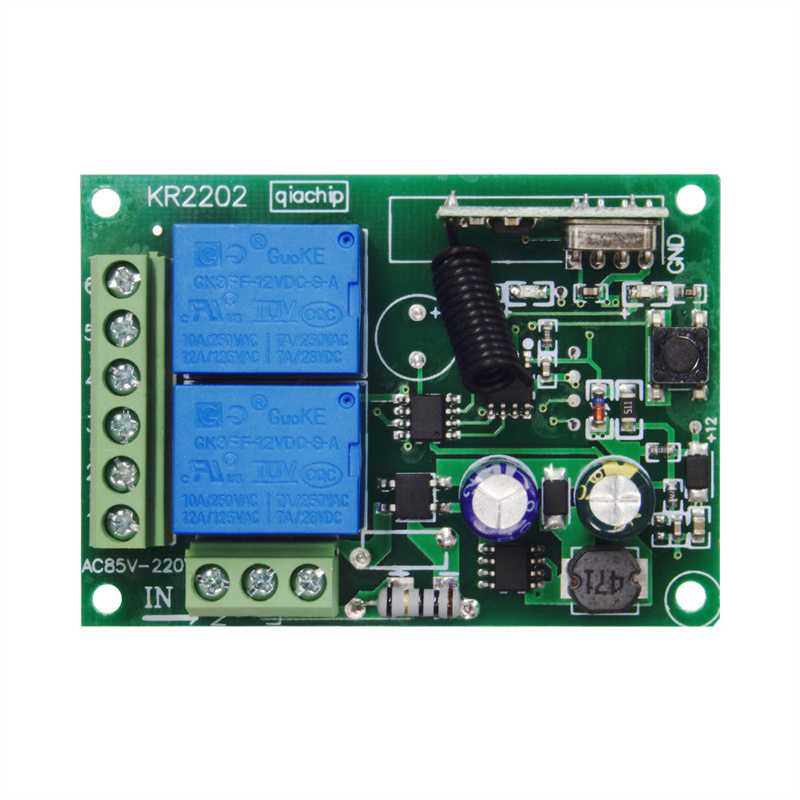

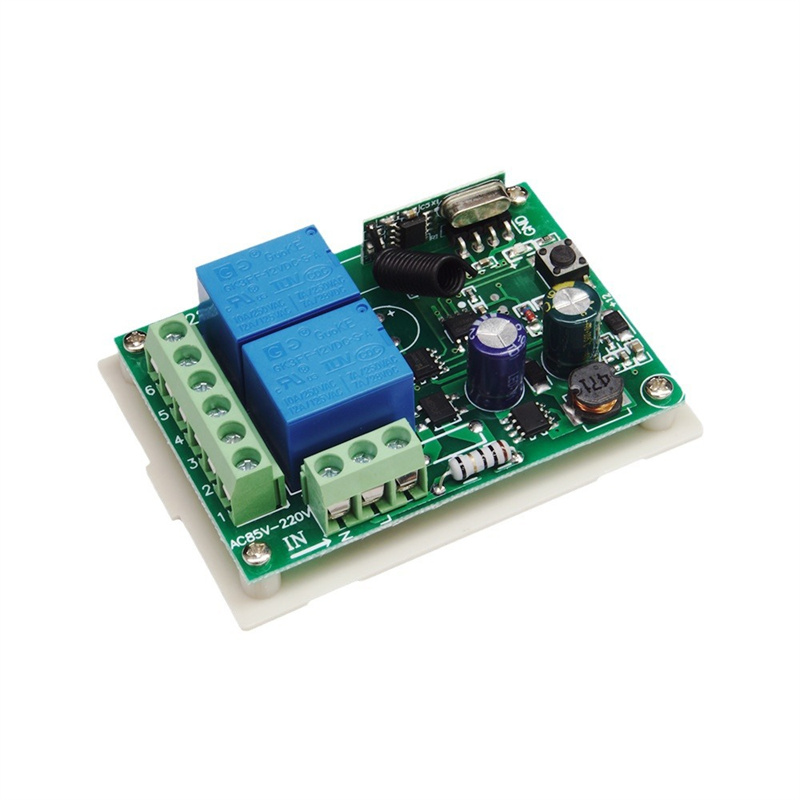

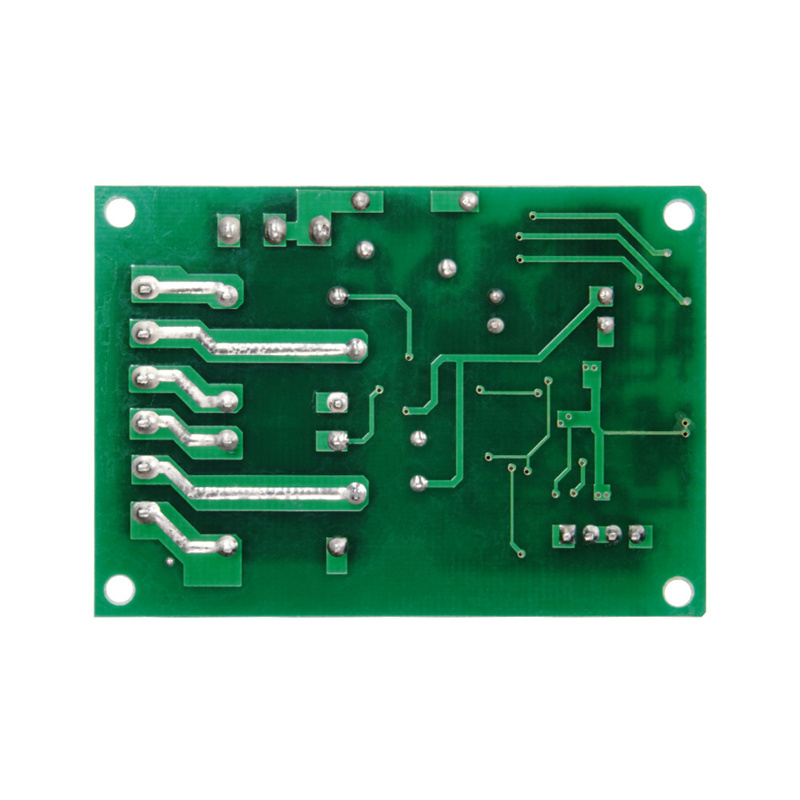

Specifications:
Input Power: AC 85V-250V
Standby Current: <8.5mA
RF Frequency: 433MHz
RF Operating Mode: Superheterodyne
Receiving Sensitivity: > 97dBm
Transmission Distance: Over 50 meters
Decoding Mode: MCU Software Decoding
Remote Controllers Supported: Up to 16 Transmitters
Supported Remote Type: Learning Code (1527)
Switch Modes: Jogging and Toggle
Terminal Type: Fixed Terminals
Switch Output: Normally Open (NO) and Normally Closed (NC), Public(COM)

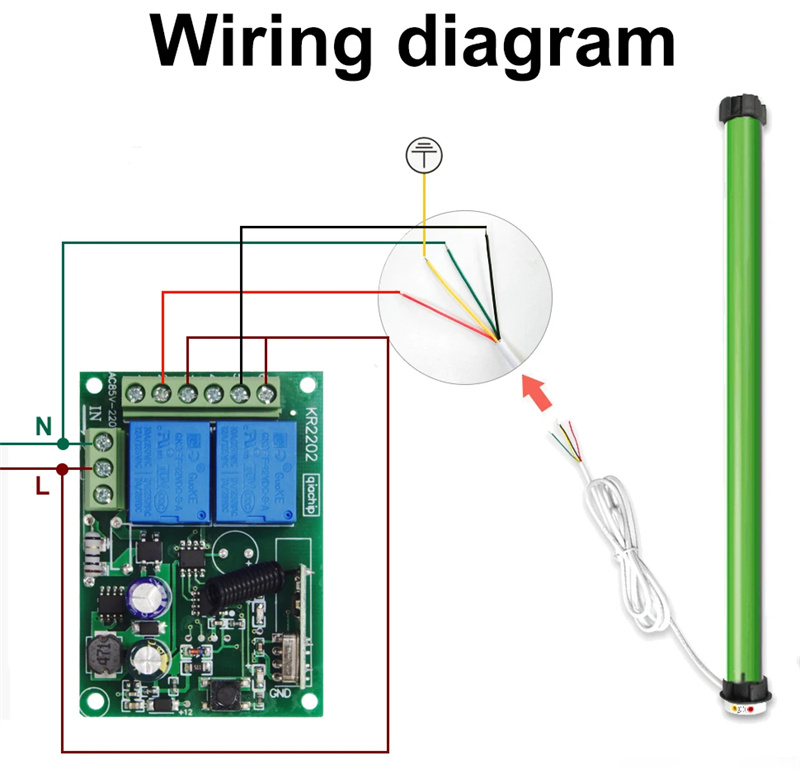

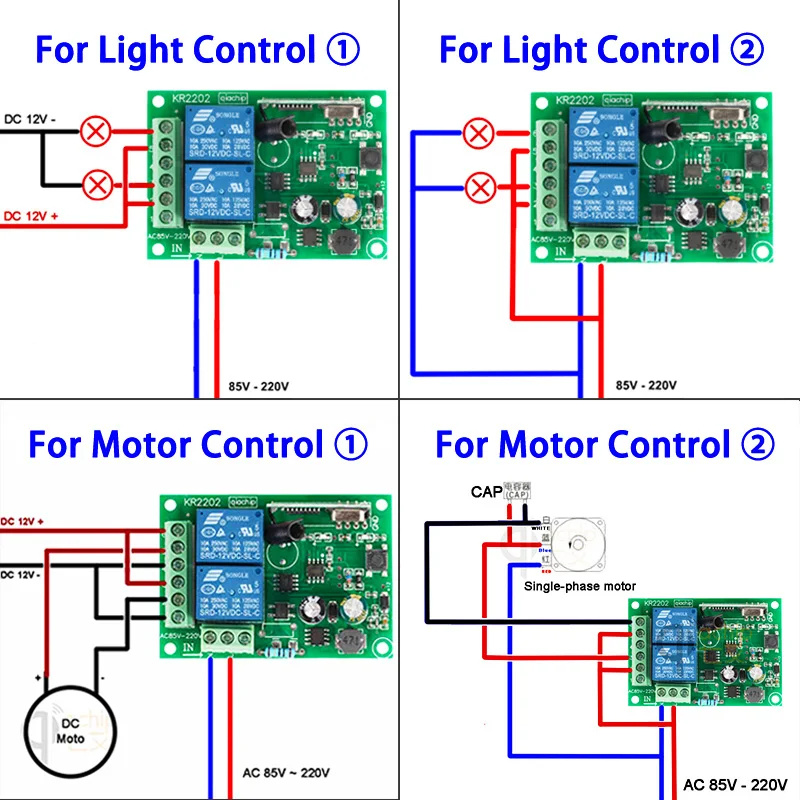

Wiring Ports:
NO: Normally Open
COM: Public
NC: Normally Closed
Features:
1. Wide Power Supply Range: Compatible with a broad input voltage range from AC 85V to 250V, ensuring operational adaptability.
2. High Sensitivity and Long Range: Boasting a receiving sensitivity greater than 97dBm and a transmission distance exceeding 50 meters, it ensures reliable performance.
3. Versatile Remote Control Support: Capable of learning up to 16 transmitters, providing extensive control options.
4. Adaptable Switch Modes: Offers both jogging and toggle switch modes for flexibility in various applications.
5. Robust and Reliable Construction: Engineered for lasting performance with sturdy materials and advanced technology, ensuring dependable operation.
Package Includes(optional):
【Receiver Only】:

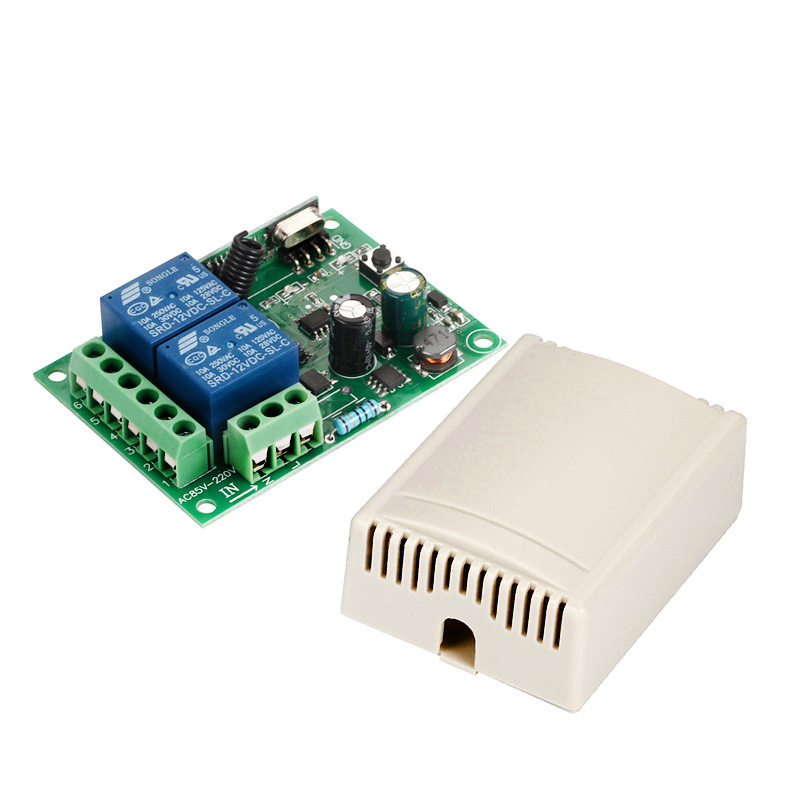

1x Receiver Board
【Receiver+AB Remote】:
1x Receiver Board

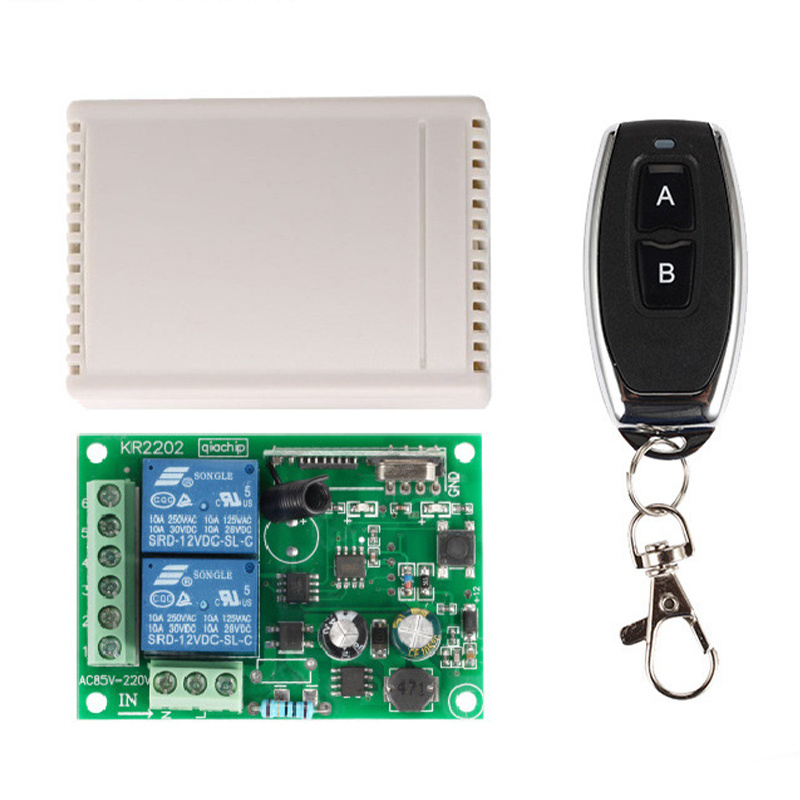

1x AB Remote Control
【Receiver+2x AB Remote】:
1x Receiver Board

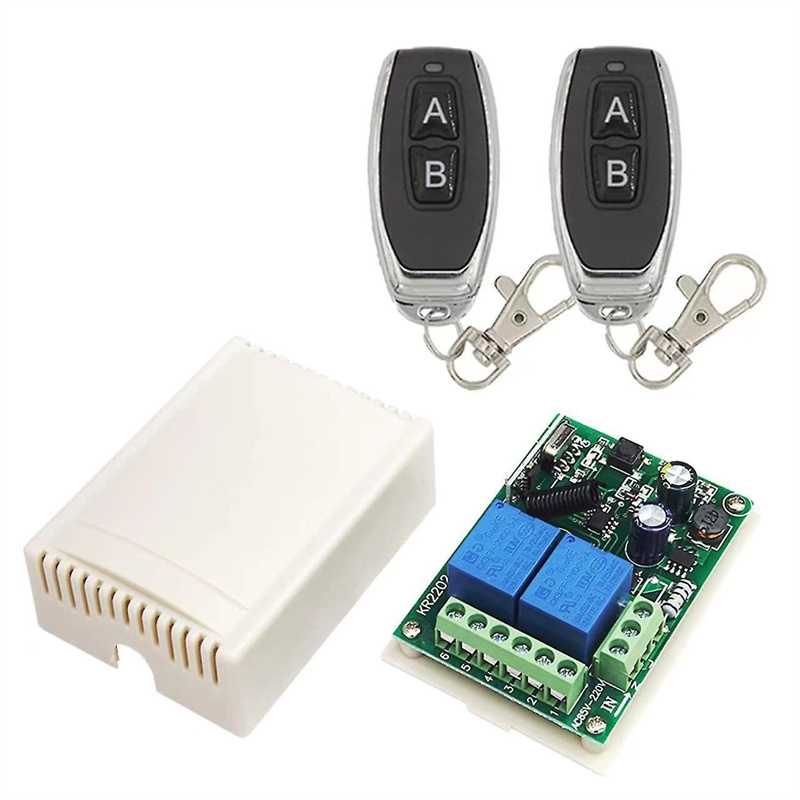

2x AB Remote Control
You can match the Remote Control with the Receiver Switch Module in 3 modes.
Remote mode 1: Momentary Mode
Press and hold on one button -> ON; Release the button -> OFF
Details:
Press one button (on the remote control) , the relay (on the receiver board) turn to switch-on ;
Release the button, the relay turn to switch-off .
Remote mode 2: Toggle Mode
Press one button -> ON; Press the same button again -> OFF
Details:
Press one button (on the remote control) once , the relay (on the receiver board) turn to switch-on ;
Press the same button again , the relay turn to switch-off.
Remote mode 3: Latched Mode
Press button 'A' -> ON; Press button 'B' -> OFF(at the same time another channel ON)
Details:
Press one button (on the remote control) once, the relay (on the receiver board) turn to switch-on ;
Press the another button, the relay turn to switch-off( at the same time another channel ON ).
Set Up
- Part 1:Delete the existing data about remote mode
Note: When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about remote mode for the first application.
Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.
- Part 2: Set up the Remote Mode
Set up : Momentary Mode
STEP 1
Press the learning button on the Receiver board once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.
STEP 3
Press another button on the Remote Control, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.
Set up :Toggle Mode
STEP 1
Press the learning button on the Receiver board twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.
STEP 3
Press another button on the Remote Control , watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
Set up :Latched Mode
STEP 1
Press the learning button on the Receiver board 3 times.
STEP 2
Press one button on the Remote Control,
STEP 3
Press another button on the Remote Control
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
Remote mode 1: Momentary Mode
Press and hold on one button -> ON; Release the button -> OFF
Details:
Press one button (on the remote control) , the relay (on the receiver board) turn to switch-on ;
Release the button, the relay turn to switch-off .
Remote mode 2: Toggle Mode
Press one button -> ON; Press the same button again -> OFF
Details:
Press one button (on the remote control) once , the relay (on the receiver board) turn to switch-on ;
Press the same button again , the relay turn to switch-off.
Remote mode 3: Latched Mode
Press button 'A' -> ON; Press button 'B' -> OFF(at the same time another channel ON)
Details:
Press one button (on the remote control) once, the relay (on the receiver board) turn to switch-on ;
Press the another button, the relay turn to switch-off( at the same time another channel ON ).
Set Up
- Part 1:Delete the existing data about remote mode
Note: When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about remote mode for the first application.
Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.
- Part 2: Set up the Remote Mode
Set up : Momentary Mode
STEP 1
Press the learning button on the Receiver board once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.
STEP 3
Press another button on the Remote Control, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.
Set up :Toggle Mode
STEP 1
Press the learning button on the Receiver board twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.
STEP 3
Press another button on the Remote Control , watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
Set up :Latched Mode
STEP 1
Press the learning button on the Receiver board 3 times.
STEP 2
Press one button on the Remote Control,
STEP 3
Press another button on the Remote Control
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
