Description:

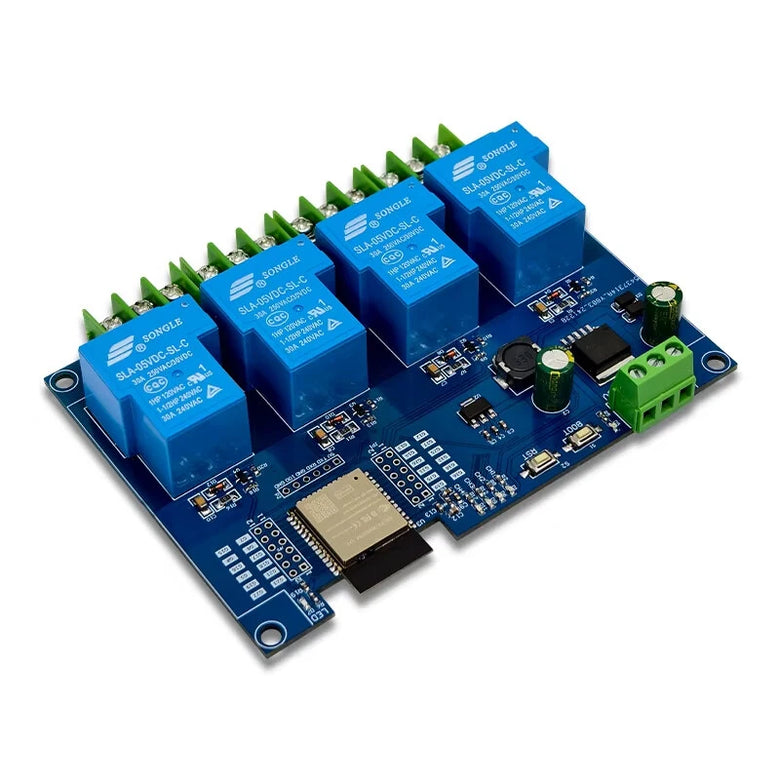

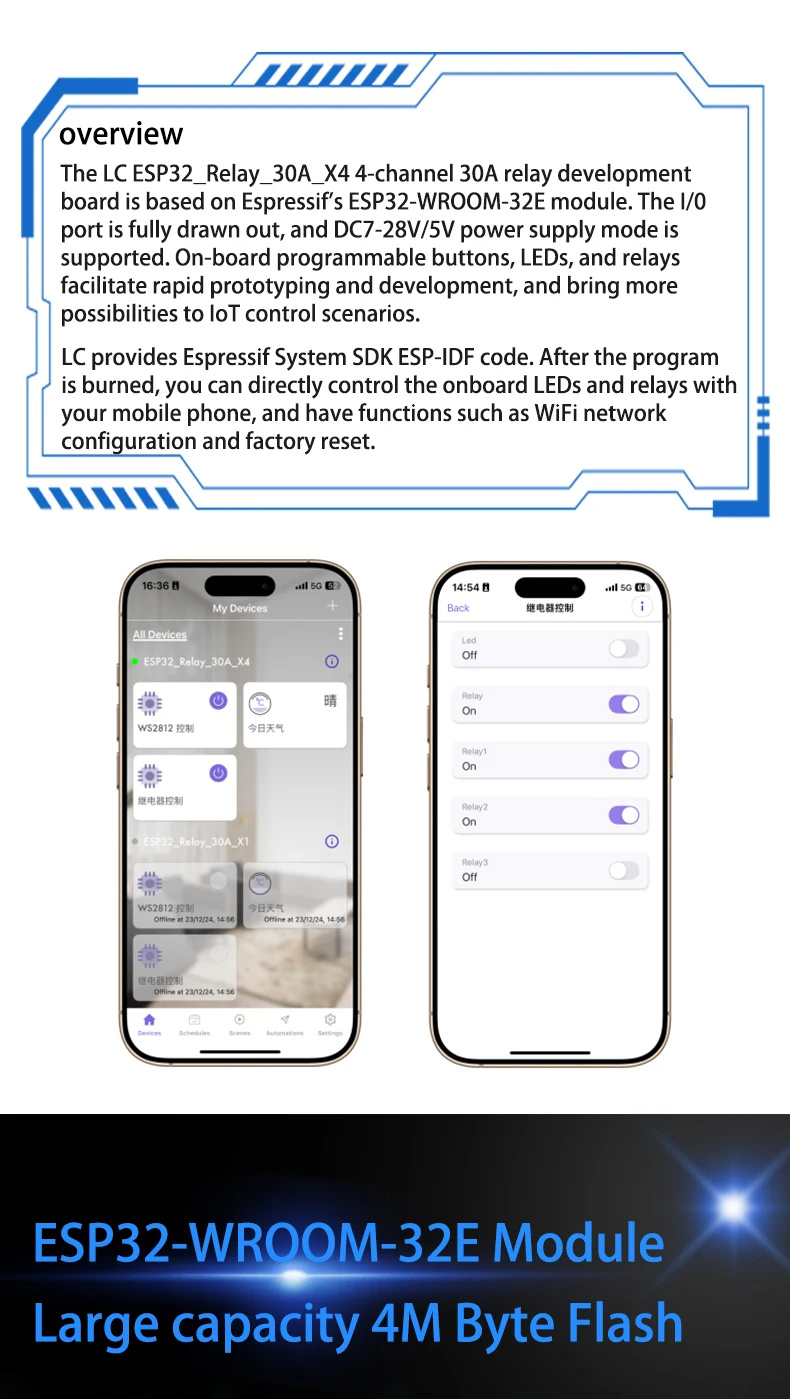

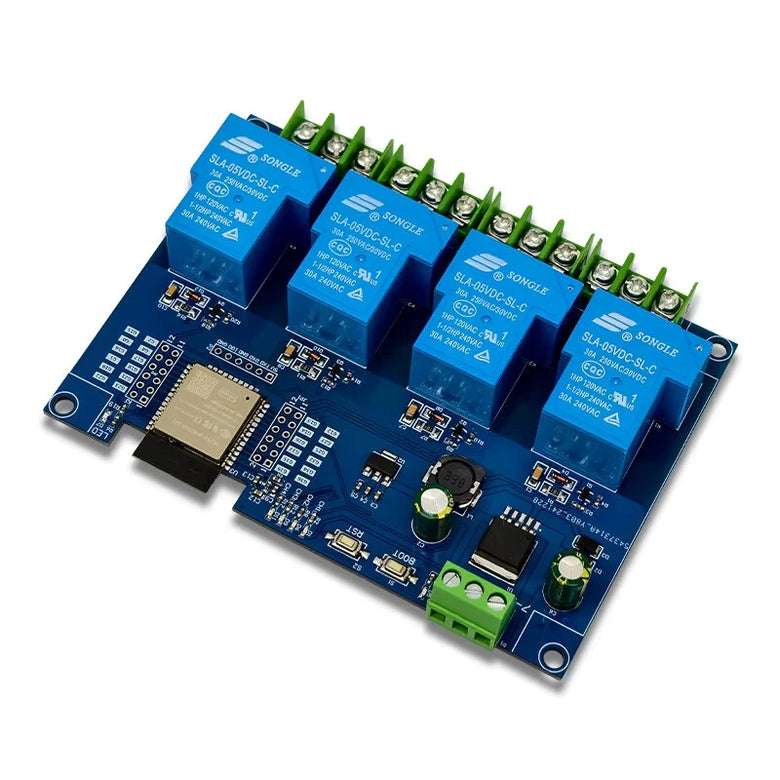

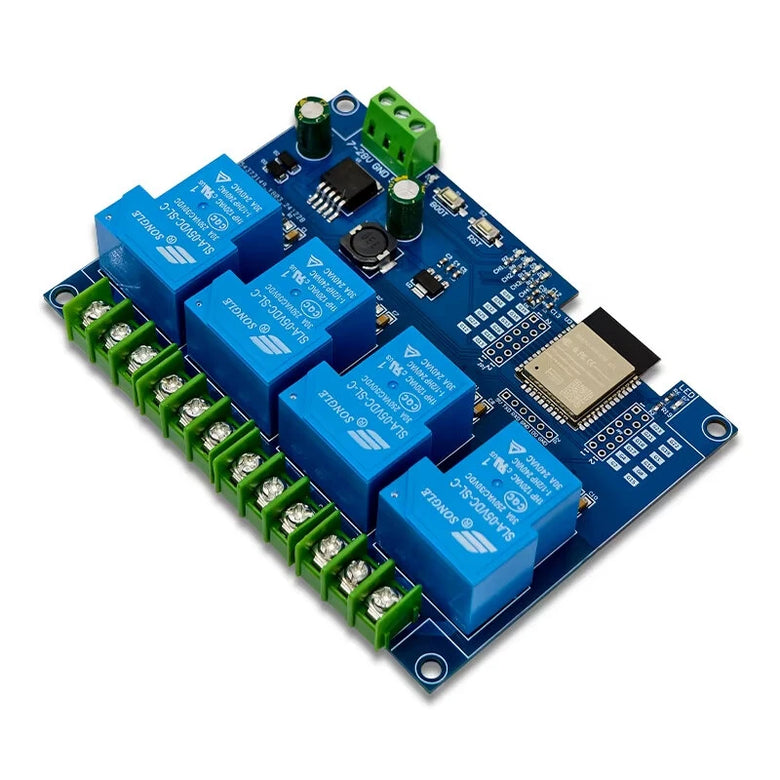

The LC ESP32_Relay_30A_X4 4-channel 30A relay development board is based on Espressif's ESP32-wROOM-32E module.The I/0 port is fully drawn out, and DC7-28v/5V power supply mode is supported. On-board programmable buttons,LEDs,and relays facilitate rapid prototyping and development, and bring more possibilities to ioT control scenarios.

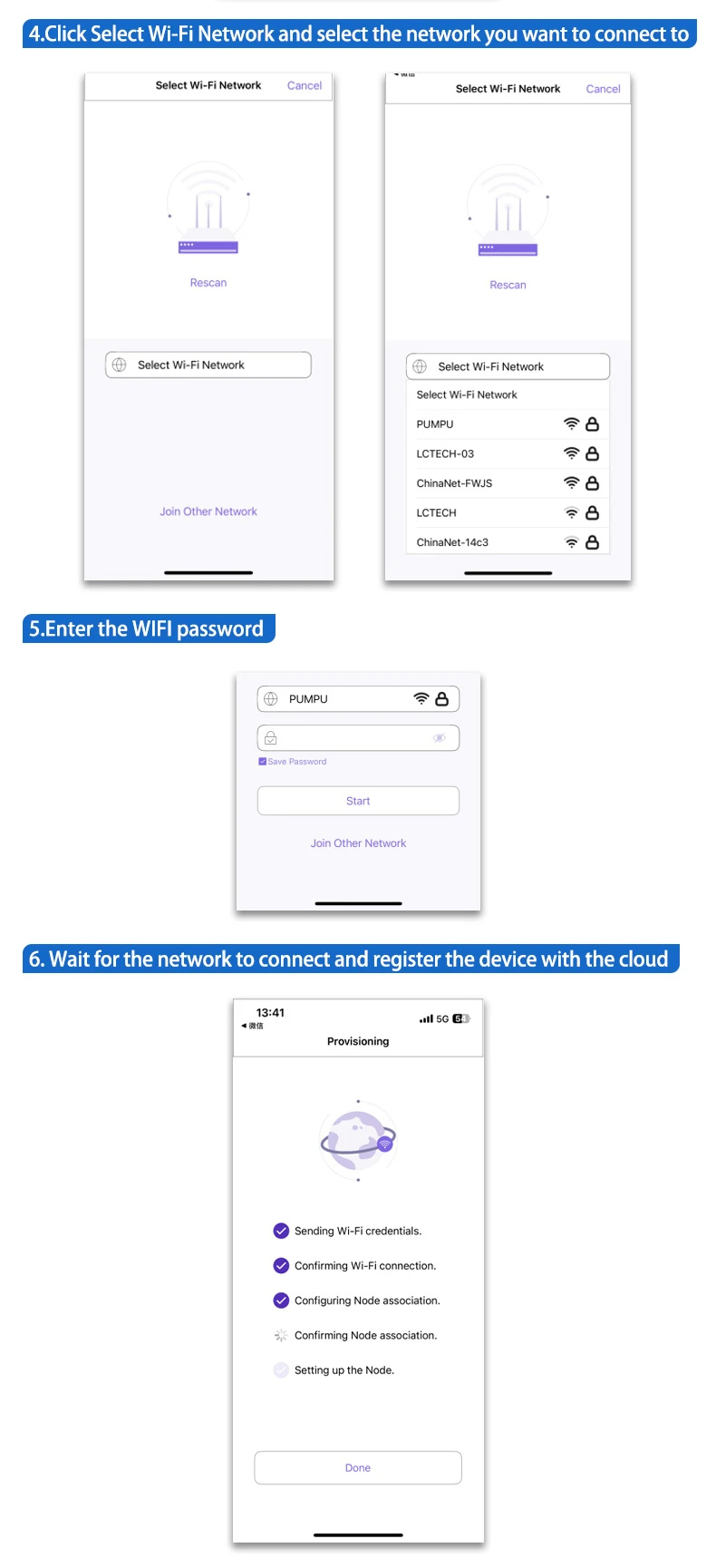

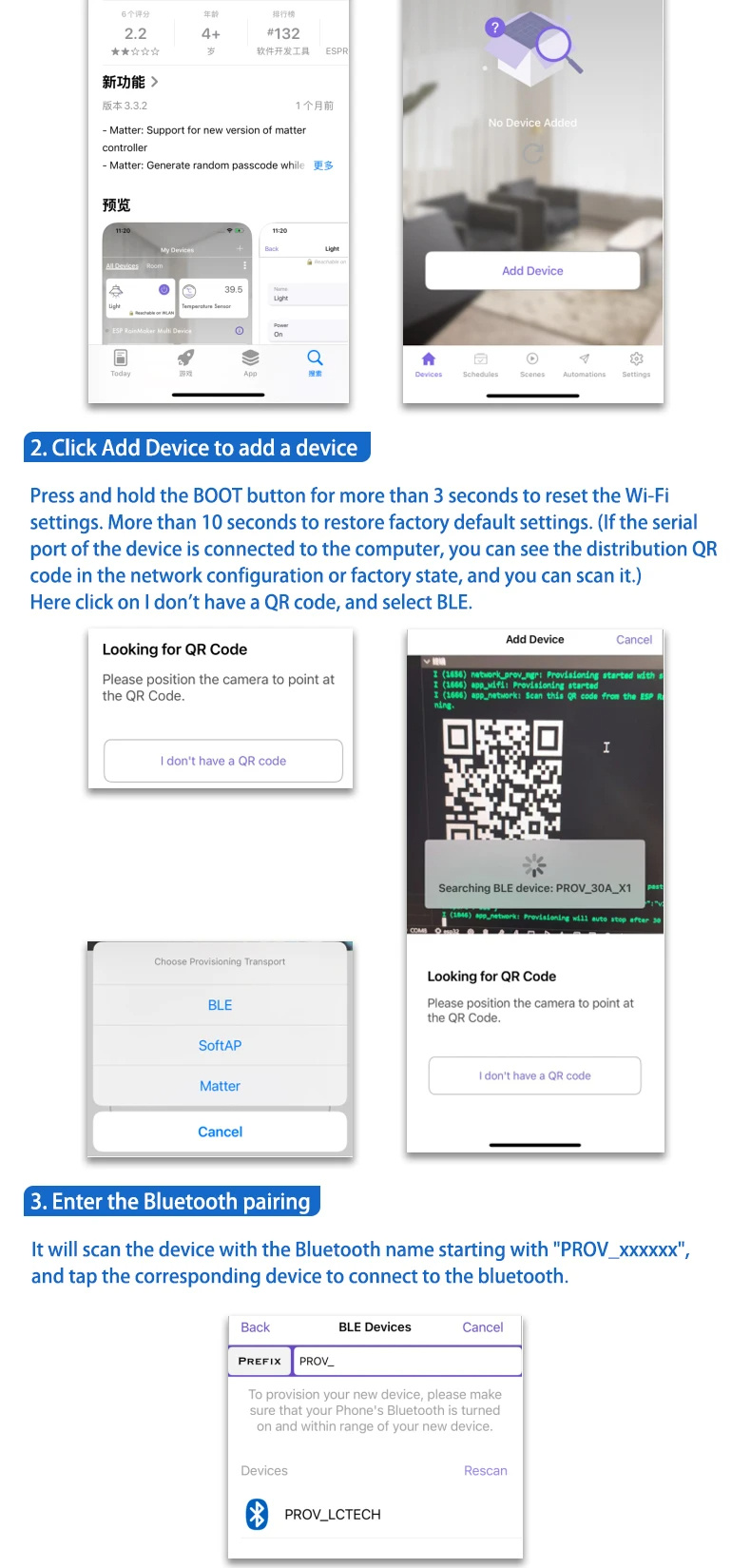

LC provides Espressif System SDK ESP-IDF code. After the program isburned,youcandirectlycontrol theonboardLEDs and relays with your mobile phone,and have functions such as WiFi network configuration and factory reset.
Specification:
Brand: LC
Model: ESP32_Relay_30A_X4

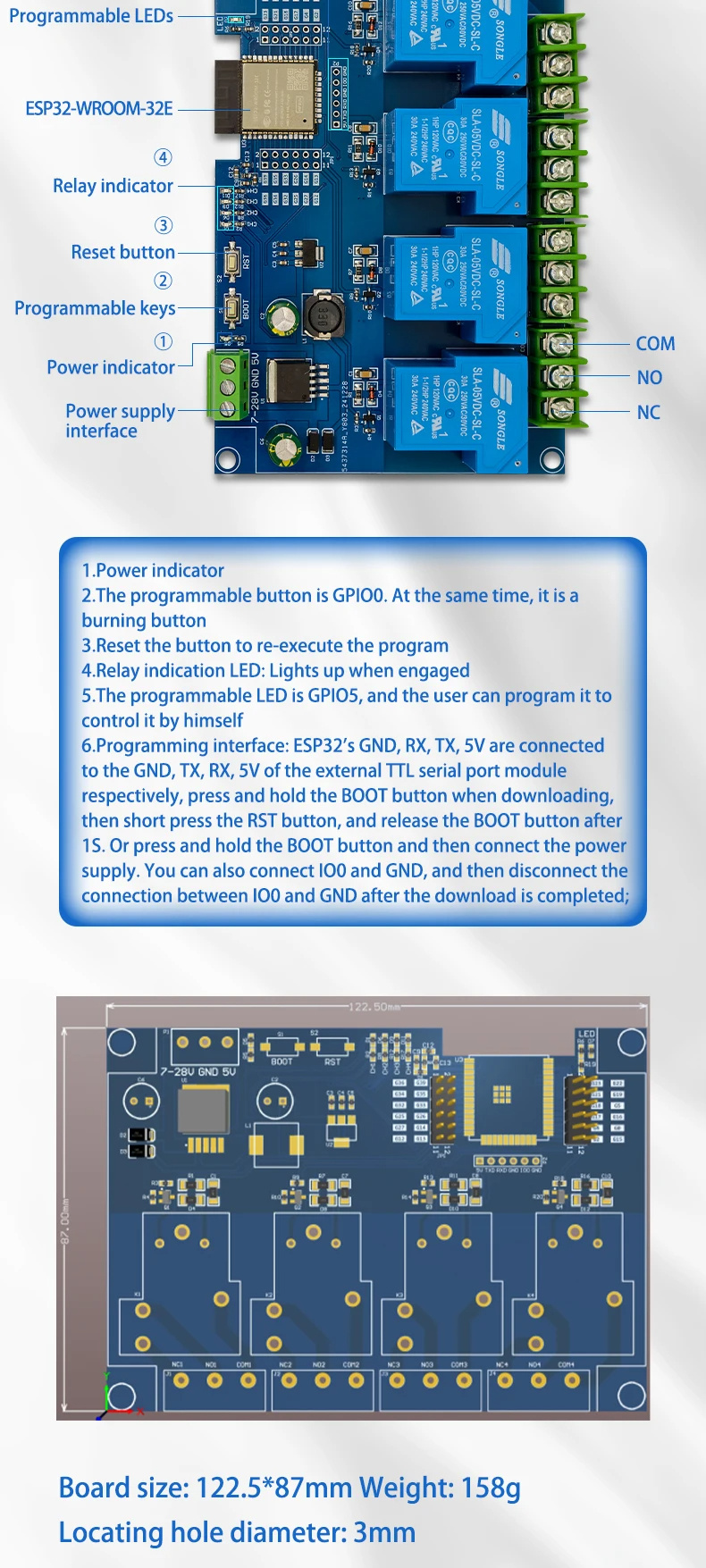

Board Size: 122.5mm x 87mm
Weight: 158g
Locating Hole Diameter: 3mm

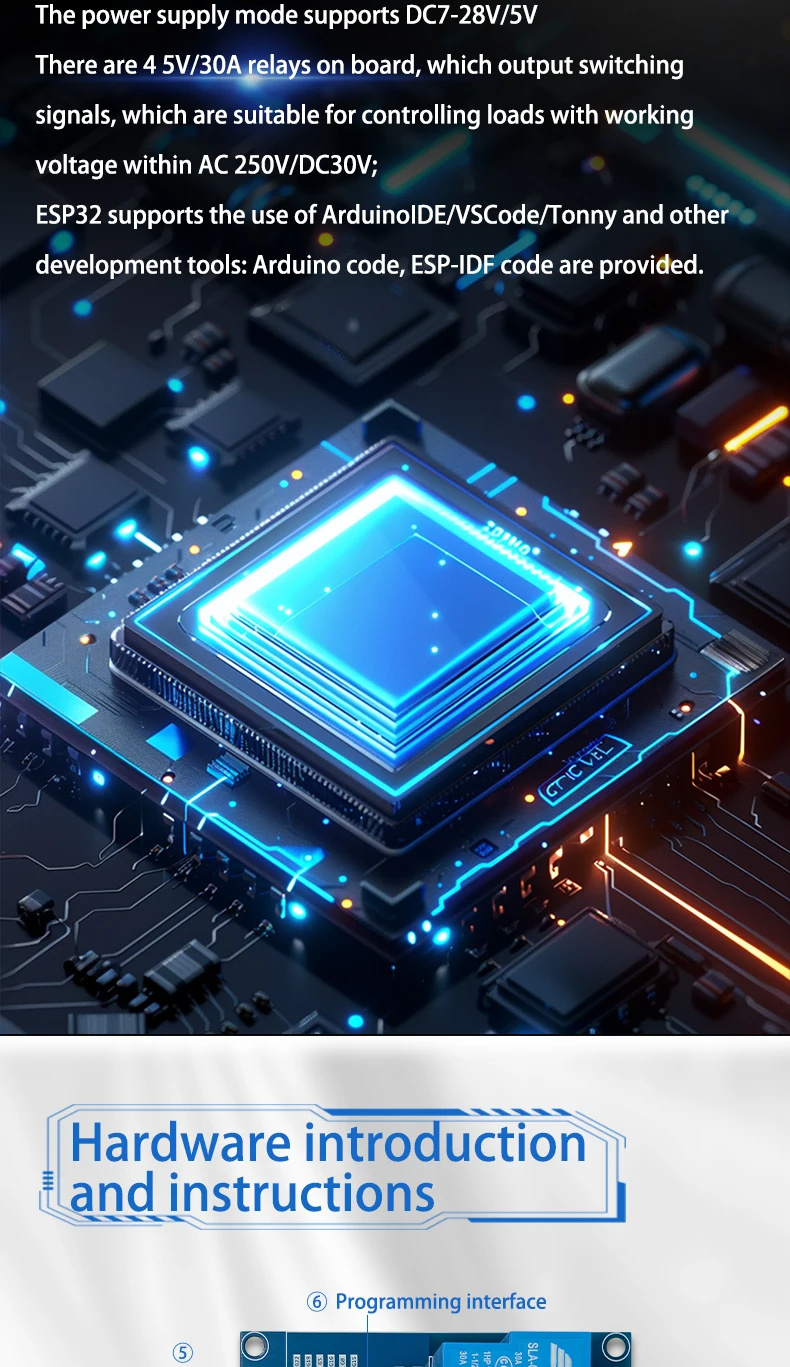

Power Supply: DC7-28V/5V
Relay Specifications: 4 channels, 5V/30A output
Working Voltage: AC 250V/DC 30V
Features:
1. Integrated ESP32-WROOM-32E Module with 4MB flash memory for efficient IoT applications.
2. Wireless Connectivity Options: WiFi and bluetooth supported for seamless communication.
3. Programmable Functions: Includes buttons, LEDs, and reset functionality to facilitate development tasks.
4. Wide Compatibility: Supports ArduinoIDE, VSCode, Tonny, and ESP-IDF SDK for code development flexibility.

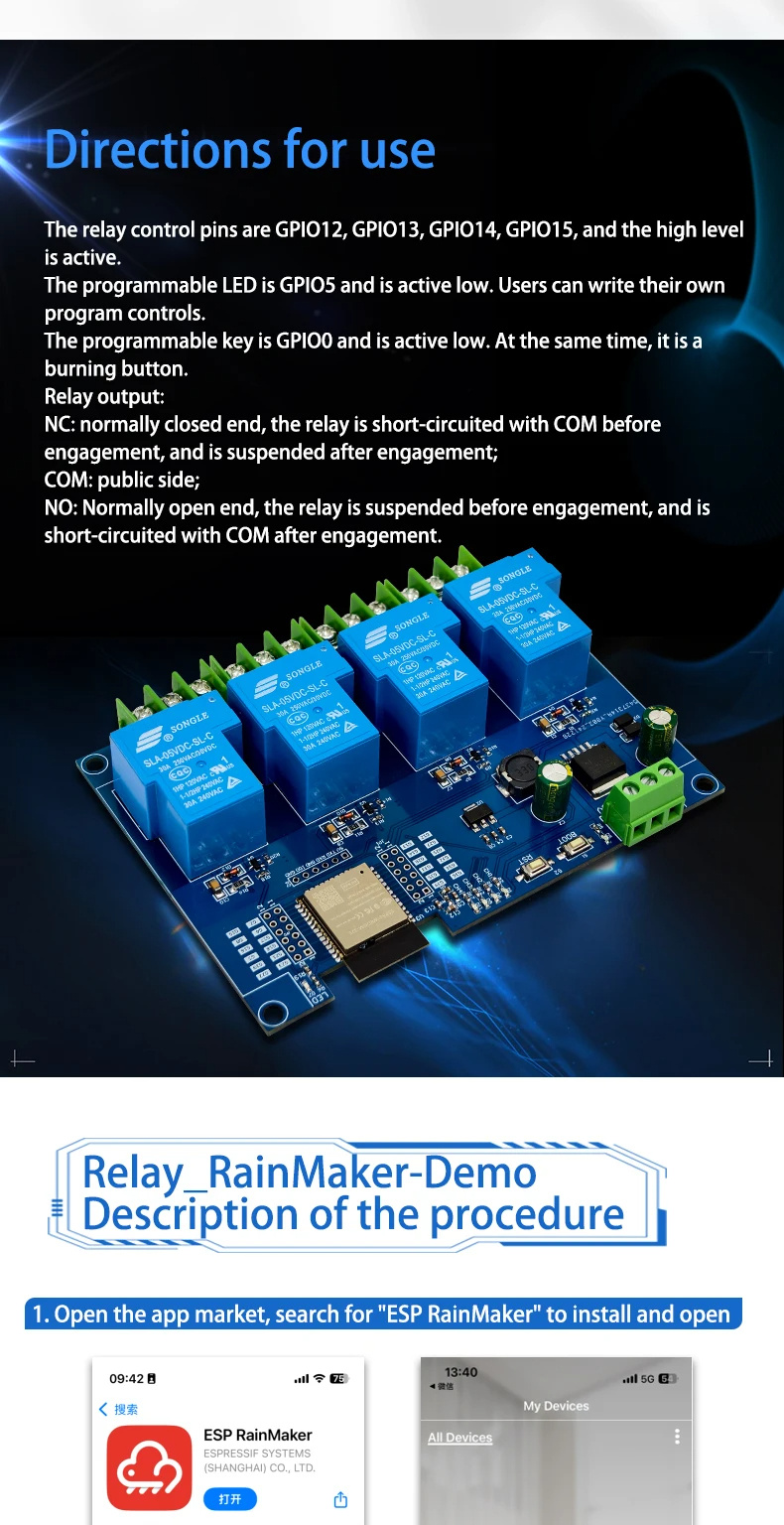

5. Precise Relay Control: Allows switching of loads via GPIO pins with programmable options.

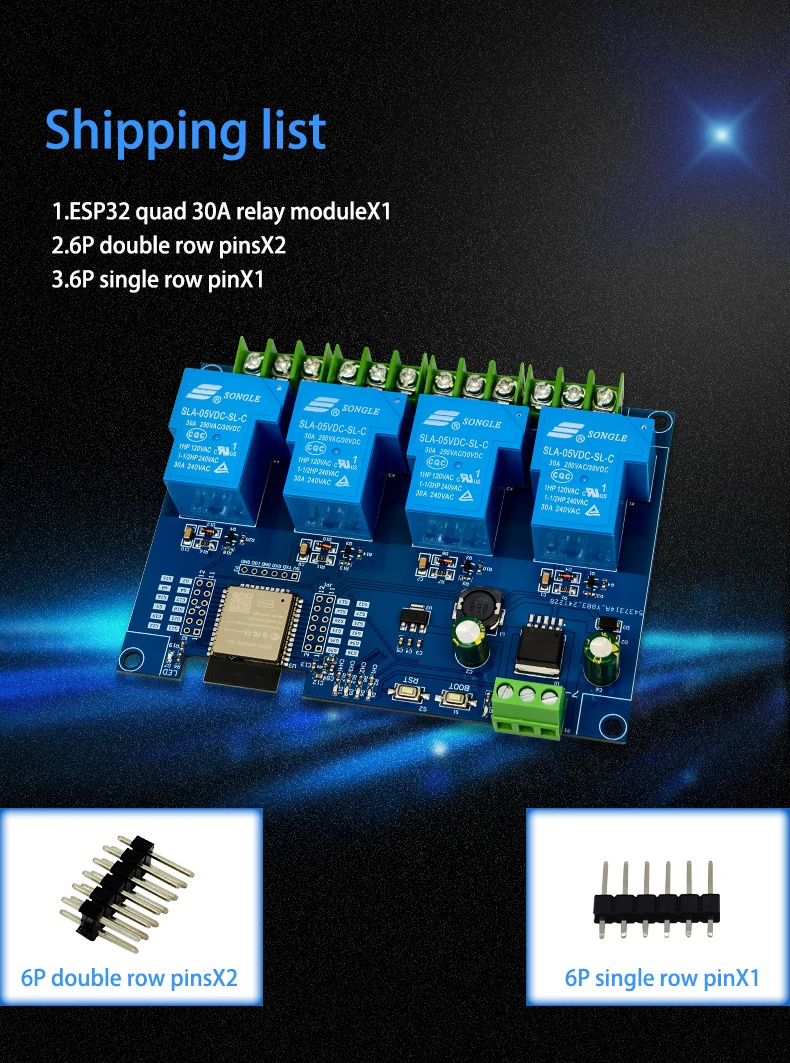

Package Includes:
1x ESP32 quad 30A relay module
2x 6P double row pins
1x 6P single row pin
