Specifications:
Processor: Allwinner H313 Quad-core ARM Cortex-A53
Input Resolution: Maximum 4K@30Hz
Output Resolution: Maximum 1920x1080@30Hz
Interfaces: Micro High-Definition Multimedia Interface port, Type-C USB port for power and UART debugging, H313 Type-C USB 2.0 port (OTG), 10/100M RJ45 LAN port
GPIO interface: 2.54mm 2 x 20Pin with GND, TX0, RX0 pins
TF card slot for KVM system installation
Display: 0.96 inch OLED screen (128x64) with SSD1312 driver chip
Power supply: 5V/2A or higher
Dimensions: 85mm x 56mm, Weight: 42g
Features:
1. Effortless Remote Management
Supports full KVM functionality including remote control of host computers via browsers, enabling seamless operations.
2. High Definition Capability
Supports 4K input at 30Hz and full HD 1080p output at 30Hz, offering high-quality visuals for an enhanced experience.
3. Multi-functional Ports
Equipped with Micro High-Definition Multimedia Interface, Type-C USB, RJ45 LAN, GPIO, and a micro SD card slot for flexible usage and future development opportunities.
4. Integrated OLED Display
The built-in 0.96-inch OLED screen conveniently displays IP address, CPU temperature, and other system vitals, providing real-time monitoring.
5. Compact and Lightweight Design
With dimensions of 85mm x 56mm and a weight of just 42g, this server tool is highly portable and ideal for various deployment scenarios.
Package Included:

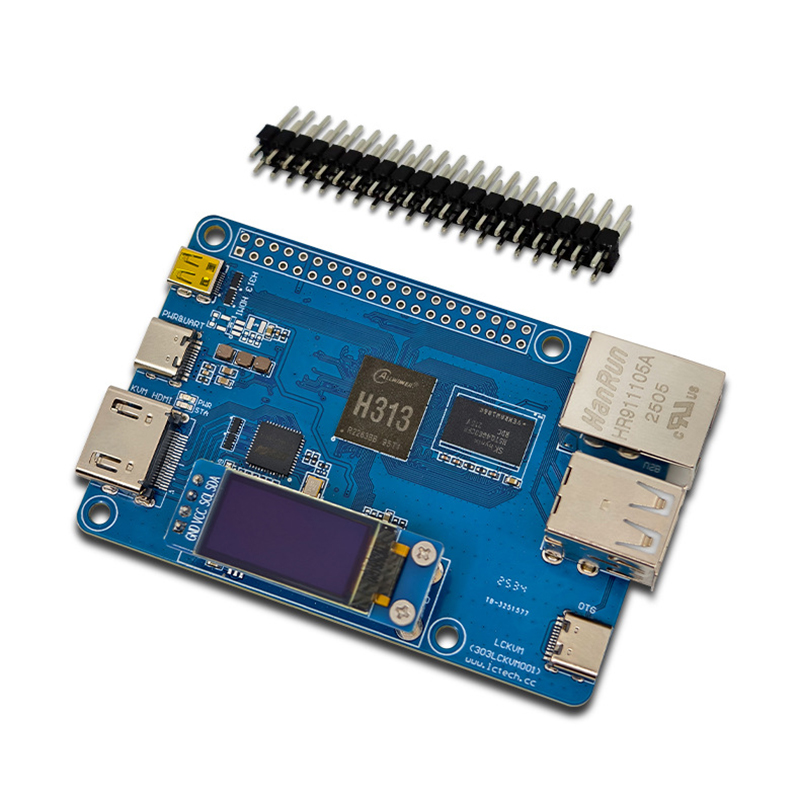

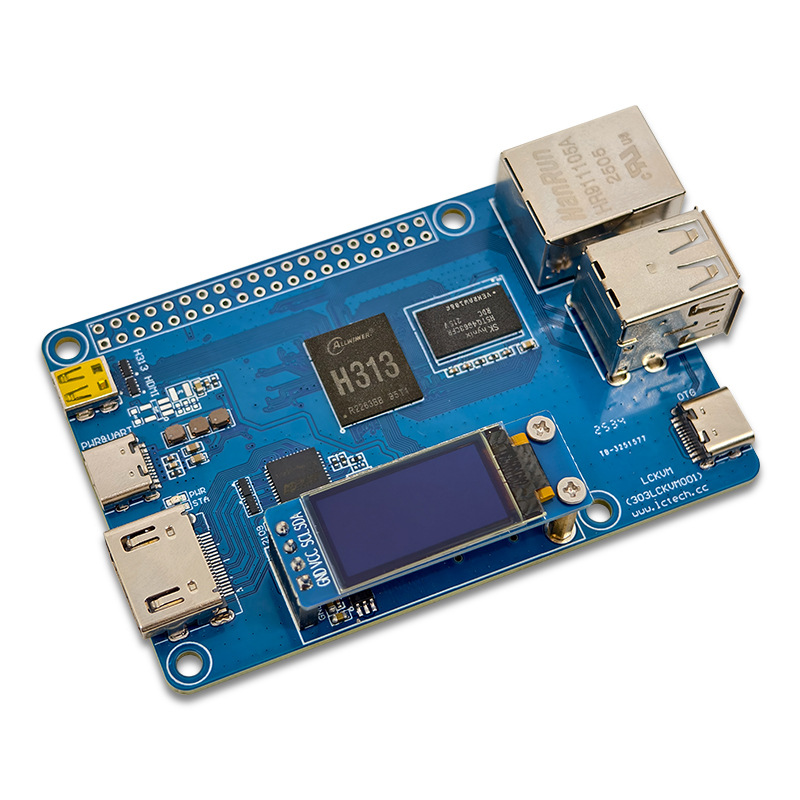

1 x H313 Development Board (LCKVM Server)
1 x 20P Dual-row Pin Header
