Specifications:
Test Parameters: L (Inductance), C (Capacitance), R (Resistance), D (Diode), Q (Quality Factor), ESRD/0/Z/φ
Basic Accuracy: ±0.5%
Equivalent Circuit Modes: Series / Parallel
Test Range Selection: Automatic
Signal Frequencies: 100Hz / 1kHz / 10kHz
Signal Levels: 0.6V / 0.3V / 0.1V RMS
Resistance Measurement Range: 0.01Ω - 20.00MΩ
Capacitance Measurement Range: 0.01pF - 999.9mF
Inductance Measurement Range: 0.1μH - 9999H
D and Q Measurement Range: 0.001 - 9999
Diode Testing Capability: Supported
Display Screen: 1.14-inch color screen, resolution 240 x 135
Test Speed: 2 readings/second
Battery: 300mAh capacity, up to 5 hours usage
Battery Indicator: Supported
Test Signal Configuration: Kelvin test
Features:
1. High Accuracy Performance: Achieve precise results with a ±0.5% basic accuracy, ideal for professional-grade electronics testing applications.
2. Comprehensive Testing Options: Equipped to measure inductance, capacitance, resistance, diode characteristics, quality factor, and more, catering to diverse testing demands.
3. Effortless Operation: Automatic range selection streamlines the testing process, ensuring ease of use across different measurements.
4. Portable and Reliable: Compact design combined with a 300mAh battery capacity offers 5 hours of continuous usage—suitable for prolonged outdoor or on-site operation.
5. Clear Visual Interface: Features a vibrant 1.14-inch color display with 240 x 135 resolution for clear, detailed measurement readings.
Package Included:

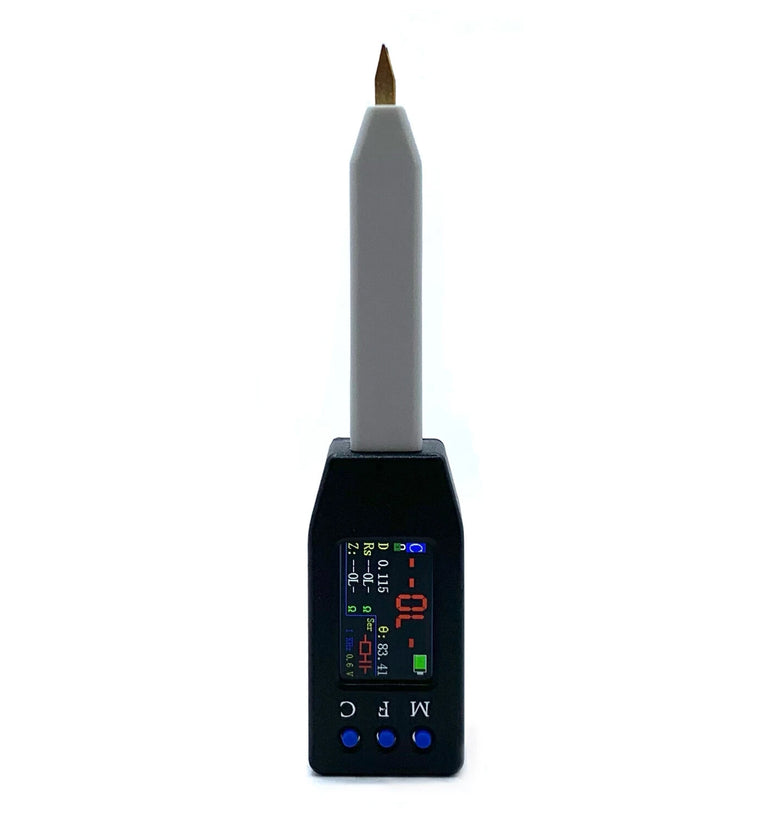

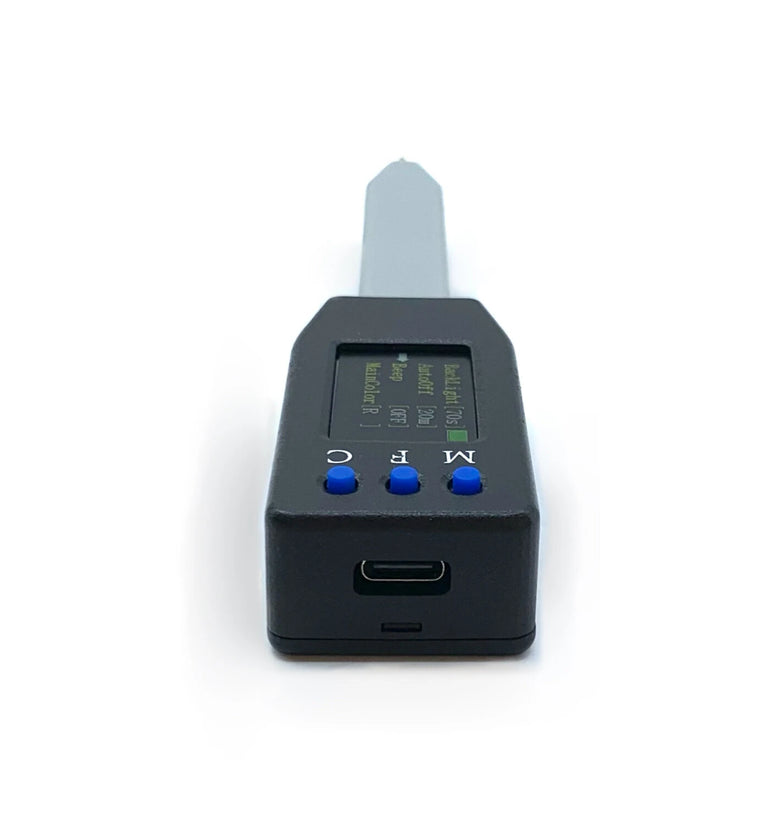

1 x P2 LCR Bridge Tweezers
1 x TYPE-C Charging Cable
