Specification:
Brand: LILYGO®

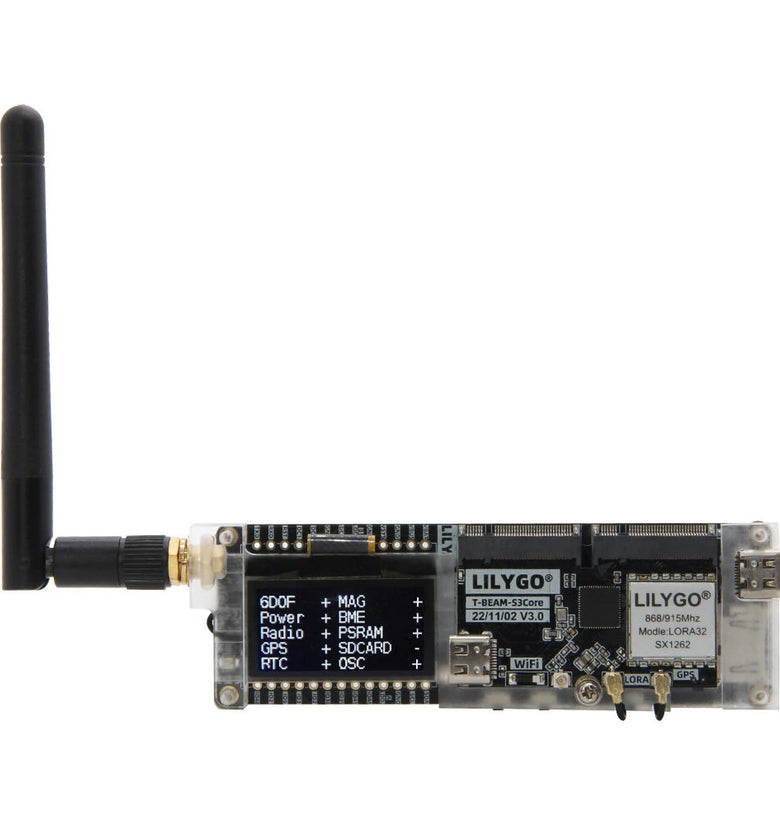

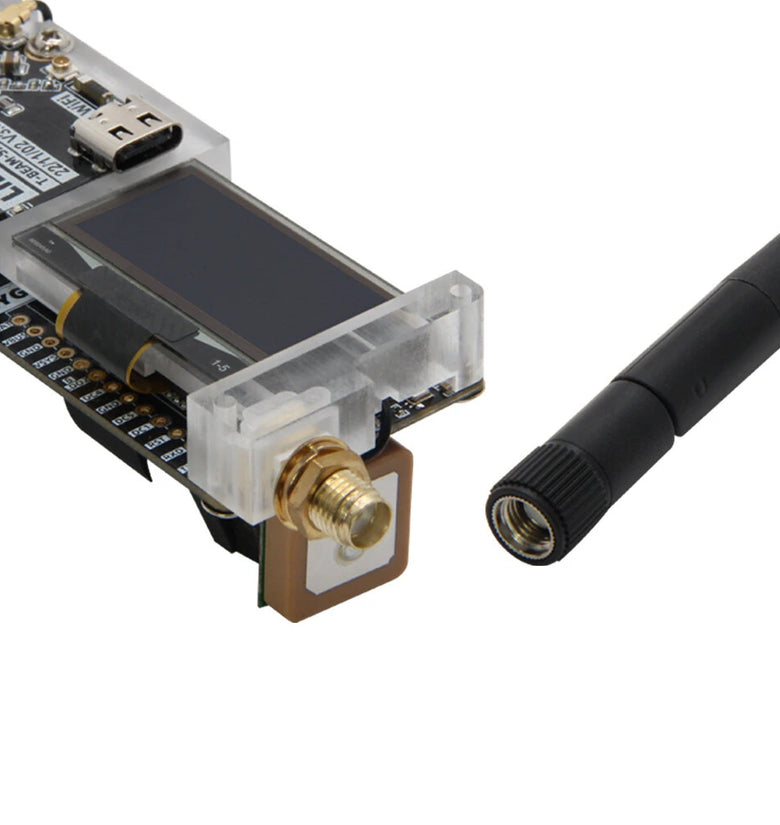

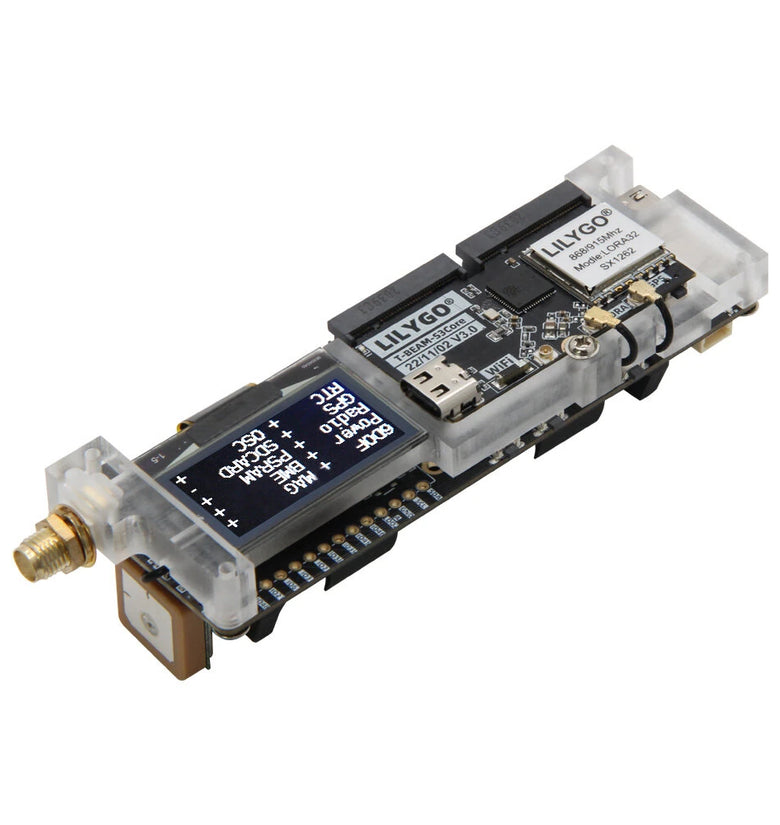

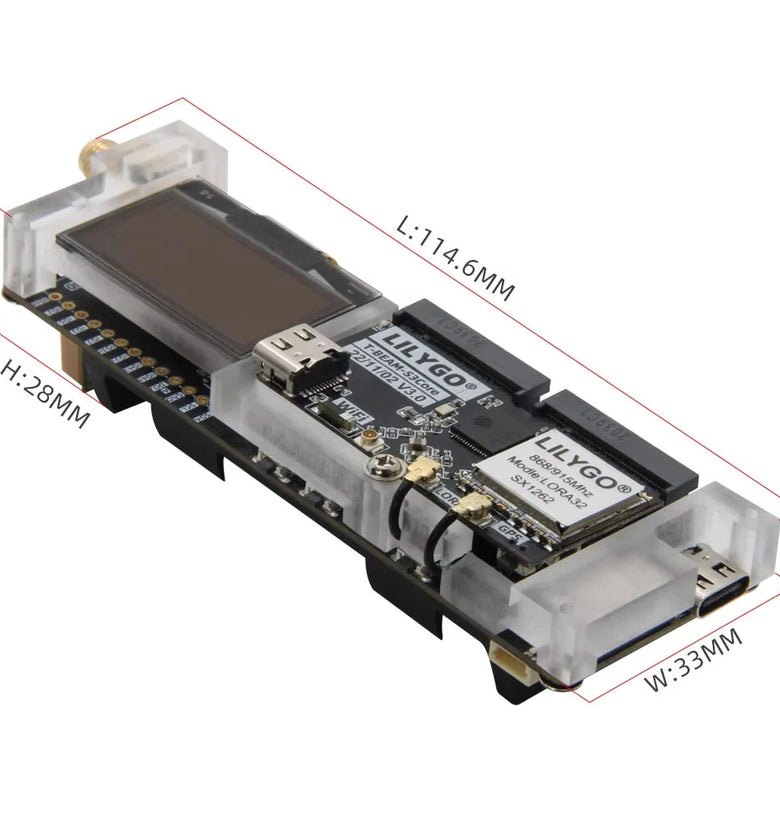

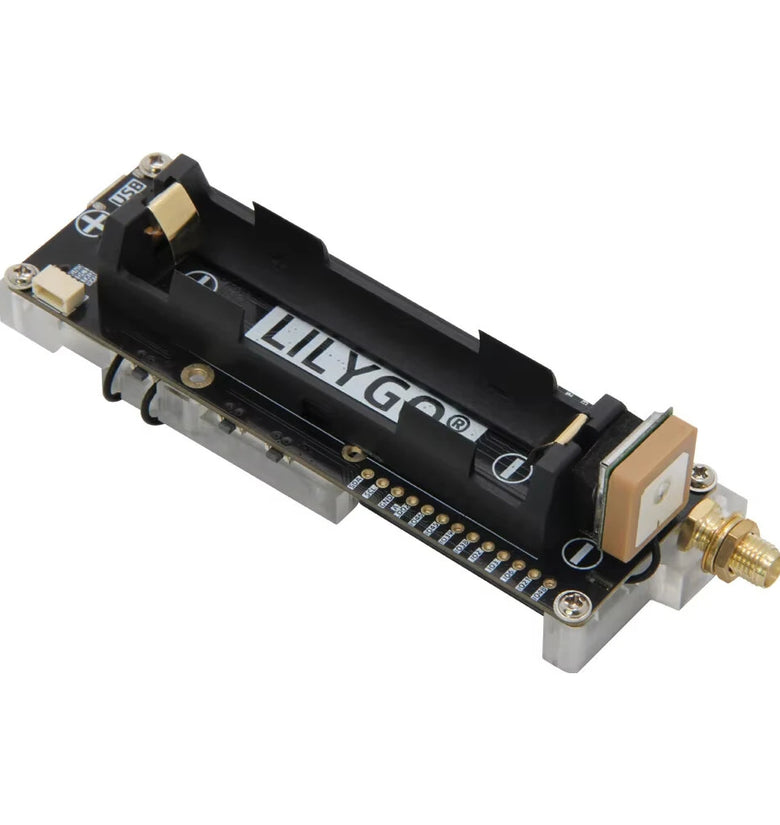

Model: Meshtastic T-BeamSUPREME
T-BEAM-SUPREMEV3:
MCU: ESP32-S3FN8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4 GHz Wi-Fi & bluetooth 5 (LE)
Development: Compatible withArduino, PlatformIO-IDE, MicroPython
Flash Memory: 8MB
PSRAM: 8MB
Onboard Functions: Boot (IO00)+Reset+Power Button
1.3 inch SH1106 OLED:
Interface: I2C
Resolution: 128x64
SDA: IO12
SCL: IO13
LoRa SX1262 Module:
Low power consumption
LoRa receiver & sending
Frequencies: 433/868/915 MHz (optional)
Features:
1. Highly Versatile Development Board: Compatible with multiple development environments includingArduino, PlatformIO-IDE, and MicroPython.
2. Advanced Connectivity Options: 2.4 GHz Wi-Fi and bluetooth 5 (LE) ensure robust wireless communication and data transfer.
3. Integrated LoRa Module: SX1262 LoRa module offers low power consumption and supports multiple frequency bands for expansive range applications.
4. Comprehensive Positioning Support: Integrated L76K GNSS module supports Global Positioning System, Beidou, and GLONASS, facilitating accurate and reliable positioning solution.
5. High-resolution Display: Equipped with a 1.3 inch SH1106 OLED, providing clear and detailed visualization for various applications.
Package Includes:
1x LILYGO® Meshtastic T-Beam SUPREMEESP32-S3 Development Board(optional)
1x Antenna
