Specifications:

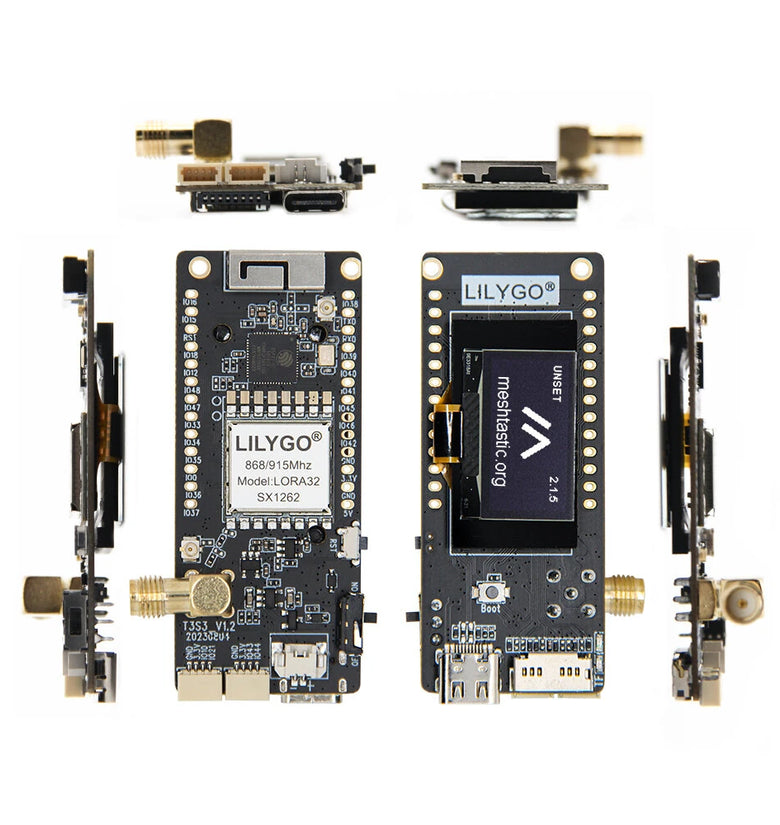

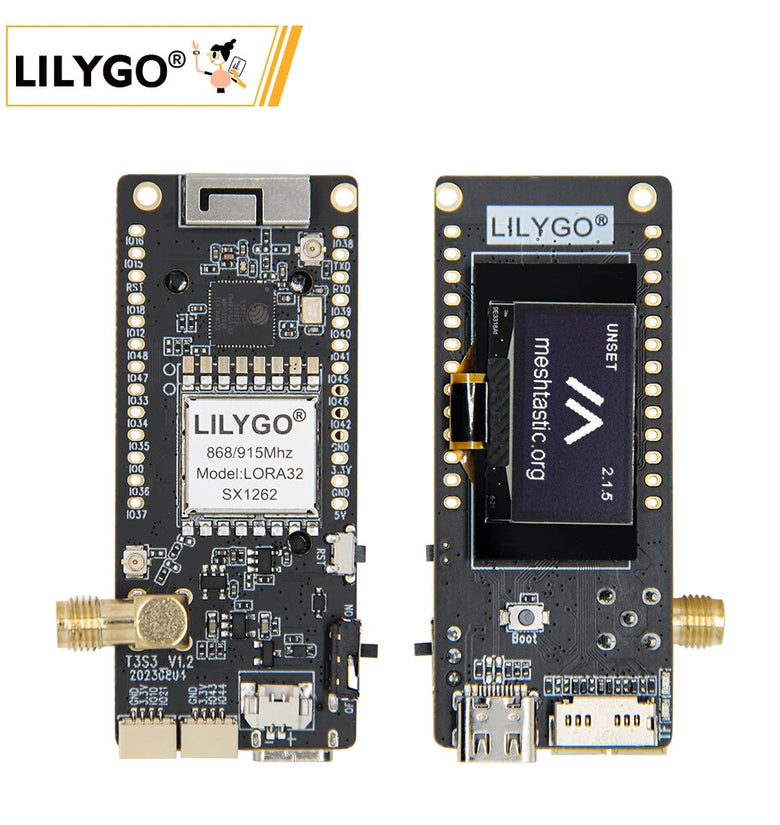

- Model: LILYGO T3 S3 ESP32-S3
- MCU: ESP32S3FH4R2
- Flash: 4MB
- PSRAM: 2MB
- Wireless Protocol: Wi-Fi + Bluetooth 5.0
- Onboard Functions: Reset + Boot Button, TF Card Support, USB/3.7V Lipo Battery Power Supply, Battery Switch

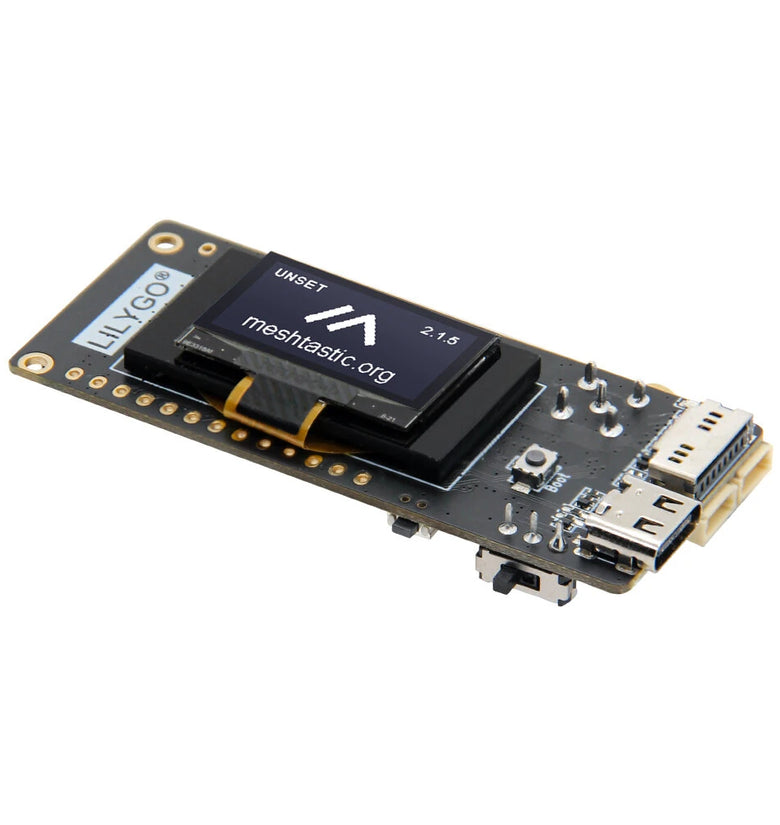

- Display: 0.96 inch SSD1306 Driver I2C OLED
- Resolution: 128x64
- I2C Interface: SDA--IO18 SCL--IO17
- Low Power LoRa Transceiver:
- SX1280:
- Frequency Band: 2.4 GHz
- High Efficiency PA: +12dBm
- Low RX Current: 9.9mA
- SX1276:
- Frequency Band: 868/915MHz
- High Efficiency PA: +14dBm
- Low RX Current: 9.9mA
- SX1262:
- Frequency Band: 868/915MHz
- High Efficiency PA: +22dBm/+15dBm
- Low RX Current: 4.6mA
Features:
1. Advanced MCU: Equipped with the ESP32S3FH4R2, featuring dual-core performance for efficient processing capabilities in complex applications.
2. Wireless Connectivity: Integrated Wi-Fi and Bluetooth 5.0 support ensures seamless communication for diverse IoT projects.
