Specifications:
MCU: ESP32
Flash: 4MB
PSRAM: 8MB
Serial Chip: CH9102
Wireless Protocol: Wi-Fi + Bluetooth 4.2
PMU: AXP2101
Onboard Functions: 3 Buttons (Power + IO38 + Reset)
Antenna: 3D WiFi Antenna (Default), LoRa antenna, Global Positioning System ceramic antenna
Software: Meshtastic
Global Positioning System:
- NEO6M Global Positioning System Module: Support Global Positioning System protocol

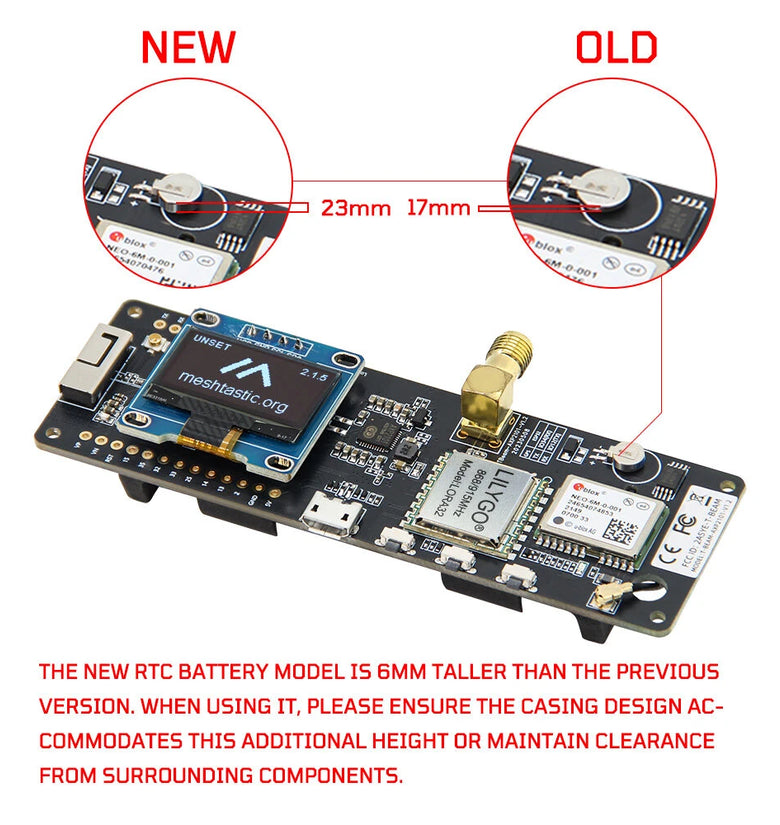

- Onboard RTC crystal: Support interrupt and wakeup
LoRa:
- Long Range Low Power LoRa Transceiver
- High sensitivity: -148dBm
- Transceive rate: 300 kbps
- Optional Hardware Versions: SX1278 (433 MHz), SX1276 (868/915/923 MHz)
Display Details:
- OLED: 0.96 inch
- Driver: SSD1306
Features:
1. Integrated Global Positioning System Module: The onboard NEO-6M Global Positioning System module offers accurate positional data, enhancing your project with reliable location tracking capabilities.
2. Multi-Functional Connectivity: Equipped with Wi-Fi and Bluetooth 4.2, the module provides robust wireless communication options for diverse applications.
3. High-Sensitivity LoRa Transceiver: Achieving up to -148dBm sensitivity, this module ensures extensive and stable long-range communication suitable for IoT networks.
4. Expandable Memory Capabilities: Featuring 4MB Flash and 8MB PSRAM, this module allows for adequate data storage and efficient performance for complex and memory-intensive tasks.
5. Versatile Antenna Options: Comes with three types of antennas (WiFi, LoRa, Global Positioning System) ensuring flexible use across different communication needs and maximizing signal reception.
Package Included:
OLED Not Soldered Version:
1 x T-Beam
1 x Antenna
1 x 0.96 inch OLED
2 x Pin
OLED Soldered Version:
1 x T-Beam (Include Soldered OLED)
1 x Antenna
2 x Pin
