More informationGithub: https://github.com/Xinyuan-LilyGO/T-Deck
Specification:

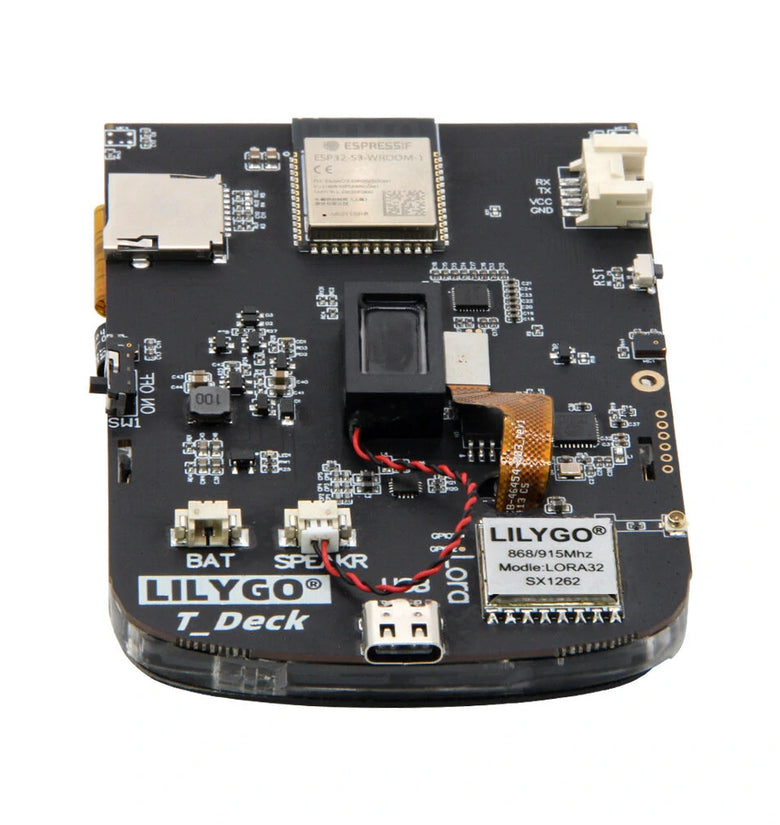

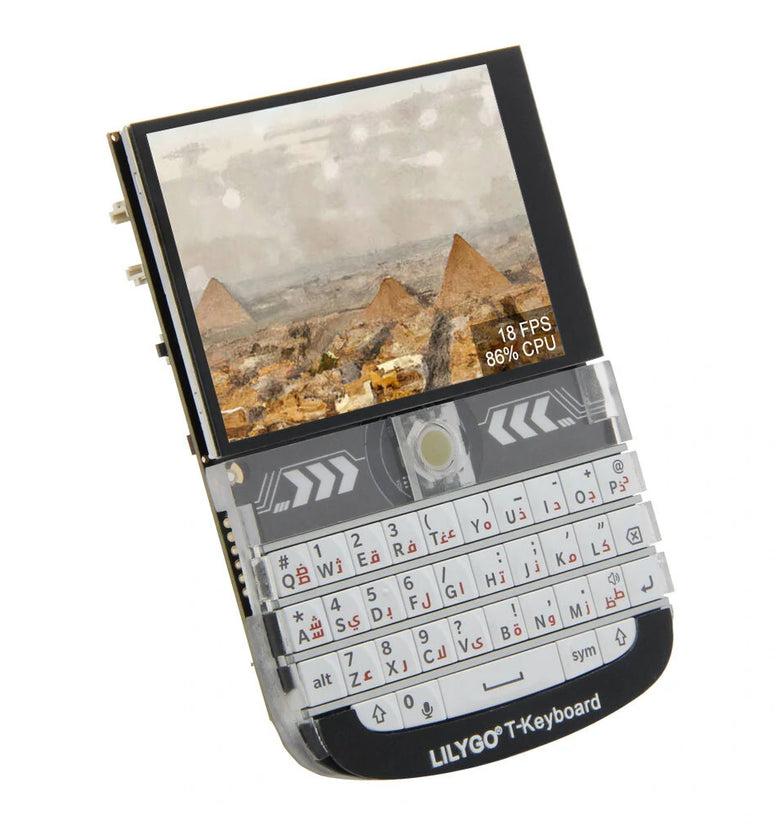

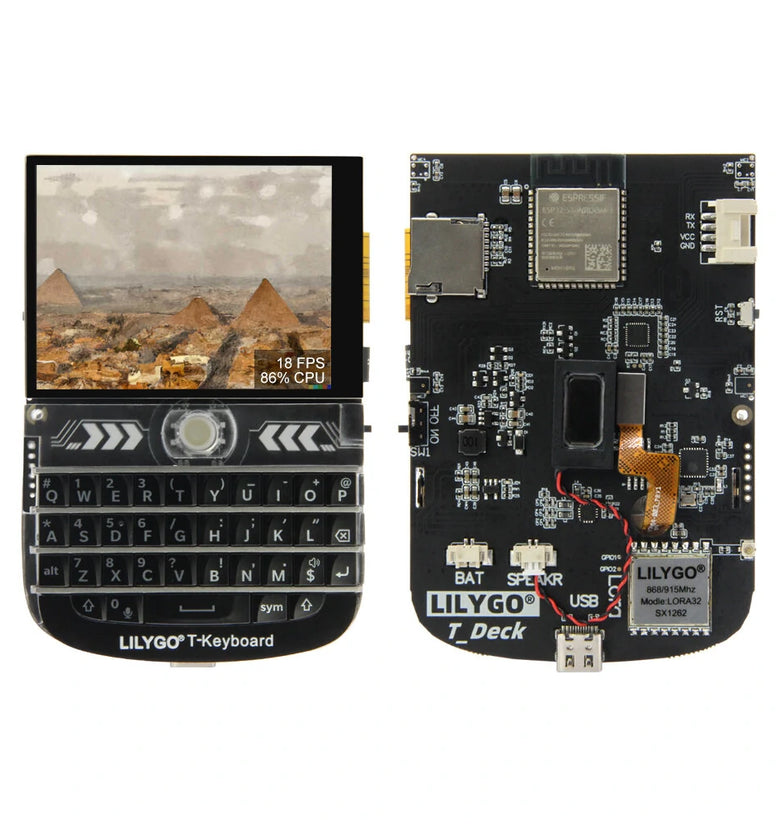

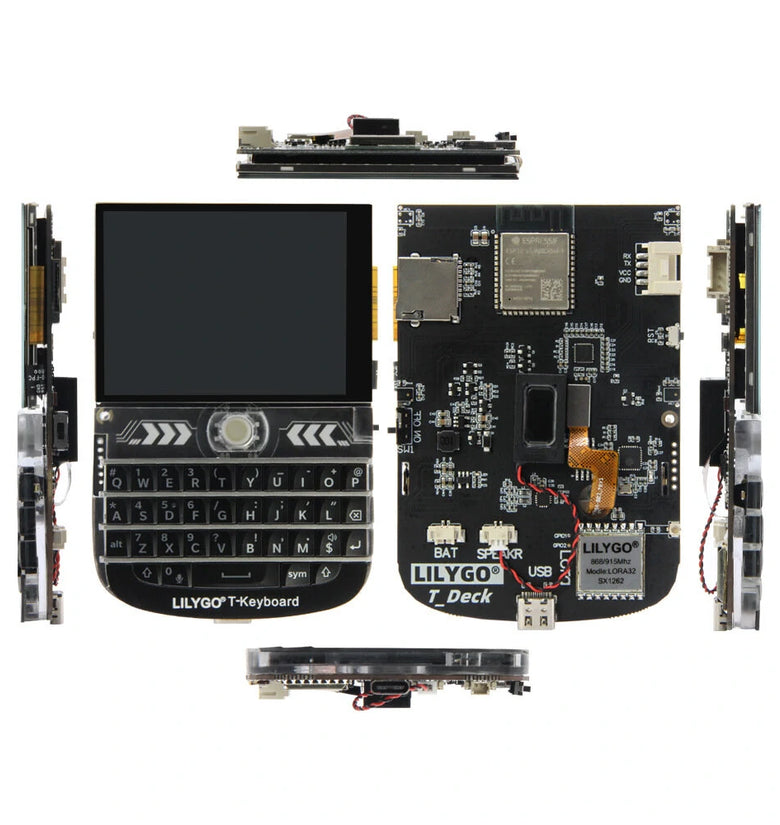

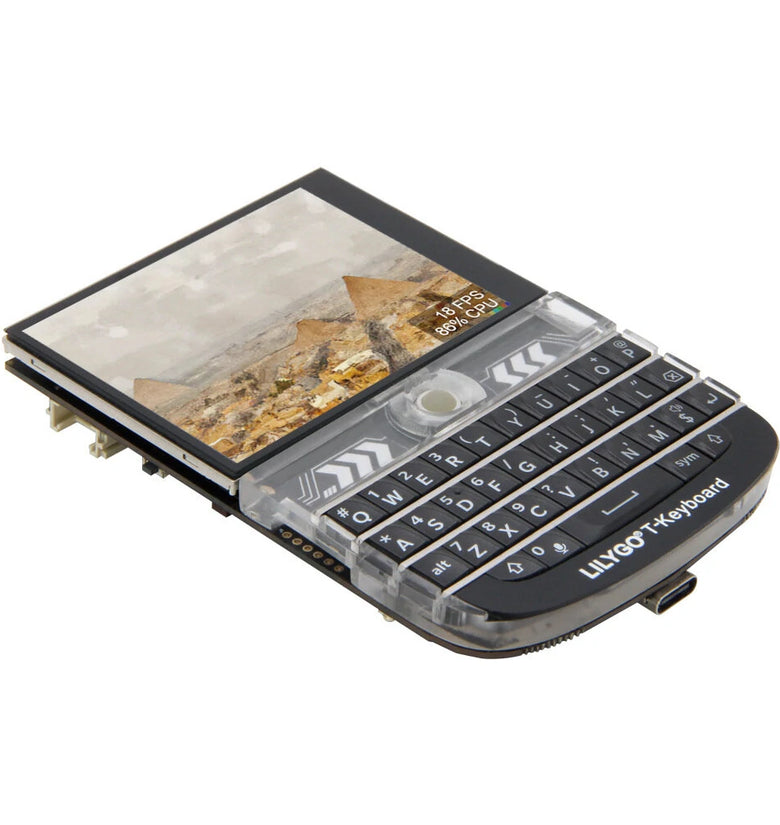

Model: LILYGO® T-Deck ESP32-S3 LoRa Module 2.8 inch LCD Development Board
MCU: ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4 GHz Wi-Fi & bluetooth 5 (LE)
Flash: 16MB
PSRAM: 8MB
Battery ADC PIN: 1O04
Features:
1. Versatile Connectivity: The board is equipped with 2.4 GHz Wi-Fi and bluetooth 5 (LE) capabilities, providing seamless connectivity options for various applications.
2. Long-Range Communication: Incorporating the SX1262 LoRa Transceiver, this development board enables long-range communication over distances of up to 15 km (depending on frequency and environment). Users can choose between 433MHz, 868MHz, or 915MHz frequency options to suit their specific needs.
3. Integrated LCD Display: Featuring a 2.8-inch ST7789 SPI Interface IPS LCD with a resolution of 320 x 240, the board provides a clear and vivid display for various graphical interfaces and data visualization.
4. Onboard Peripherals: The board comes with several useful onboard peripherals, including a trackball for easy navigation, a microphone for audio input, and a speaker for audio output, enhancing its versatility and ease of use.
5. Development Compatibility: Developers can work with familiar platforms like Arduin0, PlatformIO-IDE, and Micropython, offering flexibility in programming and ease of integration with existing projects.

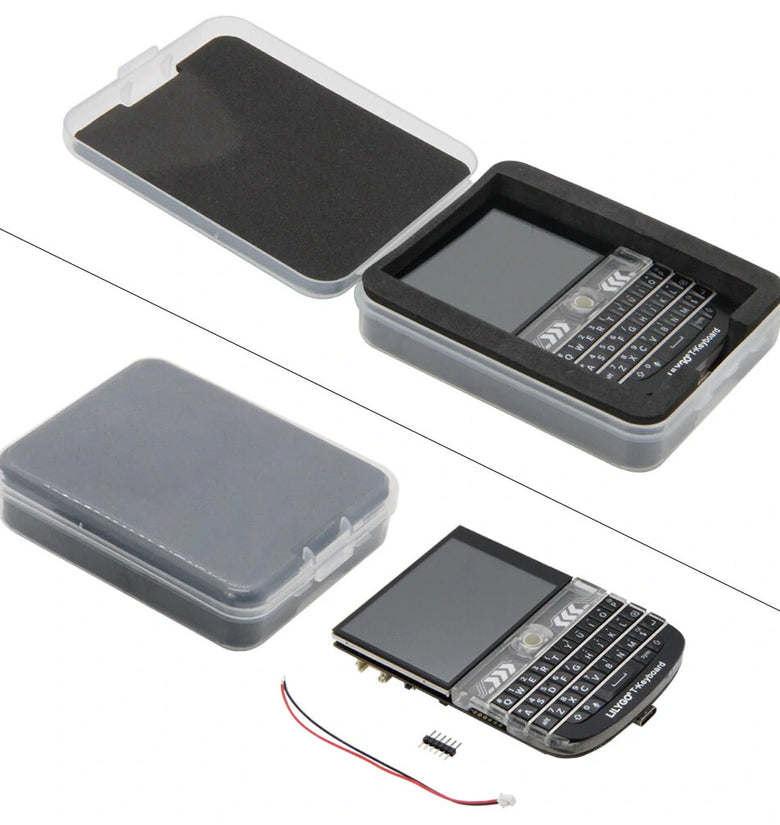

Package Include:
【with LoRa】
1x T-Deck
1x Pin(6pin)
1x Power Cable
1x FPC Antenna (433/868/915Mhz optional)
【without LoRa】
1x T-Deck
1x Pin(6pin)
1x Power Cable
