Specifications:

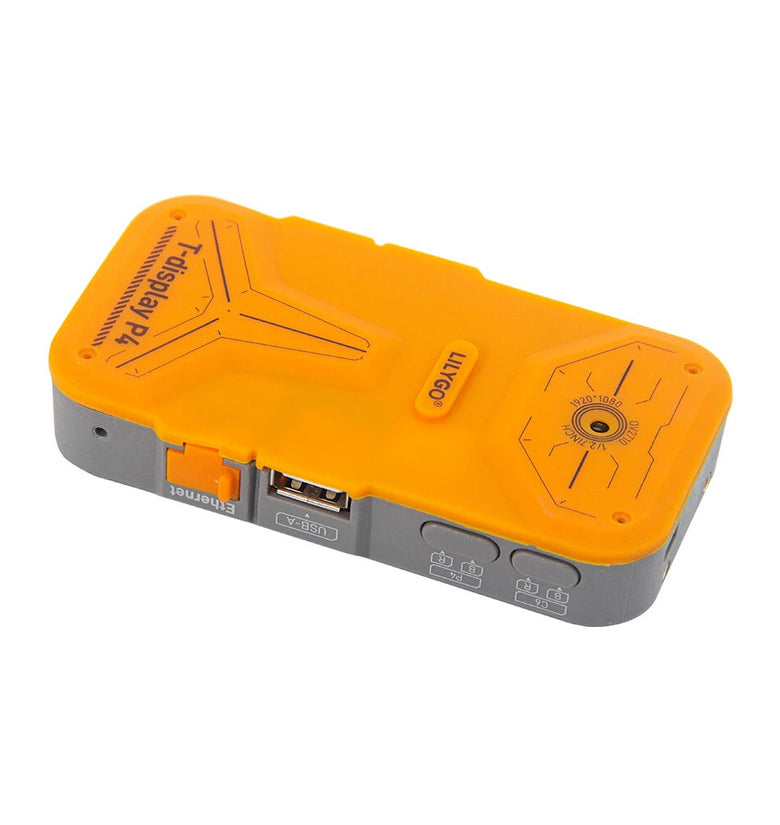

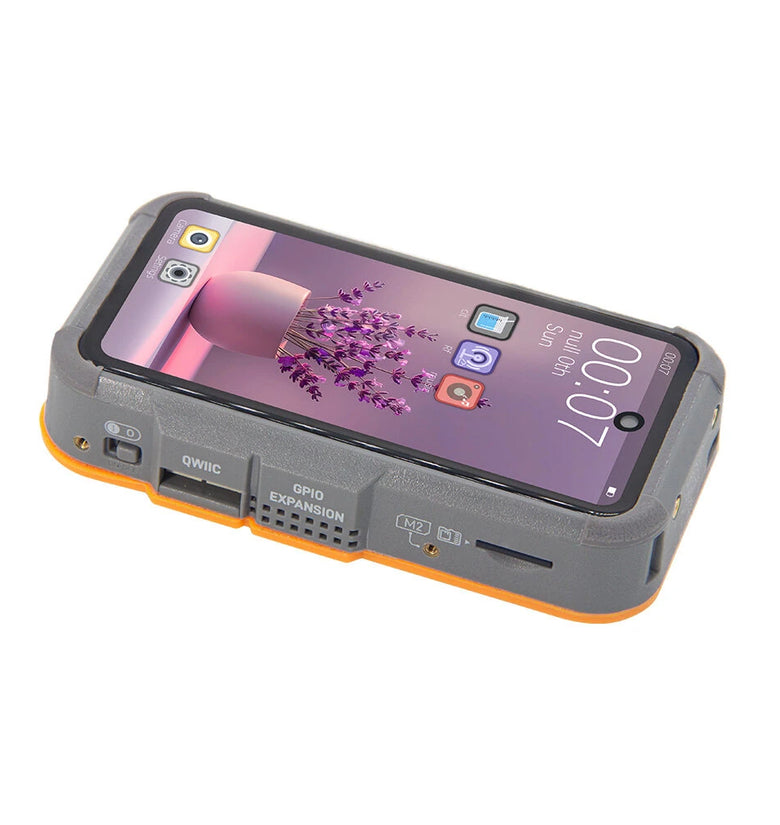

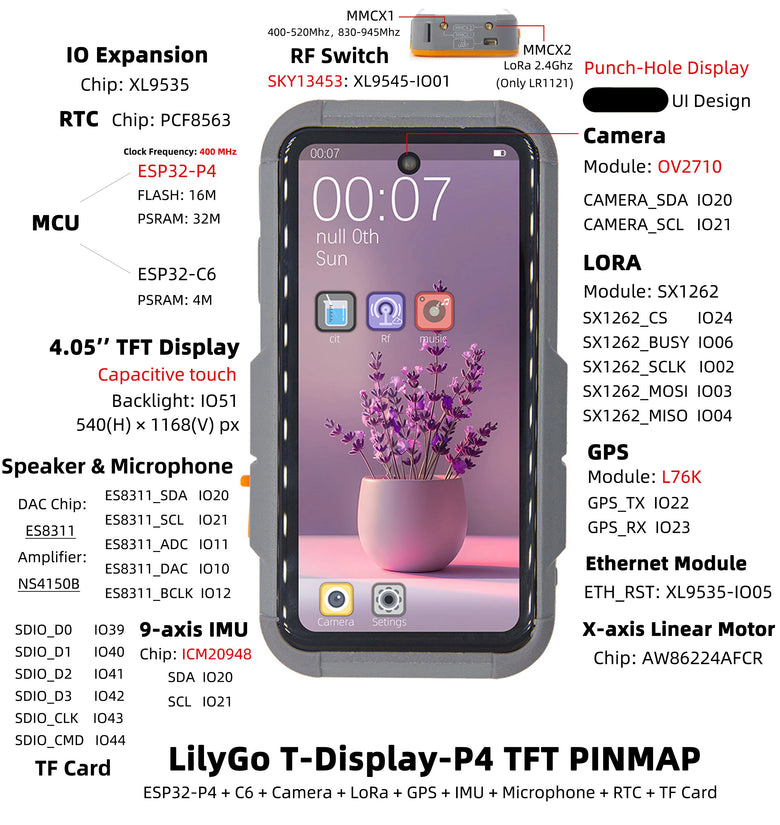

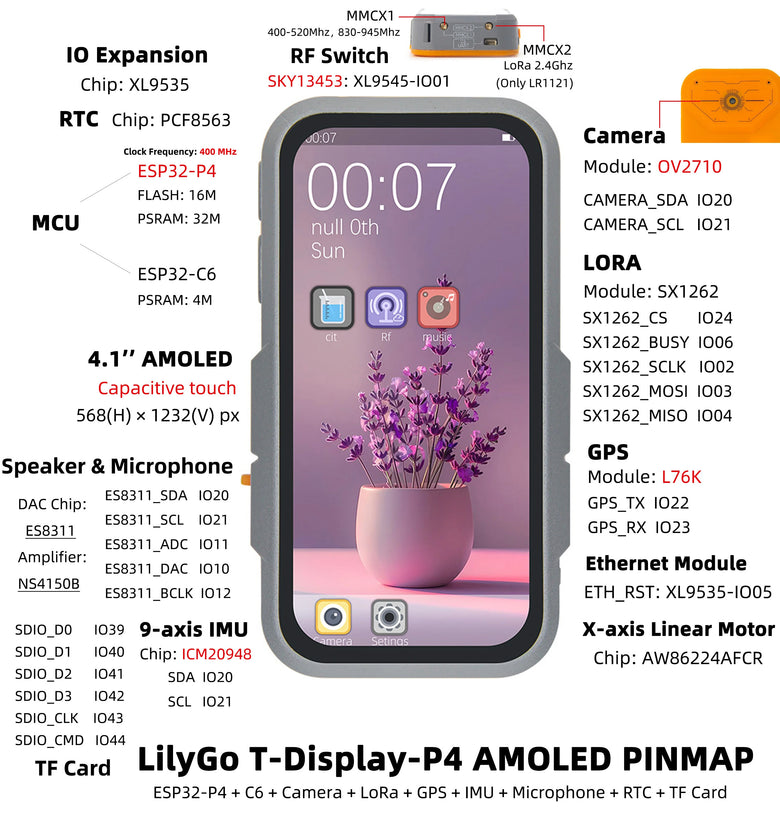

Model: LILYGO T-Display-P4 (two versions: 4.1' AMOLED or 4.05' TFT optional)
Main MCU: ESP32‑P4, RISC‑V dual‑core up to 360 MHz + single 40 MHz
Co‑MCU: ESP32‑C6 with 2.4 GHz Wi‑Fi 6 (802.11ax) and Bluetooth 5 LE
Memory: 16 MB Flash, 32 MB PSRAM
Display: Capacitive touch; AMOLED 4.1' (ultra‑high contrast) or TFT 4.05' punch‑hole
Camera: 2 MP MIPI (OV2710), 1080p@30 fps or 720p@60 fps; AMOLED version uses rear camera, TFT version uses front camera
Media engine: JPEG codec, ISP, PPA, H.264 encoder; MIPI CSI/DSI

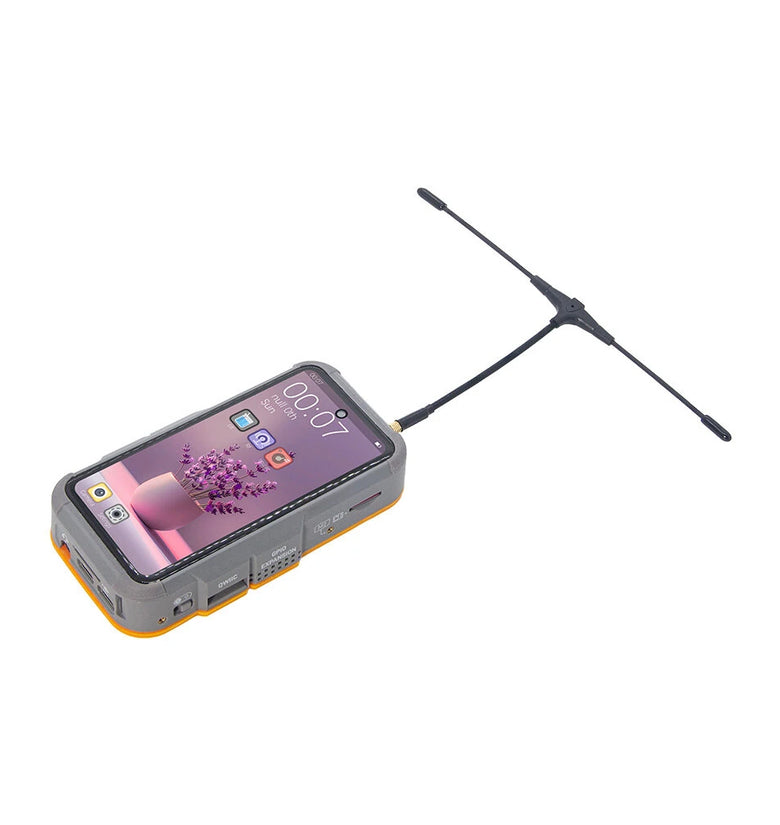

Wireless long‑range: LoRa SX1262, bands 400–520 MHz and 830–945 MHz; MMCX antenna port; optional 2.4 GHz LoRa (LR1121)
Audio: I2S speaker and microphone, audio jack
Sensors: 9‑axis IMU (ICM20948) with DMP
I/O & storage: microSD (TF) card slot; SPI and GPIO expansion; XL9535 16‑bit GPIO expander; external keyboard connector
Other onboard: RTC, vibration motor, Ethernet interface, battery switch
Power & charging: USB charging 5 V, 500 mA; charge IC LGS4056H; battery gauge BQ27220
USB & ports: High‑speed USB‑A plus basic USB (dual USB), MMCX antenna connectors

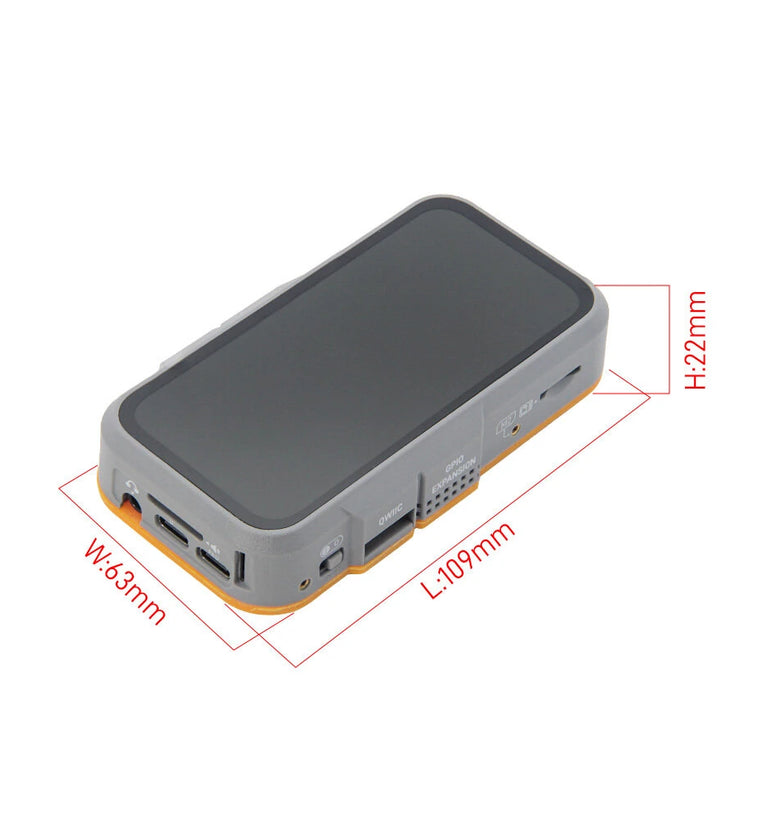

Size: 63 x 109 x 22 mm
Software support: ESP‑IDF, VS Code
Features:
1. Dual‑MCU architecture: ESP32‑P4 for imaging and audio, plus ESP32‑C6 for Wi‑Fi 6 and BLE—built for responsive, connected projects.

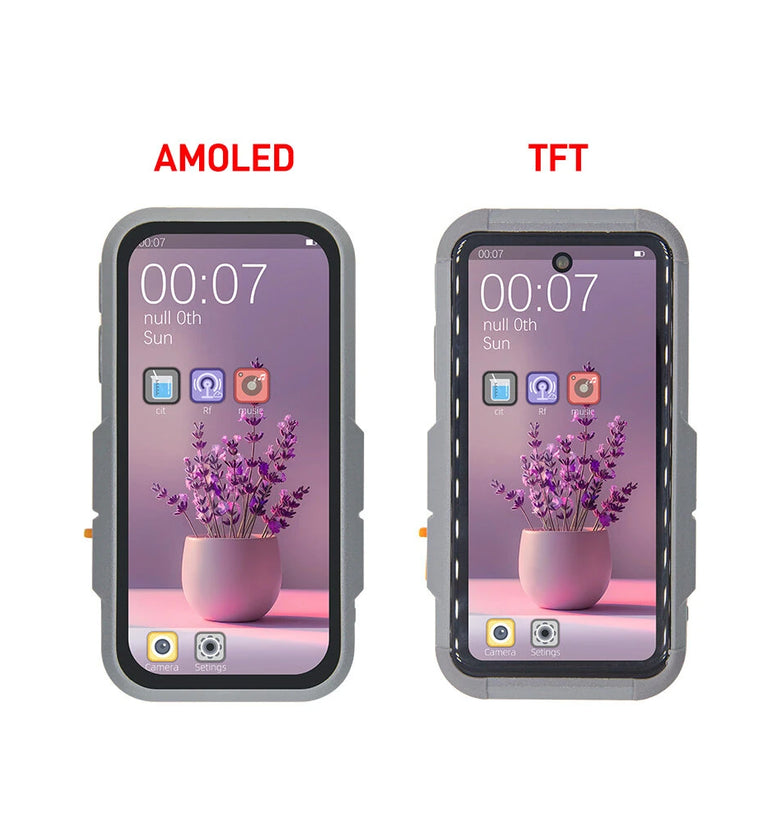

2. Two display choices: 4.1' AMOLED with rear camera or 4.05' punch‑hole TFT with front camera; both are capacitive touch.
3. Video‑ready: OV2710 2 MP MIPI camera, hardware JPEG and H.264 encode, and MIPI CSI/DSI for smooth image and video applications.
4. Connectivity built in: Multi‑band LoRa SX1262, optional 2.4 GHz LoRa, Wi‑Fi 6, BLE, Ethernet, microSD, dual USB, and audio jack.
5. Rich peripherals: I2S speaker/mic, vibration motor, RTC, 9‑axis IMU, XL9535 GPIO expander, and external keyboard header with 16 MB Flash + 32 MB PSRAM.
Package Included:
1 x T-Display-P4
