Github: Click here to open3D printing files

Note 1: The version 'without base' does not include the 3D printed back cover, if you need please print it yourself.

Note 2: All versions do not include batteries.

Note 3: The version 'with base shell' does not include the speaker.

Specifications:
Type: Without/Wtih Base Shell (optional)
MCU: ESP32-S3
Material: ABS+PC (optional translucent version)
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth Mesh
Display: 1.9-inch IPS color TFT LCD
Model: ST7789
Brightness: 350 (typical) Cd/m2
Resolution: 170(H)RGB x 320(V)
Rotary Encoder: Integrated encoder and confirmation key with 24 detents and 12 pulses per 360° rotation
Microphone: Dual microphones (x2)
Speaker: 8 ohm @ 1W
Ring RGB Lights: 7 LEDs
Expansion Port: GROVER x 1
Interface: 2.54 x 8-pin GPIO
Storage: TF card holder
Power Port: Type-C USB
Battery Circuit: Protection for charge and discharge via 1.25mm battery interface

Features:
1. Integrated IoT Panel for Seamless Development: Combining an ESP32-S3 MCU, wireless connectivity, and standardized design, it allows developers to embed IoT functionality directly into their products with ease.
2. Enhanced User Interaction via Rotary Encoder: The rotary encoder with confirmation key simplifies navigation and control with precise 24-detent feedback and 12 pulses per rotation.
3. High-Quality Display for Clear Visuals: Equipped with a 1.9-inch IPS TFT LCD boasting a resolution of 170(H)RGB x 320(V) and typical brightness of 350Cd/m2, ensuring sharp and vivid visual outputs.
4. Built-in Audio and Visual Components: Dual microphones, an 8-ohm speaker, and 7 RGB ring lights provide flexible options for sound and light integration, plus interactive capabilities for smart applications.
5. Versatile Expansion and Power Interface: Features GROVER port, GPIO interface, TF card holder, and Type-C USB, all packed with robust battery protection for flexible connections and safe energy use.

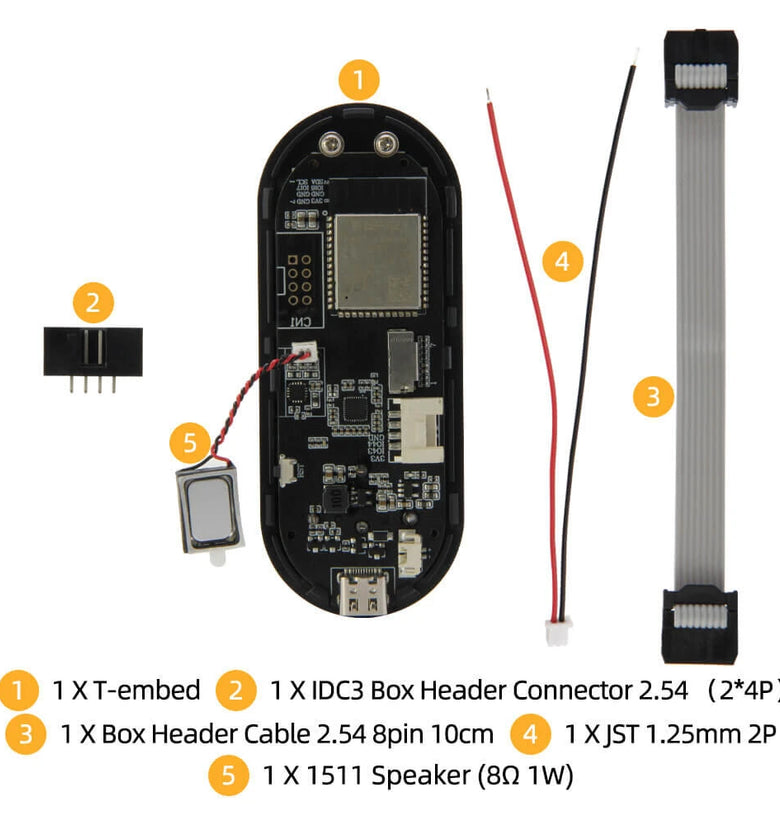

Package Included:
1 x Embedded IoT Panel Kit (without base shell)
or
1 x Embedded IoT Panel With Shell Kit

Note: The NFC card for reference only
